In the intricate world of automotive engineering, every component plays a vital role in ensuring the smooth and efficient operation of your vehicle. Among these often-overlooked heroes is the fuel pulse damper (FPD). You might not think about it, but this small yet significant device is instrumental in maintaining the stability and consistency of your fuel system. Without it, your engine could suffer from erratic behaviour, reduced performance, and even potential damage. This article delves deep into the necessity of fuel pulse dampers, explaining their function, the problems they solve, and why they are an indispensable part of modern fuel injection systems.
Understanding the Pressure Pulsations
Modern vehicles rely on sophisticated fuel injection systems to deliver precise amounts of fuel to the engine's cylinders. At the heart of this system are the fuel injectors. These are essentially electronically controlled valves that open and close rapidly, spraying atomised fuel into the combustion chamber. The action of these injectors opening and closing, especially when they do so in quick succession, creates significant pressure fluctuations, or pressure pulses, within the fuel rail. The fuel rail is the conduit that supplies fuel to all the injectors.
Imagine a tap that is turned on and off very quickly. Each time you turn it on, you send a surge of water through the pipe, and each time you turn it off, you create a momentary drop. Now, imagine this happening multiple times per second, with several taps operating independently. The water pressure in the pipes would become very unstable, with constant ups and downs. The same principle applies to your car's fuel system, albeit with fuel and at much higher pressures.
The Consequences of Unstable Fuel Pressure
Unstable fuel pressure can lead to a cascade of problems for your engine. When the pressure fluctuates, the amount of fuel being injected into the cylinders also varies. This inconsistency can result in:
- Poor Engine Performance: The engine management unit (ECU) relies on a steady fuel pressure to calculate the correct amount of fuel to inject for optimal combustion. If the pressure is too high or too low, the air-fuel mixture will be incorrect, leading to a loss of power, hesitation, and rough idling.
- Increased Emissions: An incorrect air-fuel ratio can cause incomplete combustion, leading to higher levels of harmful emissions being released into the atmosphere.
- Potential Engine Damage: In extreme cases, prolonged periods of lean fuel conditions (too much air, not enough fuel) can cause engine components like pistons and valves to overheat, leading to severe damage. Conversely, overly rich conditions (too much fuel) can wash oil from cylinder walls, increasing wear.
- Fuel Pump Strain: The constant pressure fluctuations can put undue stress on the fuel pump, potentially shortening its lifespan.
The Role of the Fuel Pulse Damper
This is where the fuel pulse damper (FPD) comes into play. Its primary function is to absorb these pressure oscillations, thereby stabilising the fuel pressure within the fuel rail. Think of it as a shock absorber for your fuel system.

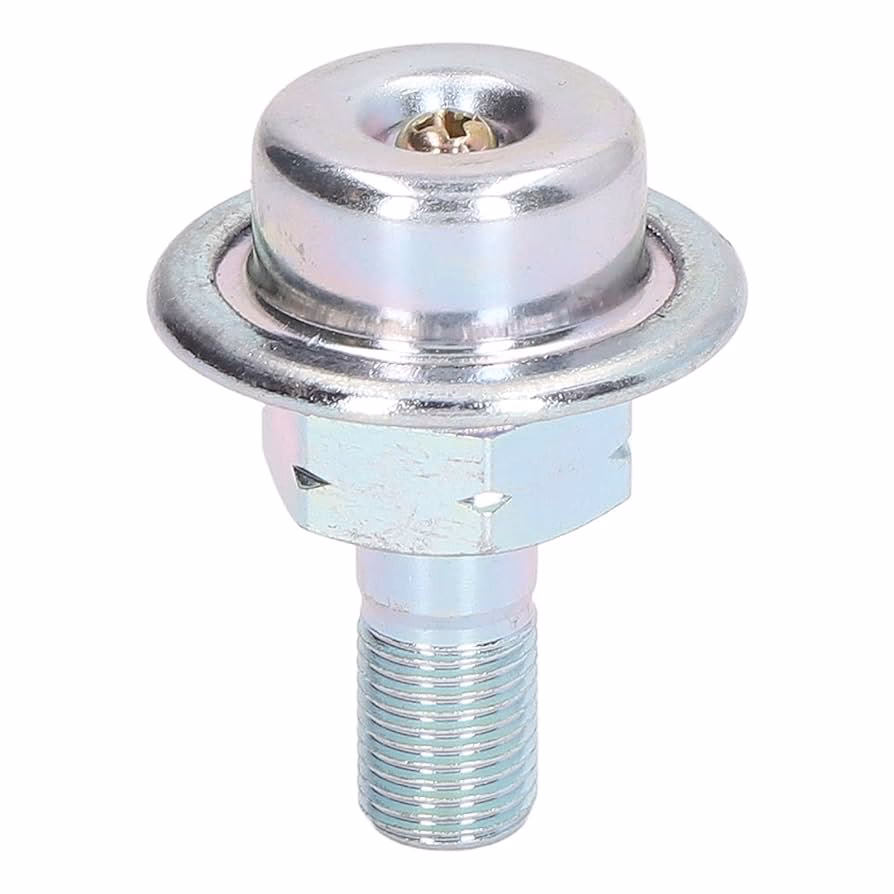

A typical FPD consists of a chamber with a flexible diaphragm or bladder inside. This diaphragm separates the fuel rail from a small volume of air or a compressible gas. When a pressure pulse occurs, the diaphragm flexes, absorbing the sudden increase or decrease in pressure. This action smooths out the "waves" of pressure, ensuring that the fuel delivered to the injectors remains at a consistent and predictable level.
The FPD is strategically placed within the fuel rail, often near the injectors, to effectively mitigate the pressure waves as they propagate through the system. By dampening these pulses, the FPD ensures that the fuel pressure remains within the optimal range required by the engine's control system.
How it Works: A Deeper Dive
The effectiveness of an FPD lies in its ability to react to rapid pressure changes. When an injector closes abruptly, it creates a "positive" pressure wave, momentarily increasing the pressure in the rail. The diaphragm in the FPD is pushed inwards, compressing the air or gas on the other side. This compression absorbs the energy of the pressure wave. Conversely, when an injector opens, it can create a slight "negative" pressure wave (a momentary drop). The diaphragm then expands outwards, releasing stored energy and helping to maintain pressure.
The effectiveness of the FPD is dependent on several factors, including the size of the internal air/gas volume, the stiffness of the diaphragm, and its placement within the fuel rail. Manufacturers carefully calibrate these elements to match the specific requirements of each vehicle's fuel injection system.
When Might a Fuel Pulse Damper Be Necessary?
While many modern vehicles come equipped with factory-fitted FPDs, there are situations where one might be particularly beneficial or even essential:
- High-Performance Vehicles: Cars with high-output engines, often modified for performance, tend to have fuel injectors that operate at very high frequencies. This can generate more intense pressure pulses, making an FPD crucial for maintaining fuel stability.
- Aftermarket Fuel Systems: When upgrading to higher-flow fuel injectors or a different fuel pump, the original FPD might not be adequately matched to the new components. In such cases, an aftermarket FPD designed for the specific application is often recommended.
- Diagnosis of Fuel System Issues: If you are experiencing symptoms like rough idling, hesitation, or poor fuel economy, and you suspect a fuel delivery problem, checking the fuel pressure and the condition of the FPD is a vital diagnostic step. A faulty or missing FPD could be the culprit.
- Custom Builds and Swaps: When undertaking custom vehicle builds or engine swaps, it's often necessary to integrate a suitable fuel system, which may include installing an FPD if one isn't present or if the original is incompatible.
The Radium Engineering Fuel Pulse Damper
Companies like Radium Engineering specialise in high-performance automotive components, and their fuel pulse dampers are designed to meet the demands of enthusiasts and professional tuners alike. Radium Engineering's products are known for their quality and effectiveness in stabilising fuel pressure, particularly in modified or high-performance applications. Their fuel pulse dampers are engineered to work seamlessly with various fuel systems, offering a reliable solution for managing fuel pressure fluctuations.
When considering an aftermarket FPD, it's important to choose a product from a reputable manufacturer like Radium Engineering that is designed for your specific vehicle or fuel system. Proper installation is also key to ensuring its effectiveness.
Common Issues and Maintenance
Like any component in your vehicle, fuel pulse dampers can degrade over time or fail. The diaphragm can become brittle, develop leaks, or lose its elasticity, compromising its ability to absorb pressure pulses effectively. Signs of a failing FPD can mirror the symptoms of unstable fuel pressure, including:
- Rough idling
- Hesitation during acceleration
- Poor fuel economy
- Misfires
- Check engine light illuminated
Diagnosing a faulty FPD can sometimes be tricky, as its symptoms can overlap with other fuel system issues, such as a weak fuel pump or clogged injectors. However, a mechanic can often test fuel pressure with and without the FPD (if it's a serviceable unit) to assess its performance. In many modern vehicles, the FPD is integrated into the fuel rail or fuel pump assembly and is not a separate, easily replaceable part. In such cases, if it fails, the entire assembly might need to be replaced.
Table: Symptoms of a Failing Fuel Pulse Damper
| Symptom | Description |
|---|---|
| Rough Idle | The engine runs unevenly when stopped, with noticeable vibrations. |
| Hesitation/Stumbling | The engine delays or falters when you press the accelerator. |
| Poor Fuel Economy | You notice a significant decrease in miles per gallon. |
| Misfires | The engine occasionally fails to ignite the fuel in one or more cylinders. |
| Check Engine Light | An indicator light on the dashboard illuminates, often with a related fault code. |
Frequently Asked Questions
Do all cars have fuel pulse dampers?
Not all cars, especially older models, have dedicated fuel pulse dampers. However, many modern vehicles with sophisticated fuel injection systems do, either as a separate component or integrated into the fuel rail or fuel pump assembly. The necessity and design vary depending on the vehicle's specific requirements and performance characteristics.
Can I drive without a fuel pulse damper?
While your car might still run without a functioning FPD, it is not recommended. The resulting unstable fuel pressure can lead to poor performance, increased emissions, and potentially long-term damage to your engine and fuel system components. It's best to replace a faulty FPD as soon as possible.
How is a fuel pulse damper tested?
Testing an FPD typically involves monitoring fuel rail pressure with a diagnostic tool or gauge. A mechanic can observe the pressure readings for fluctuations or instability that might indicate an issue with the FPD. In some cases, if the FPD is a separate unit, it might be removed and inspected, or its performance compared with a known good unit.
Is a fuel pulse damper the same as a fuel pressure regulator?
No, they are different components with distinct functions. A fuel pressure regulator's job is to maintain a specific fuel pressure in the rail by returning excess fuel to the tank. A fuel pulse damper's job is to smooth out the pressure fluctuations caused by the injectors themselves, ensuring that the pressure remains stable around the set point regulated by the fuel pressure regulator.
Conclusion
The fuel pulse damper may be a small component, but its contribution to the overall health and performance of your vehicle's fuel system is immense. By effectively managing pressure fluctuations, it ensures that your engine receives a consistent and precise fuel supply, leading to optimal combustion, improved efficiency, and reduced emissions. Whether you're driving a standard road car or a high-performance machine, understanding the role of the FPD and ensuring its proper function is a key aspect of effective vehicle maintenance. If you suspect issues with your fuel system, always consult a qualified mechanic to diagnose and address the problem.
