Fuel Pressure Regulator: Where to Install It?

For your vehicle to operate seamlessly, a delicate balance of pressure and temperature is constantly maintained. These elements are dynamic, shifting as you accelerate, decelerate, and navigate the roads, all to help you achieve your desired speed and performance. One of the most critically affected systems by these fluctuating pressures is your car’s fuel injection system. Without the right amount of pressure, your vehicle's fuel system simply cannot deliver the precise quantity of fuel to the intake manifold. This inadequacy can lead to a significant loss of power and, more alarmingly, accelerate the wear and tear on your engine components. To ensure your engine operates with the exact, consistent pressure it needs, a crucial component known as the fuel pressure regulator (FPR) is employed.

The primary purpose of a fuel pressure regulator is to maintain a steady pressure and supply of fuel to the intake manifold, ensuring that your engine receives exactly what it needs for combustion. Fuel is drawn from the fuel tank by the fuel pump and sent to the fuel rail. The fuel rail acts as a manifold, housing the fuel injectors that deliver fuel directly into the intake manifold or cylinder. After passing through the fuel rail, any excess fuel typically proceeds to the fuel pressure regulator and, in many modern systems, is then routed back to the fuel tank via a return line. This continuous circulation helps to keep the fuel cool and maintain consistent pressure.

A key feature of many fuel pressure regulators, especially those in fuel-injected systems, is a vacuum line that connects directly to the intake manifold. This vacuum line isn't just for show; it's a vital sensor. It relays information about the engine's load and vacuum levels to the FPR. Based on how much you press the accelerator pedal – indicating engine demand – the vacuum line tells the fuel pressure regulator precisely how much pressure is needed for ideal fuel operation. This dynamic adjustment ensures that the engine always receives the correct amount of fuel, whether you're idling, cruising, or accelerating hard, making fuel pressure regulators absolutely essential for maintaining good engine operation and achieving optimal performance.

The Critical Role of Fuel Pressure Regulation

The importance of a correctly functioning fuel pressure regulator cannot be overstated. Without it, your car could be running either 'rich' or 'lean' – both of which are detrimental to your engine and overall vehicle performance. Running rich means your engine is receiving too much fuel for the amount of air, while running lean means too little fuel. Both scenarios lead to inefficient engine operation and can cause significant damage over time.

The ideal air-to-fuel ratio for most petrol engines, especially for efficient combustion, is approximately 14.7 parts of air to 1 part of fuel (14.7:1). This stoichiometric ratio ensures that all the fuel is burned efficiently with the available oxygen.

Consequences of Incorrect Fuel/Air Mixture:

• Running Rich: If your car is running rich, it's burning more fuel than it should be. This is akin to pouring too much petrol into a small fire; it smothers it. Consequences include:
  • Significantly poorer fuel-efficient ratings, meaning you'll be filling up your tank much more frequently.
  • Excessive carbon deposits on spark plugs, leading to misfires and reduced ignition efficiency.
  • Increased emissions, contributing to air pollution.
  • A noticeable smell of raw fuel from the exhaust.
  • Potential damage to catalytic converters due to unburnt fuel.
• Running Lean: Conversely, running lean means there isn't enough fuel for the amount of air. This is a far more dangerous scenario for your engine. Imagine a fire with too much air and not enough fuel; it burns extremely hot and can quickly get out of control. Consequences include:
  • A noticeable lack of throttle response, making the car feel sluggish.
  • Increased combustion temperatures within the cylinders. Since engine components, particularly pistons and cylinder walls, rely on fuel for lubrication and cooling, a lean, dry mixture can lead to severe overheating.
  • Catastrophic engine damage, such as melted piston tops, damaged valves, and cylinder head warping, often requiring expensive repairs or even engine replacement.
  • Reduced engine power and potential stalling.

With these potential issues in mind, it becomes clear that a good fuel pressure regulator is not just an accessory; it's a fundamental component that must be installed and functioning correctly at all times. One of the most immediate advantages of a properly operating FPR is the improved fuel efficiency it brings to your car. This translates directly into long-term savings on fuel costs and allows you to cover greater distances on a single tank. Furthermore, by maintaining the correct fuel/air mixture, an FPR helps to prolong the life of various engine components. Spark plugs, for instance, are commonly affected by poor fuel/air mixtures, fouling quickly when running rich or overheating when running lean. With an effective fuel pressure regulator, you can significantly reduce replacement costs for spark plugs and other vital engine parts, saving you money and hassle in the long run.

Types of Fuel Pressure Regulators and Their Installation Locations

The location and type of fuel pressure regulator can vary significantly depending on your vehicle's fuel system design, primarily whether it uses a carburettor or electronic fuel injection (EFI).

Deadhead Style Regulators (Typically Carburetted Systems)

Let's begin with one of the simpler and historically popular regulator setups: the deadhead-style regulator. Most carburetted engines utilise this type of regulator, which is typically placed between the fuel pump and the carburettor. This design is straightforward: it uses a restriction to lower the fuel pressure by simply decreasing the fuel flow. This is achieved through a diaphragm and a seat that restricts the fuel flow, with a spring providing pressure adjustability. A key characteristic of a deadhead regulator is that it does not use a return line, meaning no fuel is redirected back to the fuel tank. While the absence of a return line can decrease installation costs due to simpler plumbing, it can also limit performance capabilities, especially under varying engine loads. These regulators come in a variety of styles and typically regulate fuel pressures in the lower 1-9 PSI range. They are perfect for use with most low-pressure mechanical fuel pumps as well as some electric fuel pumps designed for carburetted applications.

Bypass Style Regulators (Electronic Fuel Injection - EFI Systems)

For vehicles equipped with electronic fuel injection (EFI) systems, fuel pressure regulators are usually integrated into the system, often built-in as part of the fuel rail or located near it. Unlike deadhead systems, bypass regulators feature a return line that routes excess fuel back to the fuel tank. This continuous flow of fuel through the fuel rail and back to the tank serves several critical purposes: it helps to maintain a constant, precise fuel pressure at the injectors regardless of engine demand, and it also helps to cool the fuel, preventing vaporisation issues. Bypass regulators are essential for EFI systems because they require much more precise and higher fuel pressures (typically 30-60 PSI or more) to operate the injectors accurately. While carburetted vehicles generally don't require an FPR for basic operation, as they use a low-pressure system and the Venturi effect to draw fuel, many owners choose to install an aftermarket low-pressure fuel pressure regulator for improved consistency and performance.

Comparison Table: Deadhead vs. Bypass Fuel Pressure Regulators

Precise Installation Guidelines for Your Fuel Pressure Regulator

The correct installation location of your fuel pressure regulator is paramount for its effective operation and, by extension, your engine's health. The general rule is that the FPR must be positioned to regulate pressure *before* the fuel reaches the point of injection or carburetion, ensuring the fuel delivery system operates under the specified pressure for your engine.

Installation for Carburetted Vehicles (Aftermarket FPR)

If you are installing an aftermarket fuel pressure regulator in a carburetted vehicle, the most common and effective placement is directly in the fuel line between your vehicle's fuel pump and the carburettor. This setup ensures that the fuel entering the carburettor is at the precisely regulated low pressure it requires. It's also advisable to choose an area in the engine bay where the regulator (especially if it has a built-in gauge) is easily accessible for you to read the pressure and make adjustments if needed. Ensure it is securely mounted to prevent vibration damage.

Installation for EFI Vehicles (Bypass FPR)

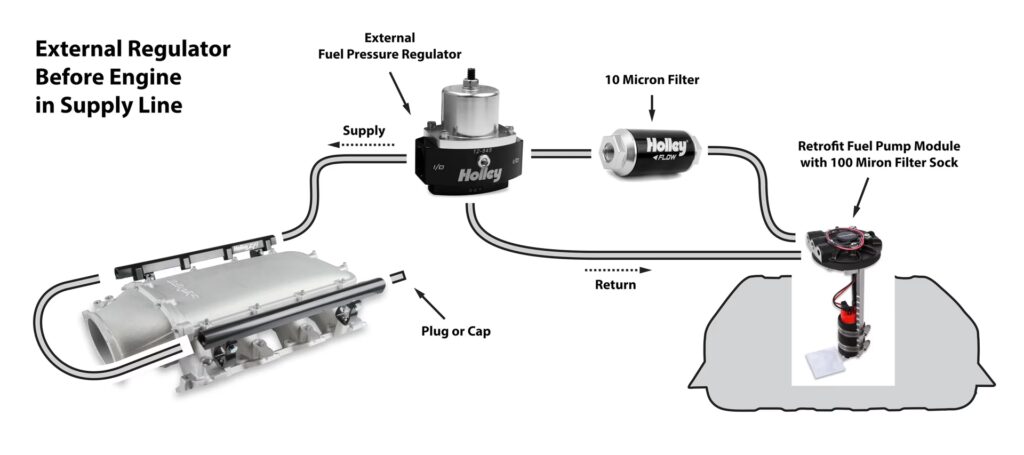

For vehicles with EFI systems, the fuel pressure regulator is typically located either on the fuel rail itself or somewhere along the return fuel line, often near the fuel tank or integrated into the fuel pump module. In these systems, the FPR maintains a constant pressure within the fuel rail, with any excess fuel being bled off and sent back to the fuel tank via the return line. This design is critical for the precise operation of fuel injectors, which rely on a consistent pressure differential to accurately meter fuel.

The Crucial Vacuum Line Connection

Regardless of whether you have a carburetted or EFI system, if your fuel pressure regulator is designed to be vacuum-referenced (which most modern ones are), connecting the vacuum line to an appropriate port on the intake manifold is absolutely essential. This connection allows the FPR to dynamically adjust fuel pressure based on engine load. When manifold vacuum is high (e.g., at idle or light throttle), the FPR reduces fuel pressure slightly. When vacuum is low (e.g., under acceleration or wide-open throttle), the FPR increases fuel pressure. This ensures that the fuel injectors maintain the correct pressure differential across them, regardless of manifold pressure, which is vital for accurate fuel delivery and optimal performance across all driving conditions.

DIY Installation Guide for an Aftermarket Fuel Pressure Regulator

While the exact steps may vary slightly depending on your specific vehicle and the type of FPR, here's a general guide for installing an aftermarket fuel pressure regulator, particularly relevant for carburetted applications:

1. Gather Your Tools and Equipment: You will need your chosen fuel pressure regulator, appropriate wrenches (combination or adjustable), and Teflon tape (or thread sealant compatible with fuel). Having a fuel pressure gauge that can be installed inline or directly onto the FPR is also highly recommended for monitoring.
2. Safety First: Before you begin, always disconnect the negative terminal of your car's battery to prevent any electrical hazards. If working on a fuel-injected system, relieve any residual fuel pressure in the lines (consult your car's service manual for the specific procedure). Have a fire extinguisher nearby and work in a well-ventilated area.
3. Prepare the Fittings: Many aftermarket FPRs come with various fittings. Thread all the necessary fittings for your fuel in and fuel out lines onto the regulator. To do this, wrap Teflon tape (ensure it's fuel-rated) around the threads of your fittings in a clockwise direction (as if tightening the fitting) before carefully tightening them using your wrenches. Do not overtighten, as this can strip threads or crack the regulator body.
4. Find the Ideal Mounting Location: Identify an area in your engine bay where you can securely mount your fuel pressure regulator. Ideally, this spot should be easily accessible, allow for clear visibility of the pressure gauge (if equipped), and permit easy connection of the fuel lines without excessive bends or kinks. Ensure it's away from extreme heat sources.
5. Connect the Fuel Lines:
   • Incoming Fuel Line: Connect the fuel line coming from your fuel pump to the 'IN' or 'INLET' port of the fuel pressure regulator.
   • Outgoing Fuel Line: Connect the 'OUT' or 'OUTLET' port of the fuel pressure regulator to the fuel line leading to your carburettor.
   • Return Line (If Applicable - Bypass Type): If you have chosen a bypass fuel pressure regulator, connect the designated return port back to your fuel tank. This line is crucial for bleeding off excess fuel and maintaining constant pressure.
6. Connect the Vacuum Line: If your FPR is vacuum-referenced, connect a vacuum hose from the vacuum port on the regulator to a suitable vacuum source on your engine's intake manifold. This connection allows the regulator to sense engine load and adjust fuel pressure accordingly.
7. Double-Check and Test: Once all connections are made, double-check every fitting for tightness and ensure there are no kinks in the fuel lines. Reconnect your car's battery. Turn the ignition key to the 'ON' position (without starting the engine) to allow the fuel pump to prime the system. Carefully inspect all connections for any fuel leaks. Once you're confident there are no leaks, start the engine and monitor the fuel pressure gauge to ensure it's within the recommended range for your vehicle. Adjust the regulator as needed according to manufacturer specifications.

Monitoring Your Fuel Pressure

To continuously monitor the pressure in your car’s fuel system, you can install a fuel pressure gauge. While not strictly necessary for every vehicle, you will likely see a fuel pressure gauge installed prominently in high-performance vehicles that are heavily modified, or in classic cars where tuning is a frequent activity. Beyond its critical function in diagnosing fuel system issues and fine-tuning engine performance, a fuel pressure gauge can also add a distinct sporty aesthetic inside your car, if that aligns with your style. For the average daily driver, a properly functioning FPR and periodic checks during routine maintenance are usually sufficient, but for enthusiasts, it's a valuable diagnostic and tuning tool.

Frequently Asked Questions (FAQs)

1. What is the ideal fuel/air mixture ratio?

The ideal fuel/air mixture ratio for most petrol engines is 14.7:1. This means that for every 14.7 grams of air, there should be 1 gram of fuel for complete and efficient combustion.

2. What does a fuel pressure regulator do?

A fuel pressure regulator helps to maintain a steady and adequate amount of fuel to the intake manifold (or carburettor) by precisely regulating the pressure within the fuel system.

3. Do fuel pressure regulators last for a long time?

Yes, fuel pressure regulators are generally robust components designed to last for a significant portion, if not almost the entire lifetime, of a car, assuming they are not subjected to extreme conditions or contaminants.

4. What happens if my car runs rich?

If your car runs rich, it means your engine is receiving too much fuel. This will lead to poor fuel consumption (burning more fuel than it should), a sluggish throttle response, fouled spark plugs, increased emissions, and potential damage to the catalytic converter.

5. Do carburetted vehicles use a fuel pressure regulator?

No, carburetted vehicles generally don’t inherently require a fuel pressure regulator as they can run without one, relying on the carburettor's design to meter fuel at low pressures. However, many car owners choose to install aftermarket low-pressure fuel pressure regulators in carburetted vehicles to achieve better consistency, tuning precision, and performance. Cars with an electronic fuel injection (EFI) system, on the other hand, almost always use a fuel pressure regulator (often built-in) for precise fuel delivery to the intake manifold.
