Motorcycle Fuel Injection Explained

The question of whether motorcycles are fuel injected is a common one, especially for those new to the world of two-wheeled transport or those accustomed to older models. The short answer is: overwhelmingly, yes. Modern motorcycles, almost without exception, utilise fuel injection (FI) systems. This technology has largely replaced the older, carburettor-based fuel delivery methods and for good reason. Fuel injection offers a significant leap forward in engine performance, fuel efficiency, and environmental impact, making it the standard for today's discerning rider.

The Evolution of Motorcycle Fueling

For decades, the humble carburettor was the heart of a motorcycle's fuel system. These mechanical devices worked by drawing fuel and air into the engine cylinders through a vacuum created by the engine's intake stroke. While effective for their time, carburettors had inherent limitations. They were sensitive to changes in atmospheric pressure, temperature, and altitude, often requiring manual adjustment to maintain optimal performance. This meant that a bike that ran perfectly in one condition might struggle in another, leading to poor idling, hesitation during acceleration, and increased emissions.

The advent of fuel injection marked a paradigm shift. Instead of relying on vacuum and mechanical jets, FI systems use electronically controlled injectors to spray a precise amount of fuel directly into the engine's intake manifold or even directly into the combustion chamber (direct injection). This precise metering is managed by an Electronic Control Unit (ECU), often referred to as the motorcycle's 'brain'. The ECU receives data from various sensors scattered across the bike, including throttle position, engine speed, air temperature, manifold pressure, and oxygen levels in the exhaust. Using this information, the ECU calculates the optimal fuel-air mixture for any given condition and instructs the injectors accordingly.

How Does Fuel Injection Work?

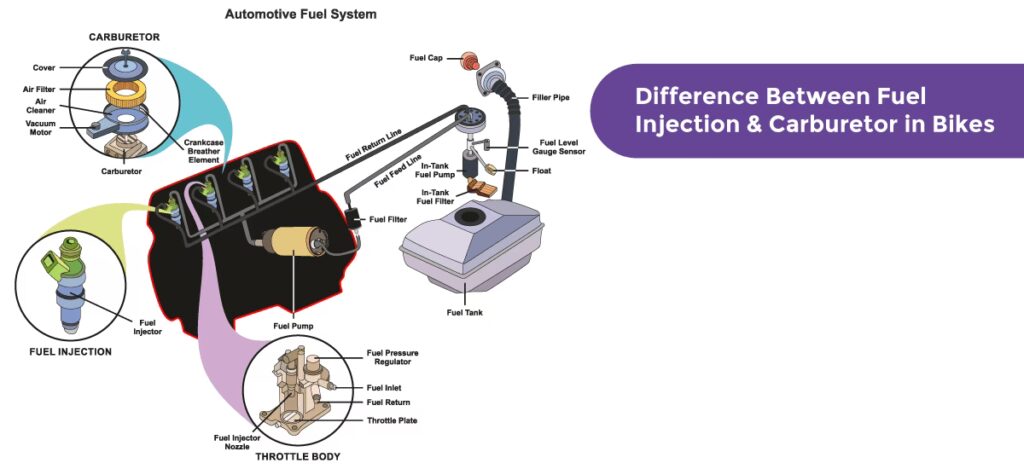

The process within a fuel-injected motorcycle is a sophisticated interplay of components:

• Fuel Pump: Located in the fuel tank, it pressurises the fuel and sends it through fuel lines to the injectors.
• Fuel Injectors: These are small, electronically controlled valves that open and close rapidly, spraying a fine mist of fuel.
• ECU (Electronic Control Unit): This is the central computer that processes data from sensors and controls the injectors.
• Sensors: Various sensors provide critical data to the ECU, such as:
• Throttle Position Sensor (TPS): Measures how much the throttle is open.
• Manifold Absolute Pressure (MAP) Sensor: Measures the pressure in the intake manifold, indicating engine load.
• Air Temperature Sensor (ATS): Measures the temperature of the incoming air.
• Engine Coolant Temperature (ECT) Sensor: Measures the engine's operating temperature.
• Crankshaft Position Sensor (CKP): Determines the engine's rotational speed and piston position.
• Oxygen Sensor (O2 Sensor): Located in the exhaust, it measures the amount of oxygen in the exhaust gases, allowing the ECU to fine-tune the fuel mixture for efficiency and emissions.
• Throttle Body: This houses the throttle plate, which controls the amount of air entering the engine, and often incorporates the injectors.

When you twist the throttle, the TPS signals the ECU. The ECU, referencing data from all other sensors, calculates the required fuel quantity and duration for the injectors to open. This results in a consistent, efficient, and powerful delivery of fuel to the engine, regardless of external conditions.

Advantages of Fuel Injection

The widespread adoption of fuel injection isn't accidental. It offers a multitude of benefits over carburettors:

Improved Performance

Fuel injection systems provide a more precise and responsive throttle. This translates to smoother acceleration, better power delivery across the rev range, and a more engaging riding experience. The ability of the ECU to constantly adjust the fuel mixture ensures the engine is always running at its optimal potential.

Enhanced Fuel Efficiency

By delivering exactly the amount of fuel the engine needs, FI systems minimise waste. This leads to significantly better miles per gallon (or kilometres per litre) compared to carburetted bikes, saving riders money at the pump and reducing the frequency of refuelling stops on longer journeys.

Easier Starting and Smoother Idling

Carburettors can be notoriously difficult to start in cold weather, often requiring a 'choke' to enrich the mixture. Fuel injection systems automatically adjust the mixture for cold starts, making them far more reliable. They also provide a consistently smooth and stable idle, eliminating the frustrating fluctuations common with carburettors.

Reduced Emissions

The precise control over the fuel-air mixture is crucial for meeting stringent emissions regulations. FI systems ensure that combustion is as complete as possible, leading to lower levels of harmful pollutants like hydrocarbons, carbon monoxide, and nitrogen oxides. This is a major reason why FI is standard on virtually all new vehicles.

Adaptability to Conditions

Whether you're riding at sea level, high in the mountains, or in varying temperatures, a fuel-injected motorcycle will perform consistently. The ECU automatically compensates for changes in air density and temperature, eliminating the need for manual adjustments.

Lower Maintenance (in some aspects)

While the components of an FI system are more complex, they generally require less frequent adjustment than carburettors. There are no jets to clean or float bowls to set. However, when issues do arise, diagnosis and repair can be more complex and may require specialised tools and knowledge.

Carburettor vs. Fuel Injection: A Comparison

To better illustrate the differences, consider this table:

Are There Any Downsides to Fuel Injection?

While overwhelmingly beneficial, fuel injection isn't without its potential drawbacks for some riders:

• Cost: The initial manufacturing cost of FI systems is higher than that of carburettors, which can contribute to a higher purchase price for new motorcycles.
• Complexity and Repair: The sophisticated nature of FI systems means that diagnosing and repairing faults can be more challenging and expensive, often requiring specialised diagnostic equipment and trained technicians.
• Tuning: While modern FI systems are highly sophisticated, advanced tuning for performance modifications can be more involved than with carburettors, sometimes requiring ECU remapping or replacement.
• Loss of 'Feel' for some: Some riders, particularly those with a long history of riding carburetted bikes, might perceive a slight loss of the direct mechanical feel that carburettors offered. However, this is largely subjective.

When Might You Encounter Carburettors Today?

Despite the dominance of fuel injection, you might still find carburettors on:

• Older Motorcycles: Many classic and vintage motorcycles are equipped with carburettors and will remain so.
• Entry-Level/Budget Bikes: Some very low-cost, small-capacity motorcycles, particularly in developing markets, might still use carburettors to keep manufacturing costs down.
• Off-Road Competition Bikes (in some classes): While increasingly rare, some specific off-road racing classes might still permit carburettors, though FI is becoming the norm even here.
• Custom Builds: Some custom builders might opt for carburettors for aesthetic reasons or simplicity in certain bespoke projects.

Frequently Asked Questions

Q1: My old bike has carburettors. Is it bad?

Not necessarily. If well-maintained, carburettors can provide a reliable and enjoyable riding experience. However, they will generally be less fuel-efficient and produce higher emissions than a comparable fuel-injected model.

Q2: Can I convert my carburetted motorcycle to fuel injection?

Yes, it is technically possible to convert a carburetted motorcycle to fuel injection. However, this is a complex and expensive undertaking that involves fitting a new fuel tank, fuel pump, injectors, throttle body, ECU, wiring harness, and various sensors. It's often more practical to buy a motorcycle that already has fuel injection.

Q3: How do I know if my motorcycle has fuel injection?

Most modern motorcycles (roughly from the early 2000s onwards) are fuel injected. Look for a fuel pump in the tank (you might hear a whirring sound when you turn the ignition on), and check your bike's specifications online or in the owner's manual. Carburetted bikes will typically have visible fuel lines leading to the carburettor(s) on the side of the engine, and no fuel pump in the tank.

Q4: Does fuel injection make a motorcycle faster?

Fuel injection itself doesn't inherently make a bike faster, but the precise fuel delivery it enables allows the engine to perform more efficiently and consistently across its power band. This can lead to better acceleration and overall performance, making the bike *feel* faster and more responsive.

Conclusion

In summary, the vast majority of motorcycles you'll find for sale today are equipped with fuel injection systems. This advanced technology has revolutionised motorcycle engineering, offering riders superior performance, remarkable fuel efficiency, and a cleaner environmental footprint. While carburettors hold a place in motorcycle history and can still be found on older or very basic models, fuel injection is the undisputed standard for modern motorcycling, providing a more refined, reliable, and enjoyable experience for riders worldwide. Understanding how it works demystifies this crucial component and highlights the engineering advancements that make our bikes run so well.
