Understanding the Idle Air Control Valve

The Unsung Hero of Smooth Idling: Your Idle Air Control Valve

Ever wondered how your car maintains a steady hum when you're stopped at a traffic light, foot off the accelerator? The secret lies, in part, with a rather unassuming component known as the Idle Air Control (IAC) valve. This vital part plays a crucial role in ensuring your engine doesn't stall when you're not actively giving it gas. While often overlooked, a malfunctioning IAC valve can lead to a host of frustrating issues, from rough idling to complete engine failure. This guide will delve into what the IAC valve is, what it does, the common signs of its failure, and how to address potential problems.

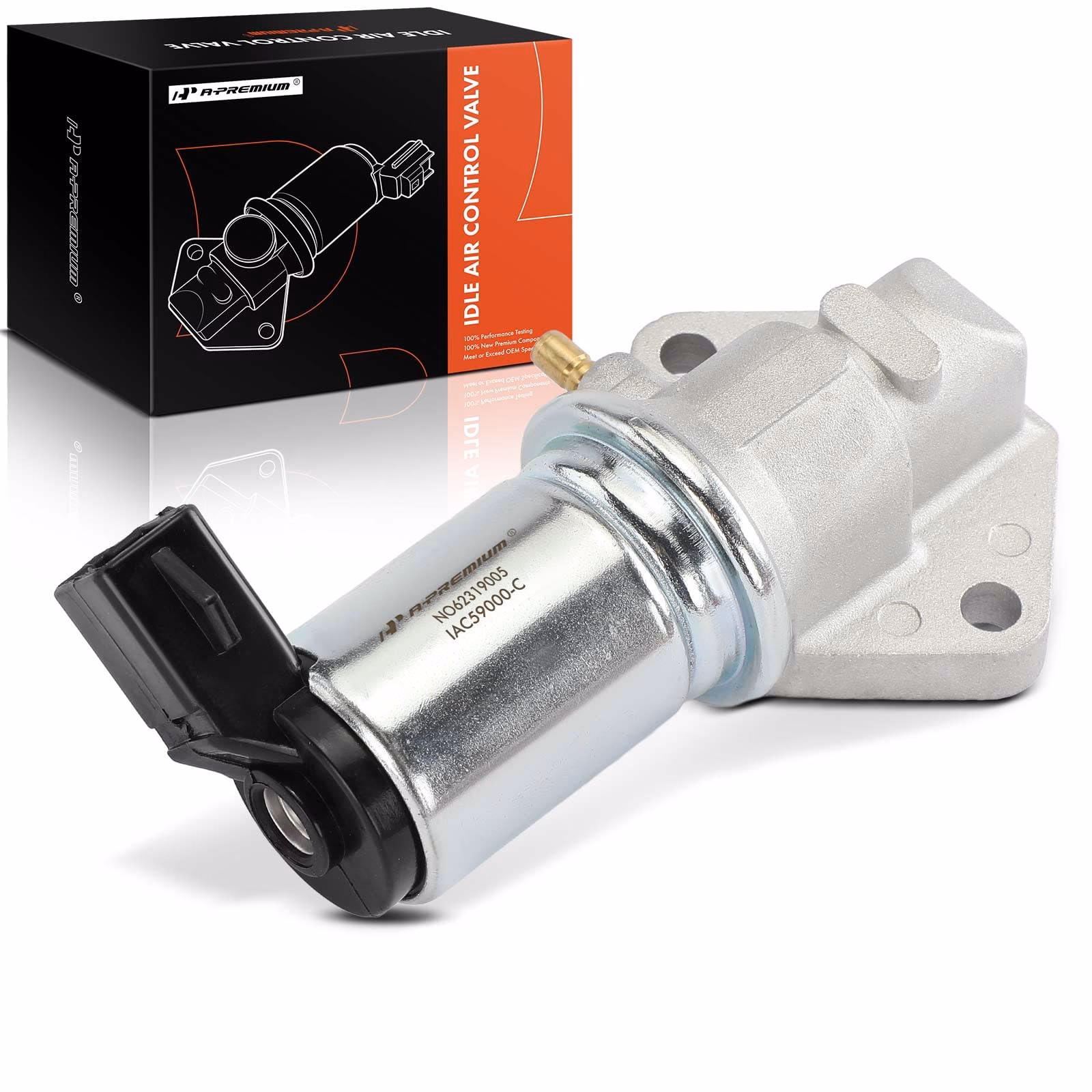

What Exactly is an Idle Air Control Valve?

At its core, the Idle Air Control (IAC) valve is a component found in most modern, fuel-injected vehicles. Its primary responsibility is to regulate the engine's idling speed, also known as revolutions per minute (RPM). Think of it as a gatekeeper for air, specifically when your foot is off the accelerator pedal. For vehicles that predate modern fuel injection and utilise a carburetor, a similar device called an Idle Speed Control (ISC) actuator performs a comparable function.

The engine's computer, often referred to as the Engine Control Module (ECM) or Powertrain Control Module (PCM), constantly receives data from various sensors. These sensors provide information on engine speed, airflow, fuel mixture, and numerous other operational parameters. Based on this data, the ECM precisely controls the IAC valve. It does this by adjusting a small motor within the valve, which in turn either increases or decreases the amount of air allowed to bypass the closed throttle plate and enter the engine. This precise air regulation is what keeps the engine running at a stable, pre-set minimum RPM, preventing it from stalling.

The Crucial Role of the IAC Valve

The primary function of the IAC valve is to manage the volume of air that enters the engine for combustion when the engine is at idle. When you release the accelerator pedal, the throttle plate closes, significantly restricting airflow. Without the IAC valve, this sudden restriction would starve the engine of the air it needs to continue running, causing it to stall. The IAC valve compensates for this by opening a small passage, allowing a controlled amount of air to enter the engine, thereby maintaining a smooth idle.

This process is dynamic and responsive. The ECM continuously monitors engine conditions and adjusts the IAC valve accordingly. For instance, when you switch on accessories like the air conditioning or power steering, these systems place an additional load on the engine. The ECM detects this load and signals the IAC valve to open slightly more, increasing the idle speed to compensate and prevent the engine from bogging down or stalling.

Where to Find Your IAC Valve

The exact location of the IAC valve can vary significantly depending on the make, model, and year of your vehicle. It's always best to consult your car's owner's manual for the most accurate information. However, in most cases, you'll find the IAC valve situated on or near the throttle body, often integrated into the air intake manifold. It's typically a small, cylindrical or rectangular component with electrical connections and vacuum hoses attached.

Top 6 Signs of a Failing Idle Air Control Valve

While designed to be durable, IAC valves can fail over time due to various factors. The most common culprits include the accumulation of carbon deposits and dirt, often entering the system through a faulty or dirty air filter. This buildup can impede the valve's movement, preventing it from responding correctly to the ECM's commands. In more severe cases, the internal servo motor can fail, requiring a complete replacement of the unit.

1. Rough or Unstable Idling:

   This is perhaps the most tell-tale sign. If your engine idles erratically, with RPMs fluctuating up and down, or if the idle feels rough and inconsistent, a faulty IAC valve is a prime suspect. The ECM struggles to maintain a stable idle because the valve isn't correctly regulating airflow.

2. Engine Stalling:

   A completely failed or severely clogged IAC valve can prevent enough air from entering the engine at idle, leading to the engine stalling. This is particularly noticeable when you come to a stop, like at a traffic light or stop sign. In some instances, the failure can be gradual, with the engine becoming progressively more prone to stalling.

3. Check Engine Light Illumination:

   A malfunctioning IAC valve will often trigger the 'Check Engine' warning light on your dashboard. The ECM detects that the idle speed is outside of its expected parameters and stores a diagnostic trouble code (DTC). A common code associated with IAC issues is P0505. However, remember that the 'Check Engine' light can be illuminated for a multitude of reasons, so further diagnosis is always necessary.



4. High or Low Idle Speed:

   If the IAC valve is stuck open, it can cause the engine to idle at a higher RPM than normal. Conversely, if it's stuck closed or partially closed, the idle speed might be too low, leading to rough running or stalling. The ECM may try to compensate, but if the valve is unresponsive, these symptoms will persist.

5. Difficulty Starting or Stalling Immediately After Starting:

   In cases of complete failure, the IAC valve might be so clogged or the motor so seized that it prevents any air from entering the engine when the throttle is closed. This can make the engine difficult to start, or it may start briefly only to stall immediately as the ECM cannot maintain the necessary idle air supply.

6. Poor Performance and Fuel Economy:

   While not as direct a symptom, an improperly functioning IAC valve can indirectly affect performance and fuel economy. A consistently high idle will burn more fuel, especially in stop-and-go traffic. Rough idling and stalling can also lead to inefficient combustion, wasting fuel.

Understanding the P0505 Code

The P0505 diagnostic trouble code is specifically related to the Idle Air Control (IAC) system. When the ECM detects that the engine's idle speed is significantly outside the manufacturer's specified range, or if it cannot control the idle speed effectively, it will set this code. This often points to a problem with the IAC valve itself, its wiring, or its control circuit. Diagnosing a P0505 code typically involves checking for vacuum leaks, inspecting the IAC valve for carbon buildup, and verifying the valve's operation.

Diagnosing and Maintaining Your IAC Valve

Diagnosing an IAC valve issue often begins with a scan tool to retrieve any stored DTCs, particularly P0505. Mechanics will then typically check the engine's actual idle speed against specifications. A common diagnostic step involves looking for vacuum leaks, as these can mimic IAC valve problems by allowing unmetered air into the engine. If no vacuum leaks are found, the IAC valve itself is inspected.

Cleaning the IAC Valve:Often, a simple cleaning can resolve issues caused by carbon buildup. The process generally involves:

1. Disconnecting the car battery.
2. Locating the IAC valve (refer to your manual).
3. Carefully disconnecting electrical connectors and any hoses or plugs.
4. Removing the valve (note the gasket for replacement).
5. Using a dedicated throttle body cleaner or carburetor cleaner and a soft cloth to thoroughly clean the pintle (the moving part) and the bore of the valve. Avoid harsh chemicals that could damage the internal components.
6. Ensure all passages are clear.
7. Reinstall the IAC valve with a new gasket.
8. Reconnect electrical connectors and hoses.
9. Reconnect the battery.
10. Start the engine and allow it to stabilize.

Resetting the Idle Control Valve (After Cleaning or Replacement):In many cases, after cleaning or replacing the IAC valve, the ECM needs to relearn the correct idle parameters. This is often achieved through a specific procedure:

1. Ensure the engine is at normal operating temperature.
2. Turn the ignition off.
3. Depress and hold the accelerator pedal slightly.
4. Start the engine and let it run for approximately 5-10 seconds.
5. Turn the ignition off while still holding the accelerator pedal.
6. Release the accelerator pedal.
7. Wait for about 10 seconds.
8. Start the engine again and check if the idle speed is within the manufacturer's specifications.

Can You Drive with a Bad IAC Valve?

While you might be able to drive your vehicle with a failing IAC valve, it's generally not advisable for an extended period. The symptoms, such as rough idling or stalling, can worsen over time. More importantly, stalling in critical situations, like at a busy intersection or on a motorway, can be extremely dangerous. A stalled engine also means the loss of power-assisted braking and steering, making the vehicle much harder to control.

Replacement Costs and Considerations

If cleaning doesn't resolve the issue, replacing the IAC valve is the next step. The cost of replacement can vary depending on the vehicle's make and model, as well as the labour rates of the repair shop. Generally, expect to pay anywhere from £150 to £300 for parts and labour combined, though this can be higher for luxury or specialist vehicles.

Other Factors Affecting Idle Quality

It's important to remember that a poor idle is not always solely attributable to the IAC valve. Several other components can contribute to similar symptoms:

Conclusion

The Idle Air Control valve, while small, is a critical component for a smoothly running engine. Recognizing the symptoms of a failing IAC valve – such as rough idling, stalling, or the illumination of the 'Check Engine' light – can save you from more significant and potentially dangerous issues down the road. Regular maintenance, including checking your air filter and potentially cleaning the IAC valve as part of routine servicing, can help prolong its life and ensure your vehicle idles as it should. If you suspect an IAC valve problem, it's always best to have it professionally diagnosed and repaired to maintain your vehicle's optimal performance and safety.
