Understanding Your Car's Fuel Lines

The intricate workings of a car's engine rely on a constant and precisely delivered supply of fuel. While we often focus on the fuel pump, injectors, or the fuel itself, there's a crucial component that often goes unnoticed: the fuel line. These seemingly simple tubes are the arteries of your vehicle's fuel system, transporting petrol or diesel from the tank to the engine. Without them functioning correctly, your car simply won't go. This article delves into what a fuel line is, how it works, the materials used in its construction, common problems, and why regular maintenance is key to a healthy engine.

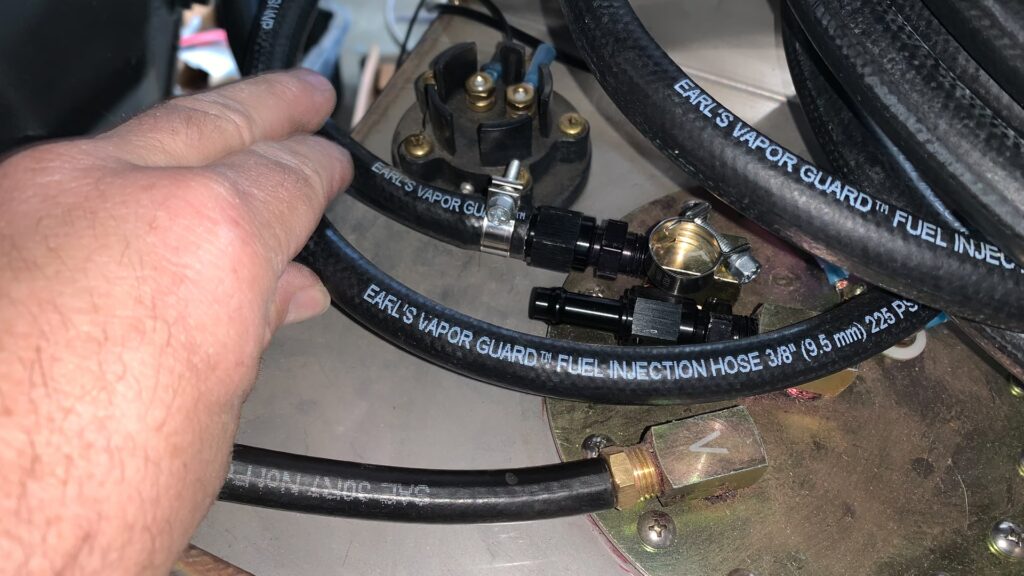

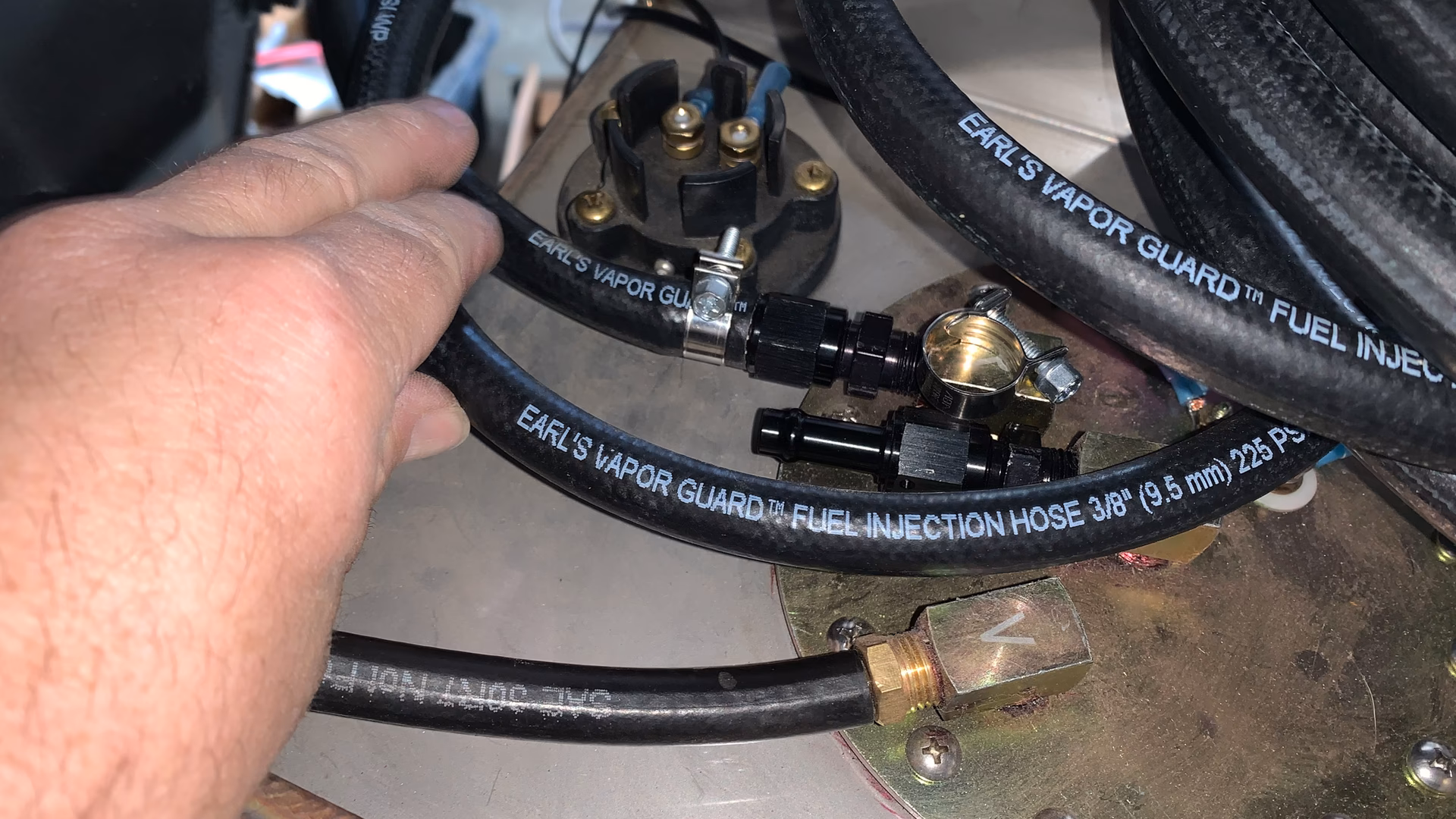

What Exactly is a Fuel Line?

At its core, a fuel line is a conduit designed to carry fuel under pressure. The fuel line is typically constructed from a petroleum-resistant nitrile tube, ensuring it can withstand the corrosive nature of modern fuels. This inner tube is then protected by an outer covering that is engineered to resist the detrimental effects of weathering, ozone, and heat. This robust construction allows fuel lines to be used with a variety of fuels, including those laced with ethanol (such as E10 or E15) and diesel fuel. However, it's important to note their limitations. Standard fuel lines are generally not suitable for coolant systems, oil systems, or high-pressure fuel injection systems that operate above 50 psi, as these applications often require more specialised materials and higher pressure ratings.

The Journey of Fuel: How Fuel Lines Work

The process begins when you turn the ignition key. The fuel pump, usually located within or near the fuel tank, activates and draws fuel from the tank. This fuel is then pushed under pressure through the primary fuel line. This line snakes its way from the tank, often under the vehicle's chassis, towards the engine bay. Along its path, it might connect to various components like a fuel filter, which removes impurities, and sometimes a fuel pressure regulator, which ensures the correct amount of pressure is maintained. Finally, the fuel reaches the fuel injectors or the carburettor, where it is atomised and mixed with air for combustion. The fuel lines are therefore responsible for this uninterrupted and pressurised flow, ensuring the engine receives the fuel it needs to operate efficiently.

Materials and Construction: Built to Last

The materials used in fuel lines are critical for their longevity and safety. As mentioned, the inner layer is typically made from nitrile rubber, chosen for its excellent resistance to petroleum-based fuels and their additives. This ensures the fuel doesn't degrade the tube from the inside out. The outer layer provides protection against external factors. This can include:

• Synthetic Rubber Compounds: Offering resistance to abrasion, ozone, UV radiation, and extreme temperatures.
• Reinforcement Layers: Some fuel lines incorporate braided fabric or steel wire for added strength and to withstand higher pressures.
• Protective Sleeving: A final layer might be added for extra durability and to prevent damage from road debris.

The specific materials and construction will vary depending on the vehicle's age, make, model, and the type of fuel system it employs (e.g., carburetted vs. fuel injected). Modern vehicles with advanced fuel injection systems often utilise more sophisticated fuel lines capable of handling significantly higher pressures and a wider range of fuel compositions.

Common Fuel Line Problems and Symptoms

Like any component exposed to constant fuel flow, pressure, and environmental conditions, fuel lines can degrade over time. Identifying potential issues early can prevent costly damage and dangerous situations. Here are some common problems and their tell-tale symptoms:

1. Cracks and Leaks

Symptoms:

• A strong smell of fuel, especially when the engine is running or shortly after it's turned off.
• Visible wetness or staining around the fuel lines.
• A noticeable drop in fuel pressure.
• Difficulty starting the engine, or a rough-running engine.
• Puddles of fuel under the vehicle.

Causes: Ageing, exposure to heat, abrasion from rubbing against other components, or physical damage from road debris.

2. Swelling or Softening

Symptoms:

• The fuel line may appear bloated or feel unusually soft to the touch.
• Reduced fuel flow due to internal restrictions.
• Performance issues such as hesitation or loss of power.

Causes: Incompatibility with certain fuel additives or ethanol blends, or general degradation of the rubber compounds.

3. Blockages

Symptoms:

• Significant power loss, especially under acceleration.
• The engine may stall unexpectedly.
• The vehicle may struggle to maintain speed.

Causes: Internal delamination of the fuel line material, debris entering the fuel system, or a clogged fuel filter that is restricting flow through the lines.

4. Corrosion (External)

Symptoms:

• Visible rust or corrosion on metal fuel lines or fittings.
• Weakened sections of the line that could lead to leaks.

Causes: Exposure to road salt, moisture, and harsh environmental conditions.

Fuel Line Maintenance and Replacement

Regular inspection and timely replacement of fuel lines are crucial for safety and optimal engine performance. Here's what you should know:

Inspection Schedule

It's a good practice to visually inspect your fuel lines during routine maintenance, such as oil changes. Look for any signs of damage, such as cracks, kinks, leaks, or excessive wear. Pay close attention to areas where the lines might be rubbing against other parts of the vehicle.

When to Replace

Fuel lines are not typically a user-serviceable part in the way that an oil filter is. However, if you notice any of the symptoms mentioned above, it's imperative to have them inspected by a qualified mechanic. Most manufacturers recommend replacing fuel lines as a preventative measure at certain mileage intervals, or if they show signs of significant wear and tear. It's often recommended to replace all fuel lines of a similar age and material at the same time to ensure consistent performance and avoid future issues.

DIY vs. Professional Replacement

Replacing fuel lines can be a hazardous job due to the flammable nature of fuel. It requires specific tools and a thorough understanding of the fuel system. For most vehicle owners, it is highly recommended to leave fuel line replacement to a professional mechanic. They have the expertise, equipment, and safety protocols in place to perform the job correctly and safely. Attempting a DIY replacement without the proper knowledge can lead to fuel leaks, fire hazards, and potential injury.

Fuel Line Types and Compatibility

Understanding the different types of fuel lines and their compatibility is essential:

Frequently Asked Questions (FAQ)

Q1: How often should I replace my fuel lines?

A1: While there's no strict universal schedule, visual inspection during regular maintenance is key. Many manufacturers suggest replacement around the 100,000-mile mark or sooner if any signs of wear or leaks are present. It's best to consult your vehicle's service manual or a qualified mechanic.

Q2: Can I use generic fuel line hose from an auto parts store?

A2: You must ensure any replacement hose is specifically rated for automotive fuel systems and compatible with your vehicle's fuel type (petrol, diesel, ethanol blend). Using the wrong type can lead to leaks and safety hazards.

Q3: What is the danger of a leaking fuel line?

A3: Leaking fuel lines are extremely dangerous as they can spray flammable fuel near hot engine components or exhaust systems, posing a significant fire risk. Additionally, fuel leaks can lead to environmental contamination and costly damage to your vehicle.

Q4: Does ethanol damage fuel lines?

A4: Higher concentrations of ethanol (above E10) can degrade certain types of rubber and plastic used in older fuel systems. Modern vehicles are typically designed to handle common ethanol blends, but it's always wise to check your vehicle's specifications if you frequently use fuels with high ethanol content.

Conclusion

The fuel lines in your vehicle are unassuming yet critical components. They are the silent conduits ensuring your engine receives the lifeblood it needs to run. Understanding their construction, recognising the signs of wear and tear, and prioritising their maintenance can save you from potentially dangerous situations and costly repairs. If you suspect an issue with your fuel lines, don't delay – seek professional assistance to keep your car running safely and efficiently on the roads.
