Hose Clamp Varieties Explained

When it comes to maintaining the integrity of your vehicle's fluid systems, the humble hose clamp plays a crucial, albeit often overlooked, role. These seemingly simple devices are responsible for creating a secure and leak-free seal between hoses and their respective fittings, preventing vital fluids from escaping and ensuring optimal performance. At NAPA Auto Parts, we understand the importance of having the right tool for the job, and that extends to the myriad of hose clamp options available to tackle almost any automotive hose repair. This article will delve into the different types of hose clamps you'll encounter, their applications, and what makes each unique, helping you make an informed decision for your next repair.

Understanding the Purpose of Hose Clamps

At its core, a hose clamp is a mechanical device used to attach a flexible hose to a fitting, such as a pipe or a tube. The primary objective is to create a tight seal that prevents leakage under pressure. This is critical in numerous automotive systems, including the cooling system (radiator hoses, heater hoses), fuel delivery systems, vacuum lines, and even exhaust systems. A failed hose clamp can lead to a range of issues, from minor coolant leaks that can cause overheating to significant fuel leaks that pose a serious fire hazard. Therefore, selecting the appropriate clamp for the specific application and ensuring its correct installation is paramount.

Common Types of Hose Clamps Available

The automotive aftermarket offers a variety of hose clamp designs, each engineered to meet specific performance requirements and environmental conditions. NAPA Auto Parts provides a comprehensive selection to cater to these diverse needs. Let's explore some of the most prevalent types:

1. Worm Drive Hose Clamps (Screw Clamps)

Perhaps the most ubiquitous type of hose clamp, the worm drive clamp, also known as a screw clamp or band clamp, is a versatile and widely used option. It consists of a metal band with a series of perforations or a continuous screw thread, a housing that contains a screw mechanism, and a screw head. When the screw is turned, it engages with the threads on the band, drawing the band tighter around the hose. This creates a secure and adjustable grip.

Key Features:

• Adjustability: Offers a wide range of clamping diameters, making them suitable for various hose sizes.
• Strength: Provides a robust and reliable seal, capable of withstanding significant pressure.
• Ease of Installation: Typically requires a screwdriver or nut driver for tightening.
• Material Options: Available in various materials, including zinc-plated steel for general use and stainless steel for corrosion resistance, especially in harsh environments like marine or under-bonnet applications.

Applications: Widely used on radiator hoses, heater hoses, air intake hoses, and vacuum lines. They are a go-to choice for most general-purpose hose connections.

2. Mini Hose Clamps

As the name suggests, mini hose clamps are smaller versions of the traditional worm drive clamp. They are specifically designed for applications where space is limited or where lower clamping forces are sufficient. These are particularly useful for smaller diameter hoses found in vacuum systems, fuel injector lines, and other low-pressure applications.

Key Features:

• Compact Size: Ideal for tight spaces and small-diameter hoses.
• Precise Clamping: Allows for fine-tuning of the clamp's tension.
• Material: Often made from stainless steel to prevent corrosion.

Applications: Vacuum hoses, fuel injector lines, small coolant hoses, and other delicate connections where excessive force could damage the hose.

3. Corbin Clamps (T-Bolt Clamps)

Corbin clamps, also commonly referred to as T-bolt clamps, are a heavy-duty option designed for high-pressure and high-vibration applications. They feature a robust band with a T-bolt that threads directly into a nut welded onto the band. This design provides a uniform and powerful clamping force, ensuring a leak-proof seal even under extreme conditions.

Key Features:

• High Clamping Force: Delivers superior sealing capability for high-pressure systems.
• Uniform Pressure: Distributes pressure evenly around the hose, reducing the risk of hose damage.
• Durability: Built to withstand harsh environments and significant stress.
• Ease of Tightening: Typically requires a socket or wrench for tightening.

Applications: Turbocharger hoses, high-pressure coolant systems, intercooler hoses, and other demanding automotive applications where a very secure and robust connection is essential.

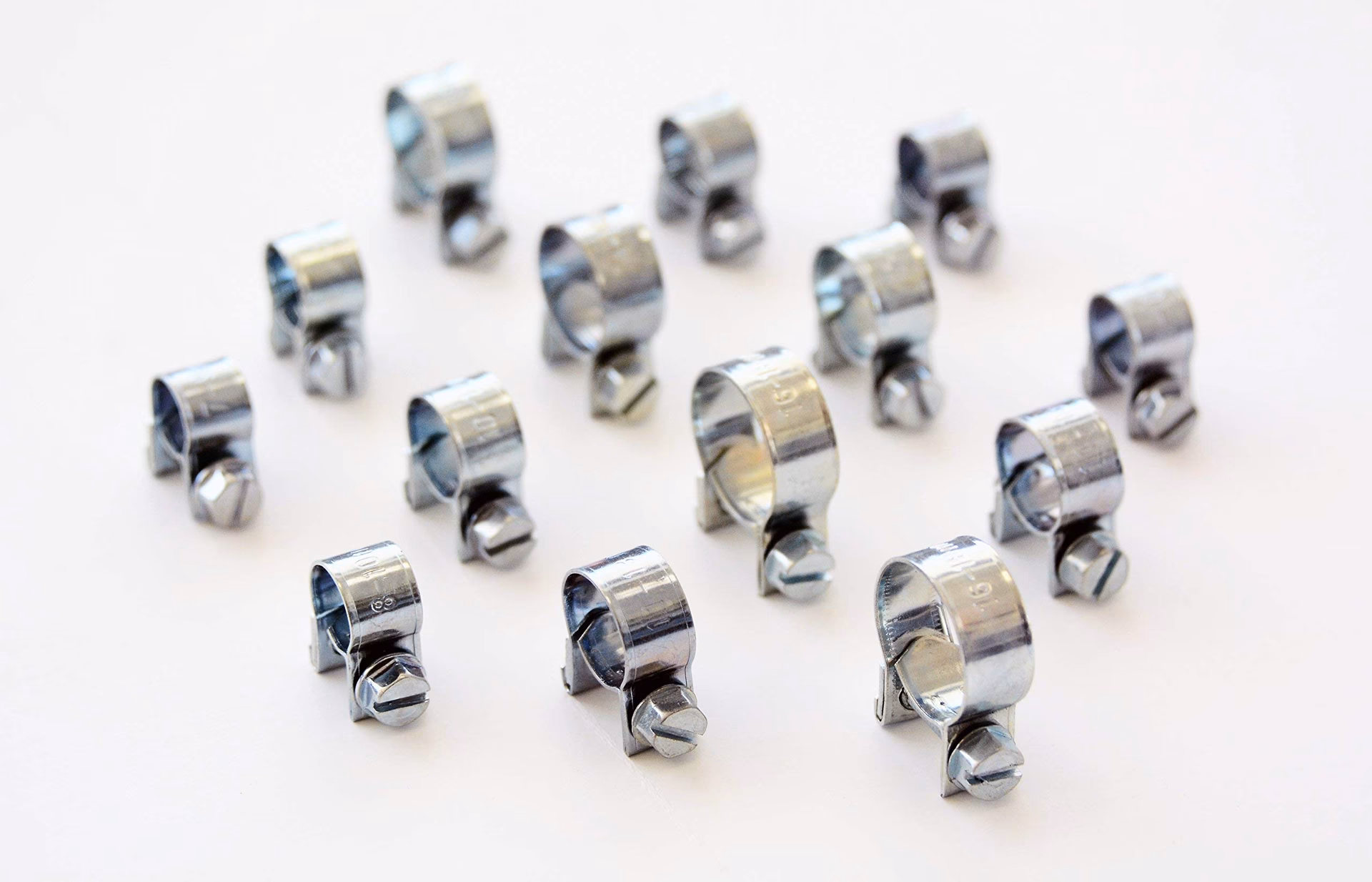

4. Fuel Injector Hose Clamps

Fuel injector hose clamps are a specialized type of clamp designed specifically for the fuel lines leading to fuel injectors. These clamps are typically made from corrosion-resistant materials like stainless steel and are designed to provide a secure seal against fuel pressure. They often feature a smooth inner surface to avoid damaging the fuel hose and are engineered to meet stringent automotive safety standards.

Key Features:

• Fuel Compatibility: Designed to resist degradation from fuel exposure.
• Corrosion Resistance: Typically made from stainless steel.
• Non-Damaging Design: Smooth inner surfaces prevent hose damage.
• High Security: Ensures a leak-free seal under fuel pressure.

Applications: Specifically used on fuel lines connecting to fuel injectors. These are critical for preventing fuel leaks and ensuring proper fuel delivery.

5. Spring-Loaded Hose Clamps

Spring-loaded hose clamps, often referred to as ear clamps or O-ring clamps, are designed for applications where a consistent clamping force is required, even with temperature fluctuations. They consist of a metal band with a protruding “ear” that is squeezed with a special plier tool. Once the tool is removed, the ear retains its shape, applying constant pressure to the hose.

Key Features:

• Constant Tension: Maintains clamping force as temperatures change, preventing leaks.
• Simple Installation: Requires a specific plier tool for installation and removal.
• Low Profile: The clamp sits flush with the hose, making it suitable for tight spaces.
• Material: Usually made from steel or stainless steel.

Applications: Commonly found on coolant hoses, air intake systems, and some fuel lines where consistent pressure is vital to prevent leaks due to thermal expansion and contraction.

6. O-Clip Hose Clamps

Similar in concept to spring-loaded clamps, O-clips are a type of single-use clamp that is crimped onto the hose using specialized pliers. They offer a very compact and secure connection. However, because they are typically single-use, they are often found as original equipment on certain vehicle components.

Key Features:

• Compact and Low Profile: Ideal for very confined areas.
• Secure Fit: Once crimped, they provide a strong, permanent-like connection.
• Single-Use: Not designed for re-tightening or removal.

Applications: Often used by manufacturers on fuel lines, air conditioning lines, and transmission cooler lines.

Choosing the Right Hose Clamp: Key Considerations

With such a variety of options, selecting the correct hose clamp for your specific repair is crucial. Here are some factors to consider:

• Hose Material and Diameter: The type of hose (rubber, silicone, plastic) and its diameter will influence the clamp size and type. Silicone hoses, for example, can be more susceptible to damage from overtightening, making clamps that offer controlled pressure more suitable.
• System Pressure: High-pressure systems require robust clamps like Corbin or T-bolt clamps, whereas low-pressure vacuum lines might only need mini clamps.
• Environmental Conditions: If the clamp will be exposed to moisture, salt, or corrosive chemicals, opt for stainless steel to prevent rust and ensure longevity.
• Vibration: In areas prone to significant vibration, a clamp that provides a very secure and uniform grip, like a T-bolt clamp, is recommended.
• Ease of Access for Maintenance: Consider if the clamp will need to be removed and reinstalled in the future. Worm drive clamps are generally easier to remove and re-tighten than O-clips or spring-loaded clamps.
• Manufacturer Recommendations: Always consult your vehicle's service manual for specific recommendations on the types of clamps used in different systems.

Material Matters: Steel vs. Stainless Steel

Hose clamps are typically manufactured from either steel or stainless steel. While steel clamps are often less expensive, they are prone to rust and corrosion, especially in humid or salty environments. Stainless steel clamps, on the other hand, offer superior corrosion resistance and durability, making them a better choice for long-term reliability and in applications where exposure to the elements is a concern.

Metric vs. Standard Sizes

As mentioned, both metric and standard sizes are available for many types of hose clamps. It's essential to measure the outer diameter of the hose and the fitting it connects to accurately to select the correct clamp size. Using a clamp that is too small will not create a proper seal, while a clamp that is too large may not tighten sufficiently or could damage the hose.

Installation Best Practices

Proper installation is as important as choosing the right clamp. Here are a few tips:

• Ensure the hose is properly seated on the fitting.
• Position the clamp so that the screw mechanism (for worm drive) is not directly over a reinforced section of the hose, if applicable.
• Tighten the clamp firmly but avoid overtightening, which can damage the hose or fitting. For worm drive clamps, the band should be snug and evenly compressed around the hose.
• For clamps requiring special tools, ensure you use the correct tool and follow the manufacturer's recommended tightening procedure.

Frequently Asked Questions (FAQs)

Q1: Can I reuse an old hose clamp?

A: It is generally recommended to replace hose clamps whenever you replace a hose. Old clamps may have lost their elasticity, the screw threads can become worn, or corrosion might have weakened the band, compromising their ability to create a secure seal.

Q2: What is the difference between a worm drive clamp and a T-bolt clamp?

A: A worm drive clamp uses a screw thread that engages with the band for tightening, offering good adjustability. A T-bolt clamp uses a T-bolt that threads into a nut, providing a higher and more uniform clamping force, making it suitable for high-pressure applications.

Q3: How do I know what size hose clamp I need?

A: You need to measure the outer diameter of the hose where the clamp will be placed. Then, select a clamp whose size range accommodates that measurement. Most clamp packaging will specify the diameter range it covers.

Q4: Are stainless steel hose clamps worth the extra cost?

A: For most automotive applications, especially those exposed to the elements or high temperatures, stainless steel hose clamps are a worthwhile investment due to their superior corrosion resistance and longevity, preventing premature failure.

Q5: Where should I position a worm drive hose clamp?

A: Position the clamp so the screw housing is on the side opposite the fitting, and ensure the band is evenly distributed around the hose. Avoid placing the screw directly over any ribs or reinforced areas of the hose, as this can create a weak point.

In conclusion, the selection and proper installation of hose clamps are critical for the reliable operation and safety of your vehicle. NAPA Auto Parts offers a comprehensive range of hose clamps, from the versatile mini and worm drive clamps to the heavy-duty Corbin and specialized fuel injector clamps, ensuring you have the right solution for every automotive hose repair. By understanding the different types available and considering the specific requirements of your application, you can ensure a secure and long-lasting seal for your vehicle's vital fluid systems.
