Dorman Fuel Hose Fittings: Sizing Explained

When it comes to maintaining or repairing your vehicle's fuel system, selecting the correct components is paramount. The fuel system is a critical network of pipes, hoses, and fittings that safely delivers fuel from the tank to the engine. Any compromise in this system, especially at connection points, can lead to dangerous leaks, inefficient performance, or even complete vehicle breakdown. Dorman Products stands as a prominent name in the aftermarket, offering an extensive range of automotive replacement parts, including a vast array of fuel hose fittings designed for universal application across numerous makes and models. However, with such a comprehensive catalogue, determining the exact size and type of Dorman fuel hose fitting you need can sometimes feel like navigating a maze. This guide aims to demystify the process, providing you with the knowledge to confidently identify and select the appropriate Dorman fitting for your specific requirements.

Understanding Dorman's approach to fuel hose fittings is key. Unlike original equipment manufacturers (OEMs) who produce parts specifically for one vehicle model, Dorman focuses on providing universal or application-specific solutions that cover a broad spectrum of vehicles. This means their fittings come in a multitude of sizes and configurations to adapt to various fuel line diameters, thread types, and connection styles found across the automotive landscape. Therefore, rather than a simple, fixed list of sizes, it's more about understanding the dimensions and characteristics that define each fitting and how they correspond to your vehicle's existing fuel lines.

The Crucial Role of Fuel Hose Fittings

Fuel hose fittings are the unsung heroes of your fuel system, creating secure, leak-proof connections between fuel lines, hoses, pumps, and injectors. They must withstand constant fuel flow, varying temperatures, vibrations, and often corrosive elements. A properly chosen and installed fitting ensures fuel integrity, prevents dangerous vapour leaks, and maintains the correct fuel pressure for optimal engine operation. Conversely, an ill-fitting or damaged connection can lead to significant issues, from a subtle fuel odour to a catastrophic fire hazard. Dorman's reputation for quality and innovation in the aftermarket makes their fittings a popular choice for both professional mechanics and DIY enthusiasts seeking reliable replacements or upgrades.

Identifying Key Dimensions and Types

To accurately select a Dorman fuel hose fitting, you must first understand the critical dimensions and types of connections involved. Fuel hose fittings are primarily categorised by the diameter of the hose they connect to, the type and size of any threads, and their overall design or function. Dorman offers fittings for various hose inside diameters (ID), which is the most common way to size flexible fuel lines. Common imperial sizes include 1/4", 5/16", and 3/8", with metric equivalents also widely used, such as 6mm, 8mm, and 10mm. It's essential to measure the *inside diameter* of your fuel hose, not the outside, as this is what the fitting's barb or connection point will engage with.

Common Fitting Types from Dorman:

• Barbed Fittings: These are designed for use with flexible rubber or nylon fuel hoses. They feature raised rings (barbs) that grip the inside of the hose, often secured with a clamp. Dorman offers these in various materials like plastic, steel, and brass, and in straight, elbow (90-degree), and T-configurations.
• Threaded Fittings: Used for hard lines or components with threaded ports. These come in various thread types, including NPT (National Pipe Taper), AN (Army-Navy, common in performance applications), and metric threads (e.g., M10x1.0, M12x1.5). Dorman provides adapters to convert between different thread types and sizes.
• Quick-Connect Fittings: Increasingly common on modern vehicles, these allow for fast and easy connection and disconnection without tools. They feature an internal O-ring seal and a locking mechanism. Dorman supplies a wide range of quick-connect fittings, often with specific vehicle applications, designed to match OEM styles. These are crucial for modern fuel systems that utilise plastic fuel lines.
• Compression Fittings: Less common for fuel lines due to the high-pressure nature and safety concerns, but sometimes used for certain low-pressure or vent lines. They create a seal by compressing a ferrule (sleeve) onto the tubing.
• Brake & Fuel Line Repair Fittings: These are specialised fittings designed to splice or repair damaged sections of hard fuel lines. They often involve a double-flaring or compression method.

When dealing with threads, it's not just the diameter that matters but also the thread pitch (the distance between threads) and whether it's a tapered or straight thread. Mismatching these can lead to leaks or stripped threads. Dorman's product descriptions will always specify these details, so careful comparison with your existing fitting or port is vital.

Measuring for Accuracy:

Accurate measurement is the cornerstone of selecting the correct Dorman fuel hose fitting. Here's what you need to measure:

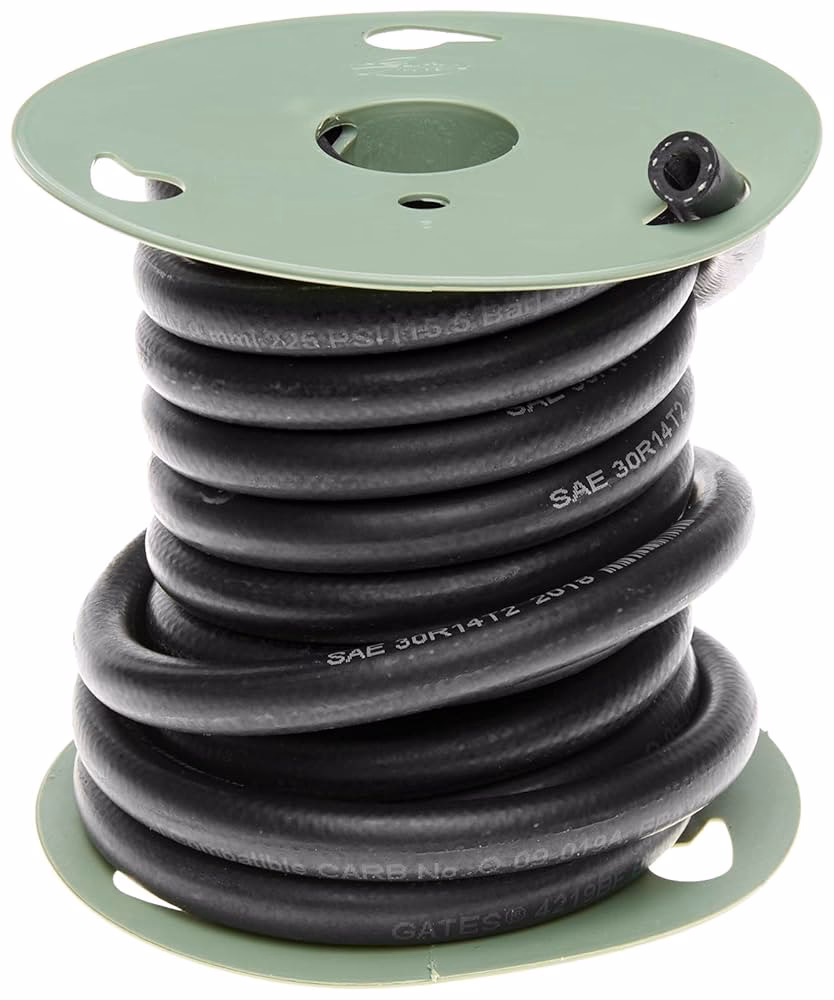

• Hose Inside Diameter (ID): For flexible hoses, measure the inner diameter. This is the most important measurement for barbed fittings.
• Thread Diameter and Pitch: For threaded connections, you'll need a thread gauge or callipers to determine the outside diameter of the male thread or the inside diameter of the female thread, and a thread pitch gauge to find the distance between threads.
• Fitting End Type: Determine if it's a male or female connection, and what type of end it has (e.g., barbed, quick-connect, flared, pipe thread).
• Angle: If it's an elbow or T-fitting, note the angle (e.g., 90-degree, 45-degree).
• Material: While Dorman offers various materials, matching the original material or choosing a more robust option (e.g., steel over plastic for certain applications) can be beneficial.

It's often helpful to take the old fitting to a reputable automotive parts supplier or use a digital caliper for precise measurements. Dorman's packaging and online catalogue provide detailed specifications, including dimensions in both imperial and metric units, to aid in your selection.

Common Fuel Line Sizes and Applications:

While Dorman offers a vast range, certain sizes are more prevalent in automotive fuel systems. Here's a general overview:

For threaded fittings, NPT (National Pipe Taper) sizes like 1/8" NPT, 1/4" NPT, and 3/8" NPT are common for fuel pressure sensors, fuel filters, or various adapters. Metric threaded fittings are often found on fuel rails, injectors, and pumps, with sizes like M10x1.0, M12x1.5, M14x1.5, and M16x1.5 being typical.

The Dorman Catalogue: Your Best Resource

Given the sheer volume of Dorman's offerings, the most reliable way to find the exact fitting you need is to consult their official catalogue or website. Dorman organises its products meticulously, often providing detailed diagrams, dimensions, and vehicle application lists. If you have the part number of the original fitting (even if it's an OEM number), Dorman's cross-referencing tools can often lead you directly to their equivalent. Otherwise, searching by vehicle make, model, year, and specific fuel system component (e.g., 'fuel line quick connect', 'fuel filter fitting') will narrow down the options considerably.

Many Dorman fittings are sold as part of repair kits, which might include the fitting itself, a section of fuel line, and necessary clamps or tools. This can be a convenient option if you're dealing with a damaged section of line rather than just a single fitting.

Installation Tips and Best Practices

Once you've identified and acquired the correct Dorman fuel hose fitting, proper installation is paramount to ensure a safe and leak-free repair. Always depressurise the fuel system before working on it. This typically involves removing the fuel pump fuse or relay and running the engine until it stalls, then cranking it a few more times. Disconnect the battery's negative terminal for safety.

• Cleanliness: Ensure all connection points are clean and free of dirt or debris. Even a small particle can compromise a seal.
• Lubrication: For quick-connect fittings with O-rings, a light coating of fuel-compatible lubricant (like silicone grease or even a dab of clean fuel) can aid in installation and prevent O-ring damage.
• Correct Tools: Use appropriate tools for tightening threaded fittings (e.g., flare nut wrenches for flared lines to prevent rounding nuts) and for installing quick-connect fittings (special quick-connect tools are often available).
• Hose Clamps: For barbed fittings, always use high-quality fuel-rated hose clamps. Worm-drive clamps are common, but constant-tension clamps are often preferred for fuel lines as they adapt to temperature changes. Double-clamping is a good practice for critical connections.
• Torque Specifications: If available, adhere to manufacturer torque specifications for threaded fittings. Overtightening can strip threads or crack components; undertightening can lead to leaks.
• Leak Testing: After installation, repressurise the fuel system (reinstall fuse/relay, reconnect battery) and thoroughly inspect all connections for leaks. A fuel pressure gauge can also help confirm system integrity. Smell, visual inspection, and even a small amount of soapy water (though be cautious with fuel) can help detect leaks.

Remember that fuel is highly flammable. Always work in a well-ventilated area, away from open flames or sparks. Have a fire extinguisher readily available.

Troubleshooting Common Fitting Issues

Even with the correct Dorman fitting, problems can arise. Here's a brief troubleshooting guide:

• Leaks After Installation:
  • Incorrect Size/Type: Double-check if the fitting's ID/thread matches the hose/port.
  • Damaged O-ring/Seal: Inspect seals for nicks or tears. Replace if necessary.
  • Improper Tightening: Overtightened (cracked) or undertightened (loose) connections.
  • Damaged Line/Port: Inspect the fuel line or component port for damage that prevents a proper seal.
  • Wrong Clamp: For barbed fittings, ensure the clamp is the correct size and type and is sufficiently tight.
• Difficulty Installing Quick-Connect:
  • Misalignment: Ensure the fitting is perfectly straight before pushing.
  • Damaged Lock Tab: Inspect the locking mechanism.
  • Lack of Lubrication: A dry O-ring can prevent smooth engagement.
• Hose Pulling Off Barbed Fitting:
  • Insufficient Clamp Pressure: Tighten the clamp more or use a stronger clamp.
  • Wrong Hose ID: Hose might be too large for the barb.
  • Old/Hardened Hose: Replace the hose if it's lost its flexibility and grip.

Frequently Asked Questions (FAQs)

Q1: Can I use a universal Dorman fitting for any vehicle?

A1: While many Dorman fittings are designed for universal application, it's crucial to match the specific dimensions (hose ID, thread type, quick-connect style) to your vehicle's existing fuel lines and components. Always verify compatibility using Dorman's product details or cross-reference tools.

Q2: How do I know if my fuel line is imperial or metric?

A2: Modern vehicles, especially those from European or Asian manufacturers, often use metric fuel lines and fittings. Older American vehicles typically use imperial sizes. The best way to know for sure is to measure your existing line with a caliper that can read both imperial and metric, or consult your vehicle's service manual.

Q3: What's the difference between NPT and AN fittings?

A3: NPT (National Pipe Taper) fittings are tapered threads that seal by wedging together, often with thread sealant. AN (Army-Navy) fittings are straight threads that seal with a 37-degree flare, providing a very secure and reusable connection, commonly found in performance and racing applications. Dorman offers adapters for both.

Q4: Do Dorman quick-connect fittings come with O-rings?

A4: Yes, Dorman quick-connect fittings typically come with pre-installed O-rings and internal locking mechanisms, ready for installation. However, it's always good practice to visually inspect them before fitting.

Q5: Is it safe to repair a fuel line with a splice fitting, or should I replace the whole line?

A5: For minor damage or specific repairs, a high-quality fuel line splice fitting (like those offered by Dorman) can be a safe and effective solution, provided it's installed correctly and is rated for fuel use. For extensive damage or if the line is old and brittle, replacing the entire section or line is generally the safer and more durable option. Always prioritise safety when working with fuel.

In conclusion, while Dorman offers an incredibly diverse range of fuel hose fittings, understanding the fundamental principles of sizing, type, and material will empower you to make the correct selection. Precise measurement, careful comparison with Dorman's detailed product specifications, and adherence to proper installation techniques are your best allies in ensuring a secure, leak-free, and long-lasting repair to your vehicle's vital fuel system. Always prioritise safety and, when in doubt, consult with a qualified automotive professional.
