Understanding Fuel Injector Heat Shields
In the world of automotive maintenance, we often encounter issues that, while not immediately catastrophic, can lead to frustrating breakdowns and performance degradation. One such problem, particularly prevalent in certain Jeep models, is known as vapor lock. This phenomenon occurs when fuel in the fuel lines or injectors gets too hot, turning into vapour. This vapour can then prevent liquid fuel from reaching the engine, leading to stalling or difficult starting, especially in warm weather. A crucial component designed to combat this is the fuel injector heat shield.
A fuel injector heat shield is essentially a protective barrier engineered to shield sensitive fuel system components, specifically the fuel rail and injectors, from excessive heat. This heat typically emanates from the engine's exhaust manifold or other hot engine parts. By deflecting or absorbing this radiant heat, the shield helps maintain a cooler operating temperature for the fuel, thereby mitigating the risk of vapor lock.
The Jeep 4.0L In-Line Six: A Common Case for Heat Shielding
The 1997-2004 Jeep Wrangler and Cherokee models equipped with the robust 4.0-litre in-line six-cylinder engine are particularly susceptible to heat-related fuel system issues. The proximity of the exhaust manifold to the fuel rail and injectors in these vehicles creates an environment where heat soak can significantly impact fuel temperature. This is where a well-designed heat shield kit becomes invaluable.
Design Engineering, a reputable name in automotive thermal management, offers a specific kit designed to address this very problem. Their kit provides a direct solution, reducing heat soak in both the fuel rail and the injectors. The primary benefit of this protection is the reduction in vapor lock, ensuring a consistent fuel supply to the engine. Furthermore, by keeping the fuel cooler, it helps maintain the fuel's optimal density and performance characteristics.
How a Fuel Injector Heat Shield Kit Works
The effectiveness of a heat shield lies in its construction and material properties. The kit designed for the Jeep 4.0L engine typically features a multi-layered construction. The core of the shield is often made from a high-temperature insulation material, sandwiched between layers of reflective material, usually aluminium. This design serves a dual purpose:
- Reflection: The aluminium surfaces reflect radiant heat away from the fuel components.
- Insulation: The inner insulation layer further prevents heat transfer to the fuel rail and injectors.
The kit usually includes not only the main manifold heat shield but also specific thermal covers for the fuel rail and individual injector covers. This comprehensive approach ensures that all critical components are adequately protected from the engine's heat.
Benefits of Installing a Heat Shield Kit
The advantages of fitting a fuel injector heat shield kit are manifold:
- Prevents Vapor Lock: This is the primary benefit, ensuring smoother engine operation, especially in hot weather.
- Reduces Engine Stalling: By preventing vapor lock, the likelihood of sudden engine stalls is significantly reduced.
- Improves Starting: Easier starting, particularly after the engine has been sitting hot.
- Maintains Fuel Quality: Cooler fuel can mean better atomisation and more efficient combustion.
- Protects Components: Reduces the thermal stress on fuel injectors and the fuel rail, potentially extending their lifespan.
- Enhances Performance: A consistent fuel supply contributes to more reliable engine performance.
What's Included in a Typical Kit?
A comprehensive kit, like the one offered by Design Engineering for the Jeep 4.0L, usually contains everything needed for a professional installation. This typically includes:
- 1 x Manifold Heat Shield
- 1 x Fuel Rail Heat Cover

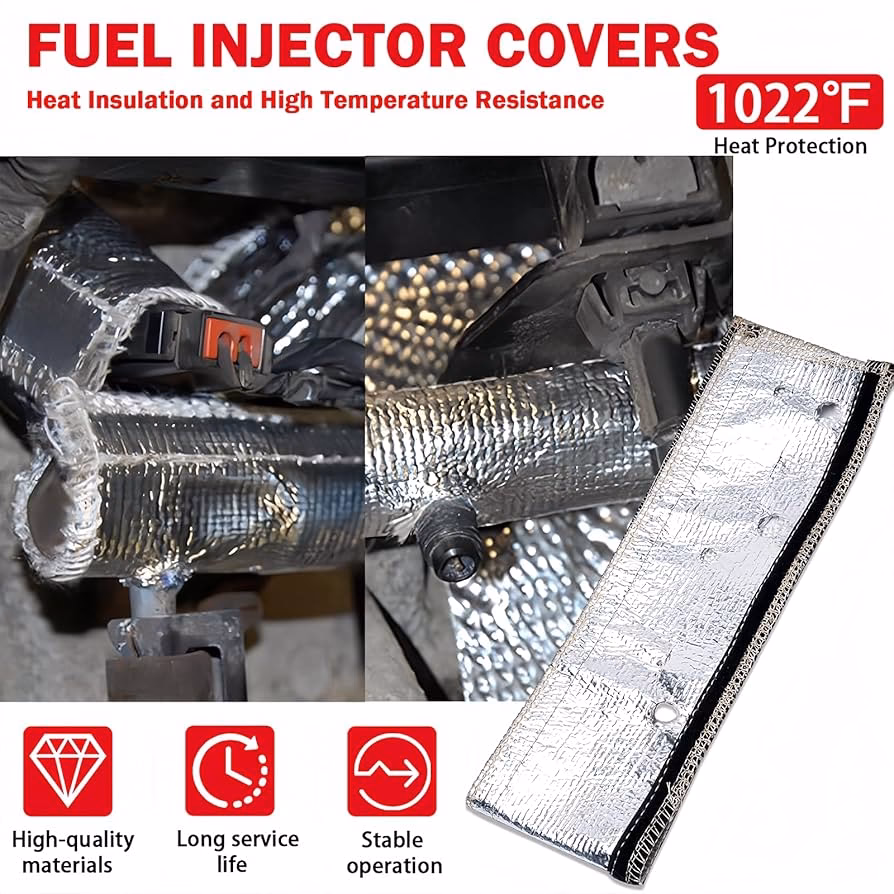

- 6 x Fuel Injector Covers
- 12 x Replacement OE Fuel Injector O-rings (essential for sealing)
- Installation Instructions
The inclusion of new O-rings is a critical aspect, as the old ones are often reused during injector service and can degrade over time, leading to fuel leaks.
Tools Required for Installation
While the installation is generally straightforward, having the correct tools will make the job much easier and ensure a proper fit. For the Jeep 4.0L kit, you will likely need:
- A 10mm socket with a ratchet and extension (for manifold shield mounting).
- A flathead screwdriver (for prying and general use).
- A fuel rail line disconnect tool (specific to your vehicle's fuel line fittings).
- A pick or small pry tool (useful for carefully removing old O-rings from injectors).
Safety First: Installation Precautions
Working with fuel systems requires a diligent approach to safety. Before commencing any work:
- Disconnect the Battery: Always disconnect the negative battery terminal to prevent any electrical sparks.
- Ensure the Engine is Cool: Never work on a hot engine. Allow ample time for the engine to cool down completely.
- Work in a Well-Ventilated Area: Fuel vapours are highly flammable. Avoid working near open flames, sparks, or any potential ignition sources.
During installation, when disconnecting the fuel rail, be prepared for some residual fuel pressure. It's advisable to have a rag ready to catch any minor spills. After the new heat shields are installed, it is imperative to check for any fuel leaks. Referencing your vehicle's service manual for specific procedures regarding fuel line and injector removal/installation is always recommended.
Comparing Heat Shield Materials
While the Jeep kit focuses on specific components, the concept of heat shielding extends to other areas of a vehicle. For instance, gas tanks can also benefit from heat protection, especially if located near hot components like the exhaust system. When selecting materials for such applications, several options are available:
| Material Type | Description | Pros | Cons |
|---|---|---|---|
| Radiant Shield (Aluminium) | Flexible aluminium foil, often with a peel-and-stick adhesive backing. | Highly reflective, flexible, easy to apply, cost-effective. | Less insulating than multi-layer options. |
| Thermal Block (Insulated Aluminium) | Aluminium facing with an insulating layer behind it. | Offers better insulation than plain radiant shield, durable, good heat resistance. | Slightly less flexible than pure foil, can be more expensive. |
| Exhaust Wrap (Fibreglass/Basalt) | High-temperature resistant fabric wrap applied around exhaust pipes. | Excellent heat reduction for exhaust systems, reduces under-bonnet temperatures. | Can retain moisture if exposed, requires secure fastening, not typically used directly on fuel components. |
For fuel system components, materials like Radiant Shield or Thermal Block are generally preferred due to their non-combustible nature and ability to reflect radiant heat effectively without trapping excessive moisture. Exhaust wraps, while excellent for managing exhaust heat, are usually applied directly to the exhaust system itself.
Frequently Asked Questions
Q1: Will a fuel injector heat shield improve my Jeep's horsepower?
While not its primary function, by ensuring a consistent and cooler fuel supply, it can help the engine perform at its optimal level, especially in hot conditions. This can translate to a more reliable and consistent power delivery rather than a direct horsepower increase.
Q2: Is it difficult to install a fuel injector heat shield kit?
The kits are designed for relatively straightforward installation. With basic mechanical knowledge and the right tools, most DIY enthusiasts can complete the job. The included instructions provide a step-by-step guide.
Q3: Can I use a generic heat shield material?
While generic materials might offer some protection, it's always best to use a kit specifically designed for your vehicle model and engine. These kits are engineered to fit correctly and address the specific heat sources and vulnerable components of your Jeep.
Q4: How often should I check my heat shields?
It's good practice to inspect your heat shields during regular maintenance, such as oil changes. Look for any signs of damage, corrosion, or loosening.
Q5: Where can I purchase these heat shield products?
Specialised automotive parts suppliers and online retailers that focus on performance and thermal management solutions are good places to look. Opie Oils, for example, is known for stocking a range of HeatShield products, including exhaust wraps and insulation.
Conclusion
Protecting your vehicle's fuel system from excessive heat is a vital aspect of preventative maintenance. For Jeep owners with the 4.0L in-line six engine, a fuel injector heat shield kit offers a practical and effective solution to combat vapor lock and ensure reliable engine performance. By understanding how these shields work, the benefits they provide, and the importance of proper installation and safety, you can significantly enhance the longevity and drivability of your beloved Jeep.
