Fuel Injection Harness: Your Engine's Lifeline

The smooth operation of your vehicle's engine relies on a complex network of wires and connectors, often referred to as a wiring harness. When it comes to the sophisticated world of fuel injection, a specific type of harness plays an absolutely vital role: the fuel injection harness. Think of it as the central nervous system for your engine's fuel delivery, meticulously transmitting signals that ensure the precise atomisation and delivery of fuel into the combustion chambers. Without a properly functioning fuel injection harness, your engine's performance, efficiency, and overall drivability can be severely compromised.

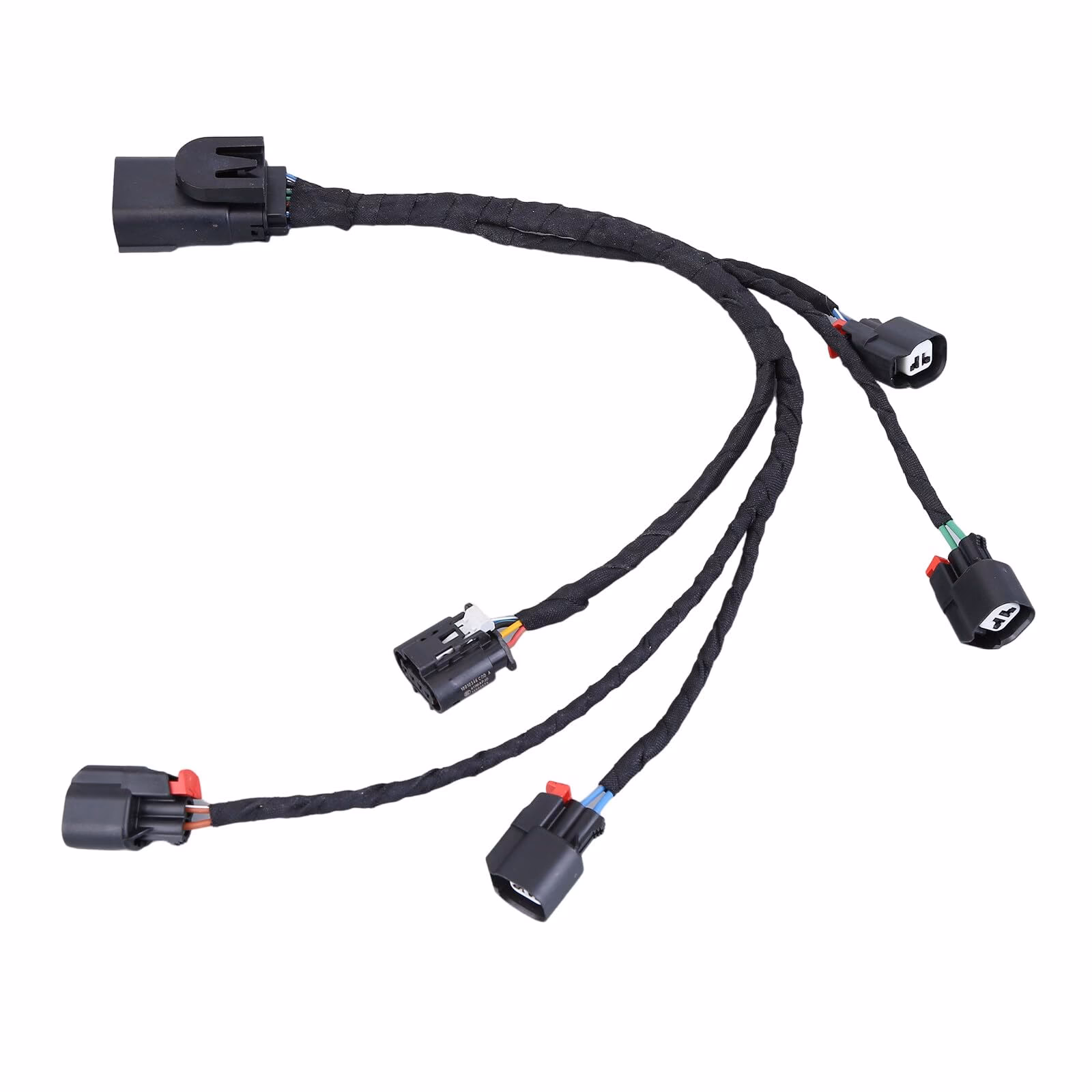

Understanding the Fuel Injection Harness

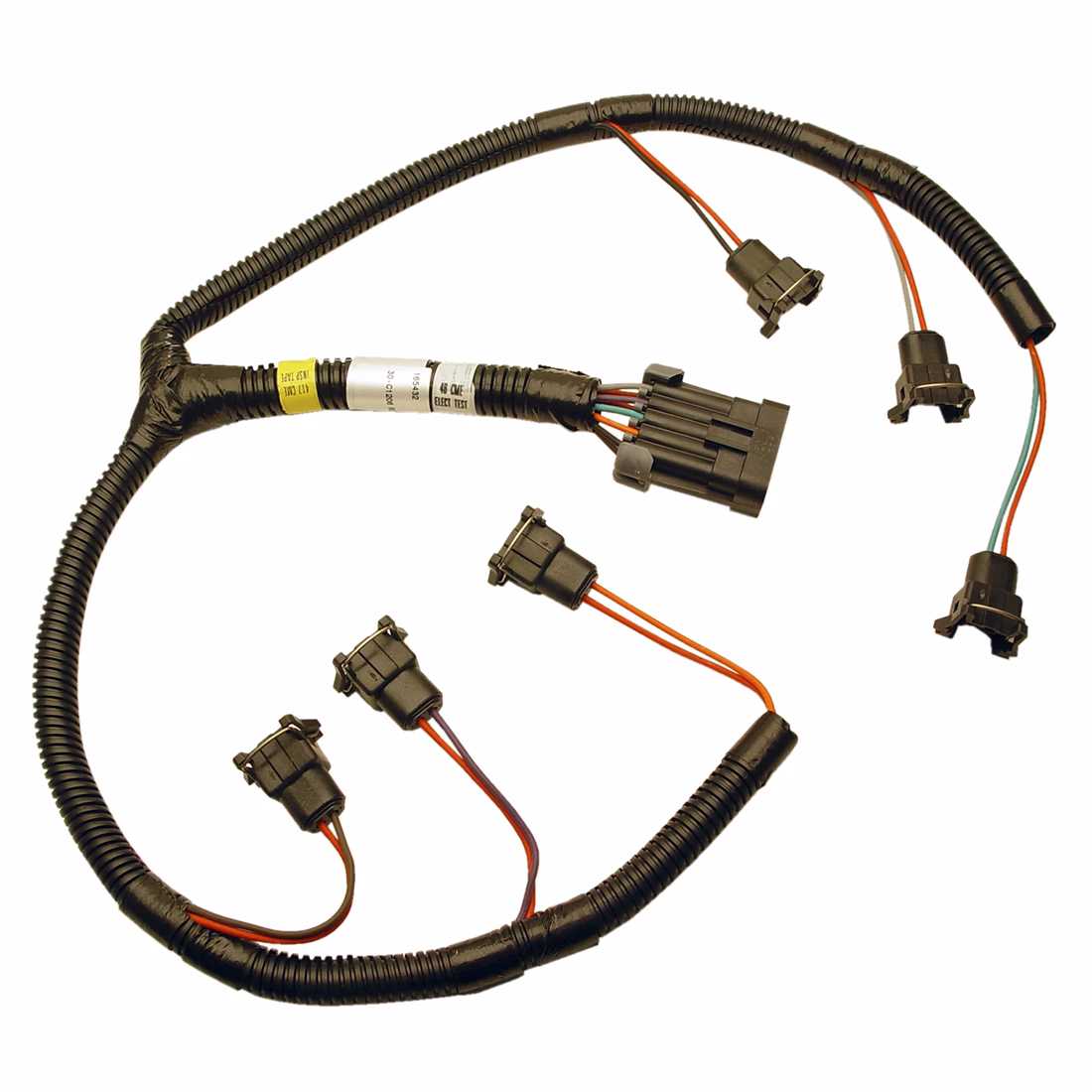

A fuel injection harness, also known as a fuel injector wiring loom or assembly, is a collection of wires, connectors, and protective sheathing designed to connect the engine control unit (ECU) to the fuel injectors. The ECU, the brain of your engine management system, sends electrical signals to each injector, dictating precisely when and for how long it should open, thereby controlling the amount of fuel sprayed into the engine. The harness ensures these signals are delivered reliably and without interference.

The modern automotive landscape has largely moved away from carburettors towards fuel injection systems due to their superior efficiency, emissions control, and performance. This transition places even greater importance on the integrity of the fuel injection harness. Whether you are looking to upgrade an older vehicle to a modern fuel injection system, replace worn or damaged wiring in a fuel-injected engine, or simply ensure the optimal performance of your current setup, understanding the function and importance of the fuel injection harness is paramount.

The Crucial Role of Fuel Injection Harnesses

• Precise Fuel Delivery: The primary function of the fuel injection harness is to facilitate the precise timing and duration of fuel injector operation. This allows for optimal fuel atomisation and a more complete combustion process.
• Engine Performance: A high-quality harness ensures that the signals from the ECU reach the injectors without degradation or interference. This translates to smoother acceleration, better throttle response, and overall enhanced engine performance.
• Fuel Efficiency: By ensuring the correct amount of fuel is delivered at the right time, a properly functioning harness contributes significantly to improved fuel economy. Inefficient fuel delivery leads to wasted fuel and reduced mileage.
• Emissions Control: Modern engines rely on precise fuel management to meet stringent emissions regulations. The fuel injection harness is integral to this process, helping to minimise harmful exhaust gases.
• Drivability: A well-maintained harness contributes to a seamless driving experience, eliminating issues like hesitation, stumbling, or rough idling that can be caused by faulty wiring.

Types of Fuel Injection Systems and Harnesses

Fuel injection systems have evolved over time, leading to different types of harnesses:

• Throttle Body Injection (TBI): An earlier form of fuel injection where a single or pair of injectors are located in the throttle body, mimicking a carburettor's position. The harness for TBI systems is generally simpler.
• Multi-Port Fuel Injection (MPFI): In MPFI, each cylinder has its own injector located in the intake manifold, closer to the intake valve. This allows for more precise fuel control. The harness for MPFI systems will have individual connectors for each injector.
• Sequential Multi-Port Fuel Injection (Sequential MPFI): This is the most advanced common type, where each injector fires in a specific sequence, timed with the engine's firing order and valve events. This offers the highest level of precision and efficiency. The harness for sequential systems is designed to support this intricate timing.

When selecting a fuel injection harness, it's crucial to match it to the specific type of fuel injection system you are installing or maintaining. Whether you're adapting a classic muscle car, a street racer, or a replica vehicle, a suitable harness is key to achieving the desired performance and reliability.

The Importance of Quality and Genuine Parts

As the provided information highlights, the quality of your wiring assembly is directly linked to the precision of your vehicle's assembly and its overall performance. Using new genuine OEM parts or high-quality aftermarket equivalents is essential for several reasons:

• Vehicle Fitment Accuracy: Genuine parts are manufactured to exact specifications for your specific vehicle. Providing your VIN ensures 100% vehicle fitment accuracy, preventing compatibility issues.
• Material Quality: High-quality materials are used in genuine harnesses to ensure durability, resistance to heat and chemicals, and reliable signal transmission over the long term.
• Manufacturing Standards: These parts are manufactured to original factory specifications and built to strict quality control standards, guaranteeing they will perform as intended.
• Reliability and Longevity: A well-made harness is less prone to failure, reducing the risk of misfires, poor running, and other costly engine problems.

A limited parts warranty, as offered by reputable suppliers, provides an extra layer of assurance that the product meets high standards.

The "Wet Loom" and Injector Harness Issues

Some fuel injection systems, particularly on certain engine types like the Td5 as mentioned, feature a specific type of wiring harness often referred to as a "wet loom" or injector harness wiring loom. This loom is typically situated within the top of the engine's rocker cover.

The term "wet loom" comes from its location: it gets exposed to engine oil. Over time, engine oil can seep into the wires and connectors within the harness. This oil contamination can lead to several detrimental effects:

• Degradation of Insulation: Engine oil can degrade the plastic insulation on the wires, leading to short circuits or exposed copper.
• Poor Electrical Contact: Oil and debris can interfere with the electrical connections between the harness and the injectors, or between the harness and the ECU.
• Misfires and Poor Running: These electrical issues can manifest as engine misfires, rough idling, hesitation during acceleration, a loss of power, and increased fuel consumption.

Replacing a contaminated "wet loom" is often a straightforward process, especially when supplied as a kit with necessary components like a rocker cover gasket. For Td5 engines, specifically later models from 2001 with the 15P engine, replacement kits are available, equivalent to Land Rover part numbers like AMR6103 and LVP000020. This ensures a complete and correct repair, addressing the root cause of the performance issues.

When to Consider a Fuel Injection Harness Replacement

Several signs might indicate that your fuel injection harness needs attention:

Frequently Asked Questions (FAQs)

Q1: What is the main purpose of a fuel injection harness?
A1: Its primary purpose is to transmit electrical signals accurately and reliably from the engine control unit (ECU) to the fuel injectors, controlling fuel delivery for optimal engine performance.

Q2: Can a faulty fuel injection harness affect engine performance?
A2: Absolutely. A damaged or degraded harness can lead to misfires, poor acceleration, reduced fuel efficiency, and the illumination of the check engine light.

Q3: What does "wet loom" refer to in the context of a fuel injection harness?
A3: A "wet loom" is a fuel injector harness located within the engine's rocker cover, where it can become contaminated with engine oil. This contamination can degrade the wiring and cause performance issues.

Q4: Is it important to use genuine OEM parts for a fuel injection harness replacement?
A4: Yes, using genuine OEM parts or high-quality aftermarket equivalents ensures proper fitment, reliability, and durability, manufactured to specific factory standards.

Q5: How can I check if my fuel injection harness is failing?
A5: Look for symptoms like the check engine light, engine misfires, rough idling, poor acceleration, and decreased fuel economy. Visual inspection for damage or oil contamination is also recommended.

In conclusion, the fuel injection harness is an often-overlooked but critically important component of your vehicle's engine management system. Ensuring its quality and integrity is paramount for achieving superior drivability, optimal performance, and reliable operation. Whether you're undertaking a custom build or routine maintenance, investing in a quality fuel injection harness is an investment in your vehicle's health.
