Fuel Cells: A Comprehensive Guide

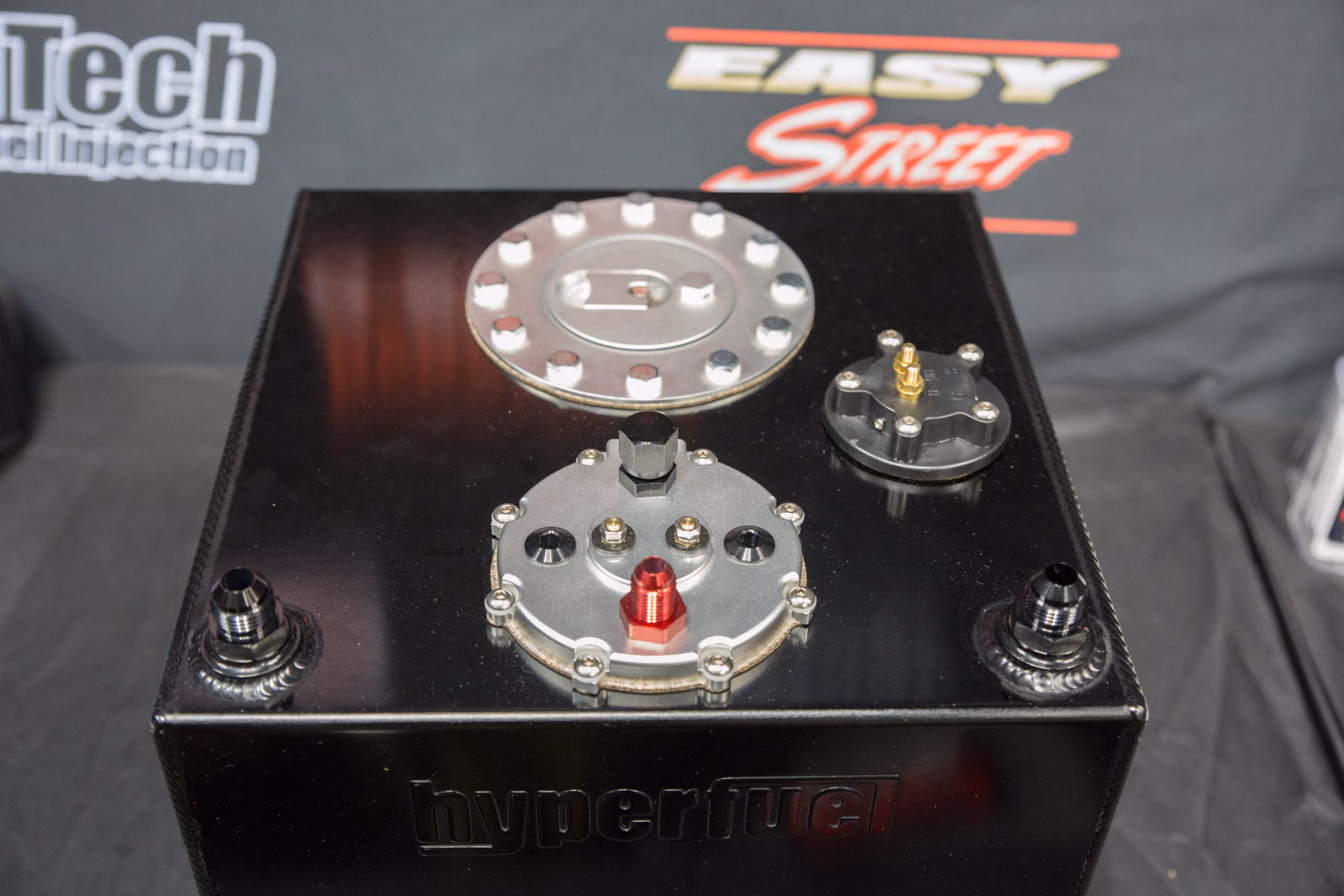

Should You Install a Fuel Cell? A Deep Dive

In the realm of automotive performance and safety, the humble fuel tank often goes unnoticed until issues arise. For those looking to enhance their vehicle's fuel system, particularly in performance applications like race cars, hot rods, and off-road vehicles, a fuel cell presents a compelling upgrade. Beyond simply holding fuel, a modern fuel cell can significantly improve safety, offer greater flexibility in vehicle design, and resolve performance quirks associated with older, unbaffled factory tanks. This article will delve into the 'why' and 'how' of fuel cell installation, covering their benefits, the intricacies of their placement, and a comprehensive guide to fitting one into your vehicle.

The Advantages of a Fuel Cell Upgrade

Factory fuel tanks, especially in carbureted and early fuel-injected vehicles, often lack internal baffling. This can lead to a phenomenon known as 'fuel starvation' during aggressive driving, such as hard cornering, acceleration, or braking. As the fuel sloshes around, the fuel pickup can momentarily draw air instead of fuel, causing inconsistent fuel pressure and potential engine hesitation or stalling. A well-designed fuel cell, with its internal baffling and often a collector system, ensures a consistent fuel supply to the engine, regardless of G-forces.

Beyond performance, safety is a paramount concern. Unlike many factory tanks, which might be exposed to the elements or constructed from less robust materials, fuel cells are typically built with advanced, fire-resistant materials. They are designed to withstand significant impact and prevent fuel leaks, drastically reducing the risk of fire in the event of an accident. This enhanced safety is a critical factor for anyone pushing their vehicle's limits.

Where is the Fuel Cell Located? Understanding Placement

The placement of a fuel cell is a crucial aspect of its design and function. In high-performance racing environments, the fuel system is a carefully engineered boundary between chassis and engine responsibilities. The chassis team typically designs and manages the fuel cell itself, along with the lift pumps and collector. The engine team then takes responsibility for the main fuel pump, filters, and injectors. This collaborative approach ensures the entire fuel delivery system operates seamlessly.

The primary role of the fuel system is to reliably deliver fuel from the tank to the engine. This fuel is then precisely metered and mixed with air before combustion. To achieve this, the fuel must be supplied at the correct pressure, which is managed by a sophisticated pump system. The fuel cell is the origin of this journey.

In racing applications, fuel cells are often located within the car's monocoque, typically positioned behind the driver and in front of the engine. These are not simple metal tanks; they are large, leak-proof, flexible bladders constructed from military-grade, ballistics-resistant materials. Their capacity is designed to hold enough fuel for an entire race, which can be substantial. For example, a Formula 1 car might carry around 160 kg or 230 litres of fuel.

To further enhance safety, hoses feeding fuel to the engine are often equipped with dry-break frangible couplings. These are designed to safely disconnect in the event of a chassis separation during an accident, preventing fuel from spraying out and creating a fire hazard, a lesson learned from the fiery accidents of the 1970s.

The Challenge of Fuel Recovery

Fuel sloshing within the tank due to lateral and longitudinal forces can make fuel recovery a complex challenge, especially when the fuel level is low. Imagine trying to drink from a straw in a turbulent container versus a stable one; the same principle applies to fuel pumps. To overcome this, fuel cells often incorporate multiple low-pressure, electrically powered 'lift pumps'. These are strategically placed to draw fuel from the tank's corners.

Filters are integrated at the entry of these lift pumps to protect them from any impurities that might have entered the fuel cell. The lift pumps then deliver the fuel to a smaller internal vessel known as a 'collector'. This collector, typically holding a few litres, is pressurized by the lift pumps and ensures a constant supply to the main fuel pump, even if the lift pumps experience intermittent fuel pickup at low levels. This is crucial, as an engine at full revs can consume a significant amount of fuel per minute.

The Journey to the Injectors

From the collector, fuel proceeds to the main fuel pump, which is mechanically driven and responsible for increasing the fuel pressure significantly. This pump is akin to a high-pressure washer, taking low-pressure fuel and delivering it at the required force. The flow rate from this pump is generally proportional to the engine's RPM. To match the fuel supply with the engine's demand, which varies greatly with throttle position, the main pump often features a variable displacement mechanism controlled by a pressure regulating device.

After passing through the pump and a final filter located in the fuel rail, the fuel is delivered to the injectors at high pressure. In many racing regulations, this pressure is capped, for instance, at 100 bar. The injectors themselves are precision electro-mechanical solenoid valves, electronically controlled by the vehicle's Engine Control Unit (ECU). The ECU, with its sophisticated software, dictates precisely when and how much fuel is injected into the intake air, optimising combustion for maximum performance and efficiency.

Frozen Development and Future Possibilities

In certain high-performance categories, engine development can become 'frozen' by regulations. This means that while routine car development continues, fundamental changes to the fuel system, including the fuel cell size, might be limited. The ban on refuelling in some series, for example, necessitated larger fuel cells to accommodate fuel for the entire race duration, introducing new challenges like managing fuel temperature and ensuring consistent pickup from a larger, shallower fuel volume at low levels.

Developments to overcome these challenges include improved car designs to reduce heat transfer to the fuel, stricter fuel formulations, and advancements in fuel cell and lift pump design. Without development freezes, we might see more complex injection systems, potentially with multiple injectors per cylinder and much higher delivery pressures, promising further gains in power, drivability, and fuel economy. The precision required is staggering; at 18,000rpm, an injector might fire multiple times per second, delivering mere fractions of a cubic centimetre of fuel with each pulse – a testament to the sophistication of modern engine management.

Should You Install a Fuel Cell? The Practicalities

For enthusiasts looking to upgrade their street car, hot rod, or off-road vehicle, installing a fuel cell can be a significant enhancement. The benefits of increased safety and improved fuel delivery consistency are substantial.

Safety Precautions: A Non-Negotiable First Step

Working with fuel systems carries inherent risks. Gasoline vapours are highly flammable, and a single spark can have catastrophic consequences. Therefore, a meticulous approach to safety is essential:

• Always work in a well-ventilated area.
• Eliminate all sources of sparks, flames, and heat from the vicinity.
• Never smoke while working on the fuel system.
• Open fuel caps slowly to release any built-up pressure.
• Use only approved containers for draining fuel.
• Wear appropriate safety glasses and gloves.
• Never install or service a fuel cell near an active battery or a running engine.

Removing the Old Fuel Tank: A Step-by-Step Guide

1. Disconnect the Battery: Always disconnect the negative battery terminal first to prevent accidental sparks.
2. Relieve Fuel System Pressure: Carefully loosen the gas cap. If your system has residual pressure, you may need to use the service port or temporarily disable the fuel pump (e.g., by removing its fuse) to relieve it. Drain the remaining fuel safely into an approved container.
3. Disconnect Fuel Lines and Wires: Label all fuel lines, filler hoses, and electrical connectors attached to the sending unit or fuel pump before disconnecting them. This will make reassembly or connection to the new system much easier.
4. Remove Mounting Hardware: Support the existing fuel tank with a jack or straps. Remove the mounting bolts or fuel tank straps, and then carefully lower the old tank out of the vehicle.

Before proceeding with the new installation, thoroughly inspect the area where the fuel cell will be housed. Remove any sharp edges or debris that could potentially damage the new fuel cell or its lines.

Installing the New Fuel Cell: Precision and Security

Proper installation is key to both safety and performance. This guide applies to most common aluminum or plastic fuel cells:

1. Position the Fuel Cell: Choose a mounting location that complies with local regulations and any applicable racing sanctioning body rules. Typically, fuel cells are installed in the trunk or rear bed area. Ensure the cell sits level and has adequate clearance from exhaust systems, suspension components, and the drivetrain.
2. Mount the Cell Securely: Use robust steel mounting brackets or straps that encompass the top, bottom, and sides of the cell. Securely bolt these brackets to the vehicle's frame or a reinforced floor pan. Be aware that the mounting tabs on many aluminum fuel cells are for positioning only and should not be relied upon for structural support.
3. Install the Vent Line: Proper venting is critical to prevent dangerous vapour buildup. Install a rollover vent valve and route the vent hose away from heat sources. Ensure the vent line has a fuel-safe filter and is routed to prevent kinking or clogging.
4. Connect the Fuel Lines: Install appropriate AN fittings or hose barbs to match your fuel delivery setup. Route the supply and return fuel lines from the cell to the fuel pump and fuel rail, respectively. Use high-quality fuel hose specifically rated for gasoline or ethanol.
5. Wire the Sending Unit (If Equipped): If your fuel cell includes a sending unit (often a 0–90 OHM unit compatible with GM-style gauges), connect the center terminal to your fuel gauge. Ground the unit securely using one of the outer mounting bolts, ensuring a solid connection to the vehicle chassis.
6. Double-Check Grounding: Proper grounding is essential for the fuel gauge to function correctly and, more importantly, to mitigate the risk of static discharge igniting fuel vapours. Ensure the fuel cell is firmly grounded to the vehicle's chassis.
7. Secure the Cap and Check Seals: Install a well-fitting fuel cell cap. Replace any worn or missing gaskets on the cap or fittings to ensure a proper seal and prevent fuel vapour leaks.

Final Checks Before First Startup

With the installation complete, perform a thorough final inspection:

• Confirm all fuel lines are securely tightened and routed away from sharp edges and hot components.
• Verify that the vent system is correctly installed and unobstructed.
• Check all electrical connections for tightness and proper grounding.
• Ensure all mounting hardware is secure and the fuel cell does not move under light pressure.
• Add a small amount of fuel and meticulously check for any leaks before reconnecting the battery and attempting to start the engine.

Choosing the Right Fuel Cell

Fuel cells come in a variety of shapes, capacities, and configurations. When selecting the best option for your vehicle, consider these factors:

• Application Type: Street, race, or off-road use will influence the required durability and features.
• Required Capacity: Measured in gallons or litres, ensure it meets your needs for range or race duration.
• Mounting Location and Dimensions: Measure your available space carefully.
• Pump Compatibility: Decide between internal or external fuel pump setups.
• Sending Unit Options: If you need a fuel level gauge, ensure compatibility.
• Compliance with Regulations: Crucial for any competitive motorsport.

Investing in a quality fuel cell and ensuring its proper installation is a significant step towards enhancing both the safety and performance of your vehicle. It's a modification that speaks to a deeper understanding of automotive engineering and a commitment to pushing boundaries responsibly.
