Mastering Engine Diagnostics: Fuel Injector Simulators

In the intricate world of automotive mechanics and diagnostics, precision is paramount. Modern vehicles rely on sophisticated electronic control units (ECUs) to manage everything from engine timing to fuel delivery. When issues arise, or when undertaking modifications, having the right tools to accurately diagnose and test these systems is crucial. This is where the fuel injector simulator comes and emulators become indispensable. These clever electronic devices offer a window into the heart of your engine's fuel system, allowing for detailed analysis, troubleshooting, and even the prevention of common error codes.

What Exactly Is a Fuel Injector Simulator?

At its core, a fuel injector simulator is a diagnostic tool designed to mimic or test the signals associated with a vehicle's fuel injectors. These devices serve various purposes, from verifying the proper functioning of an ECU's injector output to simulating entire engine operations for testing complex sensor and control systems. They are particularly valuable for mechanics, DIY enthusiasts, and developers working on custom ECU projects, providing a safe and controlled environment to test components without the need to run the engine itself.

One of the primary applications of a simulator is to confirm that the ECU is sending the correct electrical pulses to the fuel injectors. If an injector isn't firing, a simulator can help determine if the fault lies with the injector itself or with the ECU's command signal. This targeted approach saves significant diagnostic time and prevents unnecessary component replacements.

The DIY Enthusiast's Ally: The Arduino EFI Monitor

For those delving into custom engine management systems or developing their own ECUs, a simple yet powerful tool like the Arduino EFI Monitor proves invaluable. This specific type of injector simulator runs on an Arduino platform, typically outputting its findings to an RGB LED grid for clear visual feedback. It's engineered to test automotive ECU low-side outputs for fuel injectors, making it a favourite among users of DIY ECU projects such as RusEFI and Speeduino, though its versatility extends to virtually any automotive ECU with low-side outputs.

Here’s how the Arduino EFI Monitor provides its insights:

• Each column of LEDs on the grid corresponds to a specific cylinder of the engine.
• When an injector is commanded to open by the ECU, the first LED in that cylinder's column will flash white.
• Immediately after, the LED changes colour based on the engine's firing order. If the pulse received corresponds to the correct cylinder in the expected firing order, the LED turns green, indicating a correct sequence.
• Should the pulse arrive at an incorrect cylinder, the LED turns red, signalling a deviation from the expected firing order. Crucially, it then highlights the correct cylinder (the one that *should* have fired) in yellow, offering immediate clarity on where the discrepancy lies.
• The remaining LEDs in each column act as a visual timeline, scrolling one step along for every new pulse received. This provides a dynamic, historical view of injector activity, allowing users to observe patterns and inconsistencies over time.

Customisation is straightforward: users can specify the number of cylinders (`num_cyls`) and the expected `firing_order` directly in the Arduino sketch. ECU outputs are connected to designated pins, and the ECU's power ground is linked to the Arduino. While designed for Arduino Nano and its clones, it's adaptable to any Arduino board with sufficient inputs. It supports rectangular WS2812 LED arrays, with the example configured for a Keyes WS2812 4x8 array. The beauty of this system is its scalability; even an array with as few LEDs as your engine has cylinders will work, with additional column length simply extending the visual history for each cylinder. This makes it a highly flexible and cost-effective solution for detailed ECU output analysis.

Beyond Testing: The Role of Emulators in Gas Conversions

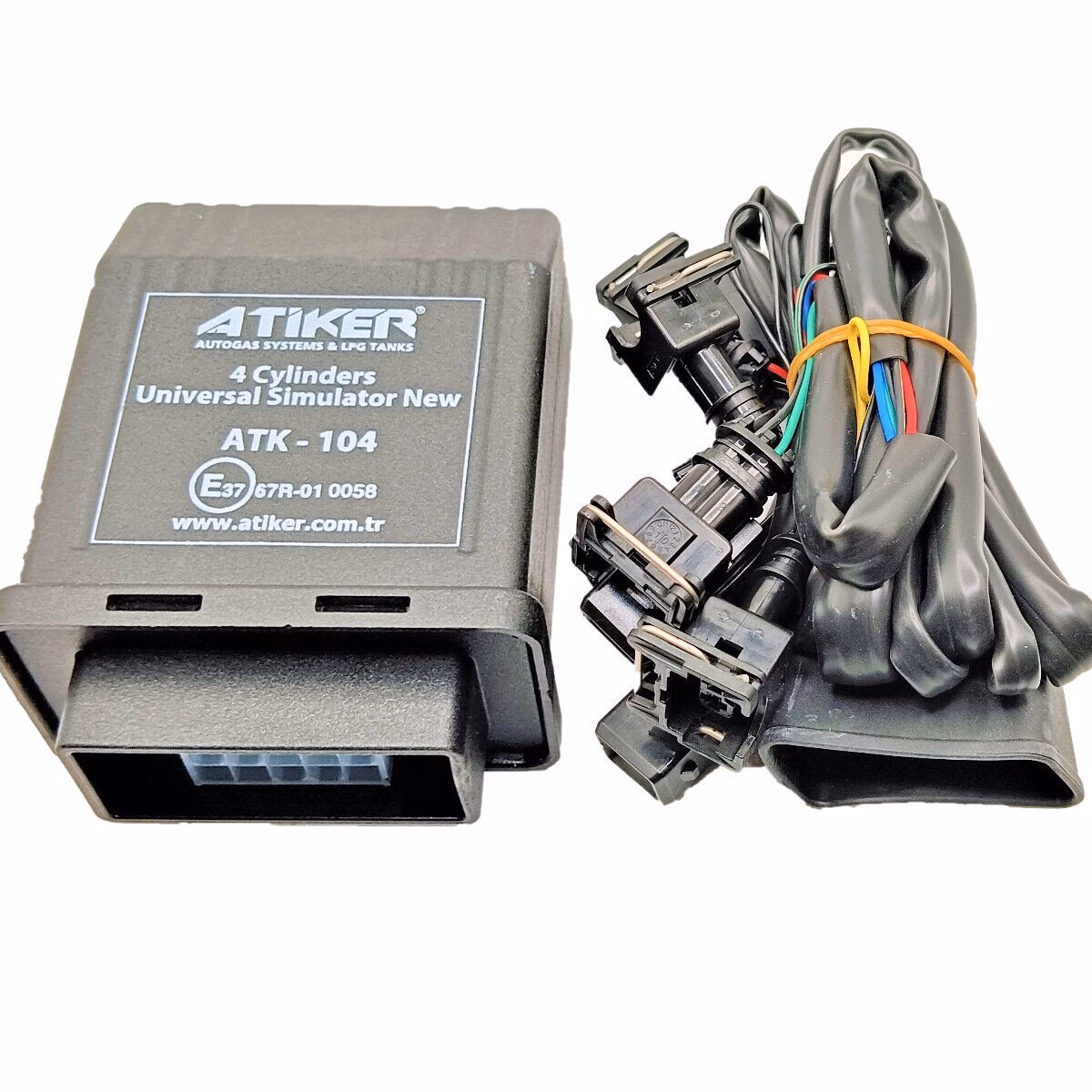

While often grouped with simulators, emulators serve a distinct, though related, purpose. These electronic devices are primarily used in vehicles that have been converted to run on alternative fuels like LPG or CNG (commonly referred to as 'gas' in the UK). When a car runs on gas, the original petrol injectors are effectively shut off or their signals are interrupted. This can confuse the vehicle's original ECU, which is still expecting signals from these components.

This is where emulators step in. They simulate the original vehicle signals that are either interrupted or altered during gas operation, such as those from petrol injectors, the Lambda probe, or the MAP sensor. By doing so, they prevent the original control unit from detecting false malfunctions. Without an emulator, the ECU would incorrectly assume there's a problem with the petrol system (since it's not receiving the expected signals) and consequently trigger the notorious Check Engine Light on the dashboard, often accompanied by error codes. The emulator effectively 'tricks' the ECU into believing everything is functioning normally on the petrol side, even though the engine is running on gas.

The appropriate emulator model varies significantly depending on the vehicle's original injection system. Some advanced AEB emulators, for instance, come equipped with dedicated harnesses and connectors that are identical to those of the vehicle. This design choice minimises the need for intrusive modifications to the vehicle’s original wiring system, making installation simpler and reducing the risk of wiring errors.

Advanced Simulation: The OpenLogicEFI Engine Simulator

For more comprehensive engine testing, tools like the OpenLogicEFI Engine Simulator, powered by the Ardustim firmware, take simulation to the next level. This powerful device is not just about injectors; it's designed to simulate entire engine operation, enabling the testing of various sensor and control systems simultaneously. Its key features include:

• Simulation of three simultaneous digital trigger patterns: crank, cam, and cam2. These patterns are crucial for an ECU to determine engine position and timing.
• Utilisation of free and open-source software, enhancing its versatility and flexibility for hardware testing and diagnostics.
• Its ability to generate these precise trigger patterns makes it an invaluable asset for calibrating ECUs, testing custom firmware, and diagnosing complex synchronisation issues without needing to start a live engine.

This type of simulator is particularly useful for engineers and advanced enthusiasts who need to rigorously test ECU behaviour under various simulated engine conditions, ensuring robust performance and reliability before installation in a vehicle.

Why Are These Tools So Important?

The importance of fuel injector simulators and emulators cannot be overstated in today's automotive landscape:

• Diagnostic Accuracy: They pinpoint whether an issue lies with the ECU, the wiring, or the injector itself, preventing guesswork and saving time.
• Preventing Costly Repairs: By accurately diagnosing problems, these tools help avoid replacing expensive components unnecessarily.
• Enabling Customisation: For those building or modifying ECUs, simulators provide a safe test bench, allowing for development and validation without risking damage to a live engine.
• Troubleshooting ECUs: They can help identify faulty ECU outputs, which can be difficult to diagnose otherwise.
• Compliance for Gas Conversions: Emulators are essential for ensuring that gas-converted vehicles operate smoothly and remain free of unwarranted warning lights, maintaining vehicle comfort and passing MOT tests without issues related to engine management lights.

Choosing the Right Simulator or Emulator

Selecting the appropriate device depends entirely on your specific needs. Consider the following table:

Frequently Asked Questions (FAQs)

Q: Can I use an injector simulator on any car?

A: Most basic injector simulators are designed to work with standard automotive low-side switched fuel injector circuits. However, advanced simulators and emulators might be vehicle-specific or require configuration to match your engine's cylinder count and firing order. Always check compatibility with your vehicle's ECU type and wiring.

Q: Is an emulator the same as a simulator?

A: Not exactly. While both simulate signals, a fuel injector simulator (like the Arduino EFI Monitor) is primarily a diagnostic tool to test the ECU's output to the injectors. An emulator (used in gas conversions) is an operational device that continuously simulates *original* signals to prevent the ECU from detecting false errors when the engine is running on an alternative fuel. They serve different end goals.

Q: Why does my car need an emulator after an LPG conversion?

A: When your car runs on LPG, the original petrol injectors are turned off. The car's petrol ECU, however, is still expecting signals from these injectors. Without an emulator, the ECU would detect the absence of these signals, interpreting it as a malfunction, and consequently illuminating the "Check Engine" light and potentially entering a limp mode. The emulator sends fake signals to the petrol ECU, making it believe everything is normal.

Q: What skills do I need to use an Arduino-based simulator?

A: For an Arduino-based simulator like the EFI Monitor, basic knowledge of electronics, Arduino programming (for customisation), and automotive wiring is beneficial. While pre-written sketches are available, understanding how to modify parameters like cylinder count and firing order will enhance its utility. However, many basic operations can be performed with minimal technical knowledge.

Q: How do these devices help prevent "Check Engine" lights?

A: Simulators help prevent "Check Engine" lights by allowing you to diagnose and fix actual faults in the fuel injection system before they become critical. Emulators specifically prevent "Check Engine" lights in gas-converted vehicles by sending the correct 'normal operation' signals to the petrol ECU, thereby preventing it from registering a fault due to the petrol injectors being inactive.

In conclusion, whether you're a seasoned mechanic troubleshooting a stubborn fault, a DIY enthusiast building a custom ECU, or a vehicle owner enjoying the benefits of an LPG conversion, fuel injector simulators and emulators are indispensable tools. They provide clarity, prevent costly errors, and ensure the smooth, efficient operation of your vehicle's most vital systems. Understanding their function and choosing the right device can significantly enhance your automotive maintenance and diagnostic capabilities, keeping your vehicle running optimally and your dashboard free of unwanted warning lights.
