Effortless Engine Rejuvenation: Disassembly-Free Fuel Injector Cleaners

Modern vehicles rely on a precise and clean fuel delivery system to ensure optimal performance, fuel efficiency, and reduced emissions. At the heart of this system lie the fuel injectors, tiny components responsible for atomising fuel into a fine mist before it enters the combustion chambers. Over time, these injectors, along with other parts of the fuel system, can accumulate carbon deposits and other contaminants. This build-up can lead to a host of problems, from rough idling and misfires to decreased fuel economy and increased exhaust emissions. While many motorists opt for pour-in fuel additives, an even more effective and comprehensive solution exists: the disassembly-free fuel injector cleaner kit. These professional-grade tools offer a thorough cleaning of your entire fuel system without the daunting task of removing components from your vehicle, making them an excellent choice for both enthusiastic DIYers and professional mechanics.

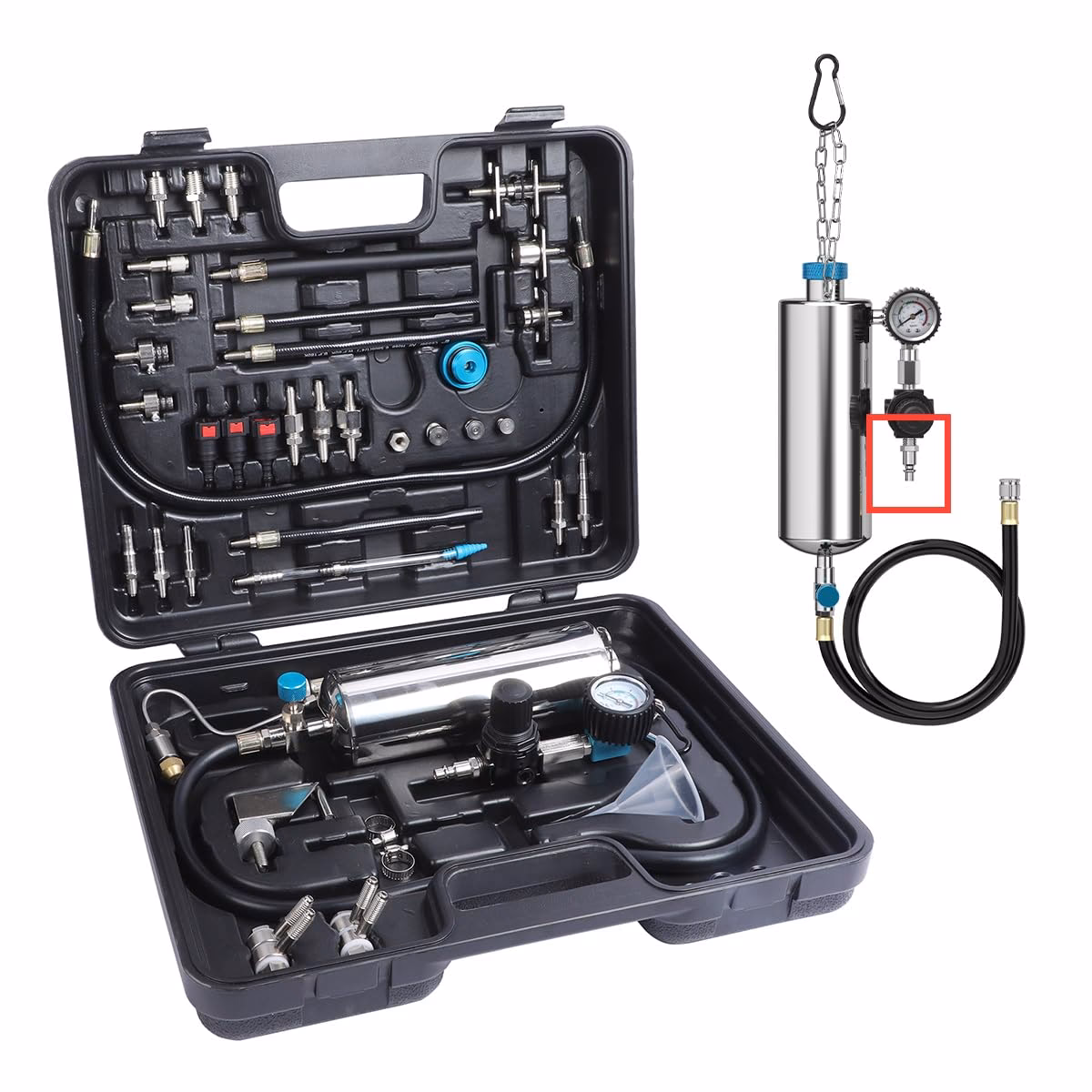

A disassembly-free fuel injector cleaner kit is specifically designed to clean fuel injectors, intake systems, and even three-way catalytic converters directly, bypassing the need for extensive engine dismantling. This innovative approach means less time spent on laborious tasks and more time enjoying a smoother, more efficient drive. The kit works by introducing a powerful cleaning solution directly into the fuel rail, where it is then circulated under pressure through the injectors and into the combustion chambers, effectively dissolving and flushing away stubborn carbon deposits and varnish. This method ensures that not only the injector nozzles are cleaned, but also the throttle valve, combustion chambers, and other crucial parts of the fuel system, leading to a truly comprehensive clean.

Understanding the Mechanics: How Disassembly-Free Kits Work

The core principle behind a disassembly-free fuel injector cleaner kit is its ability to bypass the vehicle's fuel tank and fuel pump, instead feeding a concentrated cleaning solution directly into the fuel rail. This is achieved through a robust external canister, typically made from high-grade stainless steel, which holds the cleaning fluid. This canister is then pressurised using an external air compressor, mimicking the normal operating pressure of your vehicle's fuel injection system. This pressurised solution is then routed into the fuel line, replacing the regular fuel supply for the duration of the cleaning process.

Key components of such a kit include:

• The Cleaning Canister: A durable tank, often stainless steel, designed to hold the cleaning solution under pressure. Capacities vary, with common sizes around 1 litre (33.8 fl oz) or slightly less. It must be resistant to high pressure and abrasion.
• Pressure Gauge: Integrated into the canister or hose system, a clear pressure gauge (e.g., 0-150 PSI or 0-10.5 kgf/cm²) allows you to monitor and adjust the pressure to match your vehicle's specifications. Maintaining the correct pressure is crucial for effective cleaning and preventing damage.
• Adapters and Couplers: A comprehensive set of rust-proof and corrosion-resistant brass adapters and couplers is essential. These allow the kit to connect to almost all petrol cars and light trucks across European, Asian, and American markets. The quality of these fittings ensures a secure, leak-free connection.
• Hoses: Anti-friction oil tubes connect the canister to your vehicle's fuel system. These hoses must be robust and compatible with all types of cleaning fluids.

Once connected and pressurised, the engine is started and allowed to run, drawing the cleaning solution through the fuel injectors. As the engine runs, the powerful detergent in the solution works to break down carbon deposits, varnish, and other contaminants that have built up on the injector nozzles, within the fuel rail, and inside the combustion chambers. This process not only restores the spray pattern of the injectors but also cleans the intake valves and helps to decarb the pistons, leading to a more efficient burn.

Benefits of a Disassembly-Free Clean

Opting for a disassembly-free fuel injector clean offers several significant advantages over traditional pour-in additives or manual cleaning methods:

• Superior Cleaning Power: Unlike additives that dilute in your fuel tank, these kits deliver a concentrated cleaning solution directly to the injectors and fuel system components under pressure. This ensures a much more intensive and effective clean, capable of tackling even stubborn carbon deposits.
• Improved Fuel Efficiency: Clean injectors atomise fuel more effectively, leading to a more complete combustion. This translates directly into better fuel economy, saving you money at the pump.
• Restored Engine Performance: A cleaner fuel system means smoother idling, better throttle response, and restored horsepower. Misfires and hesitation often disappear after a thorough clean.
• Reduced Emissions: When fuel burns more efficiently, fewer harmful pollutants are released into the atmosphere. This helps your vehicle pass emissions tests and contributes to a healthier environment. It also helps clean the three-way catalytic converter.
• Convenience and Time-Saving: The 'disassembly-free' aspect is a huge draw. You avoid the laborious and often complex task of removing injectors, which can save hours of labour and the potential for damaging delicate components.
• Extended Engine Life: By preventing the build-up of harmful deposits, you reduce wear and tear on engine components, potentially extending the lifespan of your vehicle's engine.

It's important to note that these kits are primarily designed for petrol (gasoline) fuel injectors. While some advanced or professional kits, such as the S.U.R. & R. FIC203, claim compatibility with both petrol and diesel engines, the general rule of thumb for standard disassembly-free kits is that they are best suited for petrol applications due to differences in injector design and fuel properties. Always check the manufacturer's specifications carefully.

When to Consider a Disassembly-Free Clean

Your vehicle often provides clear warning signs that its fuel injectors and system are in need of attention. If you experience any of the following, a disassembly-free clean could be beneficial:

• Rough Idling: When your engine sounds uneven or shakes while idling.
• Reduced Fuel Economy: Noticing that you're filling up more often than usual, without a change in driving habits.
• Loss of Power or Acceleration: The car feels sluggish or struggles to accelerate.
• Engine Misfires or Hesitation: The engine momentarily cuts out or stutters during acceleration.
• Increased Exhaust Emissions: Visible black smoke from the exhaust, or failing an emissions test.
• Check Engine Light: Although this can indicate many issues, fault codes related to misfires or fuel trim can point to dirty injectors.

Even without obvious symptoms, many experts recommend a fuel system clean every 15,000 to 30,000 miles as preventative maintenance, especially if you frequently drive in stop-and-go traffic or use lower-quality fuels.

Choosing the Best Disassembly-Free Fuel Injector Cleaning Kit

With various kits available on the market, selecting the right one can seem daunting. Here are key factors to consider:

Let's look at some popular options:

Step-by-Step Guide: Using Your Disassembly-Free Fuel Injector Cleaner Kit

While the process is 'disassembly-free', it still requires careful attention to detail and adherence to safety protocols. Always consult your specific kit's manual and your vehicle's service manual for precise instructions.

What You'll Need:

• Your disassembly-free fuel injector cleaning kit
• An air compressor
• Basic hand tools (spanners, screwdrivers, pliers)
• Safety glasses
• A suitable fuel injector cleaning solution (often sold separately)
• Rags or absorbent cloths

Procedure:

1. Preparation & Safety First: Ensure you are working in a well-ventilated area. Wear safety glasses to protect your eyes from fuel and cleaning solution. Have rags ready for any potential spillages.
2. Locate the Fuel Rail Connector: Open your car's bonnet. Identify the fuel rail and find the appropriate connector point where the cleaning kit will attach. This connector varies significantly between car models – it could be a threaded fitting, a quick-release coupling, or a rubber hose. Your kit's adapters will help you find the correct fit. Do not connect the kit yet.
3. Warm Up Your Engine: Start your car's engine and let it run until it reaches its normal operating temperature. You can monitor this using your car's temperature gauge. This helps the cleaning solution work more effectively.
4. Prepare the Cleaning Solution: If your cleaning solution is concentrated, mix it according to the manufacturer's instructions. Pour the prepared solution into the cleaning kit's canister. Ensure the canister is securely sealed.
5. Turn Off the Engine: Once the engine is at operating temperature, switch it off.
6. Disable the Fuel Pump: This is a critical step. You must prevent the car's own fuel pump from sending fuel to the engine during the cleaning process. This is typically done by either disconnecting the fuel pump's electrical harness or by removing its fuse from the fuse box. Consult your car's manual for the exact location and method. Double-check that the pump is disabled.
7. Connect the Cleaning Kit: Attach the appropriate hose and adapter from your cleaning kit to the fuel rail connector you located earlier. Ensure all connections are tight and secure to prevent leaks. If your canister has a hook, hang it securely under the bonnet.
8. Add Pressure: Connect your air compressor hose to the designated inlet on the cleaning kit's canister. Slowly pressurise the canister to match your car's specified fuel system pressure. This information can usually be found in your vehicle's service manual or by checking online resources for your specific model. Modern fuel injection systems typically operate between 40-60 PSI (2.8-4.1 bar). The kit's pressure gauge will help you set this accurately.
9. Start the Engine and Clean: With the pressure set, start your car's engine. The engine will now run solely on the cleaning solution from the kit. Let the engine run until the cleaning solution in the canister is depleted, or for the duration recommended by the kit's manufacturer. You might notice a change in engine sound or exhaust fumes as the cleaning takes place.
10. Turn Off the Engine & Disconnect: Once the cleaning solution is used up, switch off the engine. Carefully depressurise the cleaning kit (if it has a pressure release valve) and then disconnect it from the fuel rail. Be prepared for a small amount of residual fuel or cleaning solution to drip out.
11. Re-enable the Fuel Pump: Reconnect the fuel pump's electrical harness or reinstall its fuse, reversing the step you performed earlier.
12. Final Checks: Start your car and check for any leaks around the fuel rail or connections. Listen to the engine for a smoother idle and improved performance. Take the car for a short drive to experience the benefits of a clean fuel system.

Comparing Disassembly-Free Kits to Other Cleaning Methods

While the focus here is on disassembly-free kits, it's useful to understand how they fit into the broader landscape of fuel system cleaning:

• Pour-in Fuel Additives: These are the simplest method, involving pouring a bottle of cleaner into your fuel tank. They are convenient for preventative maintenance but often less effective at tackling heavy carbon build-up as the solution is highly diluted by the fuel. They are a good first step but often insufficient for significant issues.
• Manual Cleaning (with brushes): This involves physically removing the fuel injectors from the engine. Once removed, specialised tools like stainless steel cleaning brushes (e.g., spiral tube brushes and flat bottom brushes) are used to meticulously remove carbon deposits from the injector ports, bores, sleeves, and seats. This method provides a direct, thorough clean but is labour-intensive, requires specific tools, and carries the risk of damaging delicate components if not done correctly. It's often reserved for severe cases or when injectors are being replaced.
• Ultrasonic Cleaning: Professional workshops often use ultrasonic baths to clean injectors after they have been removed. Injectors are submerged in a cleaning solution and subjected to high-frequency sound waves, which create microscopic bubbles that implode, dislodging deposits from even the tiniest crevices. This is extremely effective but requires specialised equipment and injector removal.

Disassembly-free kits strike a valuable balance, offering a professional-level clean that is significantly more effective than pour-in additives, yet far less invasive and time-consuming than manual or ultrasonic cleaning methods that require injector removal.

Frequently Asked Questions (FAQs)

Q: How often should I use a disassembly-free fuel injector cleaner kit?
A: For preventative maintenance, every 15,000 to 30,000 miles is a good guideline. If you experience symptoms of dirty injectors, you should perform a clean sooner.

Q: Do these kits work on diesel engines?
A: Most standard disassembly-free kits are designed for petrol (gasoline) engines only. Some specialised professional kits, like the S.U.R. & R. FIC203, claim compatibility with both petrol and diesel, but it's essential to verify the kit's specific compatibility before use.

Q: Is the cleaning solution included with the kit?
A: In most cases, no. The cleaning solution is typically sold separately. Manufacturers often recommend specific types of solutions for optimal results.

Q: Can I use any air compressor with these kits?
A: Yes, most standard garage air compressors will work. The key is to ensure you can regulate the output pressure accurately to match your car's fuel system pressure.

Q: What pressure should I set the kit to?
A: This depends on your specific vehicle. You should always consult your car's service manual for the correct fuel system operating pressure. For many modern petrol cars, this is typically between 40-60 PSI (2.8-4.1 bar).

Q: What are the risks of using one of these kits?
A: The main risks are improper connection leading to leaks, setting the pressure too high (which could damage components), or failing to disable the fuel pump. Always follow instructions meticulously and wear safety gear to minimise risks.

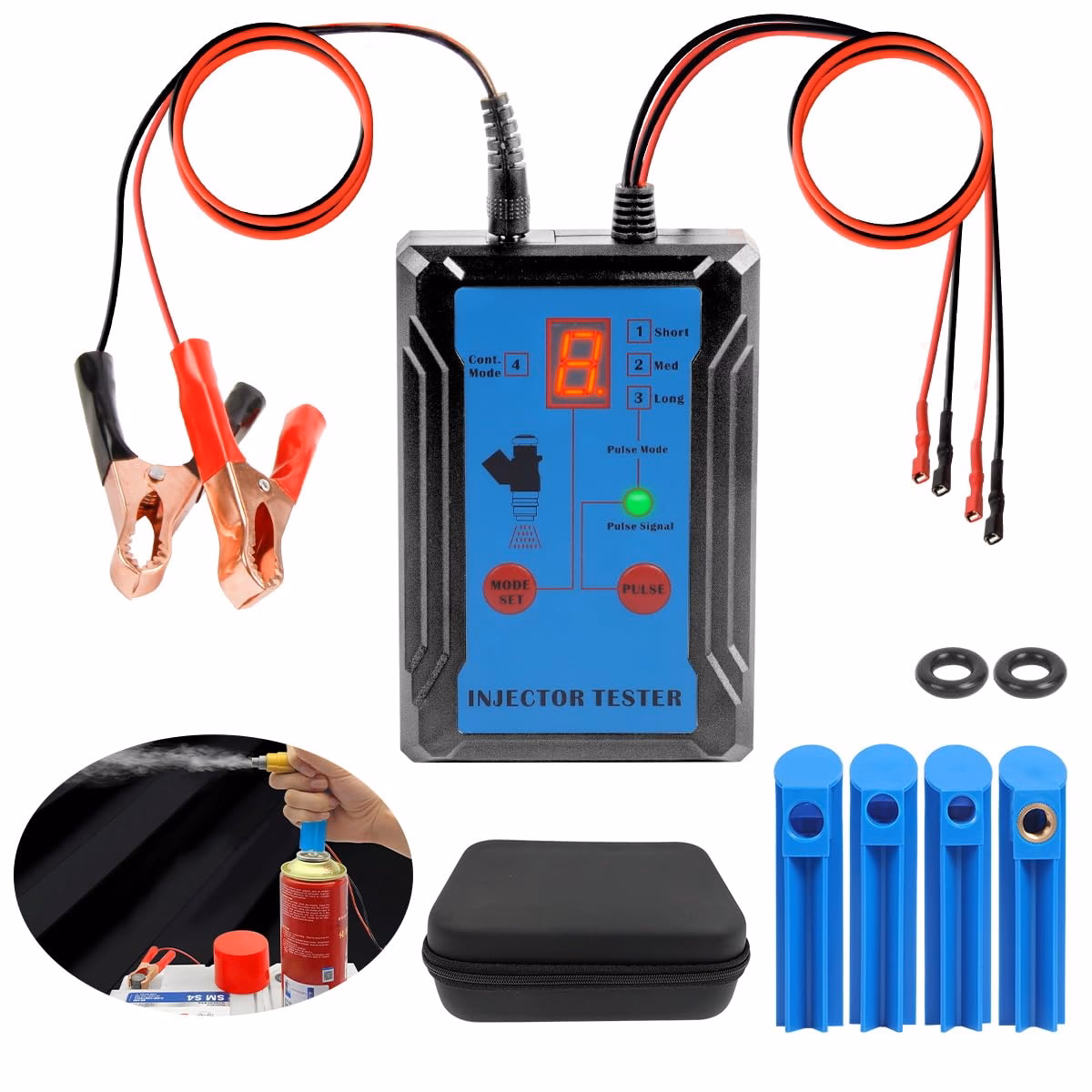

Q: What's the difference between a cleaning kit and a fuel injector test kit?
A: A cleaning kit (like the ones discussed) introduces cleaning solution to clear deposits. A fuel injector test kit (such as the CMTOOL kit) is used to diagnose injector performance, check spray patterns, and identify faults, often by providing pulse signals and measuring flow rates. They serve different purposes, though both are valuable for fuel system maintenance.

Conclusion

A disassembly-free fuel injector cleaner kit is an invaluable tool for any car owner looking to maintain their vehicle's fuel system effectively and efficiently. By providing a deep, comprehensive clean without the need for extensive engine disassembly, these kits offer a convenient and highly effective way to combat carbon build-up, restore engine performance, improve fuel economy, and reduce harmful emissions. Whilst selecting the right kit and following the instructions carefully are paramount, the benefits of a clean fuel system are clear: a smoother running engine, a more economical drive, and a healthier vehicle overall. Investing in one of these kits can save you time and money in the long run, ensuring your car continues to perform at its best.
