Audi A4 FSI Engine Debut

The introduction of the FSI (Fuel Stratified Injection) engine marked a significant step forward in automotive technology, particularly for Audi. This innovative engine design promised improved fuel efficiency and enhanced performance through its ability to precisely control fuel delivery. Many enthusiasts and owners alike are keen to know the specific timeline of when this powerful and efficient engine first made its appearance in the popular Audi A4 model. This article delves into the history and technical nuances of the FSI engine's debut in the A4, providing a comprehensive overview for those interested in Audi's engineering evolution.

The Genesis of FSI Technology

Fuel Stratified Injection (FSI) is a direct injection gasoline engine technology developed by Volkswagen Group. Unlike conventional port-injected engines where fuel is sprayed into the intake manifold, FSI engines inject fuel directly into the combustion chamber. This direct injection allows for a more precise control over the air-fuel mixture, leading to several key advantages. The core principle behind FSI is the creation of a stratified charge, where a richer fuel-air mixture is concentrated around the spark plug, while the rest of the combustion chamber contains a leaner mixture. This stratification, combined with the high compression ratios often employed by FSI engines, contributes significantly to improved fuel economy and reduced emissions, particularly under part-load conditions. The technology was initially pioneered by Volkswagen and later adopted across various models within the Volkswagen Audi Group (VAG).

Audi's Adoption of FSI in the A4

The Volkswagen Audi platform served as the cradle for the initial deployment of the 2.0-litre FSI engine. It was first integrated into the Audi A4 range, where it was mounted longitudinally. The specific engine code for this initial iteration was AWA. This was a pivotal moment for the A4, as it brought the benefits of direct injection and stratified charge technology to a wider audience within the premium mid-size segment. The longitudinal mounting arrangement is characteristic of Audi's rear-wheel-drive bias (though often paired with quattro all-wheel drive) and allows for efficient packaging within the A4's chassis.

Timeline of Introduction

While the exact month and year for the AWA engine's debut in the A4 can be elusive in general discussions, the provided information points to its introduction sometime before February 2003. This period aligns with the B6 generation of the Audi A4, which saw various powertrain updates. The 2.0-litre FSI engine represented a significant technological upgrade over its predecessors, offering a blend of performance and efficiency that appealed to discerning car buyers. It's important to note that the FSI engine was not the only option available for the A4 during this era, but it certainly became a talking point for its advanced engineering.

Cross-Platform Application: The Audi A3

Further illustrating the versatility and strategic rollout of FSI technology within VAG, the same 2.0-litre FSI engine, this time bearing the engine code AXW, was installed transversely in the Audi A3 in February 2003. The transverse mounting is typical for front-wheel-drive and compact transverse all-wheel-drive layouts, as seen in the A3. The AXW engine was described as being identical to the Volkswagen version, highlighting the shared engineering and component strategies within the group. This dual introduction across different Audi models demonstrates the confidence VAG had in the FSI technology and its suitability for various vehicle architectures.

Technical Specifications and Performance Characteristics

The 2.0-litre FSI engine, in its early iterations like the AWA and AXW, typically produced around 150 PS (148 bhp; 110 kW) and 200 Nm (148 lb-ft) of torque. These figures placed it competitively within its segment, offering a noticeable improvement in responsiveness and economy compared to some older naturally aspirated engines. Key technical aspects of the FSI system include:

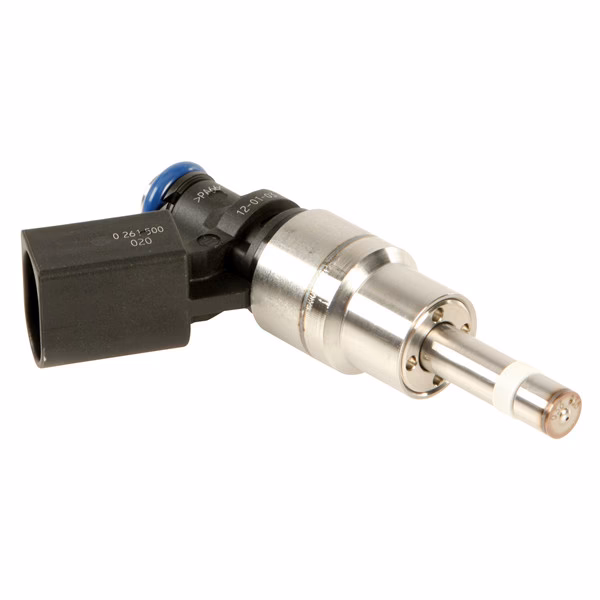

• Direct Fuel Injection: High-pressure injectors deliver fuel directly into the combustion chamber.
• Stratified Charge Operation: Allows for leaner fuel-air mixtures under light loads, improving efficiency.
• High Compression Ratio: Typically in the region of 11.0:1 to 12.0:1, enhancing thermal efficiency.
• Variable Valve Timing: Often featured on both intake and exhaust camshafts for optimized breathing.
• Coil-on-Plug Ignition: Provides a strong and precise spark.

The driveability of FSI engines was generally praised for their smooth power delivery and willingness to rev, making them a popular choice for drivers who appreciated a balance of performance and economy. However, it's worth noting that early FSI engines, like many direct injection systems of that era, could be susceptible to carbon buildup on the intake valves due to the lack of fuel washing over them. Regular maintenance and occasional specific cleaning procedures could mitigate this.

Impact and Evolution of FSI

The introduction of the FSI engine in models like the Audi A4 was a significant step in Audi's journey towards more efficient and powerful powertrains. It laid the groundwork for subsequent advancements in direct injection technology, including the turbocharged FSI (TFSI) engines, which combined the benefits of direct injection with forced induction for even greater performance and efficiency. The FSI technology demonstrated Audi's commitment to innovation and its ability to implement advanced engine management systems effectively. While FSI technology has largely been superseded by TFSI in many performance-oriented applications, its initial impact on fuel economy and emissions reduction was substantial.

Frequently Asked Questions

When did the 2.0 FSI engine first appear in the Audi A4?

The 2.0-litre FSI engine, with the engine code AWA, first appeared in the Audi A4, mounted longitudinally, prior to February 2003.

What was the engine code for the first longitudinal 2.0 FSI in the A4?

The engine code for the first longitudinal 2.0 FSI engine in the Audi A4 was AWA.

Was the FSI engine also used in other Audi models around the same time?

Yes, the 2.0-litre FSI engine, engine code AXW (identical to the Volkswagen version), was installed transversely in the Audi A3 in February 2003.

What are the main benefits of FSI technology?

The primary benefits of FSI technology include improved fuel efficiency and reduced emissions, achieved through direct fuel injection and stratified charge operation, leading to better performance and economy, especially under part-load conditions.

Are there any common issues with early FSI engines?

Early FSI engines, like other direct injection systems of that period, could be prone to carbon deposit buildup on the intake valves. This is due to fuel not washing over the valves during operation.

Conclusion

The arrival of the 2.0-litre FSI engine, specifically the AWA variant, in the Audi A4 represented a significant technological advancement for the model and for Audi's powertrain strategy. Appearing before February 2003, this direct injection engine brought enhanced efficiency and performance, setting a precedent for future engine developments within the brand. Its subsequent appearance in the A3 further solidified its importance within the Volkswagen Audi Group's portfolio, showcasing a commitment to innovative and effective engine design that continues to influence automotive engineering today.
