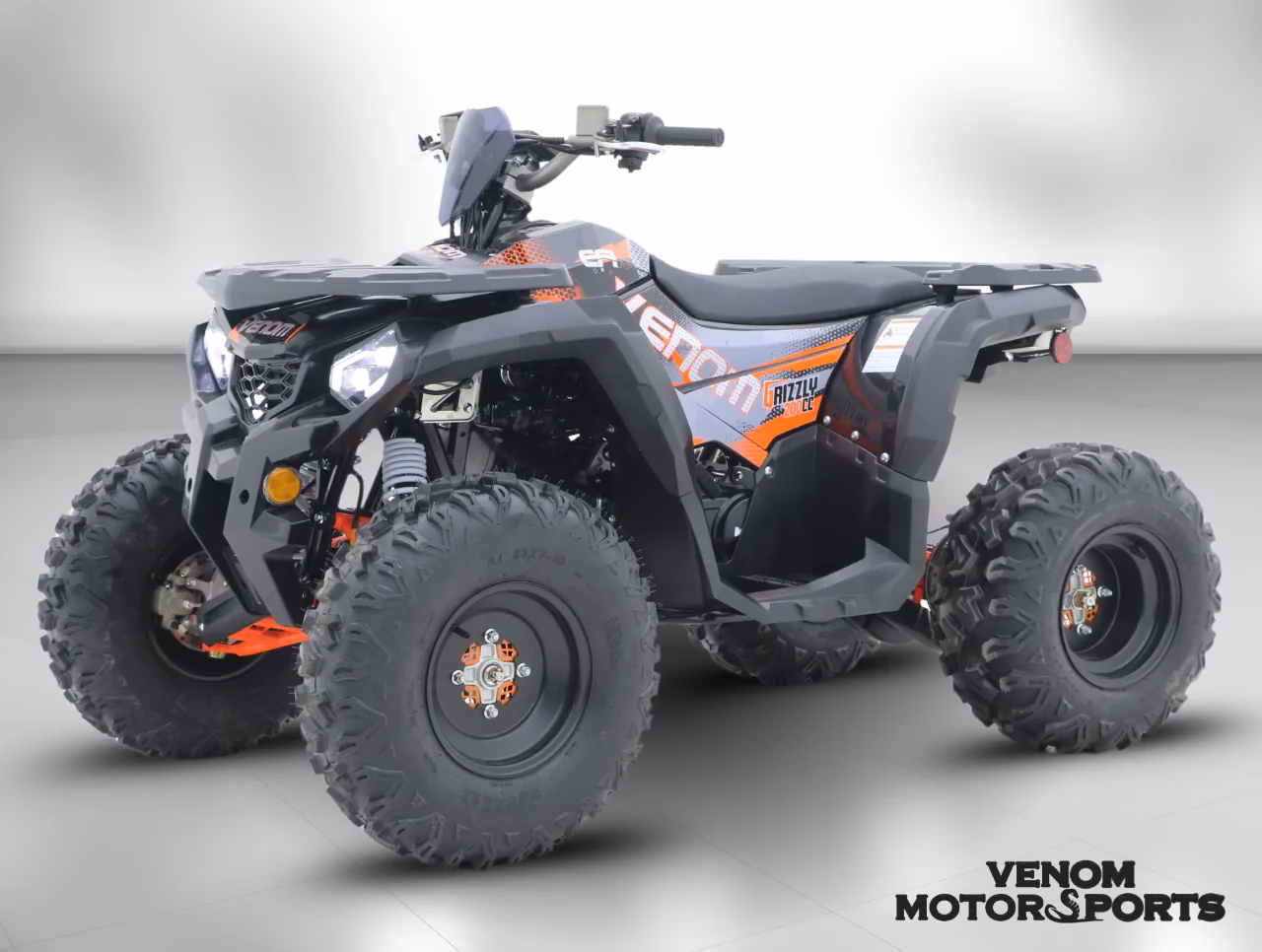

In the dynamic world of All-Terrain Vehicles (ATVs), a significant technological shift has occurred over the past few decades. What was once the standard – the humble carburettor – has largely been superseded by sophisticated Electronic Fuel Injection (EFI) systems. This evolution wasn't merely a trend; it was a response to growing demands for efficiency, performance, and environmental responsibility. Understanding this transition, and the intricate workings of EFI, is crucial for any ATV owner or enthusiast looking to get the most out of their machine. This article delves into the core differences between these two fuel delivery methods, explores how EFI functions, and explains why it has become the ubiquitous choice for nearly all new quads on the market today.
For many years, carburettors were the undisputed champions of fuel delivery in internal combustion engines, including ATVs. They were simple, mechanical devices that did a decent job of mixing air and fuel before it entered the engine's combustion chamber. However, as technology advanced and environmental regulations became stricter, their limitations became increasingly apparent. This paved the way for the rise of EFI, a system that leverages computer control to achieve a level of precision and adaptability that carburettors simply cannot match. While advocates for the simplicity and DIY-repairability of carburettors still exist, the overwhelming advantages of EFI have cemented its place as the modern standard.
What is an ATV Fuel Injection System?
At its core, an ATV fuel injection system, specifically Electronic Fuel Injection (EFI), is a computer-controlled method for delivering fuel directly into an engine's combustion chambers or intake manifold. Unlike a carburettor, which relies on varying air pressure to draw fuel into the airflow, EFI uses electronic sensors, an Engine Control Unit (ECU), and fuel injectors to precisely meter and spray fuel. This allows for far greater control over the air-fuel mixture, optimising it for various operating conditions.
The Mechanical Carburettor: A Look Back
Before diving deeper into EFI, it's helpful to understand what it replaced. A carburettor is a purely mechanical device designed to mix air and fuel in the correct proportions for combustion. It operates by creating a vacuum as air passes through a venturi, drawing fuel from a fuel bowl through jets and into the airstream. The mixture is then sent to the engine cylinders. Depending on the settings and external conditions, a carburettor can cause an ATV to run too 'rich' (too much fuel) or too 'lean' (too little fuel). Running rich often manifests as black smoke from the exhaust and poor fuel economy, while running lean can cause engine damage due to excessive heat.
Carburettor-equipped quads are often considerably cheaper now due to the widespread adoption of EFI. Many enthusiasts appreciate carburettors for their relative simplicity, making them easier to diagnose and repair with basic hand tools. However, their lack of adaptability to changing environmental conditions or engine demands is a significant drawback in modern applications.
The Rise of Electronic Fuel Injection (EFI)
Electronic Fuel Injection technology represents a significant leap forward. It's a sophisticated system that employs a network of sensors, a central computer (the Engine Control Unit or ECU), and electronic injectors to manage fuel delivery with incredible precision. The ECU constantly monitors various parameters such as engine speed, throttle position, air temperature, engine temperature, and exhaust gas oxygen levels. Based on this real-time data, it calculates the optimal amount of fuel to inject for maximum efficiency, power, and minimal emissions.
Whereas a carburettor requires manual tinkering and adjustments for different altitudes, temperatures, or even just to start reliably in cold weather, EFI systems are remarkably reliable and adaptable. They require minimal maintenance in terms of adjustments, as the system continually self-corrects. This adaptability is a key reason why EFI has become so prevalent.
How Does an ATV EFI System Work?
Understanding the components and their interplay is key to grasping how an EFI system operates:
- Fuel Pump: Located in or near the fuel tank, the electric fuel pump delivers fuel under high pressure through fuel lines to the fuel rail.
- Fuel Rail: This component distributes the pressurised fuel to each individual fuel injector.
- Fuel Injectors: These are electronically controlled valves that spray a fine mist of fuel into the engine's intake manifold (port injection) or directly into the combustion chamber (direct injection, less common in ATVs). The ECU determines when and for how long each injector opens.
- Engine Control Unit (ECU): Often referred to as the 'brain' of the EFI system, the ECU is a sophisticated computer. It receives data from various sensors, processes this information, and then sends commands to the fuel injectors, ignition system, and other engine components.
- Sensors: A network of sensors provides the ECU with crucial real-time data:
- Throttle Position Sensor (TPS): Measures the throttle's angle, indicating how much power the rider is requesting.
- Manifold Absolute Pressure (MAP) Sensor / Mass Air Flow (MAF) Sensor: Measures the amount and density of air entering the engine, crucial for calculating the correct air-fuel ratio.
- Engine Coolant Temperature (ECT) Sensor: Measures engine temperature, informing the ECU for cold starts and warm-up enrichment.
- Oxygen (O2) Sensor: Located in the exhaust system, it measures the amount of unburnt oxygen in the exhaust gases, allowing the ECU to fine-tune the air-fuel mixture for optimal combustion and reduced emissions.
- Crankshaft Position Sensor (CKP) / Camshaft Position Sensor (CMP): These sensors determine engine speed and piston position, essential for precise fuel injection timing.
The process is continuous: sensors feed data to the ECU, the ECU calculates the perfect fuel delivery, and the injectors spray the precise amount of fuel. This closed-loop feedback system allows for constant optimisation, leading to better performance, fuel economy, and lower emissions.
Environmental Regulations and EFI's Dominance
One of the primary drivers behind the widespread adoption of EFI was the increasing focus on environmental protection. Beginning in the 1970s, governments worldwide started implementing stricter regulations on vehicle emissions. Because of how precisely EFI systems deliver fuel, they produce significantly fewer pollutants than carburettors. This precision also leads to reduced fuel consumption, which is a major benefit for both the environment and the rider's wallet.
Carburettors have a much higher tendency to run rich, leading to increased emissions of unburnt hydrocarbons and carbon monoxide, often visible as black smoke. EFI, by contrast, maintains an optimal air-fuel ratio, drastically reducing such emissions unless tampered with. This inherent cleanliness gave EFI a significant edge in meeting new regulatory standards, making it the preferred choice for manufacturers aiming for compliance.
Carburettor vs. EFI: A Detailed Comparison
To truly appreciate the shift, let's compare the two systems side-by-side:
| Feature | Carburettor System | Electronic Fuel Injection (EFI) System |
|---|---|---|
| Fuel Delivery | Mechanical, vacuum-driven | Electronic, pressurised, computer-controlled |
| Adaptability | Limited; requires manual adjustment for altitude/temperature changes | Highly adaptable; automatically adjusts to varying conditions (temperature, altitude, throttle) |
| Starting | Often difficult in cold weather; requires choke manipulation | Easier cold starts; system automatically enriches mixture |
| Fuel Efficiency | Generally lower due to less precise fuel metering | Higher due to precise fuel delivery and optimisation |
| Emissions | Higher; prone to running rich and producing more pollutants | Lower; precise control leads to cleaner combustion |
| Power Output | Can be less consistent; potential for power loss at varying conditions | More consistent and often higher power across the RPM range |
| Maintenance/Repair | Easier for DIY mechanics; mechanical parts are simpler to diagnose and replace | Requires specialised tools and diagnostic equipment; often needs professional repair |
| Cost of Repair | Generally lower for parts and labour | Potentially higher due to complex components and specialised labour |
| Reliability | Good, but susceptible to clogging and environmental factors | Excellent; highly reliable once properly functioning |
Pros of Carburettors
Despite EFI's dominance, carburettors still hold a special place for certain enthusiasts and applications:
- Simpler Design: Being purely mechanical, carburettors have no complex electronics, making them less prone to electronic failures.
- Easier DIY Repair: Many issues can be diagnosed and fixed with basic hand tools and a rebuild kit, without the need for specialised diagnostic equipment. This makes them appealing for hobbyists and those who prefer to work on their own machines.
- Cost-Effective: Carburettor-equipped ATVs are often cheaper to purchase, and replacement parts are generally less expensive.
- No Electrical Dependency (beyond ignition): They don't require the intricate electrical work and sensor networks of EFI.
However, these pros are largely appealing to a niche audience, preventing carburettors from ever regaining their widespread prevalence.
Pros of EFI Systems
The advantages of EFI are numerous and compelling for the average rider:
- Superior Performance: EFI systems provide increased power output and a more consistent power delivery across the entire RPM range. The precise fuel metering ensures the engine always receives the optimal mix.
- Exceptional Fuel Efficiency: By delivering the exact amount of fuel needed, EFI significantly reduces fuel consumption, leading to better mileage and lower running costs.
- Reduced Emissions: This is a major benefit, allowing ATVs to meet stringent environmental regulations and contribute to cleaner air.
- Reliability and Adaptability: EFI systems are incredibly reliable and automatically adjust to varying conditions such as changes in altitude, temperature, and throttle input. You won't need to 'choke' the engine or adjust jets manually.
- Easier Cold Starts: Quads with EFI start much more readily in cold conditions, as the system automatically enriches the fuel mixture as needed.
- Consistent Operation: No matter the terrain or weather, the EFI system ensures smooth and consistent engine operation, reducing instances of running too rich or too lean.
The ability of EFI systems to constantly calculate and adjust to weather, inclines, and fuel temperature ensures the perfect amount of air and fuel is sent to the cylinders without manual intervention, making for a much more user-friendly experience.
Cons of a Carburettor
While carburetors have their place with hobbyists, their drawbacks are significant for most modern users:
- Lack of Adaptability: They cannot dynamically adjust to changing conditions, leading to suboptimal performance, especially at varying altitudes or temperatures.
- Higher Emissions: More prone to running rich, resulting in increased pollutants and black smoke.
- More Manual Intervention: Require more tinkering, troubleshooting, and seasonal adjustments (e.g., jetting changes, choke usage). This means a greater time investment for the owner.
- Less Consistent Performance: Performance can fluctuate based on environmental factors.
Cons of EFI Systems
Despite their many advantages, EFI systems do have some potential downsides:
- Complexity: The sophisticated electronic nature means that if something goes wrong, it's often much harder to diagnose and repair without specialised knowledge and equipment.
- Higher Repair Costs: Repairs can be significantly more expensive. You won't be rebuilding an EFI system with a buddy in your driveway; it typically requires professional help, which comes at a premium.
- Vulnerability to Electronics Issues: While generally robust, electronic components can fail, and diagnosing these failures can be complex.
Which Is Better for an ATV: Carburettor or EFI?
Given the comprehensive comparison, the answer for most ATV riders is clear: an EFI system is generally superior. Its unmatched ability to adapt to rider demand, terrain, and environmental regulations makes it the highly recommended choice.
EFI provides more power, greater versatility, and significantly fewer emissions. Unless you specifically enjoy the mechanical aspects of tinkering with carburettors and performing your own repairs, the benefits of a powerful, self-adjusting system that curtails its own emissions are simply too significant to ignore. While carburettors will always have a place with enthusiasts who appreciate their simplicity and DIY repairability, EFI is far too useful and efficient for anyone seeking the best performance and reliability from their modern quad. The potentially heftier price tag for repairs is often well worth the cost when considering the overall improved riding experience and long-term reliability.
Frequently Asked Questions (FAQs)
Q1: Can I convert my carburettor ATV to EFI?
A: While technically possible, converting a carburettor ATV to EFI is a complex and often costly undertaking. It involves installing a high-pressure fuel pump, fuel lines, a fuel rail, injectors, numerous sensors, and an Engine Control Unit (ECU). Custom mapping of the ECU is often required. For most riders, it's more practical and cost-effective to purchase an ATV that already has EFI if that's the desired system.
Q2: Why is EFI better for cold weather starting?
A: EFI systems excel in cold weather because the ECU receives data from the engine coolant temperature sensor. Based on this, it automatically enriches the fuel mixture (adds more fuel) and adjusts idle speed to ensure the engine starts easily and warms up efficiently, without the need for a manual choke.
Q3: Are older ATVs with carburettors still good?
A: Absolutely! Many older ATVs with carburettors are still excellent machines, especially if well-maintained. They can be more affordable to buy and for DIY repairs. However, they may not offer the same fuel efficiency, power consistency, or ease of starting in varying conditions as an EFI model. Their suitability depends on your budget, riding style, and willingness to perform maintenance.
Q4: How often do fuel injectors need cleaning or replacement?
A: Modern fuel injectors are generally very reliable and often last the lifetime of the ATV. Regular maintenance, such as using quality fuel and occasionally a fuel system cleaner, can help prevent build-up. If an injector becomes clogged or fails, symptoms like misfires, reduced power, or poor fuel economy may appear, signaling a need for professional diagnosis and potential replacement.
Q5: Is EFI really more reliable than a carburettor?
A: Yes, in terms of consistent operation and self-correction, EFI is generally more reliable. It constantly optimises the air-fuel mixture, preventing common issues like flooding or running too lean/rich that can plague carburettors. While EFI components are more complex and expensive to fix if they fail, the system as a whole offers greater operational reliability and less need for manual intervention.
Final Thoughts
The transition from carburettors to Electronic Fuel Injection has been a defining moment in ATV engineering. Nearly all ATVs manufactured today are fuel-injected, a testament to their unparalleled ability to adapt to any needed air-fuel mixture, provide consistent power, and meet stringent environmental standards. EFI systems are generally far superior to carburettors for almost anyone's needs, offering a more refined, efficient, and powerful riding experience. While the initial repair costs for EFI components might be higher, the long-term benefits in terms of performance, fuel economy, and sheer ease of use make it the undisputed champion of ATV fuel delivery systems.
