Understanding Diesel Glow Plugs

The Vital Role of Glow Plugs in Diesel Engines

Diesel engines, renowned for their efficiency and torque, have a unique ignition process that relies on compression heat. However, in colder climates or when the engine is cold, this internal heat may not be sufficient to ignite the diesel fuel. This is where the humble yet crucial glow plug steps in. These electrical heating devices are the unsung heroes that ensure your diesel engine starts reliably, regardless of the ambient temperature.

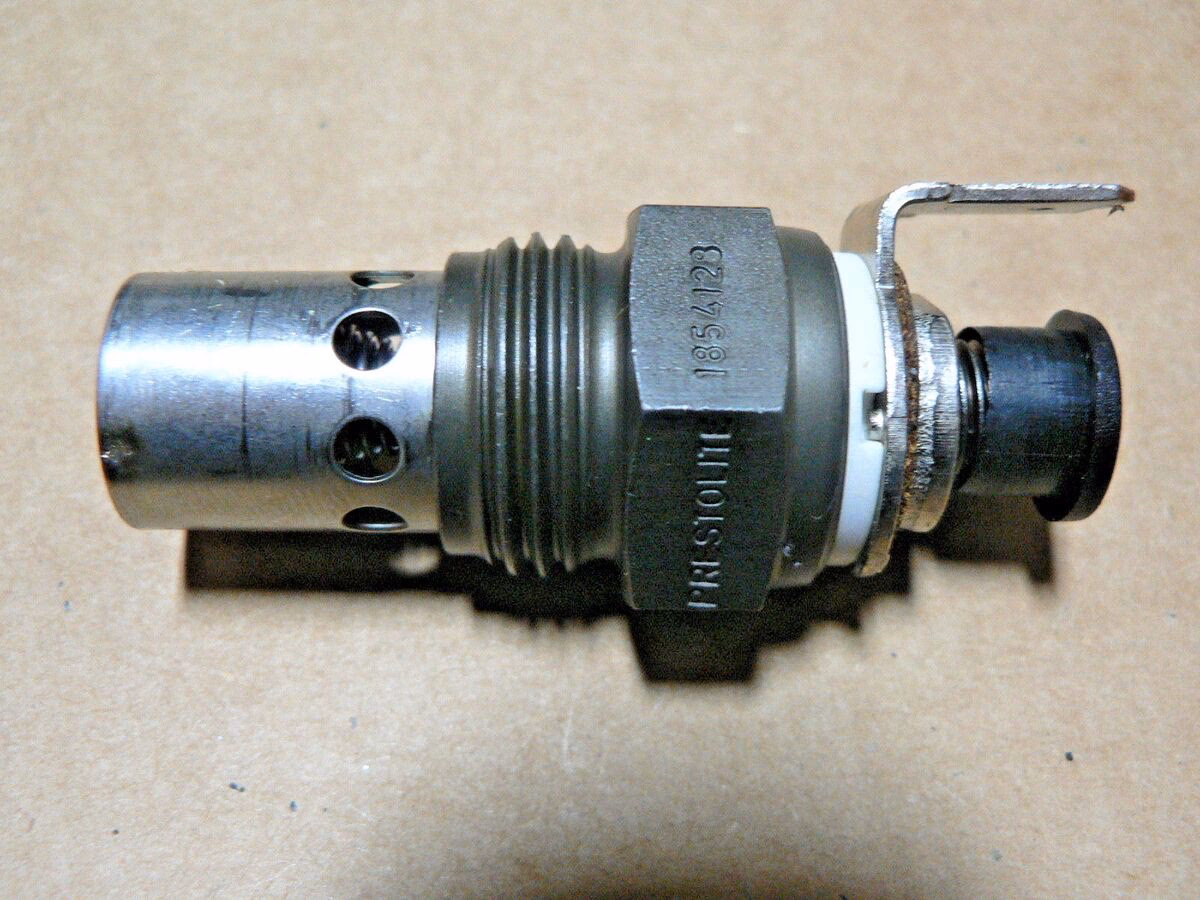

What Exactly is a Glow Plug?

At its core, a glow plug is a simple yet effective heating element. It's typically a pencil-shaped metal rod with a heating element strategically placed at its tip. This element heats up intensely when an electric current passes through it, glowing red-hot. In a diesel engine, glow plugs are positioned either in the intake manifold to preheat the incoming air, or more commonly, one in each cylinder's combustion chamber (or pre-chamber). This strategic placement ensures that the air within the chamber reaches the necessary temperature for efficient fuel combustion and ignition.

How Does a Glow Plug Work its Magic?

Unlike spark plugs in petrol engines, which continuously spark to ignite the fuel-air mixture, glow plugs are primarily used during the engine's starting phase. When you turn the ignition key (or press the start button), the vehicle's Engine Control Unit (ECU) activates the glow plug system. Electricity flows to the glow plug, causing its tip to heat up rapidly, often reaching temperatures of 800-1500°C. As the fuel injector sprays diesel fuel into the cylinder, it encounters this intensely hot surface. The heat from the glow plug, combined with the high compression of the air, causes the diesel fuel to vaporise and ignite almost instantaneously, even if the engine block is cold. Once the engine starts and begins to generate its own heat, the glow plugs typically switch off automatically.

Glow Plug Systems: Older vs. Modern

Early diesel engines required the driver to manually activate the glow plug system by waiting for a dashboard indicator light to extinguish, a process that could take up to 20 seconds. Modern systems, however, are far more sophisticated. They automatically activate the glow plugs upon ignition and feature much quicker warm-up times, often just a few seconds. This automation and speed contribute significantly to the improved cold-starting performance of contemporary diesel vehicles.

Number of Glow Plugs: It Varies!

The number of glow plugs in a diesel engine depends on the system's design. Some systems employ a single glow plug located in the intake manifold, which heats the air before it enters the cylinders. This is often referred to as a 'Thermostart' system. More commonly, especially in modern engines, there is one glow plug per cylinder. Therefore, a four-cylinder diesel engine might have four glow plugs, while an eight-cylinder engine could have eight. This ensures that each cylinder receives the necessary preheating for optimal combustion.

Types of Glow Plugs: A Technological Evolution

The technology behind glow plugs has evolved to meet the demands of modern engines and stricter emissions regulations. Here are some of the key types:

• Pressure Sensor Glow Plugs (PSG): These are advanced 'smart' plugs equipped with a sensor in their tip. This sensor monitors combustion chamber pressure, sending data to the ECU. The ECU then adjusts the heating pattern of the glow plug for precise control and optimised engine performance.
• Ceramic Glow Plugs (CGP): Designed to withstand extreme temperatures, ceramic glow plugs can reach an astonishing 1500°C in under three seconds. This rapid heating is particularly beneficial for low-compression diesel engines, ensuring quick starts even in the most challenging conditions.
• High-Tech Steel Glow Plugs: These come in various forms, including the GE and GN types. GN plugs are modern, three-phase glow plugs that heat up quickly, maintain heat during ignition, and then cool down. While older GE-type plugs could take up to 30 seconds to heat, modern steel alloys allow them to reach operating temperature in as little as seven seconds.

When Glow Plugs Go Bad: Symptoms to Watch For

Faulty glow plugs can significantly impact your diesel engine's performance, especially in cold weather. Recognizing the symptoms is key to addressing the issue promptly. Here are the most common indicators:

1. Hard Starting: This is the most prevalent symptom. If your engine struggles to turn over or start, particularly on a cold morning, and you've ruled out battery or fuel issues, faulty glow plugs are a prime suspect.
2. Engine Misfiring: Proper combustion in a diesel engine relies on sufficient heat. If glow plugs fail, the combustion chamber may not reach the required 450°F (232°C), leading to incomplete combustion and engine misfires.
3. Rough Idling: A failing glow plug can cause the engine to idle unevenly or roughly for a period after starting. You might also notice white smoke emanating from the exhaust during this time, which is unburnt fuel.
4. Decreased Fuel Efficiency: While not always the primary indicator, a noticeable drop in your vehicle's fuel economy, especially when accompanied by other symptoms, could point towards faulty glow plugs.
5. White or Black Smoke: White smoke often indicates unburnt fuel due to insufficient combustion heat. Black smoke usually signifies an incorrect air-fuel mixture, often too much fuel. Faulty glow plugs can exacerbate both these issues.

The Engine Warning Light

The illuminated engine warning light on your dashboard is often the first sign that something is amiss. While this light can indicate numerous faults, issues with glow plugs are a common cause. It's advisable to have your vehicle diagnosed by a qualified mechanic if this light appears.

Glow Plug Replacement: Costs and Lifespan

Replacing glow plugs is a necessary maintenance task that can prevent more significant engine problems. The cost of this service can vary:

Note: These figures are estimates and can vary based on your location, the vehicle model, and the specific parts used. They do not include taxes or additional fees.

How Long Do Glow Plugs Last?

Typically, glow plugs are designed to last between 80,000 and 100,000 miles. However, their lifespan can be influenced by factors such as the vehicle's make and model, the quality of the glow plugs, and your driving habits. Regular maintenance and addressing starting issues promptly can help prolong their life.

Replacing Glow Plugs: A DIY or Professional Job?

While the location of glow plugs is usually quite accessible, replacing them requires care and the right tools. The general process involves:

1. Disconnecting the vehicle's battery.
2. Disconnecting the electrical connector from the old glow plug.
3. Unscrewing the old glow plug, much like a spark plug.
4. Inspecting and cleaning the threads in the cylinder head. Applying an anti-seize compound if recommended by the manufacturer.
5. Inspecting the old glow plug for signs of wear or damage that might indicate underlying engine issues.
6. Screwing in the new glow plug and reconnecting its electrical connector.
7. Reconnecting the battery.
8. Testing the new glow plugs with a cold start.

While some experienced DIY enthusiasts may tackle this job, it's often recommended to have it performed by a qualified mechanic, especially if you lack the necessary tools or expertise. Incorrect installation or overtightening can lead to damage. Testing a glow plug accurately often requires specialized equipment to assess its electrical voltage and resistance.

Do All Diesel Engines Use Glow Plugs?

While most diesel engines rely on glow plugs for cold starts, there are exceptions. Some modern diesel engines, particularly those with advanced ignition systems or direct injection designs, might not use traditional glow plugs. Instead, they may employ alternative starting aids such as intake manifold heaters that preheat the incoming air or utilize sophisticated injection timing strategies to achieve ignition even in cold conditions. However, for the vast majority of diesel vehicles, glow plugs remain an essential component for reliable starting.

Frequently Asked Questions (FAQs)

What does a glow plug do?

A glow plug is a heating element that heats the air in the combustion chamber of a diesel engine to aid in starting, especially in cold weather.

What happens when a glow plug goes bad?

When glow plugs fail, the engine becomes difficult to start, may misfire, idle roughly, and produce white smoke from the exhaust, particularly in cold conditions.

Will a diesel start without glow plugs?

Yes, a diesel engine can start without glow plugs if the ambient temperature is warm enough for the air compression to generate sufficient heat for ignition. However, in cold weather, they are essential for a reliable start.

Can I drive with faulty glow plugs?

It is not advisable to drive with faulty glow plugs. Inadequate combustion can lead to poor engine performance, increased emissions, and potential stalling, which can be dangerous.

Is changing glow plugs a big job?

Changing glow plugs can range from a moderately simple task to a more complex one depending on the vehicle's design. While some can be accessed easily, others may require removing other engine components. It's crucial to use the correct tools and torque specifications.
