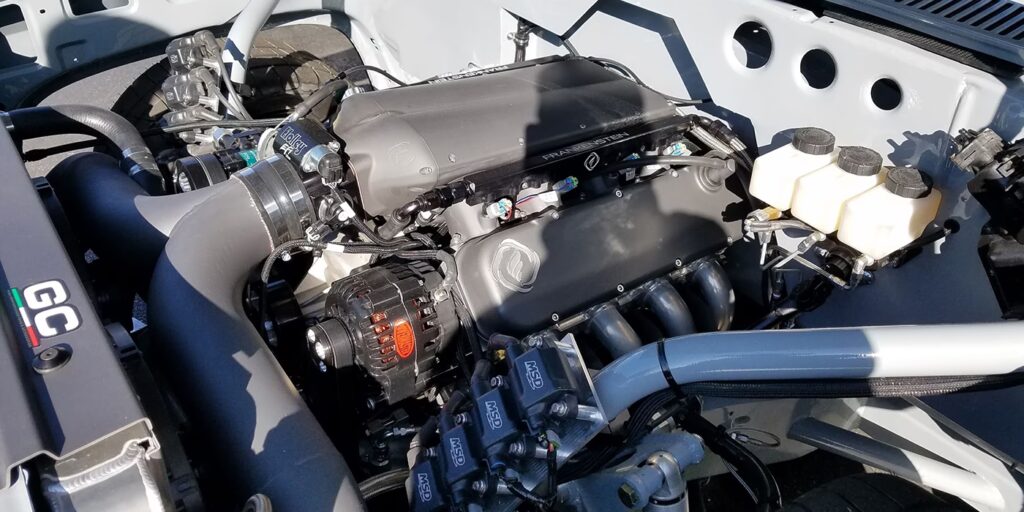

Car Fuel Injection Explained

The way fuel is delivered to a car's engine has evolved dramatically over the years. Gone are the days of carburettors being the sole method; today, fuel injection is the undisputed champion, offering greater efficiency, better performance, and reduced emissions. But how exactly does this sophisticated system work? Let's delve into the fascinating mechanics of fuel injection and understand how your car's engine receives its lifeblood.

The Evolution from Carburettors to Injection

Before we dive into modern fuel injection, it's worth a brief look at its predecessor. Carburettors were mechanical devices that used the Venturi effect to draw fuel into the air intake. While functional, they were notoriously sensitive to temperature, altitude, and driving conditions, often leading to less-than-optimal fuel-air mixtures. This resulted in poorer fuel economy and higher emissions. The advent of fuel injection marked a significant leap forward in automotive engineering, offering precise control over the fuel delivery process.

Understanding the Basics: What is Fuel Injection?

At its core, fuel injection is a system that delivers fuel into the engine's intake manifold or directly into the combustion chamber under pressure. This atomised fuel then mixes with air, creating a combustible mixture that is ignited by the spark plug. The key advantage lies in the system's ability to precisely control the amount of fuel injected, ensuring the optimal fuel-to-air ratio for various engine operating conditions. This precision is managed by the Engine Control Unit (ECU), the car's onboard computer.

Key Components of a Fuel Injection System

A typical modern fuel injection system is a complex interplay of several crucial components:

1. Fuel Pump

The fuel pump is responsible for drawing fuel from the fuel tank and delivering it to the injectors at a specific pressure. Most modern cars use electric fuel pumps, often located within the fuel tank itself. The ECU controls the operation of the fuel pump, ensuring it only runs when the engine is running.

2. Fuel Filter

Essential for longevity, the fuel filter removes any contaminants or debris from the fuel before it reaches the sensitive injectors. A clogged fuel filter can restrict fuel flow, leading to performance issues.

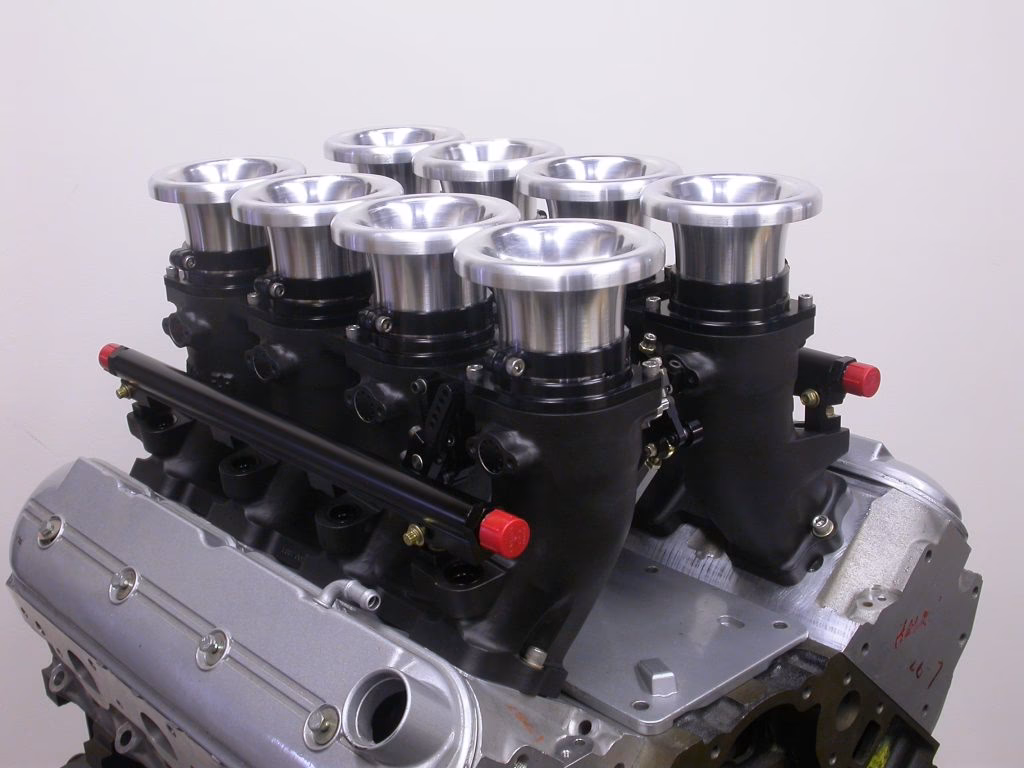

3. Fuel Rail

The fuel rail is a manifold that distributes pressurised fuel from the pump to each individual fuel injector. It acts as a reservoir, ensuring a steady supply of fuel to all injectors.

4. Fuel Injectors

These are the stars of the show. Fuel injectors are essentially electronically controlled valves. When the ECU sends an electrical pulse to an injector, it opens for a precisely metered amount of time, spraying atomised fuel into the intake manifold or cylinder. The duration of this pulse, known as the 'pulse width,' directly controls the amount of fuel injected. Modern injectors are designed to atomise fuel into a fine mist for efficient combustion.

5. Fuel Pressure Regulator

This vital component maintains a constant fuel pressure within the fuel rail, regardless of the engine's load or speed. It typically works by returning excess fuel back to the fuel tank. Consistent fuel pressure is critical for the injectors to deliver the correct amount of fuel.

6. Engine Control Unit (ECU)

The 'brain' of the operation. The ECU receives data from various sensors (e.g., throttle position, air intake temperature, engine speed, oxygen levels) and uses this information to calculate the precise amount of fuel to inject and when. It then sends electrical signals to the fuel injectors and other components to manage the fuel delivery.

7. Sensors

A multitude of sensors provide the ECU with real-time data. Key sensors include:

• Mass Airflow (MAF) Sensor: Measures the amount of air entering the engine.
• Throttle Position Sensor (TPS): Indicates how far the throttle pedal is pressed.
• Manifold Absolute Pressure (MAP) Sensor: Measures the pressure in the intake manifold.
• Oxygen (O2) Sensor: Monitors the amount of unburnt oxygen in the exhaust gases, allowing the ECU to fine-tune the fuel mixture.
• Engine Coolant Temperature (ECT) Sensor: Informs the ECU about the engine's operating temperature.

Types of Fuel Injection Systems

While the fundamental principle remains the same, fuel injection systems can be broadly categorised:

1. Throttle Body Injection (TBI) / Single-Point Injection (SPI)

This was an early form of fuel injection, often seen as a transitional step from carburation. In TBI, a single injector (or sometimes two) is mounted in the throttle body, spraying fuel into the intake manifold, much like a carburettor. It offered some improvements over carburetors but was less precise than later systems.

2. Multi-Point Fuel Injection (MPFI) / Port Fuel Injection (PFI)

This is the most common type found in many modern petrol (gasoline) engines. In MPFI, each cylinder has its own dedicated fuel injector, typically located in the intake manifold just before the intake valve. This allows for much more precise fuel delivery to each cylinder, leading to better efficiency and performance. The injectors can operate in two modes:

• Port Injection (Continuous): Fuel is continuously injected into the intake manifold, and the ECU controls how long the intake valve stays open to regulate the mixture.
• Port Injection (Sequential): Each injector fires precisely when its corresponding intake valve is about to open, ensuring the most accurate fuel delivery. This is the dominant form of MPFI today.

3. Direct Injection (DI) / Gasoline Direct Injection (GDI)

This is the most advanced and increasingly popular form of fuel injection, particularly in modern, smaller, turbocharged engines. In direct injection systems, the fuel is injected directly into the combustion chamber itself, under extremely high pressure. This offers several advantages:

• Improved Efficiency: Direct injection allows for more precise fuel atomisation and better control over the combustion process, leading to significant fuel savings.
• Increased Power: By injecting fuel directly into the cylinder, manufacturers can run leaner fuel mixtures and higher compression ratios, resulting in more power.
• Reduced Emissions: Precise control over combustion can also lead to lower emissions.

However, direct injection systems often require higher fuel pressures and can sometimes be more prone to carbon build-up on the intake valves due to the lack of fuel washing over them. This is why some manufacturers employ a hybrid approach, using both direct and port injection.

Diesel Fuel Injection

Diesel engines also rely heavily on fuel injection, but the principles and systems are different. Diesel fuel is injected directly into the combustion chamber at very high pressures. Unlike petrol engines, diesel engines rely on compression ignition – the heat generated by compressing air ignites the fuel. Key diesel injection systems include:

• Common Rail Direct Injection (CRDI): This is the most prevalent modern diesel injection system. A high-pressure pump maintains a constant pressure in a 'common rail' that feeds all the injectors. The injectors are electronically controlled, allowing for multiple injections per combustion cycle, which improves efficiency, reduces noise, and lowers emissions.
• Unit Injector System (UIS): In this system, the injector and the injection pump are combined into a single unit for each cylinder. This was common in older diesel engines but is less prevalent now.

Troubleshooting Common Fuel Injection Issues

Like any complex system, fuel injection can encounter problems. Here are some common signs and their potential causes:

Regular maintenance, including replacing the fuel filter at recommended intervals and using quality fuel, can help prevent many of these issues. If you suspect a problem with your fuel injection system, it's best to consult a qualified mechanic.

Frequently Asked Questions (FAQs)

Q1: How often should I replace my fuel filter?

A1: Consult your car's owner's manual for the manufacturer's recommended interval. Typically, it's between 30,000 and 50,000 miles, but this can vary.

Q2: Can I clean my own fuel injectors?

A2: You can use commercially available fuel injector cleaners added to your fuel tank. However, for deeply clogged injectors, professional cleaning or replacement is often necessary.

Q3: What is the difference between petrol and diesel fuel injection?

A3: Petrol injection typically involves lower pressures and aims for spark ignition, while diesel injection uses extremely high pressures and relies on compression ignition.

Q4: Is direct injection better than port injection?

<4>A4: Direct injection generally offers better efficiency and power, but port injection can be more cost-effective and less prone to certain types of carbon build-up. Many modern vehicles use a combination of both.

Conclusion

Fuel injection systems are a testament to modern automotive ingenuity, transforming how engines perform and consume fuel. By precisely atomising and delivering fuel, these systems contribute significantly to a car's efficiency, power, and environmental impact. Understanding the components and principles behind fuel injection not only demystifies a crucial part of your vehicle but also highlights the importance of its proper maintenance for optimal performance and longevity. Whether it's the widely adopted multi-point injection or the cutting-edge direct injection, the continuous innovation in this field ensures our vehicles continue to get more efficient and powerful.
