Understanding Your Diesel Particulate Filter (DPF)

Modern diesel cars, particularly those manufactured after 2009 to meet Euro 5 emissions standards, are equipped with a Diesel Particulate Filter (DPF). While a crucial component for reducing harmful emissions and improving the environmental image of diesel vehicles, the DPF can also be a source of significant concern and expense for owners. Often described as a 'ticking time bomb,' a malfunctioning DPF can lead to serious performance issues and costly repairs. This guide aims to demystify the DPF, explaining its function, the reasons behind its failure, and most importantly, how you can maintain it to avoid expensive problems.

What Exactly is a Diesel Particulate Filter?

The primary purpose of a DPF is to trap harmful soot particles produced during the combustion process in diesel engines. These microscopic particles are a major contributor to air pollution. The DPF acts like a sophisticated sieve within the exhaust system, capturing these particulates before they are expelled into the atmosphere. This technology has been instrumental in making diesel cars significantly cleaner and more environmentally friendly, aligning with increasingly stringent emission regulations worldwide.

While the environmental benefits are undeniable, the DPF's effectiveness relies on a process called 'regeneration.' This is where the trapped soot is burned off at high temperatures, converting it into a less harmful ash-like residue. If this regeneration process is not completed successfully, the DPF can become clogged, leading to a cascade of problems.

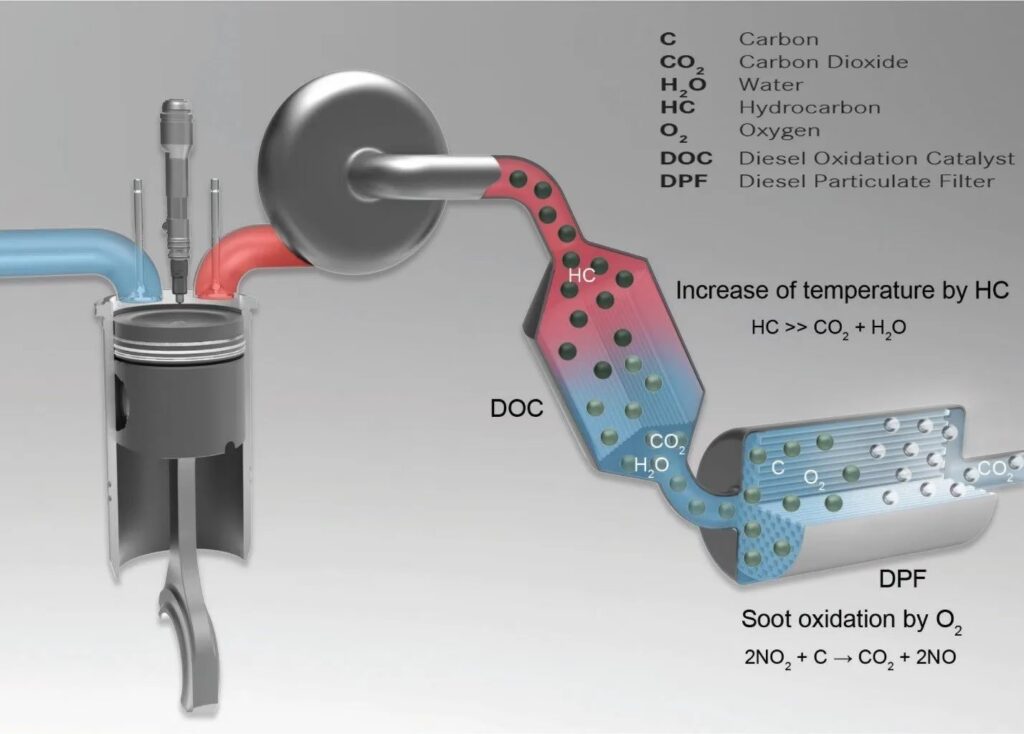

How Does a DPF Work? The Regeneration Process

The DPF traps diesel soot, and this collected soot is regularly burned off through a process known as DPF regeneration. This high-temperature burning converts the soot into an ash-like residue, allowing the filter to continue its job of capturing new particulates. There are three main types of DPF regeneration:

1. Active DPF Regeneration

Active regeneration is initiated automatically by the vehicle's engine control unit (ECU) based on data such as exhaust back pressure or the soot load within the filter. When the ECU determines that regeneration is necessary, it adjusts the fuel injection timing. This adjustment increases the exhaust gas temperature, which in turn burns off the trapped soot. During an active regeneration cycle, you might notice:

• Higher idle engine speed (RPM).
• The engine cooling fan operating more frequently or at a higher speed.
• A temporary decrease in fuel economy.
• Unusual smells emanating from the exhaust.
• A subtle change in the engine's sound.

2. Passive DPF Regeneration

Passive regeneration occurs automatically when the exhaust system reaches its optimal operating temperature. This typically happens during longer drives at consistent speeds, such as on motorways or A-roads. Manufacturers often incorporate an oxidizing catalytic converter close to the engine to help raise the exhaust temperature sufficiently for passive regeneration to take place without ECU intervention. This is the most seamless and efficient form of regeneration.

3. Forced DPF Regeneration

A forced regeneration is required when the DPF's soot level reaches a critical point (around 70% or higher) and the automatic regeneration processes (active or passive) have failed to clear it. In such cases, the vehicle may enter 'limp mode,' severely restricting performance to protect the engine and exhaust system. A diagnostic tool is then needed to manually trigger the regeneration process. It's crucial to address this promptly, as exceeding an 85% soot level often necessitates the removal and professional cleaning of the DPF.

Common Causes of DPF Failure

DPF failures are unfortunately common, and many owners unknowingly contribute to the problem. The most frequent culprit is a driving style that doesn't allow the DPF to regenerate effectively. Here are the primary reasons for DPF issues:

• Short Journeys and City Driving: This is the leading cause. Frequent short trips mean the engine rarely reaches the optimal operating temperature required for regeneration. The DPF never gets hot enough to burn off the accumulated soot.
• Clogged EGR Valve: A malfunctioning Exhaust Gas Recirculation (EGR) valve can lead to an increase in the amount of soot being sent to the DPF, overwhelming its capacity.
• Faulty Fuel Injectors: Injectors that deliver too much fuel into the air-fuel mixture can produce excessive soot, contributing to DPF blockage.
• Incorrect Engine Oil: Using engine oil that is not specifically formulated for DPF-equipped vehicles can be detrimental. Oils for DPF cars must be 'low ash' and 'low sulphur' to prevent premature clogging.
• Turbocharger Issues: A failing turbocharger can leak oil into the exhaust system, which then enters the DPF and can cause irreversible damage or significantly reduce its lifespan.
• High Mileage: While DPFs are designed for longevity, very high mileage can make regeneration more challenging as the filter's capacity diminishes.

Symptoms of a Blocked DPF Filter

Modern vehicles usually have a trip computer that will alert you to potential DPF issues. The most common initial symptoms are the illumination of the DPF warning light or the Engine Management Light (EML).

Sometimes, these warning lights can be triggered by temporary issues. It's worth trying to clear the fault code using an OBD2 diagnostic tool. However, if the warning light persists, you're likely to experience the following:

• Loss of Power: The vehicle may feel sluggish and unresponsive.
• Reduced Fuel Economy: You'll notice your car consuming more fuel than usual.
• Poor Throttle Response: The accelerator pedal might feel less sensitive.
• Difficulty Starting: In severe cases, the engine may struggle to start or fail to start altogether.
• Limp Mode: This is a common safety feature where the engine's power is significantly reduced to prevent further damage.
• Unusual Smells: A burning smell or a smell of unburnt fuel can sometimes be present.

DPF Warning Light Guide

It's important to understand what different DPF warning lights signify:

How to Clear a Blocked DPF and Keep it Clean

The prospect of DPF cleaning or replacement can be daunting, but adopting a few simple driving habits can significantly reduce the risk of blockages and costly repairs.

1. Drive Faster (When Appropriate)

If you primarily undertake short trips, make a conscious effort to occasionally drive your diesel car at higher speeds, such as on a motorway or A-road. Increasing your speed and accelerating firmly (but safely) helps to raise exhaust temperatures, promoting regeneration.

2. Increase Your RPM

If the DPF warning light appears, your best course of action is to drive at higher RPMs (around 2500-3000 RPM) for a sustained period, typically 15-20 minutes, until the warning light extinguishes. This forces more exhaust gas through the DPF, aiding the cleaning process.

3. Avoid Constant City Centre Driving

If your commute involves a lot of stop-start traffic, try to plan longer, more consistent drives when possible. Avoiding slow-moving traffic is particularly important if the DPF light is on or if you suspect a blockage.

4. Check Your EGR Valve

Ensure your EGR valve is functioning correctly. A faulty EGR valve can exacerbate DPF problems. If you suspect an EGR issue, get it diagnosed and repaired before attempting to clear the DPF.

5. Use High-Quality Fuel

Opting for premium diesel fuels or using reputable diesel fuel additives can help. These products often contain additives that assist in burning off harmful particles at lower temperatures, aiding the DPF's regeneration process.

If your vehicle has entered limp mode, driving at higher RPMs (as described in point 2) is your best chance of regaining normal power. Once the power is restored, take the car for a longer, faster drive. If the problem persists the next day, it's essential to have the fault codes read by a qualified mechanic.

For those living in urban areas or frequently stuck in traffic, maintaining a clean DPF can be challenging. In such cases, using a high-quality DPF cleaner additive can be beneficial. These cleaners work by lowering the temperature required for regeneration, making it easier for the DPF to clear itself even during shorter journeys.

The DPF Delete Option: Is it Worth It?

The idea of removing the DPF (often referred to as a 'DPF delete') might seem appealing, especially when facing costly repairs. Removing the DPF will indeed eliminate DPF-related issues and can even lead to a slight performance increase, particularly when combined with ECU remapping or tuning. However, this comes with significant caveats:

• Legality: In many countries, including the UK, removing a DPF is illegal. It is considered a modification that defeats emissions control equipment and can result in failed MOT tests and substantial fines.
• Environmental Impact: The DPF is a critical component for reducing harmful emissions. Its removal directly contributes to increased air pollution, which is contrary to the environmental benefits diesel technology aims to achieve.
• Insurance and Resale Value: A DPF delete will likely invalidate your vehicle's insurance and significantly reduce its resale value.

While it might seem like a quick fix, the long-term consequences and legal implications of DPF removal generally outweigh any perceived benefits.

Have You Bought the Wrong Car for Your Driving Style?

The cost of DPF cleaning or replacement can be substantial, often running into hundreds or even thousands of pounds. If your DPF is significantly blocked (typically 70-85% clogged), it can often be cleaned professionally. However, if the blockage exceeds 85%, a complete replacement is usually necessary.

Many consumers purchased diesel cars because they were marketed as the fuel-efficient, environmentally conscious choice. However, they may not have fully understood the maintenance requirements of modern diesel technology, particularly the DPF. The issues often arise not from a fault with the DPF itself, but from a mismatch between the vehicle's technology and the owner's driving habits.

If your daily routine consists of very short journeys, a diesel engine with a DPF may not be the ideal choice. In such scenarios, a modern petrol engine, which is often more efficient for short trips and generally has simpler emissions control systems, might be a more suitable and cost-effective option. Understanding your driving patterns and choosing a vehicle that complements them is key to avoiding unexpected and expensive repair bills.
