Unleashing SBC Horsepower: Blower & Nitrous Secrets

The Small Block Chevy (SBC) engine holds a legendary status in the world of automotive performance, revered for its robust design and incredible potential for power. From mild street cruisers to fire-breathing drag monsters, the SBC has proven its versatility time and again. However, when you start talking about pushing a 355 cubic inch SBC with high-performance heads, a roller cam, a colossal 6-71 supercharger, and then layering a nitrous system on top, you're entering a realm of extreme horsepower that demands meticulous planning, precise execution, and an unwavering commitment to safety. This isn't merely about bolting on parts; it's about engineering a symphony of components to work in harmony, preventing a potentially catastrophic failure.

For ambitious builders like D.W., who is combining AFR 1065 220cc Race Ready heads, an Erson roller cam, FiTech fuel injection, a Weiand 6-71 blower, and contemplating a wet nitrous system, the question isn't just 'can it be done?', but 'how much power can it truly make, and what are the critical considerations to ensure it runs reliably and safely?' The answer to the former is: a lot. The answer to the latter is complex, focusing heavily on fuel delivery, careful tuning, and the right supporting components.

The Raw Power of a Supercharged Small Block Chevy

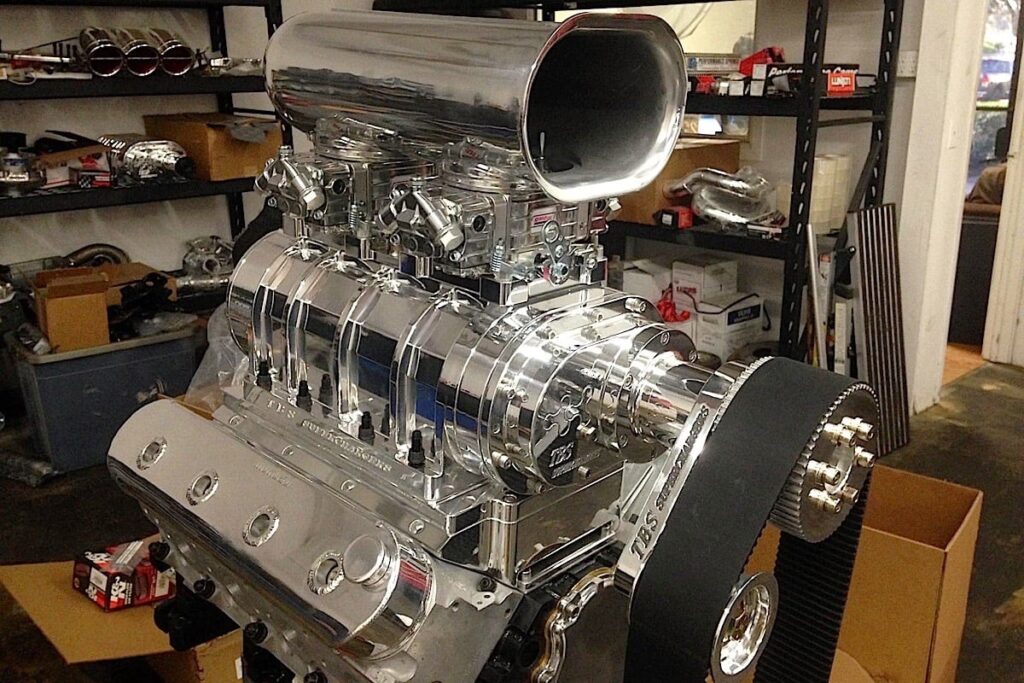

A well-built 355 cubic inch Small Block Chevy, even before considering nitrous, is a formidable engine. When you introduce a Weiand 6-71 Roots-type supercharger, you’re force-feeding the engine a significant volume of air, drastically increasing its volumetric efficiency and, consequently, its power output. With performance components like AFR 1065 heads and an appropriate roller cam, a healthy 355 cubic inch SBC running even single-digit boost numbers can effortlessly produce between 600 to 700 horsepower. This level of power is already substantial for a street or even a track machine, capable of delivering exhilarating performance.

The Roots-type blower provides instant boost, making for a very responsive power delivery. However, one characteristic of these older design blowers is that they tend to generate a significant amount of heat in the intake charge. This heat can be detrimental to power and engine longevity, making the idea of integrating nitrous even more intriguing than just for pure power addition.

The Strategic Integration of Nitrous Oxide

So, why would one consider adding a nitrous system to an already supercharged engine? While the primary thought might be 'more power!', there's a crucial secondary benefit: charge cooling. As mentioned, Roots-type blowers generate heat. Injecting nitrous oxide into the blower, particularly a wet nitrous system that introduces both nitrous and fuel, can significantly cool the discharge temperature. This cooling effect can lead to a denser, more oxygen-rich charge, which further contributes to power while also helping to preserve engine components by mitigating excessive heat.

The synergy between a wet nitrous system and modern self-learning EFI systems like FiTech is particularly advantageous. Unlike traditional carburetted setups where fine-tuning a nitrous system often involves manually changing jets and fuel pressure after each run, EFI offers a more sophisticated approach. With FiTech, when the nitrous is engaged, it triggers a specific, generally richer, air-fuel (A-F) ratio target within the ECU. For instance, if your engine runs at 12.8:1 A-F ratio under boost without nitrous, the system can automatically switch to a safer 12.2:1 A-F ratio when nitrous is activated.

The EFI system utilises feedback from a wide-band O2 (WBO2) sensor to monitor the A-F ratio in real-time. This creates a closed-loop system that can automatically trim the A-F ratio by adding or subtracting fuel from the throttle bodies as needed. While the system can make minor adjustments, the goal is for your initial tune-up to be so precise that the ECU only needs to make very minor corrections. This automatic trimming significantly enhances both performance and engine safety, as it continuously strives for the optimal A-F ratio.

The Unyielding Demand for a Robust Fuel Delivery System

This is arguably the most critical aspect of building a high-horsepower, supercharged, and nitrous-fed engine. An underperforming fuel delivery system is a recipe for disaster, leading to a lean condition that can grenade an engine in mere seconds. When combining 600-700 hp from the blower with an additional 200 hp from nitrous, you're looking at a potential 900 horsepower engine, and feeding that beast requires an immense volume of fuel.

To truly understand the fuel demands, we must consider Brake Specific Fuel Consumption (BSFC). This metric tells us how many pounds of fuel an engine consumes per horsepower per hour. For a normally aspirated engine, BSFC typically ranges from 0.4 to 0.5 lbs/hp/hr. However, for a supercharged EFI system, we must account for the power required to drive the supercharger itself (which can be 50 hp or more) and the need for a richer mixture to keep components cool under extreme load. Therefore, a less efficient BSFC number, typically between 0.60 and 0.70 lbs/hp/hr, is used.

Let's perform a calculation for a 900 hp engine at a BSFC of 0.65:

This means your fuel pump system must be capable of delivering a minimum of 93.6 gallons of fuel per hour. However, it's crucial to build in a safety margin for flow losses and to ensure the pump isn't running at its absolute limit. Therefore, a pump capable of delivering 100-120 gallons per hour is a more realistic and safer target. Crucially, this volume must be delivered at the required pressure, typically around 58 psi for EFI systems. Supplying that much fuel at high pressure is a significant task that many standard electric in-tank fuel pumps simply cannot handle. You will likely need a high-performance external pump, such as those offered by Aeromotive (e.g., A1000) or Holley's large twin electric pumps, designed for extreme power applications.

When integrating a wet nitrous system, a common approach is to 'tee' off the main fuel delivery system for the nitrous fuel. This requires a separate fuel pressure regulator to drop the pressure from the EFI's 58 psi down to the typical 5 psi used by plate nitrous systems. The best practice here is to create a full return system back to the fuel tank for this dedicated nitrous fuel supply. This allows for independent tuning of the nitrous fuel pressure, ensuring precision and stability.

An even more robust and recommended alternative for such a high-power combination is to build two entirely separate fuel delivery systems. One high-pressure return-style system to feed the EFI, and a completely separate low-pressure return-style system specifically for the nitrous. While this adds complexity in terms of plumbing, it greatly reduces the load on each pump and allows for much finer, more stable tuning of each fuel supply, enhancing overall reliability and safety.

Beyond the pump's capacity, two other critical factors are often overlooked: voltage supply and filtration. It is absolutely imperative that your fuel pumps receive a minimum of 13.5 volts under load. Any lower voltage will cause the pump to spin slower, dramatically reducing its flow capacity and leading to premature failure due to overheating. Many high-power builds fail here due to inadequate wiring or relay systems. Furthermore, using a large-surface-area filter is essential. A common mistake is to pair a massive fuel pump with a tiny filter, which restricts flow, causes pressure drops, and can quickly clog, starving the engine of fuel. Adequate filtration is non-negotiable for protecting your engine and maintaining consistent fuel pressure.

Rigorous Tuning and Safety Protocols

Achieving optimal performance and reliability with a supercharged and nitrous-fed engine requires a methodical tuning approach. Do not attempt to tune both systems simultaneously from the outset. Instead, adopt a phased approach:

1. Supercharger-Only Tuning: First, get the supercharger setup dialled in perfectly on a chassis dyno. Ensure your fuel delivery system can cope with the blower's demands, and establish a safe air-fuel ratio, typically around 12.0:1 under boost. Ensure your ignition timing is appropriately retarded under boost. Data logging of fuel pressure, A-F ratio, and timing is crucial during this phase to confirm everything is functioning smoothly before introducing nitrous.
2. Nitrous System Integration: Once the supercharger tune is solid, introduce the nitrous. Start with a very conservative tune-up, perhaps no more than a 100-horsepower shot, for a very brief duration (e.g., two seconds). Your chassis dyno tuner should be able to data log all critical parameters, including fuel pressure, A-F ratio, timing retard, and importantly, nitrous bottle pressure. After each test run, pull the spark plugs and study them closely for any signs of lean conditions or detonation. Gradually increase the nitrous shot only when you are confident the system is responding safely and consistently.

If this is your first foray into nitrous, we cannot stress enough the importance of finding a professional nitrous tuner. An experienced tuner possesses the knowledge and equipment to interpret data logs, read spark plugs, and make the necessary adjustments to keep your engine safe. They can prevent costly mistakes and ensure you unlock the power reliably.

Several critical safety warnings must be heeded with this type of setup. A nitrous backfire on a supercharged engine is highly dangerous and can lead to catastrophic engine failure. One common cause is inadvertently setting the rev limiter below the nitrous cut-off RPM. If the rev limiter starts dropping cylinders while nitrous is engaged, it can create a very large, very expensive bang. Therefore, ensure your rev limiter is set appropriately and that the nitrous system disengages well before the engine hits the limiter.

Additionally, we strongly recommend against engaging the nitrous system below 4,000 RPM under any circumstances. Roots blowers produce instant boost, and the combined shock of boost plus nitrous at low RPM can be incredibly abusive on pistons and other internal components. Furthermore, ensure your top piston rings have a very wide gap, ideally a minimum of 0.022 to 0.024 inches, as this combination will generate significant heat, and inadequate ring gap can lead to ring butt and cylinder wall damage.

Optimal Spark Plug Selection

For a high-performance, supercharged, and nitrous-fed engine, your choice of spark plug is paramount. You must use a spark plug with a non-projected nose, meaning one with a very short ground strap. Standard spark plugs with long projected centre electrodes and long ground straps are designed for cooler, normally aspirated engines. In a supercharged environment, especially with nitrous, the ground strap can get incredibly hot and begin to glow. This 'glow plug' effect can lead to pre-ignition, where the fuel ignites prematurely before the spark, causing severe engine damage or a dangerous backfire.

To eliminate this risk entirely, we highly recommend a surface gap spark plug. These plugs, such as the Autolite X-Plus (e.g., AR3933X), feature no traditional ground electrode. Instead, they have milled slots in the end of the plug, creating multiple sharp points for the spark to jump across from the centre electrode. This design eliminates the glowing ground strap issue, making them exceptionally well-suited for high-heat, forced-induction applications. They provide a reliable spark without the risk of pre-ignition, adding a critical layer of safety to your powerful build.

BSFC Comparison for Engine Types

Frequently Asked Questions (FAQ)

Q1: Why use nitrous with a supercharger instead of just more boost?
A: While more boost certainly adds power, integrating nitrous offers unique advantages. Primarily, the injection of nitrous cools the intake charge, which helps to combat the heat generated by the supercharger, leading to a denser, more powerful charge. It also allows for on-demand power boosts without continuously stressing the supercharger or requiring a larger unit for everyday driving. It's a strategic way to add significant power when you need it, rather than all the time.

Q2: Can I use a carburettor with this setup instead of EFI?
A: While technically possible, using a carburettor with a supercharged and nitrous setup is significantly more challenging and less forgiving than with modern EFI systems like FiTech. EFI offers superior, automated air-fuel ratio control, closed-loop feedback from O2 sensors, and integrated safety features that can adjust fuel delivery in real-time. Manually tuning a carburettor and nitrous system to be safe and efficient across all conditions, especially under extreme load, requires immense expertise and is far more prone to dangerous lean conditions or rich misfires.

Q3: What are the biggest risks with this kind of high-power build?
A: The primary risks include inadequate fuel delivery leading to a lean condition, improper tuning resulting in detonation or pre-ignition, incorrect spark plug choice that causes glowing electrodes, and issues with the rev limiter interacting with the nitrous system. Any of these can lead to catastrophic engine failure. Attention to detail in every component and tuning step is paramount.

Q4: How important is professional tuning for such a complex setup?
A: Professional tuning is extremely important, almost mandatory, for an engine combining forced induction and nitrous. An experienced tuner possesses the specialised knowledge, diagnostic tools, and dyno facilities to safely develop and refine the tune. They can read data logs, interpret spark plug conditions, and make precise adjustments that prevent costly engine damage, optimise performance, and ensure the longevity and safety of your highly stressed components.

Building an engine of this calibre is a challenging yet incredibly rewarding endeavour. The potential for a truly exceptional machine is evident in D.W.'s project. By focusing on a meticulously engineered fuel delivery system, a phased and conservative tuning approach, and selecting the correct supporting components like spark plugs, you'll be well on your way to unleashing immense horsepower safely. This sounds like a real screamer in the making, and we look forward to hearing about its success!
