Is Your Bike Fuel Injected?

Unravelling the Mystery: How to Tell if Your Motorcycle is Fuel Injected

In the ever-evolving world of motorcycling, technology marches on, and one of the most significant advancements in recent decades has been the widespread adoption of fuel injection (FI) systems. Replacing the traditional carburettor, fuel injection offers a host of benefits, including improved fuel efficiency, lower emissions, and more consistent performance across varying conditions. However, for many riders, especially those new to the scene or perhaps inheriting a slightly older machine, the question often arises: "How do I know if my bike is fuel injected?" This guide aims to demystify the process, providing clear indicators and diagnostic steps to help you identify your motorcycle's fuel delivery system.

The distinction between carburetted and fuel-injected bikes is crucial for maintenance, tuning, and even understanding certain performance characteristics. While modern bikes predominantly feature FI, older models or certain budget-friendly machines might still rely on carburetors. Let's dive into the key identifiers.

Visual Clues: What to Look For Under the Tank

The most definitive way to determine if your bike is fuel injected is to take a look at the heart of its fuel system. This often involves a quick peek under the fuel tank, though some components might be visible elsewhere. The presence of specific parts is a strong indicator.

Fuel Injectors vs. Carburettors

The most obvious difference lies in the components that deliver fuel to the engine's cylinders. In a fuel-injected system, you'll typically see fuel injectors. These are small, nozzle-like devices that spray a precisely metered amount of fuel directly into the intake port or combustion chamber. They are usually mounted on the intake manifold or cylinder head, directly above or within the intake ports.

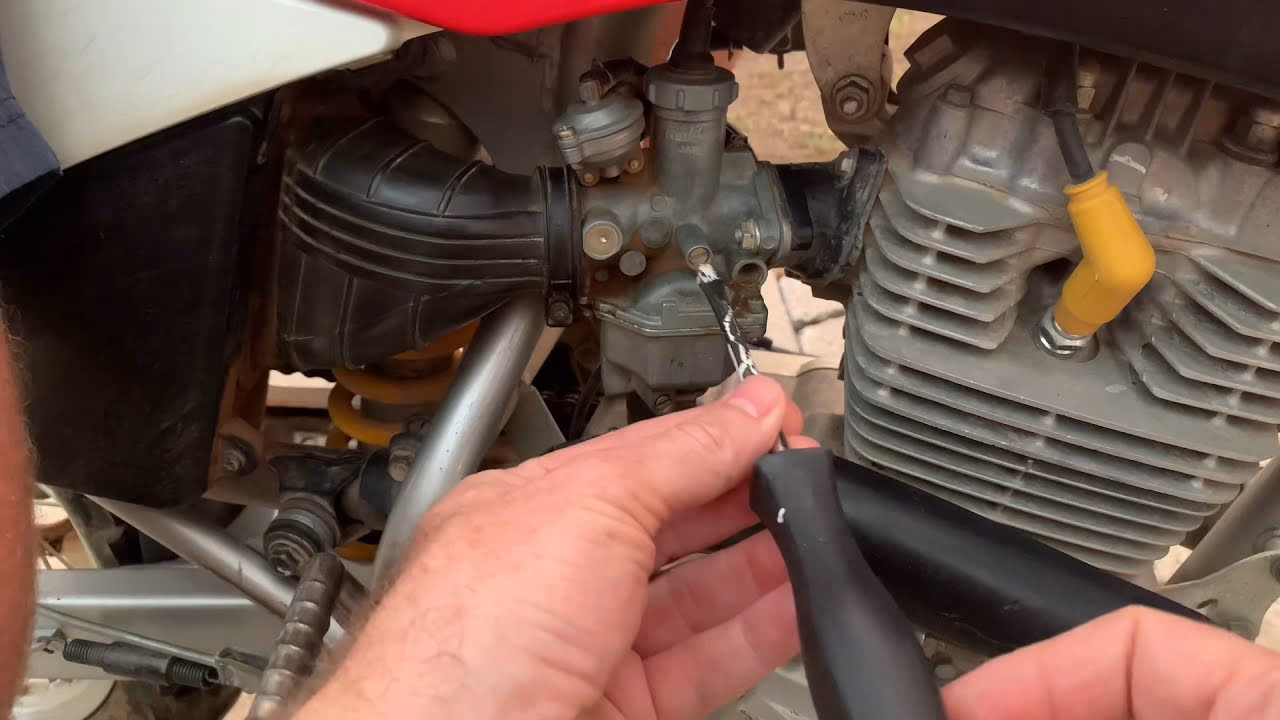

In contrast, a carburetted system will feature carburetors. These are generally larger, more complex-looking units, often with visible linkages, cables, and perhaps rubber intake boots connecting them to the engine. You might see multiple carburetors, one for each cylinder on multi-cylinder engines, or a single unit on smaller displacement bikes. They have a distinct "stack" appearance.

Table 1: Visual Differences Between Fuel Injectors and Carburetors

The Fuel Pump and Filter

Fuel-injected systems require a fuel pump, typically located inside the fuel tank, to pressurise the fuel and deliver it to the injectors. While you won't usually see the pump itself without removing the tank, you might see associated plumbing or a fuel filter. Carburetted systems usually rely on gravity feed from the tank or a less powerful, often vacuum-operated, fuel pump.

A common sign of a fuel-injected bike is the presence of a fuel rail. This is a pipe that connects the injectors and carries pressurised fuel to them. It's usually a metal or plastic tube running along the intake side of the engine.

Checking the Controls: What Your Handlebars Tell You

While not as definitive as looking under the tank, your bike's controls can sometimes offer clues.

The Choke Lever/Cable

One of the most significant indicators of a carburetted system is the presence of a manual or automatic choke mechanism. If your bike has a physical lever or cable on the handlebar or carburettor itself that you operate to enrich the fuel mixture when the engine is cold, it's almost certainly carburetted. Fuel-injected bikes have an automatic idle control or fast-idle system managed by the engine control unit (ECU), eliminating the need for a manual choke.

A common complaint from riders of older fuel-injected bikes is the absence of a manual choke, leading to slower warm-up times in colder weather. As one forum user noted, "I car'nt give it any choke as theres no choke on them!! Auto choke as every bloody thing seems to be these days... Bring back the old choke system any day..." This highlights the absence of a manual choke as a key FI characteristic.

Diagnostic Codes and Warning Lights

Modern fuel-injected motorcycles often come equipped with an Engine Management System (EMS) that monitors various sensors and components. This system can detect faults and alert the rider through warning lights on the dashboard.

The "Check Engine" or "FI" Light

A tell-tale sign of a fuel-injected system is the presence of an "FI" light or a "Check Engine" light on your instrument cluster. This light illuminates when the ignition is switched on and should typically go out once the engine starts. If it stays on or flashes, it indicates a fault within the fuel injection system or related sensors. Some systems even provide diagnostic codes through the flashing of this light, as described by a forum user: "With the ignition on and the bike on the centre stand, kick the side stand down and see if the fuel pump light (orange) blinks at all. If it does, then there has been an issue somewhere in the FI system and you need to count the number of short and long blinks to work out the code to look up with the shop manual."

Carburetted bikes generally do not have such warning lights related to their fuel system, as there's no sophisticated electronic control unit to monitor. They rely on mechanical adjustments and the rider's senses to identify issues.

The Sound of the Fuel Pump

When you turn the ignition key on a fuel-injected motorcycle, you'll often hear a distinct whirring or buzzing sound from the fuel tank. This is the electric fuel pump priming the system, building up pressure before the engine starts. This sound is absent on most carburetted bikes, which don't require a high-pressure fuel pump.

This subtle auditory cue can be a quick confirmation. If you hear that brief hum from the tank area when you switch the ignition on, it's a strong indicator of an FI system.

Consulting Your Motorcycle's Documentation

When in doubt, the most reliable source of information is your motorcycle's owner's manual or workshop manual. These documents will clearly state the type of fuel system your bike is equipped with. If you don't have the physical manual, you can often find digital copies online by searching for your bike's make, model, and year.

The manual will detail specifications, maintenance schedules, and diagnostic procedures specific to your bike, which will explicitly mention whether it's carburetted or fuel injected.

Common Misconceptions and Edge Cases

While the above points cover the most common scenarios, it's worth addressing a few potential grey areas.

Automatic Chokes on Carburetors

Some older carburetted bikes feature automatic chokes. These systems use a temperature-sensitive element (often a wax-stat) to adjust the idle speed and fuel mixture as the engine warms up, mimicking some aspects of FI. However, these systems will still have visible carburetors and lack the electronic control unit and dashboard warning lights associated with FI.

Lambda Sensors and Other FI Components

Fuel-injected systems often incorporate sensors like the lambda sensor (oxygen sensor) in the exhaust to measure exhaust gases and fine-tune the air-fuel mixture. If you see a sensor screwed into the exhaust pipe, especially near the engine, it's a strong indicator of an FI system. As one user suggested, "I'd suspect the lambda sensor (exhaust gas measuring doodad) is on the fritz and mucking up the fuel injection."

Another component sometimes mentioned is the bank angle sensor, which cuts the engine in case of a fall. While not exclusive to FI, it's part of the electronic management system found on many modern bikes, including those with FI.

Troubleshooting a Cold Idle Issue (A Case Study)**

The initial post details a common problem: a Honda CBF 125 engine that idles poorly when cold but is fine when warm. This scenario often points towards issues within a fuel-injected system, as carburetors are generally more forgiving with cold starts and idle adjustments.

Several suggestions were made by forum participants:

• Air Filter: A clogged air filter can restrict airflow, affecting performance, especially at low RPMs. It's a common maintenance item.
• Spark Plug: While a faulty plug can cause issues, the user confirmed trying a different plug yielded no change. The colour of the plug (white) indicated a lean fuel mixture.
• FI System Diagnostics: Checking for diagnostic codes by observing the FI light's flashing pattern is a standard FI troubleshooting step.
• Lambda Sensor: A malfunctioning lambda sensor can cause lean or rich conditions, impacting idle.
• Bank Angle Sensor: A faulty bank angle sensor could potentially cause erratic behaviour.
• Oil Strainer/Centrifugal Filter: For bikes with this type of oil filtration, a clogged strainer can impede oil flow, though its direct impact on cold idle is less common than fuel system issues.
• Idle Air Control Valve (IACV): This component regulates idle speed, and a sticking IACV can lead to stalling or rough idling, particularly when cold.
• Valve Clearances: As discovered by one user, incorrect valve clearances (too tight) can indeed cause cold-starting and idle problems by preventing valves from closing properly. This was the eventual fix for the CBF 125 in the discussion.

This case study illustrates how a cold-start issue on a modern bike often leads to investigating the fuel injection system's components and electronic controls. The eventual fix, valve clearance adjustment, highlights that even within an FI system, fundamental engine mechanics remain critical.

Frequently Asked Questions (FAQs)

Q1: My bike has a single throttle cable going to a central point under the tank. Does that mean it's fuel injected?
Not necessarily. While many fuel-injected bikes have a single throttle body, some carburetted bikes also consolidate their throttle cables to a central hub or cable splitter.

Q2: I can't find a manual choke lever. Is my bike definitely fuel injected?
It's a very strong indicator. The absence of a manual choke, coupled with an automatic fast-idle system, is characteristic of fuel injection. Some carburetted bikes have automatic chokes, but they are usually internal to the carb or activated by engine temperature, not a rider-controlled lever.

Q3: My bike sometimes splutters or hesitates when cold. Is this a sign of fuel injection?
Hesitation when cold can occur with both carburetted and fuel-injected bikes. However, on a fuel-injected bike, it might indicate an issue with the idle air control, temperature sensor, or the ECU's fuel mapping. On a carburetted bike, it's more likely to be a mixture setting or jetting issue.

Q4: Can I convert a carburetted bike to fuel injection?
Yes, it's possible, but it's a complex and often expensive modification that involves installing injectors, a fuel pump, an ECU, sensors, and modifying the intake and exhaust systems. It's generally more practical to buy a bike that came with fuel injection from the factory.

Conclusion: Identifying Your Bike's Fuel System

Determining whether your motorcycle is fuel injected or carburetted involves a combination of visual inspection, listening for specific sounds, checking your controls, and understanding dashboard indicators. The presence of fuel injectors, a fuel rail, an "FI" warning light, and the absence of a manual choke are the most reliable signs of a fuel-injected system. While carburetors have a distinct mechanical appearance and often a manual choke, FI systems are defined by their electronic precision and sensors.

By using these guidelines, you can confidently identify your bike's fuel delivery system, which is essential for proper maintenance, troubleshooting, and enjoying your riding experience to the fullest. Always refer to your bike's specific manual for the most accurate information.
