Why Your Car's Fuel Gauge Isn't Working

Driving your car relies heavily on knowing how much fuel you have left. That little needle on your dashboard, the fuel gauge, is a vital piece of equipment, constantly feeding you information about your tank's contents. Without it, every journey becomes a gamble, leaving you to wonder if you'll make it to the next petrol station or end up stranded on the hard shoulder. While you could attempt to meticulously track your mileage after each fill-up, that's hardly a reliable or stress-free solution. Instead, understanding why your fuel gauge might be malfunctioning and how to diagnose the issue is crucial for peace of mind and safe driving. This comprehensive guide will walk you through the common causes of a faulty or inaccurate fuel gauge and provide practical steps to get it working correctly again.

Understanding Your Fuel Gauge: The Inner Workings

Before diving into the common problems, it's helpful to grasp how a fuel gauge system actually operates. It's a surprisingly straightforward yet ingenious system, typically comprising three main components working in harmony:

• The fuel sending unit
• The fuel gauge itself (part of the instrument cluster)
• The electrical circuit connecting them

The heart of the system lies within your fuel tank: the fuel sending unit. This component is usually integrated into the fuel pump module. Most modern systems employ a float mechanism. As the fuel level changes, a buoyant float rises or falls, connected to a variable resistor via a wiper. When the tank is full, the float is high, resulting in a certain resistance reading. As fuel is consumed and the float drops, the resistance changes accordingly. This variable resistance generates a specific voltage signal.

In older, non-computerised vehicles, this varying voltage signal from the sending unit is directly wired to the fuel gauge on your dashboard. The gauge then interprets this voltage directly to display the fuel level. However, in more contemporary vehicles, especially those from the early 1990s onwards, the process is a little more sophisticated. The fuel level signal's varying voltage is sent to a central computer, often the Body Control Module (BCM) or Engine Control Module (ECM). This module then processes the analogue signal and transmits a digital signal to the instrument cluster, which finally displays the fuel level. This digital integration allows for more precise readings and often incorporates self-test procedures.

The third crucial element is the electrical circuit. This network of wiring connects the battery, the fuel sending unit, the gauge, and a ground connection. The majority of these systems are grounded to the vehicle's main electrical system, though older models might be grounded directly to the chassis or body. Any interruption or fault within this circuit can disrupt the flow of information, leading to inaccurate or non-existent readings on your dashboard.

Key Reasons Your Fuel Gauge Might Be Faulty

When your fuel gauge goes awry, it can be frustrating, but the cause is often one of a few common culprits. Understanding these will help you narrow down the diagnostic process.

Defective Fuel Sending Unit

This is arguably the most common reason for an inaccurate or non-working fuel gauge. The sending unit is constantly in motion, monitoring the fuel level. Over time, the internal components, such as the electrical contacts or the float itself, can wear out or become damaged. If the contacts corrode or wear down, the electrical circuit might remain open, leading the gauge to incorrectly read the tank as either perpetually empty or full, regardless of the actual fuel level. A damaged float that takes on fuel can also sink, causing the gauge to always read empty. Look out for symptoms of a bad fuel sending unit, such as the gauge being stuck at one extreme or fluctuating wildly.

Electrical Circuit Issues

The fuel gauge relies entirely on a functioning electrical circuit. If there's a fault in the system, the correct voltage might not reach the gauge, or the signal from the sending unit might be compromised. Common issues include loose connections, frayed wires, or corrosion within the wiring harness. An interrupted ground connection is also a frequent offender. These defects are often found at the connection to the fuel pump module, which is consistently exposed to the elements, making it prone to corrosion from moisture, road salt, and debris.

A Blown Fuse

Like many electrical components in your car, the fuel gauge circuit is protected by a fuse. This is one of the simplest issues to check and often the easiest to fix. Fuse boxes are typically located under the steering column, on the driver's side of the vehicle, or sometimes under the bonnet. Your owner's manual will provide a map of the fuse box, helping you pinpoint the specific fuse for the fuel gauge or instrument cluster. While many newer cars integrate the fuel gauge with the instrument cluster's main fuse, making a separate fuse less common, it's always worth checking as a first step.

A Broken Fuel Gauge Itself

While less common than issues with the sending unit or wiring, the fuel gauge itself can fail. This usually involves an internal circuit fault within the gauge. If this occurs, the needle might become stuck at a particular level, or it could behave erratically, jumping between readings. If the needle is stuck at full or empty, it often indicates a shorted circuit within the gauge. Unfortunately, in many newer vehicles, the fuel gauge is an integrated part of the entire instrument cluster, meaning a fault in the gauge might necessitate replacing the whole cluster, which can be a costly repair.

Malfunctioning Instrument Cluster

As mentioned, modern vehicles increasingly feature an integrated instrument cluster. This means multiple gauges and warning lights are intertwined within a single unit, rather than operating on separate circuits. If the entire instrument cluster malfunctions, it can affect the fuel gauge's operation. This is often one of the most expensive issues to repair, as replacing the whole cluster is a significant undertaking.

Environmental Damage & Wiring Corrosion

Beyond simple loose connections, environmental factors can severely impact your fuel gauge's reliability. Water intrusion, especially in flood-prone areas, can lead to widespread corrosion in electrical connectors. Road salt used in winter regions accelerates the deterioration of wiring insulation and connections. Impact from road debris can physically damage wiring harnesses or even components like the sending unit itself. These external factors can cause intermittent issues or complete failure of the fuel gauge system.

Diagnosing the Problem: A Step-by-Step Guide

Identifying the precise cause of a faulty fuel gauge can save you significant time and money. Here's a systematic approach to diagnosing the issue:

1. Perform an Instrument Cluster Self-Test

Many vehicles, particularly those manufactured from the early 1990s onwards, have a built-in self-test procedure for the instrument cluster. Consult your car's owner's manual to find out if your vehicle has this feature and how to activate it. The procedure varies widely between makes and models; it might involve a specific sequence of turning the ignition, pressing buttons, or cycling headlights. During this self-test, the fuel gauge needle should perform a full sweep from empty to full and back. If it doesn't move or behaves erratically during the test, it indicates a problem with the gauge itself or the instrument cluster.

2. Check the Fuses

This is the simplest and often quickest diagnostic step. Locate your car's fuse boxes (usually under the dashboard and in the engine bay). Refer to your owner's manual to identify the fuse responsible for the fuel gauge or the instrument cluster. Visually inspect the fuse for a broken wire or discolouration, which indicates it's blown. If you find a blown fuse, replace it with a new one of the exact same amperage. If the new fuse blows immediately or shortly after, it suggests a deeper electrical short in the system that needs professional attention.

3. Inspect the Wiring and Connections

Electrical issues are common, so a thorough inspection of the wiring is crucial. Start at the fuel tank, where the fuel sending unit is located, and trace the wiring harness towards the front of the vehicle. Pay close attention to any visible damage, fraying, or signs of corrosion on the wires and connectors. Critically, inspect the ground connections, as these are highly susceptible to corrosion from exposure to rain, snow, and road salt. If you find corrosion, disconnect the affected part (if safe to do so), clean it thoroughly, and reattach it securely. Any broken wires should be professionally repaired or replaced. For a more advanced test, you can use a multimeter to measure the resistance (ohms) of the wiring from the gauge to the sending unit's connection. A significant difference in ohm readings suggests an open or shorted circuit.

4. Test the Fuel Sending Unit

If the fuse and wiring appear sound, the next suspect is often the fuel sending unit. This step usually requires accessing the fuel tank, which can be challenging depending on your vehicle's design (some require tank removal). Once you have access to the sending unit, set your multimeter to measure ohms. Place one probe on the sending terminal and the other on a good ground point. Manually move the float arm through its full range of motion. As you move the float, the resistance reading on your multimeter should change smoothly and consistently. If there's no change, or if the readings are erratic, the sending unit has likely failed. Be aware that some modern vehicles integrate the sending unit directly into the fuel pump assembly, meaning if the sender fails, the entire pump assembly needs replacement.

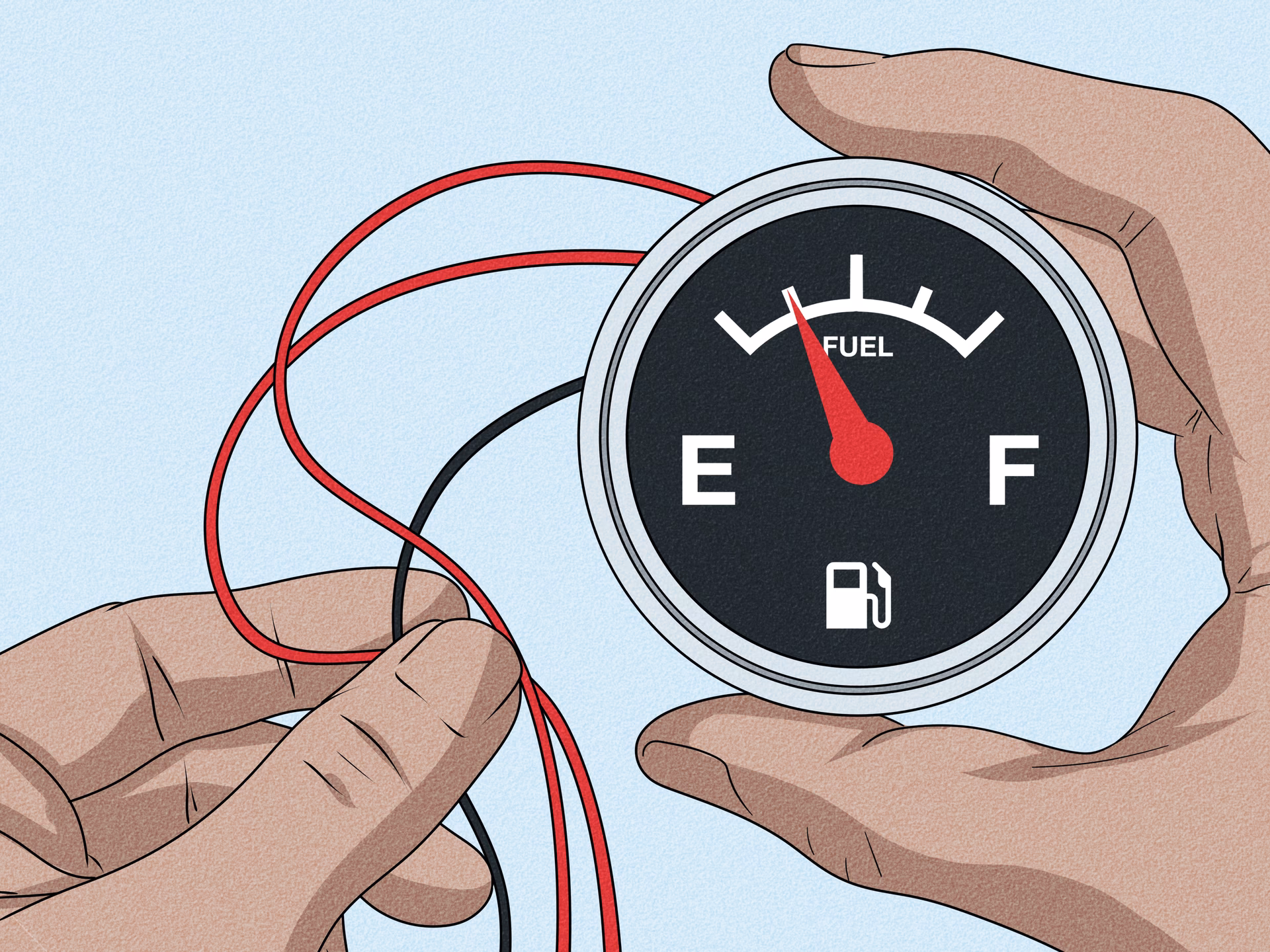

5. Examine the Fuel Gauge Itself

For older vehicles with non-integrated gauges, you can often test the gauge directly. It typically has two terminals: one receives power when the ignition is on, and the other is connected to the sending unit. You can test for continuity between the sending terminal and the connection at the tank. A lack of continuity indicates a break in the wiring. You can also test the gauge's internal resistance, but this requires specific knowledge of the gauge's specifications. For newer vehicles with integrated instrument clusters, testing the individual gauge is significantly more complex, often requiring disassembly of the entire cluster, which is why it's recommended to rule out other issues first.

Cost Implications of Fuel Gauge Repair

The cost of fixing a faulty fuel gauge can vary dramatically, depending on the underlying problem and whether you tackle the repair yourself or enlist a professional mechanic. Here's a general breakdown:

• Blown Fuse: This is by far the cheapest fix, often costing as little as £5-£10 for a pack of fuses. It's a simple DIY job that most car owners can manage.
• Faulty Fuel Gauge (standalone): If the gauge itself is the issue and it's not integrated into a complex cluster, replacing it might cost between £40 and £150 for the part. If you do the labour yourself, that's your total. Professional installation could add another £80-£150.
• Wiring or Connection Repair: This can vary widely. A simple clean-up of corroded terminals might cost nothing if you do it yourself. Replacing a short section of wiring could be £20-£50 for parts, plus potentially an hour or two of labour from a mechanic (£50-£100). More extensive harness damage could be significantly more.
• Defective Fuel Sending Unit: This is often the most expensive component-level repair. The part itself can range from £80 to £300, depending on the vehicle model. Labour costs are the significant factor here, as accessing the sending unit often requires removing the entire fuel tank. This can be a time-consuming job, pushing the total repair cost to anywhere between £200 and £800, or even more for complex vehicles.
• Malfunctioning Instrument Cluster: If the problem lies within the integrated instrument cluster, this can be the most costly repair. A new or reconditioned cluster can cost anywhere from £300 to over £1000, plus significant labour charges for removal, installation, and potentially programming.

While DIY can save you money, some repairs, particularly those involving fuel tanks or complex electrical systems, are best left to qualified mechanics to ensure safety and proper functionality.

Preventing Future Fuel Gauge Issues

While some issues are unavoidable due to age and wear, there are steps you can take to minimise the chances of your fuel gauge malfunctioning in the future:

• Regularly Inspect Your Vehicle's Electrical System: During routine checks or servicing, ask your mechanic to cast an eye over visible wiring harnesses, especially those near the fuel tank. Look for any signs of chafing, cracking, or corrosion.
• Keep the Fuel Tank in Good Condition: Avoid habitually driving on a near-empty tank. Running consistently on low fuel can lead to sediment from the bottom of the tank being drawn into the fuel system, potentially fouling the sending unit or fuel pump. Keeping the tank at least a quarter full also helps to keep the fuel pump submerged and cool, prolonging its life.
• Timely Replacement of the Sending Unit: If you notice your fuel gauge becoming consistently erratic or unreliable, address it promptly. While it might seem costly, replacing a faulty sending unit early can prevent further issues down the line.
• Avoid Overloading the Electrical System: Be mindful when adding aftermarket electrical accessories. Overloading your car's electrical system can put undue stress on components and wiring, potentially leading to failures, including those affecting your fuel gauge.
• Regular Car Servicing: Adhering to your vehicle's recommended service schedule is paramount. A professional mechanic can spot potential issues with your fuel system, wiring, or instrument cluster during routine inspections, allowing for preventative maintenance before a complete failure occurs.

A functional fuel gauge is more than just a convenience; it's a crucial safety feature that helps you plan your journeys and avoid unexpected breakdowns. By understanding how the system works, knowing the common failure points, and following the diagnostic steps outlined, you're well-equipped to tackle most fuel gauge problems. Remember, if in doubt, a qualified mechanic can provide a precise diagnosis and effective repair, ensuring you always know how far you can go.

Frequently Asked Questions (FAQs)

Is it possible to drive with a malfunctioning fuel gauge?

Yes, it is possible, but it is highly inadvisable and risky. You won't have an accurate indication of your fuel level, significantly increasing your chances of running out of fuel unexpectedly and being stranded. It's best to get it fixed as soon as possible.

Can a fuel gauge be recalibrated?

Most modern fuel gauges are self-calibrating or calibrated by the vehicle's computer (BCM/ECM) based on the sending unit's signals and the tank's shape. While some older or aftermarket gauges might require manual calibration with resistors and a multimeter, it's generally not a common procedure for contemporary vehicles. Consult your owner's manual or a professional if you suspect calibration issues.

Do I need to replace the fuel tank if my fuel gauge isn't working?

Not necessarily. In the vast majority of cases, the issue lies with the fuel sending unit, the wiring, or the gauge itself, not the fuel tank. However, accessing the sending unit often requires removing the fuel tank, which can add to the labour cost of the repair.

Is it safe to ignore a broken fuel gauge?

No, it is not safe to ignore a broken fuel gauge. While it won't immediately cause a breakdown, it puts you at a high risk of running out of fuel, which can leave you stranded in an inconvenient or dangerous location. It also puts unnecessary strain on your fuel pump if you frequently run the tank very low.

Can a damaged fuel pump affect the fuel gauge?

Yes, indirectly. Since the fuel sending unit is often integrated into the fuel pump module, a major fault with the entire pump assembly could potentially impact the sending unit's ability to transmit accurate readings. However, it's more common for the sending unit itself to fail independently of the pump's primary function.

Do I need a mechanic to fix the fuel gauge?

It depends on the cause and your mechanical skill level. Simple fixes like replacing a fuse or cleaning a corroded connection can often be done yourself. However, if the issue involves testing or replacing the fuel sending unit (which often requires fuel tank removal) or diagnosing complex electrical faults or instrument cluster problems, it's best to consult a professional mechanic.

Is the fuel gauge connected to the car's onboard diagnostic system?

Yes, in many modern vehicles, the fuel gauge system is integrated into the vehicle's onboard diagnostic (OBD) system. This means a diagnostic tool can often read fault codes or live data related to the fuel level sensor, helping a mechanic quickly identify the problem.

Can a faulty fuel sending unit cause inaccurate fuel gauge readings?

Absolutely. A faulty fuel sending unit is one of the most common and direct causes of inaccurate, erratic, or completely non-functional fuel gauge readings. It's the primary component responsible for detecting the fuel level.

How can I check my fuel level without a gauge?

While not ideal, you can try a few methods: carefully remove the fuel cap and try to visually estimate the level, or use a clean, non-conductive "dipstick" (like a thin, rigid hose or stick) lowered into the tank to measure the fuel height. Alternatively, you can track your mileage with the odometer after a full fill-up, knowing your car's approximate fuel economy to estimate remaining range.

What does 'F' mean in a fuel gauge?

The letter 'F' on a fuel gauge stands for 'Full', indicating that the fuel tank is completely filled. You will typically also see an 'E' which stands for 'Empty'.

When should a fuel gauge go down?

A functioning fuel gauge should go down steadily as you drive and consume fuel, reflecting the distance travelled and the vehicle's fuel efficiency. If it stays on 'Full' for an unusually long time (e.g., more than 75 miles after a fill-up) or drops to 'Empty' very quickly, it indicates a problem with the gauge or sending unit.
