In the realm of automotive maintenance and performance enhancement, additive injection systems play a crucial role. These sophisticated pieces of engineering ensure that vital additives are introduced into fuel or other fluids at precise concentrations, optimising everything from engine efficiency to longevity. Whether you're dealing with jet fuel anti-icing or biocide treatment for bus tanks, understanding how these systems work is key to appreciating their value.
What are Additive Injection Systems?
At their core, additive injection systems are designed to introduce specific chemical additives into a primary fluid stream. This process is far from haphazard; it's a carefully controlled method to ensure the correct dosage is delivered. These systems are employed across a wide range of industries, but in the automotive sector, they are vital for ensuring fuels meet stringent performance and environmental standards. They can be integrated into larger industrial processes or exist as standalone units, each with its own set of advantages.
Types of Additive Injection Systems

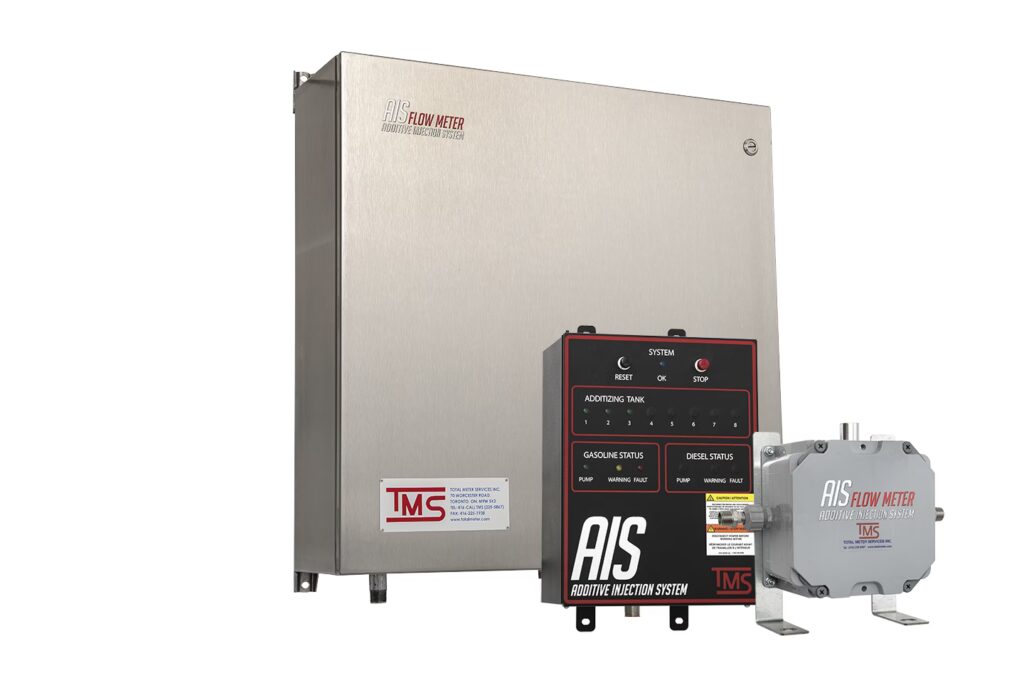

Additive injection systems can be broadly categorised, with standalone systems being a prominent example. These are purpose-built units designed to inject one or more additives into a product line. They often utilise sophisticated injection blocks, such as the Flotech FLOBLOCK, which are meticulously controlled. This control can be managed by an on-skid controller, or for more complex operations, by an off-skid Programmable Logic Controller (PLC) or Distributed Control System (DCS).
For applications requiring higher injection rates, a more compact, piped injector design is often employed. This innovative approach allows for increased flow rates without necessitating a significant expansion in the overall size of the system's footprint. This is particularly beneficial in space-constrained environments.
Customised Solutions for Specific Needs
A significant advantage of modern additive injection systems is their customisability. Manufacturers pride themselves on delivering solutions that are precisely tailored to meet a customer's unique requirements. This includes the specific additive injection rate, the physical footprint of the system, and the particular application it will serve. This flexibility ensures that the system is not just functional but optimally efficient for its intended purpose.
The 'Mother/Daughter' Skid Design
Further enhancing the practicality and capacity of standalone systems, the 'mother/daughter' skid design has emerged as a popular and effective solution. These systems ingeniously combine a standalone injection unit with integrated storage for the additives. This storage is typically bunded, providing an extra layer of security and containment. The extended capacity often comes in the form of an Intermediate Bulk Container (IBC).
The operational principle of these 'mother/daughter' skids is elegantly simple yet highly effective. An IBC containing the additive is positioned on top of the skid. From this elevated position, the additive gravity drains into a tank mounted on the skid below. This design offers several key benefits. Firstly, it significantly reduces the risk of the system running dry, ensuring continuous and uninterrupted operation. Secondly, it allows for the refilling of the additive tank while the system is actively in use, further minimising downtime.
Applications in the Real World
The versatility of additive injection systems is demonstrated by the diverse range of applications they support. For instance, systems have been designed to inject additives during the loading and offloading of bulk fuels, a critical process in ensuring fuel quality throughout the supply chain. They are also employed when filling and emptying individual vehicles, guaranteeing that each unit receives the correct treatment.
The projects undertaken by manufacturers cover a broad spectrum. One notable example is the injection of anti-icing additives into jet fuel, a vital step in preventing operational issues in cold weather conditions. Another significant application is the biocide treatment during the filling of bus fuel tanks, which helps to prevent microbial contamination and maintain fuel integrity.
Understanding Fuel Additive Treat Levels
A crucial aspect of additive injection is the 'treat level' – the concentration at which an additive is introduced into the fuel. For the automotive industry, these treat levels are generally quite low, reflecting the potency and efficiency of modern fuel additives.
Some additives are dosed at extremely low concentrations, measured in single-figure milligrams per kilogram (mg/kg), often referred to as parts per million (ppm). For example, a simple friction modifier might be used at just a few ppm.
Other additives, designed for more significant effects, are employed at treat levels ranging from 50 to 500 mg/kg. This might include certain detergents or cetane improvers that require a slightly higher concentration to achieve their optimal performance.
When it comes to multifunctional additive packages, which combine several different beneficial properties, the treat levels can be higher, typically ranging from 350 to 3500 mg/kg. This translates to 0.035% to 0.35% of the total fuel volume. The exact treat level for these comprehensive packages will depend on the specific formulation and the intended performance benefits, such as enhanced cleaning, improved fuel economy, and reduced emissions.
Why are Treat Levels Important?
Maintaining the correct treat level is paramount for several reasons:
- Efficacy: Too little additive, and it won't perform its intended function effectively. Too much, and it could potentially cause adverse effects or be an unnecessary expense.
- Cost-Effectiveness: Precise dosing ensures that additives are used efficiently, avoiding waste and controlling operational costs.
- Compliance: Many fuel specifications and environmental regulations dictate maximum permissible treat levels for certain additives.
- Performance: The correct treat level is essential for achieving the desired improvements in fuel economy, engine cleanliness, emissions reduction, and overall engine performance.
Factors Influencing Treat Levels
Several factors influence the determination of appropriate fuel additive treat levels:
| Factor | Description |
|---|---|
| Additive Type | Different additives have varying potencies and required concentrations for effectiveness. |
| Fuel Type | Gasoline, diesel, jet fuel, and other fuel types may have different additive requirements and compatibility considerations. |
| Operating Conditions | Extreme temperatures or specific engine operating cycles might necessitate adjusted treat levels. |
| Desired Outcome | The specific benefit being sought (e.g., cleaning, anti-icing, lubrication) dictates the additive and its concentration. |
| Regulatory Standards | Governmental and industry standards often set minimum and maximum treat levels for certain additives. |
Frequently Asked Questions
Q1: What is the main purpose of an additive injection system?
The main purpose is to precisely and reliably introduce specific chemical additives into a fluid stream, such as fuel, to enhance its properties or performance.
Q2: Are all additive injection systems the same?
No, there is a significant variation. They range from simple, single-additive units to complex, multi-additive systems with sophisticated control mechanisms. Customisation is also a key differentiator.
Q3: What does 'ppm' mean in relation to fuel additives?
'ppm' stands for 'parts per million,' a unit of measurement used to express very low concentrations. For example, 10 ppm means 10 parts of additive for every million parts of fuel.
Q4: Can I add fuel additives myself without a dedicated injection system?
While you can purchase aftermarket fuel additives in bottles to add to your fuel tank yourself, these are typically for smaller, less critical applications and do not offer the precision or consistency of a dedicated injection system found in industrial or commercial settings.
Q5: How do I know if my vehicle needs fuel additives?
Modern vehicles and fuels are often formulated with additives. However, if you experience specific issues like poor fuel economy, engine knocking, or deposit buildup, a fuel system cleaner or performance enhancer might be beneficial. Always consult your vehicle's manual or a qualified mechanic.
In conclusion, additive injection systems are essential components in modern fluid management, particularly in the automotive sector. Their ability to deliver precise dosing of vital additives ensures optimal performance, efficiency, and longevity of engines and fuel systems. From the robust design of standalone units to the integrated convenience of 'mother/daughter' skids, these systems represent a significant advancement in ensuring the quality and effectiveness of the fuels we rely on every day.
