In the intricate symphony of automotive engineering, few components are as critical as the braking system. It's the silent guardian, the unsung hero that ensures your journey concludes safely, precisely when and where you intend. While various braking mechanisms have evolved over the decades, the disc braking system stands out as the predominant technology in modern vehicles, offering unparalleled performance, reliability, and safety. But what exactly are disc brakes, and how do these marvels of engineering bring a multi-tonne vehicle to a smooth, controlled halt?

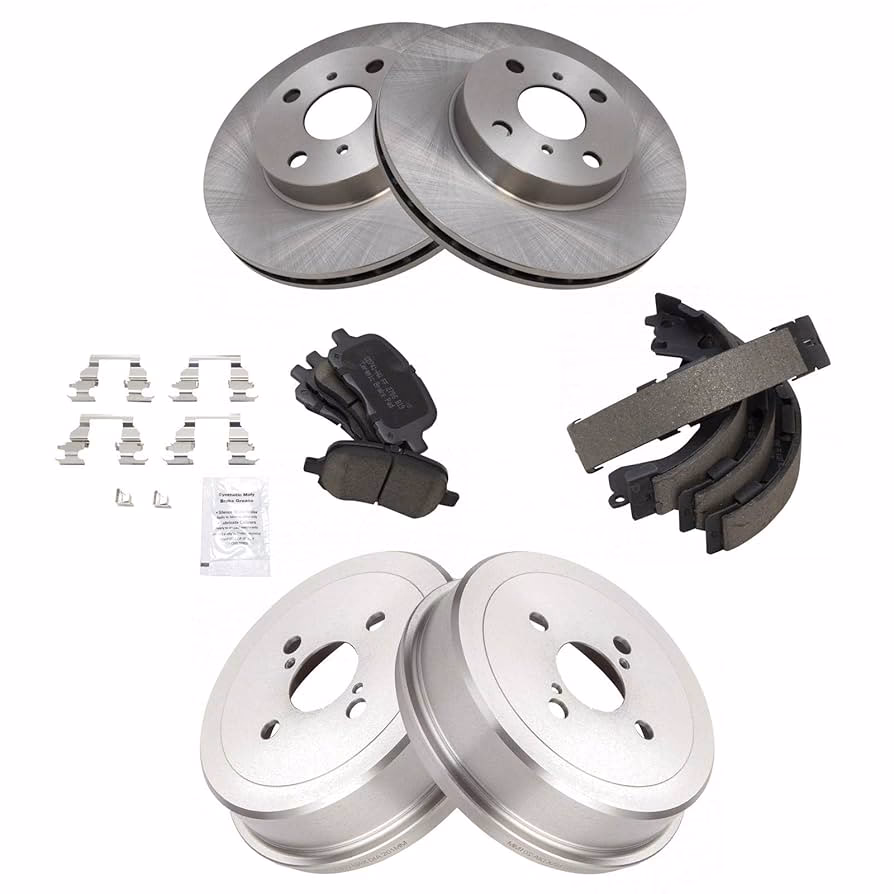

At its core, a disc braking system operates on the principle of friction. Unlike older drum brake systems that use expanding shoes within a drum, disc brakes employ a caliper that squeezes brake pads against a rotating disc, or rotor, generating the necessary friction to slow down or stop the wheel. This design offers significant advantages, particularly in terms of heat dissipation and consistent performance, making them indispensable for today's faster, heavier, and more demanding vehicles.
How Disc Brakes Work: A Detailed Look
The operation of a disc braking system is a fascinating hydraulic process, initiated the moment you depress the brake pedal. Let's break down the sequence of events and the key components involved:
- Brake Pedal: Your input point. Pressing the pedal initiates the braking sequence.
- Master Cylinder: Connected to the brake pedal, this component converts the mechanical force from your foot into hydraulic pressure. It contains brake fluid, which is non-compressible, allowing for efficient transfer of force.
- Brake Fluid Lines: These robust lines carry the high-pressure brake fluid from the master cylinder to the brake calipers at each wheel.
- Brake Caliper: Often considered the heart of the disc brake system, the caliper is mounted over the brake disc. It houses one or more pistons and the brake pads. When hydraulic pressure from the master cylinder reaches the caliper, it pushes the piston(s) outwards.
- Brake Pads: These are friction materials, typically made from organic compounds, semi-metallic materials, or ceramics, bonded to a steel backing plate. As the piston pushes them, the brake pads clamp onto the rotating brake disc.
- Brake Disc (Rotor): This is a flat, circular metal disc, usually made of cast iron, securely attached to the wheel hub. As the wheel spins, the disc spins with it. When the brake pads clamp down on the disc, the friction generated converts the kinetic energy of the moving vehicle into heat, slowing the wheel down.
The beauty of this system lies in its simplicity and effectiveness. The hydraulic pressure ensures that an even clamping force is applied across the brake pads, leading to consistent and predictable braking performance.
Advantages of Disc Braking Systems
The widespread adoption of disc brakes isn't merely a trend; it's a testament to their superior performance characteristics. Here are some key advantages:
- Superior Stopping Power: Disc brakes generally offer better stopping power than drum brakes, especially under heavy braking conditions. The open design allows for more efficient heat dissipation.
- Excellent Heat Dissipation: Heat is the enemy of braking performance. As friction generates heat, it can lead to 'brake fade' – a reduction in braking effectiveness. Disc brakes, with their exposed design, dissipate heat much more effectively into the surrounding air, maintaining consistent performance even during prolonged or hard braking. This is a significant factor in preventing brake fade.
- Better Wet Weather Performance: The centrifugal force of the rotating disc tends to shed water more easily than a drum brake, which can trap water inside. This means disc brakes offer more consistent performance in wet conditions.
- Easier Maintenance and Inspection: Due to their open design, inspecting the wear of brake pads and discs is relatively straightforward, often visible without removing the wheel. Replacing components is also generally simpler.
- Self-Adjusting: Modern disc brake systems are inherently self-adjusting as the pads wear down, ensuring consistent pedal feel and performance throughout the life of the pads.
Disadvantages and Considerations
While disc brakes are overwhelmingly advantageous, they do have a few minor drawbacks:
- Higher Cost: Generally, disc brake components and their initial installation can be more expensive than drum brake systems.
- Brake Dust: The friction materials on disc pads can create significant brake dust, which often accumulates on wheel rims, requiring more frequent cleaning.
- Noise: Under certain conditions, such as cold weather or specific driving styles, disc brakes can sometimes produce squealing or grinding noises, though this is often a symptom of wear or improper installation rather than an inherent flaw.
Types of Brake Discs (Rotors)
Not all brake discs are created equal. Manufacturers employ various designs to optimise performance for different applications:
- Solid Discs: These are simple, solid pieces of cast iron. They are typically found on the rear axles of less powerful cars or on all four wheels of older or smaller vehicles, where heat dissipation requirements are lower.
- Vented Discs: The most common type for front axles and high-performance applications. They feature a central gap between two disc faces, with fins or vanes running through it. This design significantly increases the surface area for cooling, allowing air to flow through and dissipate heat more effectively. This is crucial for preventing overheating.
- Drilled Discs: These discs have holes drilled through their surface. The primary purpose is to provide an escape route for gases and dust generated during braking, which can otherwise form a cushion between the pad and disc, reducing friction. They also offer some weight reduction and improved wet performance. However, they can be prone to cracking under extreme stress.
- Slotted Discs: Featuring grooves or slots cut into the disc surface, these serve a similar purpose to drilled discs – clearing away gases, dust, and water. They are generally less prone to cracking than drilled discs while still offering enhanced performance.
Key Components in More Detail
Brake Pads
The friction material of the brake pad is crucial for effective braking. Different materials offer varying characteristics:
- Organic Non-Asbestos (NAO) Pads: Quieter and produce less dust, but may have lower heat resistance and wear faster. Good for everyday driving.
- Semi-Metallic Pads: Contain 30-65% metal by weight. Offer good braking performance and heat dissipation, but can be noisier and produce more dust. Very common.
- Ceramic Pads: Made from ceramic fibres, fillers, and bonding agents. Offer excellent braking performance, very low dust, and quiet operation. They also last longer and are gentle on the discs but are typically more expensive.
Brake pads also often include wear indicators, which are small metal tabs that squeal when the pads are worn down to a minimum thickness, alerting the driver it's time for replacement.
Brake Caliper
Calipers come in two main types:
- Floating (or Sliding) Calipers: The most common type. They have one or two pistons on one side of the disc. When pressure is applied, the piston pushes one pad against the disc, and the caliper itself slides, pulling the other pad into contact.
- Fixed Calipers: These calipers are rigidly mounted and have pistons on both sides of the disc. When pressure is applied, both sets of pistons push pads against the disc simultaneously. They offer more consistent and powerful braking but are more complex and expensive, typically found on high-performance vehicles.
Brake Fluid
Brake fluid is the hydraulic medium that transmits force from the brake pedal to the calipers. It's vital that it remains free of contaminants and moisture. Over time, brake fluid can absorb moisture, which lowers its boiling point. If the fluid boils, it creates vapour bubbles, leading to a 'spongy' brake pedal and significantly reduced braking effectiveness – a dangerous condition known as vapour lock. Brake fluid should be checked regularly and replaced according to the manufacturer's recommendations, typically every two years.
Maintenance and Common Issues
Regular maintenance is paramount for ensuring your disc braking system remains in optimal condition. Here's what to look out for:
- Brake Pad Wear: Listen for squealing noises (wear indicators) or grinding sounds (metal-on-metal). Visually inspect pad thickness.
- Disc Wear: Check for deep grooves, scoring, or excessive run-out (wobbling). Discs have a minimum thickness specification and should be replaced if worn beyond this.
- Brake Fluid Level and Condition: Check the reservoir level and look for discolouration.
- Brake Caliper Function: Ensure pistons move freely and there are no fluid leaks around the caliper.
Common issues include:
- Squealing Brakes: Often due to worn pads, cheap pads, or vibration.
- Grinding Noise: Indicates severely worn pads, meaning metal is rubbing against metal – immediate attention required.
- Pulsating Brake Pedal: Usually a sign of warped brake discs, which can occur due to excessive heat.
- Spongy Brake Pedal: Could indicate air in the brake lines, low brake fluid, or contaminated brake fluid.
- Vehicle Pulling to One Side When Braking: Suggests an issue with a caliper or uneven brake pad wear on one side.
Disc Brakes vs. Drum Brakes: A Comparison
| Feature | Disc Brakes | Drum Brakes |
|---|---|---|
| Stopping Power | Excellent, especially under heavy use | Good for light vehicles, less effective under heavy use |
| Heat Dissipation | Superior (open design allows air flow) | Poor (enclosed design traps heat, prone to fade) |
| Wet Performance | Very good (water sheds easily) | Can be compromised (water can get trapped) |
| Maintenance/Inspection | Easier (components visible) | More difficult (requires drum removal) |
| Cost | Generally higher | Generally lower |
| Brake Fade Resistance | High | Low |
| Complexity | Simpler mechanical design | More complex (springs, adjusters) |
Frequently Asked Questions About Disc Brakes
Q: How often should I replace my brake pads?
A: It varies greatly depending on your driving style, vehicle type, and the quality of the pads. As a general rule, inspect them every 10,000-15,000 miles, and they typically last anywhere from 20,000 to 70,000 miles. Always listen for warning signs like squealing or grinding.
Q: Can I just replace the brake pads without replacing the discs?
A: Yes, if the discs are within their minimum thickness specification and are not excessively grooved, warped, or damaged. However, it's often recommended to replace discs and pads together for optimal performance and to ensure even wear, especially if the discs show any signs of wear.
Q: What is brake fluid and why is it important to change it?
A: Brake fluid is a hydraulic fluid that transmits the force from your brake pedal to the calipers. It's crucial because it's non-compressible. Over time, brake fluid absorbs moisture from the atmosphere, which lowers its boiling point. If the fluid boils, it creates vapour, leading to a spongy pedal and significantly reduced braking effectiveness. Regular fluid changes prevent this and maintain optimal braking performance.
Q: Why are my new brakes squealing?
A: New brakes can squeal for several reasons: improper bedding-in (the process of gently breaking in new pads and discs), cheap or incompatible pad material, lack of proper lubrication on caliper pins or pad backing, or simply a characteristic of certain high-performance pad compounds. If the noise persists, it's worth having a mechanic check it.
Q: What causes a vibrating or pulsating brake pedal?
A: This is almost always caused by warped brake discs. When discs overheat or are subjected to uneven pressure, they can deform slightly. As the warped disc spins, it causes the caliper pistons to move in and out, resulting in a pulsating sensation through the brake pedal. Replacing the discs is usually the solution.
Understanding your vehicle's disc braking system is more than just technical knowledge; it's about appreciating a vital safety feature. By recognising the components, understanding their function, and adhering to a routine maintenance schedule, you ensure your vehicle remains safe and responsive, giving you the confidence to navigate the roads effectively. The evolution of disc brakes has significantly contributed to automotive safety, making them an indispensable part of modern driving.
