BMW E90 Brake Warning: Diagnosis & Fixes

That illuminated brake warning light on your BMW E90 dashboard can be a source of immediate concern for any driver. While it often signals worn brake pads, the intricate nature of BMW's Condition Based Service (CBS) system and its brake pad sensors means the issue isn't always as straightforward as it seems. Understanding how your E90's braking system and its associated sensors communicate is crucial for accurate diagnosis and effective resolution, preventing unnecessary replacements or persistent warning lights.

This comprehensive guide will delve into the workings of the E90 brake pad sensor, explain why your warning light might be on, provide detailed steps for replacement, and clarify the often-misunderstood process of resetting the service indicator. By the end, you'll be equipped with the knowledge to confidently address brake pad sensor issues, ensuring your BMW remains safe and free from dashboard warnings.

Understanding the BMW E90 Brake Pad Sensor

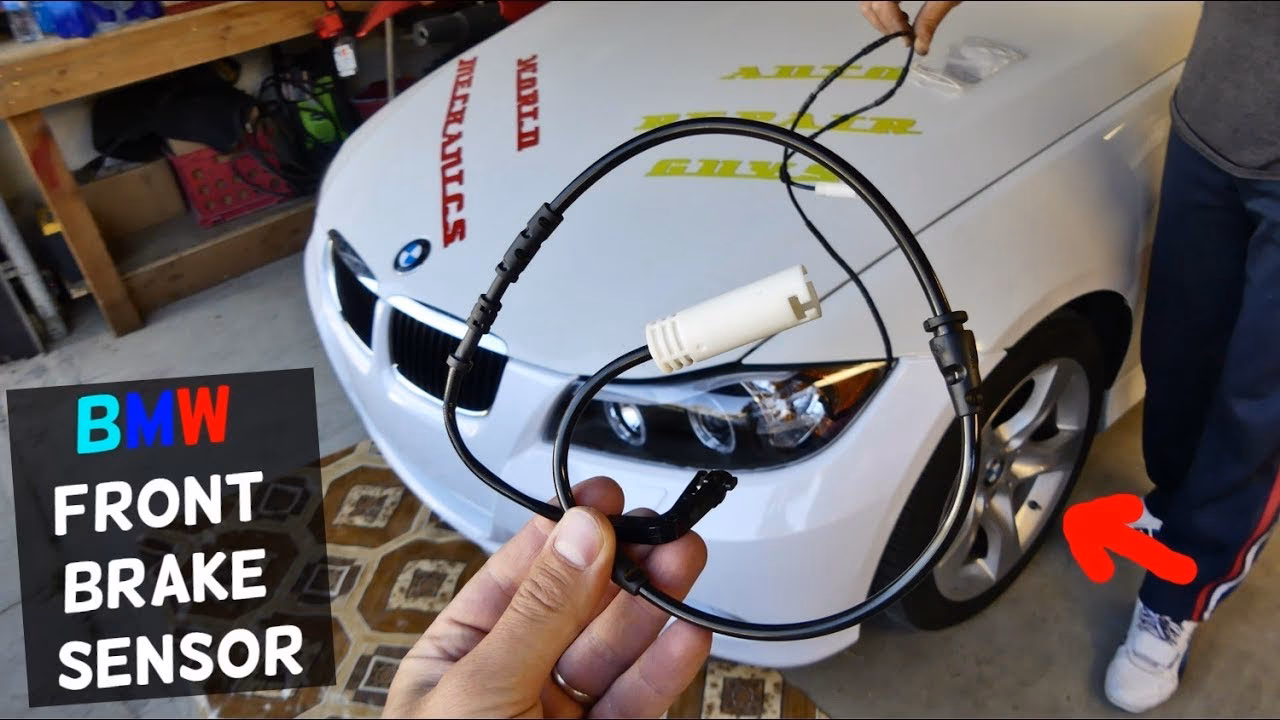

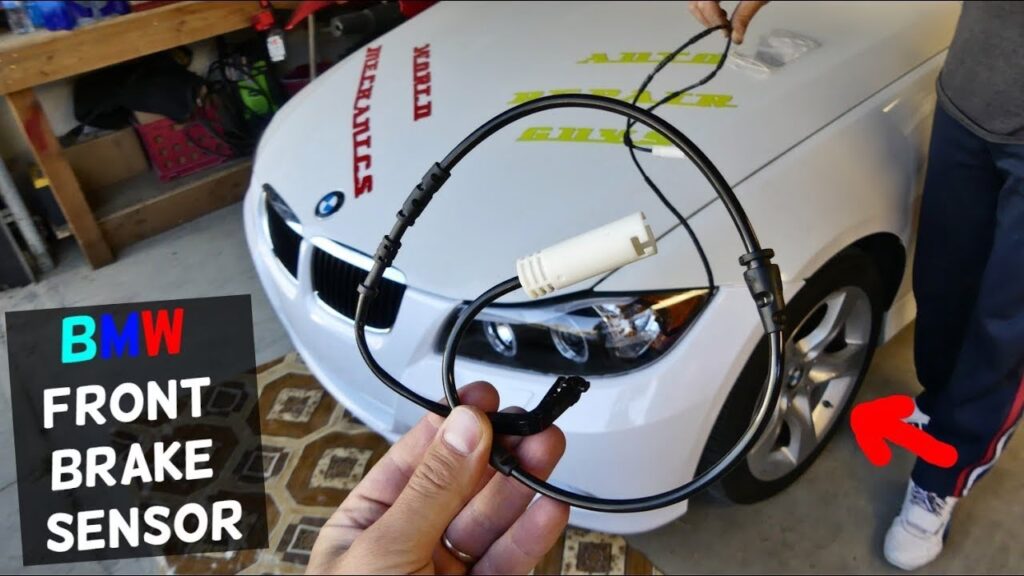

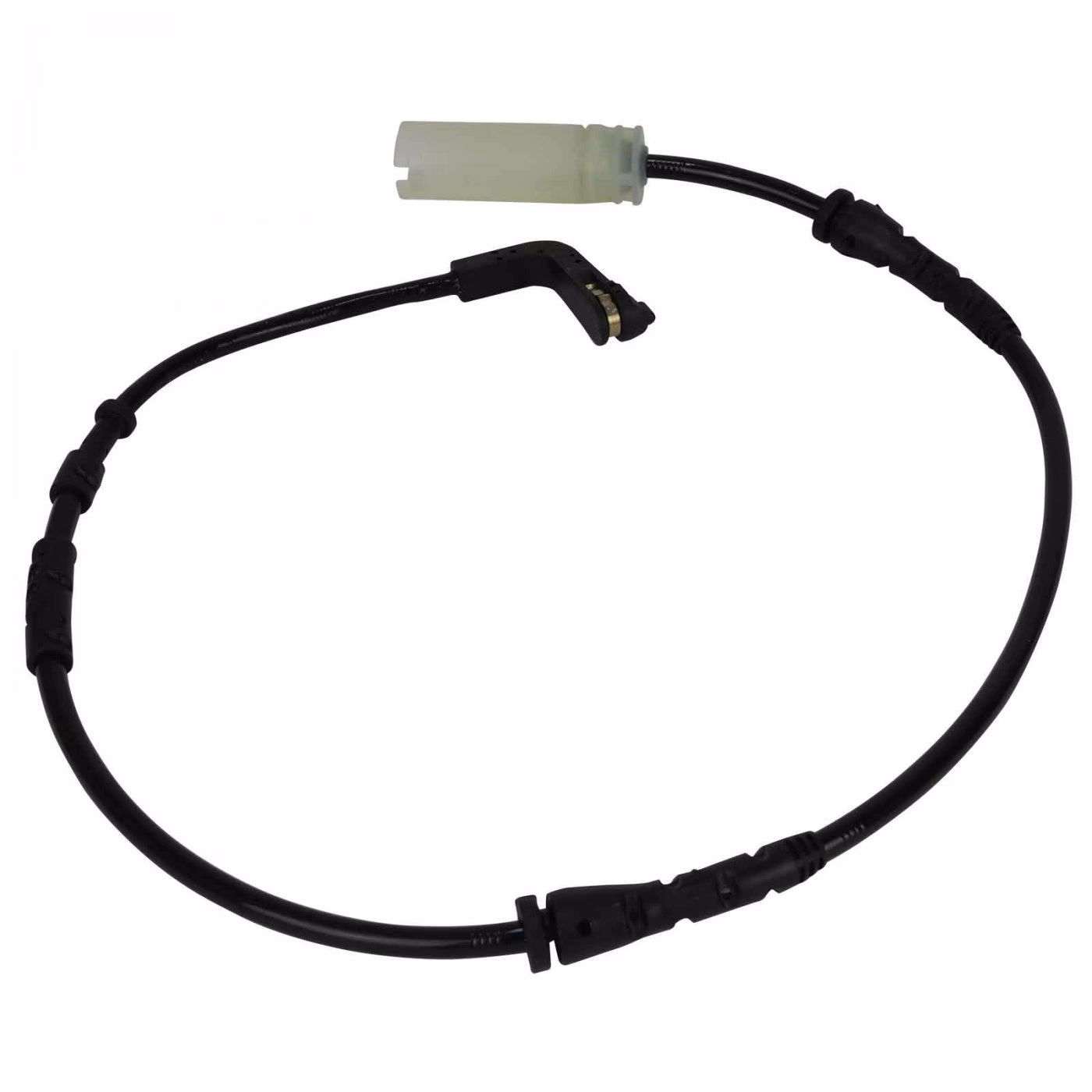

At the heart of your E90's brake monitoring system lies the brake pad sensor. This small, yet vital, component is specifically designed to inform you about the remaining life of your brake pads. Unlike older systems that might rely on visual inspections alone, the E90's sensors provide real-time data to the car's onboard computer and subsequently, to your dashboard or iDrive display.

How Does It Work?

The brake pad sensor is essentially a wear indicator. It's constructed with a tip that mounts directly onto your brake pad. As the brake pad wears down from normal use, the tip of the sensor gradually wears away with it. When the brake pad reaches its minimum thickness, the sensor's tip is compromised, breaking an internal wire circuit. This broken circuit is what triggers the 'brake' warning light on your dashboard, indicating that your brake pads have reached their limit and require immediate attention.

Location of E90 Brake Pad Sensors

Your BMW E90 is equipped with two brake pad wear sensors, strategically placed to monitor the most critical braking points:

• Front Sensor: Typically located on the front, driver's side wheel well.
• Rear Sensor: Found on the rear, passenger's side wheel well.

It's important to note that while there are only two sensors, they are designed to provide an estimation for both axles. However, as we'll discuss, problems with one sensor can affect the entire system's readings.

Why Is My E90 Brake Warning Light On?

The illuminated brake warning light on your E90 almost always points to an issue with the brake pads or their associated sensors. However, the exact cause isn't always straightforward. Here are the primary reasons you might be seeing that warning:

1. Worn Brake Pads

The most common and intended reason for the light to come on is that your brake pads have indeed worn down to their minimum safe limit. When the sensor's tip breaks, it's a clear signal that the pads require replacement.

2. Faulty or Damaged Sensor

Even if your brake pads still have life left, a faulty or damaged sensor can trigger the warning. Sensors can be:

• Damaged During Installation: If a sensor is accidentally pinched, cut, or improperly routed during a brake job, it can immediately trip the light.
• Electrically Faulty: Like any electronic component, the sensor can simply fail internally over time, sending an incorrect signal.

3. Incorrect Service Indicator Reset

This is a surprisingly common culprit for persistent brake warnings after a brake service. The E90's system is designed to be reset *only* after a new brake pad sensor has been installed. If you reset the service indicator when the old, worn sensor is still in place, or if the sensor's wear level is below a certain threshold, the system will become confused and can immediately re-trigger the fault. This is because the car expects to see a 'new' sensor signal (full life) after a reset, and if it doesn't, it flags an error.

The BMW E90 Brake System and CBS Explained

The E90's braking system is more sophisticated than previous generations, featuring Brakeforce Distribution. This system intelligently manages braking force between the front and rear axles, often leading to more even wear across all four brake pads. When your brake pad indicator comes on, it's not uncommon for all four pads to be nearing their replacement limit.

Condition Based Service (CBS)

BMW's Condition Based Service (CBS) system is an advanced maintenance indicator that estimates when various service items, including brake pads, are due for replacement. It uses a predetermined formula for brake wear, taking into account driving style, mileage, and input from the brake pad wear sensors. The CBS display provides an estimated mileage remaining until a service is needed.

It's crucial to understand the distinction:

• CBS Estimate: This is the system's prediction of when pads will need replacing, useful for planning maintenance.
• Brake Warning Light: When this light comes on, it means the pads have reached their minimum limit as detected by the sensor. This is the definitive signal that replacement is required, regardless of the CBS estimate.

Confusing the CBS estimate with the actual warning light can lead to problems. If you install a new sensor without replacing the worn pads, the system will rapidly 'wear down' the new sensor's virtual life to match the already-worn pads, potentially confusing the CBS and causing persistent warnings.

Diagnosing E90 Brake Pad Sensor Issues

Before you start replacing parts, accurate diagnosis is key. Here's how to pinpoint the problem:

1. Visual Inspection

Start with a simple visual check. Carefully inspect your brake pads for wear. Are they thin? Also, examine the brake pad sensors themselves. Look for any visible damage to the wire or the sensor tip, especially if you've recently had brake work done.

2. OBD Scanner / Diagnostic Tool

This is your most powerful diagnostic tool. An OBD-II scanner capable of reading BMW-specific codes (or dedicated BMW software like INPA) can tell you exactly what's going on:

• Fault Codes: Look for brake pad sensor fault codes. Common ones include 5F12, 5F13, 5F14, 5F15, and 5F16. These codes directly indicate issues with the brake pad sensors.
• Wear Percentage: BMW's diagnostic machine or INPA can provide the exact wear percentage of your brake pads as reported by the sensors. This is invaluable information, telling you if a sensor is reporting incorrect wear or if the pads are genuinely low.

3. Symptoms of a Faulty Sensor

Beyond the dashboard light, a faulty sensor might manifest as:

• The brake warning light coming on immediately after a brake service, despite new pads.
• The light appearing intermittently, or disappearing and reappearing without explanation.
• Inaccurate CBS mileage estimations for brake pad life.

Replacing Your BMW E90 Brake Pad Sensor (DIY Guide)

Replacing a brake pad sensor on your E90 is a manageable DIY task, but precision is key. Remember, you MUST replace the sensor when you replace the pads to ensure accurate readings and proper system function.

Tools Needed:

• Floor jack (or car lift)
• Jack stands (for safety)
• Flat head screwdriver
• 10mm wrench or socket
• 8mm wrench or socket

Parts Needed:

• New BMW E90 Brake Pad Sensor (Note: The same part often fits both front and rear, but always verify with your VIN).

Step-by-Step Replacement:

1. Preparation: Loosen the wheel nuts, then safely jack up the car and secure it on jack stands. Remove the wheel.
2. Access the Sensor Wiring: The brake pad sensor wiring runs into the wheel well. You'll need to remove the wheel well liner to access the main connector box. This typically involves removing several 10mm plastic nuts and 8mm screws.
3. Locate the Sensor Connector Box: Once the liner is removed, look for a small black box, usually in the upper left-hand side of the wheel well. This box houses the sensor's electrical connector. There might be a cover over it that needs to be unclipped.
4. Disconnect the Old Sensor: Unsnap the old sensor's connector from its housing within the black box. It should pull out relatively easily. Disconnect the wire from the old sensor and connect it to the new one.
5. Trace and Secure the New Wire: The old sensor wire will be clipped into various points along the suspension components to keep it secure and away from moving parts. Carefully unclip the old wire, noting its routing. Secure the new sensor wire in the exact same locations to prevent it from dangling or getting caught.
6. Remove Sensor from Brake Pad/Caliper: Now, locate where the sensor attaches to the brake pad or caliper. It's usually a small plastic clip or housing on the face of the brake caliper. Use a flat-head screwdriver to gently pry or pop the old sensor out of its slot.
7. Install the New Sensor: Carefully snap the new sensor into the slot on the brake pad/caliper. It should sit flush and securely. Ensure the entire length of the new wire is properly routed and secured as you did in step 5.
8. Reassembly: Replace the wheel well liner, securing all 10mm and 8mm fasteners. Reinstall the wheel, tighten the wheel nuts, and lower the car safely back to the ground.

Resetting the Brake Pad Service Light

After installing a new sensor (and new brake pads), the final crucial step is to reset the brake pad service light. This tells the car's CBS system that new components have been fitted and allows it to recalibrate its wear estimation.

Important Rule: Reset ONLY After Sensor Replacement

As highlighted earlier, resetting the service indicator when the old, worn sensor is still connected (or if the pads are below a certain wear level) will confuse the system and likely trigger an immediate fault. The car expects to see a 'new' sensor signal (representing full pad life) after a reset.

Resetting Methods:

There are generally two ways to reset the service light on an E90:

1. Instrument Cluster Method (Most Common)

This method works for most E90s, but can sometimes be finicky:

1. Get into your car, close all doors, and insert the key fob. Do NOT press the brake pedal.
2. Press the start/stop button once to turn on the ignition (but not the engine).
3. Wait for the warning lights to cycle and settle.
4. Press and hold the trip reset button on your instrument cluster (usually on the lower left) for about 5-10 seconds until a service item appears on the display.
5. Briefly press the trip reset button repeatedly to cycle through the service items (oil, brakes, etc.) until you reach the brake pad service item you wish to reset (front or rear, identified by an icon).
6. Once the desired brake service item is displayed, press and hold the trip reset button again for about 5 seconds. You will see 'RESET?' appear.
7. Release the button briefly, then press and hold it again until 'RESET' or 'OK' appears, and the light should go out.
8. Turn off the ignition and remove the key. Wait a few moments, then restart the car to confirm the light is gone.

2. OBD Scanner / Diagnostic Tool Method

If the instrument cluster method fails, or if you prefer a more reliable approach, an OBD scanner with BMW-specific reset capabilities is your best bet. Many advanced consumer-grade scanners now offer this function. Follow the scanner's instructions to navigate to the service reset menu and perform the brake pad sensor reset.

Common Mistakes and Troubleshooting

Even with new sensors and pads, issues can arise. Here's a look at common pitfalls and how to address them:

Mistake 1: Resetting Too Early

As mentioned, resetting the service light before the new sensor is installed (or with a worn sensor) is a common cause of persistent warnings. The system immediately flags a discrepancy.

Mistake 2: Damaged Wiring

Even if the sensor itself is new, a damaged section of the wiring harness leading to the sensor can cause an open circuit and trip the light. Inspect the entire length of the wiring for cuts or pinches.

Mistake 3: Confused CBS System

If you put a new sensor on old, worn pads, the CBS system will rapidly 'wear down' the new sensor's virtual life to match the actual pad wear. This can lead to the system being confused and continually telling you that you need new pads, even after a reset, because its internal calculations are out of sync. This highlights why replacing both pads and sensor simultaneously is the best practice.

Troubleshooting Persistent Lights:

If the light remains on after following all steps:

• Re-check Connections: Ensure all sensor connections are secure and seated properly, both at the pad and in the wheel well box.
• Scan for Codes Again: A fresh scan might reveal a new fault code or confirm the original one, guiding your next step.
• Inspect Other Brake Components: While less likely to trigger a pad wear light, ensure brake fluid levels are correct and there are no other obvious brake system issues.
• Professional Diagnosis: If all else fails, a BMW specialist with factory diagnostic equipment (like ISTA/D) can perform a deeper dive into the system's logic and pinpoint elusive issues.

Comparing Sensor Scenarios

Understanding the outcome of different sensor replacement and reset scenarios is crucial for preventing headaches.

Frequently Asked Questions (FAQs)

Q: Can I drive my BMW E90 with the brake warning light on?

A: While you might be able to drive a short distance, it's highly advisable to address the issue immediately. The light indicates that your brake pads are at their minimum safe thickness, compromising your braking performance and safety. Continued driving can lead to rotor damage, reduced stopping power, and a dangerous situation.

Q: How long do BMW E90 brake pads typically last?

A: Brake pad life varies significantly based on driving style, traffic conditions, and whether you do a lot of motorway or city driving. Generally, front pads might last between 25,000-40,000 miles, while rear pads can last longer, often 40,000-60,000 miles or more. Your CBS system provides an estimate, but the warning light is the definitive sign.

Q: Do I need to replace both front and rear brake sensors at the same time?

A: No, you only need to replace the sensor on the axle where the brake pads are being replaced and where the warning light pertains. Your E90 has separate sensors for the front and rear axles. However, if both front and rear pads are worn, then both sensors should be replaced.

Q: What if the instrument cluster reset method doesn't work?

A: If the instrument cluster method fails, it's often due to an underlying issue (like the system still detecting a worn sensor) or simply a finicky process. Your next step should be to use an OBD scanner with BMW-specific capabilities to perform the reset. If that also fails, it strongly suggests a persistent fault code or a wiring issue that needs further diagnosis.

Q: Can I bypass the brake pad sensor?

A: While it's technically possible to bypass the sensor (e.g., by looping the wires or using a resistor to simulate a new sensor), it is highly discouraged. Bypassing the sensor eliminates a critical safety feature, meaning you will no longer receive warnings when your brake pads are genuinely worn. This significantly increases the risk of brake failure and damage to your rotors, and could invalidate your insurance in the event of an accident. Always replace the sensor properly.

Addressing the brake warning light on your BMW E90 promptly and correctly is essential for both your safety and the longevity of your vehicle's braking system. By understanding the role of the brake pad sensor, correctly diagnosing the fault, and following the proper replacement and reset procedures, you can ensure your E90's brakes are always in top condition. Remember, always prioritise genuine parts and follow the recommended maintenance practices for a reliable and enjoyable driving experience.
