Brake Pad Wear Sensors: When to Replace

Understanding Brake Pad Wear Sensors

Modern vehicles are equipped with sophisticated safety features, and one often overlooked yet crucial component is the brake pad wear sensor. These small but mighty devices play a vital role in alerting you to the condition of your brake pads, ensuring you can stop safely and avoid costly damage to your braking system. But how often should these sensors themselves be replaced? This article delves into the function of brake pad wear sensors, the tell-tale signs that indicate they need attention, and importantly, their typical lifespan and replacement frequency.

What is a Brake Pad Wear Sensor?

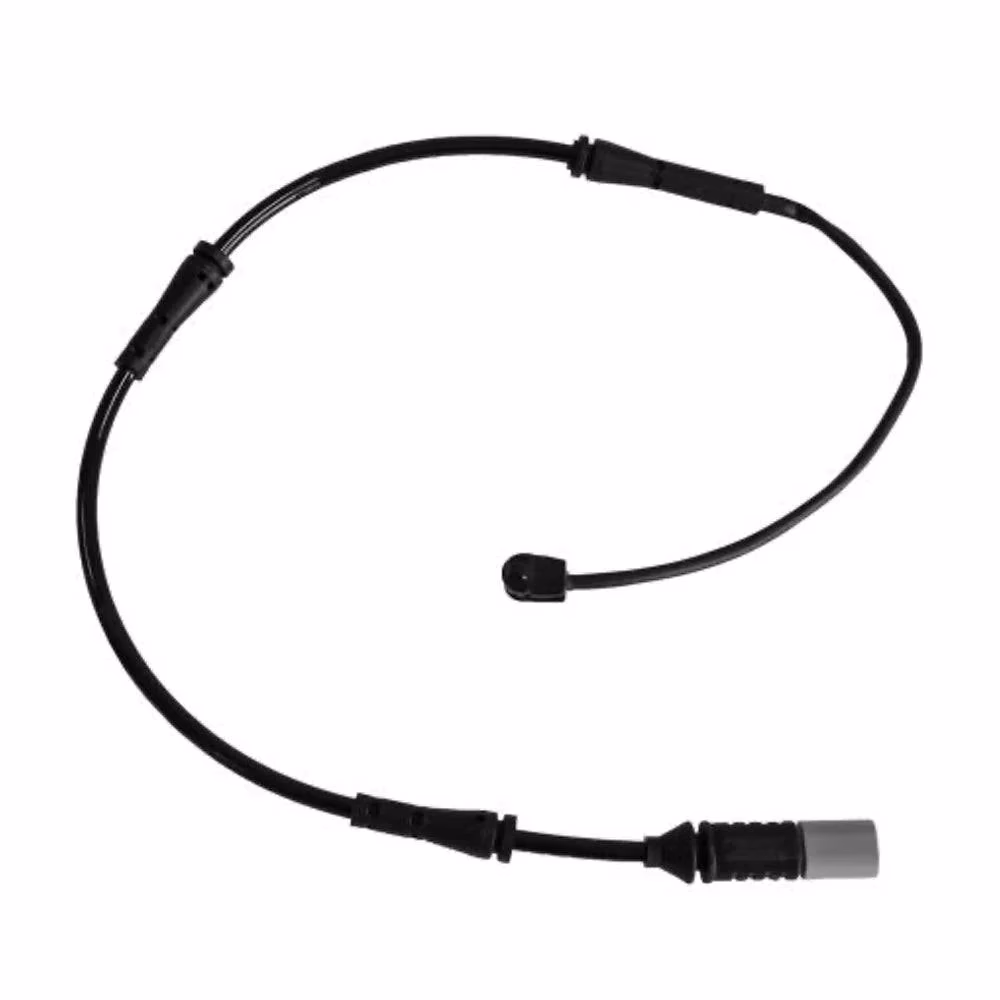

A brake pad wear sensor, also known as a brake pad wear indicator, is a small electrical component that is integrated into the brake pad assembly. Its primary purpose is to monitor the thickness of the brake pad material. As the brake pads wear down with use, the sensor also wears away. When the pad material reaches a critically low level, the sensor makes contact with the brake disc (rotor).

This contact completes an electrical circuit, triggering a warning light on your car's dashboard. This warning light is typically a symbol of a circle with two parentheses on either side, often accompanied by the word "BRAKE" or "BRAKE PAD WEAR". This visual cue is your immediate signal that your brake pads are worn and require replacement. Ignoring this warning can lead to compromised braking performance and potential damage to other braking system components, such as the brake caliper and the brake disc itself.

Types of Brake Pad Wear Sensors

There are generally two main types of brake pad wear sensors:

• Mechanical (or Friction) Sensors: These are the most common type. They are typically a small metal tab or wire that is designed to scrape against the brake rotor when the brake pad is nearly worn out. This scraping action creates an audible squealing or grinding noise, which serves as an auditory warning to the driver. While effective, this method can be less precise and might not always be noticed by all drivers.
• Electronic Sensors: These sensors are more advanced and are connected to the vehicle's electronic system. They are usually a small wire loop embedded in the brake pad material. As the pad wears down, the wire is eventually severed, breaking the circuit and illuminating the dashboard warning light. These are generally considered more reliable and provide a more direct electronic notification.

When Should Brake Pad Wear Sensors Be Replaced?

This is the core question, and the answer is not as straightforward as a fixed mileage interval. Brake pad wear sensors are designed to be a sacrificial component; they are meant to wear out and signal the need for new brake pads. Therefore, a brake pad wear sensor is typically replaced when it has been triggered, meaning it has made contact with the brake disc and indicated that the brake pads are worn out.

In essence, the sensor doesn't have a predetermined replacement schedule based on time or mileage alone. Its replacement is dictated by its function – to alert you to worn brake pads. When you see the brake wear warning light illuminate on your dashboard, it's a strong indication that both the brake pads and the associated wear sensor need to be replaced.

However, there are situations where a sensor might need replacement even if it hasn't been triggered:

• Damage during installation/removal: While generally robust, it's possible for a sensor to be accidentally damaged during the process of replacing brake pads or performing other brake maintenance. If a sensor is bent, kinked, or its wiring is compromised, it may need to be replaced to ensure accurate readings or to prevent false warnings.
• Faulty sensor: Like any electronic component, brake pad wear sensors can, on rare occasions, fail prematurely. A faulty sensor might not trigger when it should, or it might trigger a warning light erroneously (a false positive). If you suspect a sensor is faulty, it's best to have it inspected by a qualified mechanic.
• When replacing brake pads as a preventative measure: Many mechanics and experienced DIYers adopt a policy of replacing the wear sensors whenever they replace the brake pads, even if the sensor hasn't technically triggered. This is a sound preventative maintenance practice. Since the sensors are relatively inexpensive and are already accessible during the brake pad replacement, replacing them ensures that you have a fresh, reliable indicator for the next time your pads wear down. It avoids the scenario where you fit new pads but the old, potentially weakened sensor fails to alert you when the new pads eventually need replacing.

Signs Your Brake Pads (and Sensors) Need Attention

Beyond the dashboard warning light, there are other common signs that your brake pads are nearing the end of their life, and by extension, your sensors might be close to being triggered or may have already been activated:

• Squealing or Grinding Noises: As mentioned, mechanical sensors often produce a high-pitched squeal when the brakes are applied. If you hear a persistent grinding sound, it could mean the brake pad material has completely worn away, and the metal backing plate is grinding against the rotor. This is a serious issue.
• Reduced Braking Performance: If you notice that your car is taking longer to stop, or the brake pedal feels softer or spongy, it's a clear indication that your brake pads are worn.
• Vibration or Pulsation: While often associated with warped brake rotors, severe brake pad wear can also contribute to vibrations felt through the brake pedal or steering wheel when braking.
• Visible Wear: If you can visually inspect your brake pads (often through the spokes of the wheels), you might be able to see how much material is left. If the pad material looks very thin (typically less than 3-4mm), it's time for replacement.

The Lifespan of a Brake Pad Wear Sensor

The lifespan of a brake pad wear sensor is directly tied to the lifespan of the brake pads themselves and driving habits. A sensor will typically last as long as the brake pads it is monitoring, or until it is activated by wear. In terms of mileage, this can vary significantly:

• Average Lifespan: For typical driving conditions, brake pads can last anywhere from 25,000 to 70,000 miles (approximately 40,000 to 110,000 kilometres). The wear sensor will usually be replaced within this range when the pads are depleted.
• Aggressive Driving: Drivers who frequently brake hard, accelerate rapidly, or drive in heavy stop-and-go traffic will experience faster brake pad wear, meaning the sensor might be triggered and replaced sooner.
• Driving Conditions: Driving in hilly or mountainous terrain, or towing heavy loads, puts more stress on the braking system, leading to quicker wear of both pads and sensors.

Cost Considerations

The cost of replacing brake pads and wear sensors can vary depending on the vehicle make and model, the quality of the parts used, and whether you opt for a DIY approach or professional installation.

Brake Pad Wear Sensors: As individual components, wear sensors are relatively inexpensive, typically costing between £5 and £20 per sensor (or per axle, depending on the vehicle).

Brake Pads: The cost of brake pads themselves can range from £30 to £100+ per axle for quality aftermarket parts.

Labour: If you have a mechanic replace them, expect to pay for labour, which could add another £50 to £150+ depending on the complexity and the garage's rates.

Therefore, when it's time to replace your brake pads, factor in the small additional cost of replacing the wear sensors. It's a wise investment in your vehicle's safety and your peace of mind.

Frequently Asked Questions (FAQs)

Q1: Do I need to replace brake pad wear sensors if they haven't triggered the warning light?

A1: While not strictly necessary if they haven't triggered, it is highly recommended as part of good preventative maintenance. Replacing them when you replace the pads ensures you have a reliable indicator for the future and avoids the risk of the old sensor failing when it's needed most.

Q2: Can I just cut off the old sensor and ignore it?

A2: No, you should never cut off or bypass a brake pad wear sensor. Its function is a critical safety feature. If you're not replacing it, ensure the new brake pads you install are compatible with your vehicle's existing sensor system, or be prepared to replace it when the warning light eventually comes on.

Q3: How do I know if my car has electronic or mechanical sensors?

A3: Most modern vehicles use electronic sensors. You can usually tell by looking at the brake pads when they are removed. Electronic sensors are typically wires embedded in or attached to the pad, while mechanical sensors are often a metal tab. Your car's owner's manual or a quick online search for your specific make and model should confirm this.

Q4: What happens if I ignore the brake wear warning light?

A4: Ignoring the warning light means your brake pads are severely worn. This significantly reduces braking effectiveness, increasing stopping distances. Furthermore, it can lead to severe damage to your brake discs (rotors) and calipers, resulting in much more expensive repairs down the line. In the worst-case scenario, it can lead to brake failure.

Q5: Can a worn suspension component trigger a brake wear sensor?

A5: No, a worn suspension component will not directly trigger a brake pad wear sensor. The sensor is activated purely by the physical wear of the brake pad material against the brake disc. However, issues with suspension or steering can sometimes be mistaken for braking problems, so it's always good to have a mechanic diagnose any unusual noises or handling characteristics.

Conclusion

Brake pad wear sensors are an essential safety component designed to alert you to a critical maintenance need. They are not typically replaced on a fixed schedule but rather when they have served their purpose by indicating worn brake pads. However, the practice of replacing them concurrently with brake pads, even if they haven't triggered, is a highly recommended preventative measure. By understanding the function of these sensors and responding promptly to warning signs, you can ensure the optimal performance and safety of your vehicle's braking system, avoiding potentially costly repairs and, most importantly, safeguarding yourself and others on the road.
