Understanding Brake Disc and Pad Wear
Your vehicle's braking system is a critical safety component, and at its heart are the brake pads and discs. These parts work through friction, converting kinetic energy into thermal energy to slow your car down. However, this very process of friction causes them to wear out over time. It's not a matter of if, but when, your brake pads and discs will need attention. Understanding how to assess their condition is vital for maintaining safe and effective braking.
How Brake Pads Function
Brake pads are essentially a composite material bonded to a steel backing plate. When you press the brake pedal, hydraulic pressure forces pistons within the brake calipers to clamp down on the brake discs. This clamping action creates friction, slowing the vehicle. The friction material on the pads wears down with each application, transferring a small amount onto the disc, which contributes to the 'bite' of the brakes. This is also why new pads need to be 'bedded in' correctly to ensure optimal performance.
Brake Pad Materials Explained
The performance and lifespan of brake pads are heavily influenced by the friction material used. Here's a breakdown of common types:
| Material Type | Description | Pros | Cons |
|---|---|---|---|
| Non-metallic/Organic | Synthetic substances bonded together. | Reduced brake disc wear, quieter operation. Common on standard road cars. | Shorter service life, may not perform as well under extreme heat. |
| Semi-metallic | Synthetic substances mixed with metal compounds. | More durable than organic pads. | Harder on brake discs, can offer less refined pedal feel until warm, may produce more dust. |
| Fully-metallic | Composed entirely of metallic compounds. | Can withstand very high temperatures, often used in racing. | Require high temperatures to be effective, significantly increase brake disc wear, can be noisy. |
| Ceramic-metallic | Dense ceramic material with copper strands. | Consistent performance across temperatures, extremely quiet, minimal dust that doesn't stick. | Most expensive option, performance can be reduced at lower temperatures. |
When to Replace Brake Pads: The Minimum Width
Brake pads are designed to wear down. A new brake pad typically measures around 10mm in thickness. As a general rule, most manufacturers and mechanics recommend replacing brake pads when they wear down to approximately 3mm. Crucially, you must replace them before the friction material wears down to the metal backing plate (around 1.5mm). Metal-on-metal contact will severely damage your brake discs and compromise your braking ability.

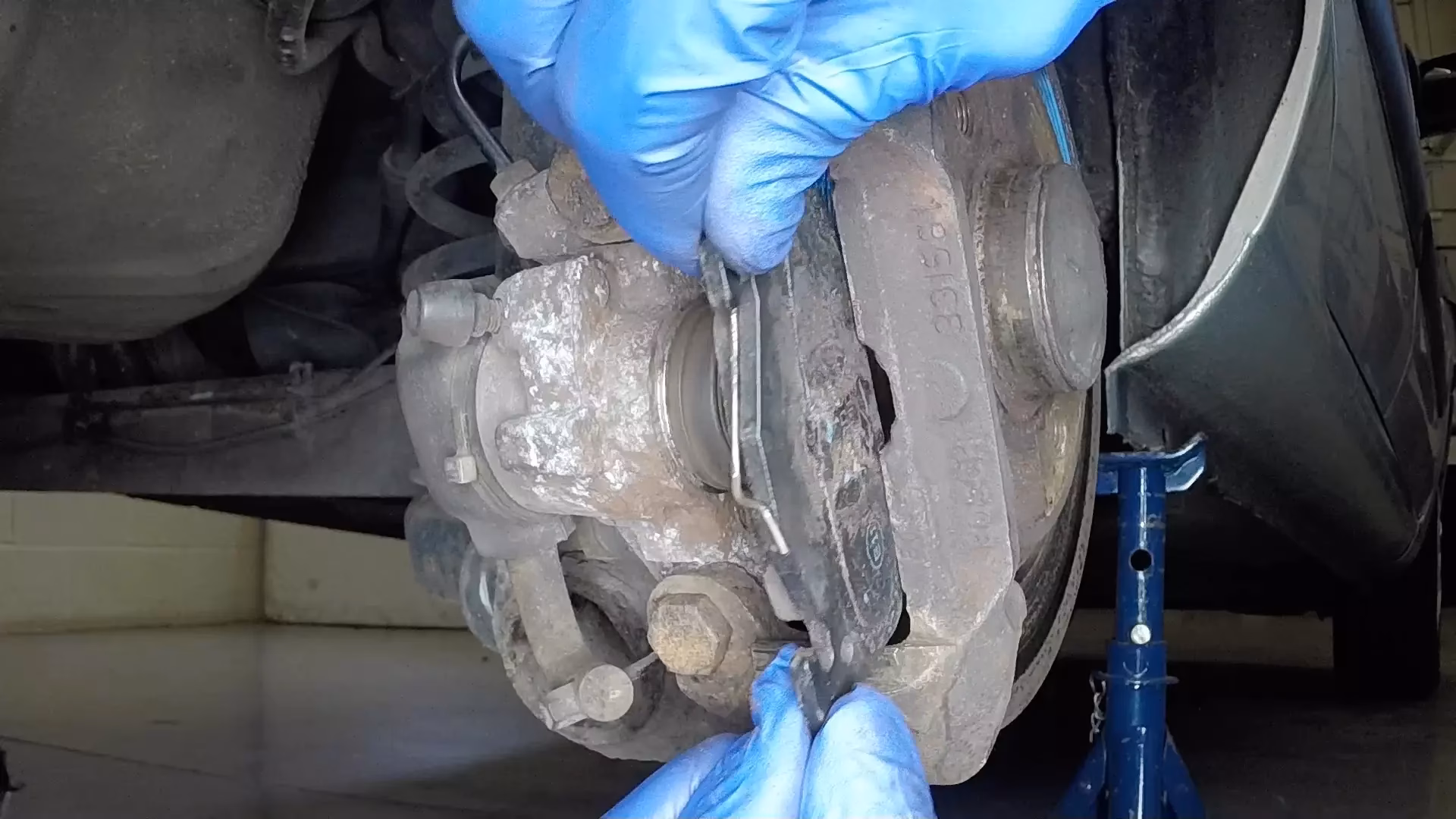

How to Check Brake Pad and Disc Condition
Regularly inspecting your brake pads and discs is essential. Here's how you can do it:
Visual Inspection Steps:
- Safety First: Ensure the vehicle is on a level surface, the handbrake is engaged (for rear brake checks, chock the front wheels), and the engine is off.
- Lifting the Vehicle: Safely jack up the vehicle and support it securely on axle stands. If checking the front brakes, jack the front. If checking the rear, jack the rear.
- Wheel Removal: Remove the relevant wheels to gain access to the brake assembly.
- Pad Thickness Check: With the wheels off, you can usually see the brake pads through the caliper. Look at the thickness of the friction material. Compare it to the backing plate. If it's getting close to the metal, it's time for replacement.
- Disc Inspection: Examine the surface of the brake disc. Look for deep grooves, scoring, glazing (a shiny, hardened appearance), or signs of uneven wear. A lip may form on the outer edge of the disc as it wears.
- Calipers: While the wheels are off, it's a good opportunity to check the operation of the brake calipers. They should move freely.
- Reassembly: Once you've completed your inspection, refit the wheels, tighten the lug nuts appropriately, lower the vehicle, and torque the lug nuts to the manufacturer's specifications.
Signs Your Brake Pads Need Changing
Beyond visual inspection, your car will often give you audible or tactile clues that your brake pads are nearing the end of their life:
- Pedal Feel: If you feel a vibration, rumbling, or pulsing through the brake pedal when you apply the brakes, especially if it's accompanied by a grinding noise, this is a strong indicator of worn pads and potentially damaged discs. This is often the result of the metal backing plate making contact with the disc. Stop driving immediately and have your brakes inspected.
- Noises: A distinct high-pitched squeal or screech when you brake is often caused by the built-in 'wear indicators' – small metal tabs designed to make noise as the pads wear down. A deeper, groaning or grinding sound, particularly under heavy braking, can indicate severe wear or pad material contacting the disc.
- Pulling to One Side: If your vehicle pulls to one side when you brake, it could suggest that the brake pads are wearing unevenly. This might be due to a sticking caliper, uneven disc wear, or a foreign object. Remember, brake pads should always be replaced in pairs (both front pads or both rear pads) to ensure balanced braking.
- Mileage: While there's no exact mileage for brake pad replacement, general guidelines suggest they can last anywhere from 40,000 to 100,000 km (25,000 to 60,000 miles). This varies greatly depending on your driving style (aggressive braking shortens life), the vehicle's weight, and the type of pads fitted.
- Dashboard Warning Light: Many modern vehicles are equipped with electronic wear sensors. When the brake pads reach a critical wear level, a warning light will illuminate on your dashboard, prompting you to check them.
Brake Disc Wear Considerations
Brake discs also wear down over time. The minimum thickness for a brake disc is usually stamped on the hub or edge of the disc itself. Exceeding this minimum thickness can lead to overheating, reduced braking performance, and potential disc failure. Look for:
- Grooves and Scoring: Deep cuts or channels on the disc surface indicate wear and can reduce the effectiveness of the pads.
- Cracks: Hairline cracks, especially around the vent holes, are a serious safety concern and require immediate disc replacement.
- Glazing: A smooth, shiny surface on the disc can indicate overheating and reduced friction.
- Warping: If the disc surface is uneven, it can cause a pulsing sensation through the brake pedal.
Frequently Asked Questions
Q1: How often should I check my brake pads and discs?
It's recommended to visually inspect your brakes during every service, or at least every 10,000-15,000 miles (16,000-24,000 km). Listen for any unusual noises and pay attention to the pedal feel.
Q2: Can I replace just one brake pad?
No, brake pads must always be replaced in pairs on the same axle (e.g., both front pads or both rear pads) to ensure even braking and prevent pulling to one side.
Q3: What is 'brake fade'?
Brake fade occurs when brakes become less effective due to overheating. This can happen during prolonged or heavy braking. Different pad materials have varying resistance to brake fade.
Q4: Do I need to replace the brake discs when I replace the pads?
It's often recommended to replace brake discs when replacing pads, especially if the discs are close to their minimum thickness, heavily grooved, or warped. This ensures optimal performance and longevity of the new pads.
Q5: What's the difference between organic and semi-metallic pads?
Organic pads generally offer quieter operation and less disc wear but have a shorter lifespan and can be more susceptible to fade. Semi-metallic pads are more durable and offer better heat dissipation but can be harder on discs and may produce more dust.
By understanding these signs and performing regular checks, you can ensure your braking system remains in top condition, providing you with the confidence and safety you need on the road.
