Essential Oil Maintenance for Your Freeze Dryer

A freeze dryer represents a significant investment, promising a convenient and efficient way to preserve food, conduct laboratory research, or even process specialty items. Like any sophisticated piece of machinery, its longevity and optimal performance hinge on diligent and timely maintenance. While many components contribute to a freeze dryer's overall function, the vacuum pump stands out as a critical element, and its proper care, particularly concerning its oil, is paramount. Neglecting this vital aspect can lead to reduced efficiency, costly repairs, and ultimately, a shortened lifespan for your valuable appliance.

This comprehensive guide delves into the specifics of freeze dryer maintenance, with a particular focus on the vacuum pump and its oil requirements. We'll explore not only how much oil a freeze dryer needs in terms of *when* it should be changed, but also the crucial steps to ensure your entire system remains in prime condition, guaranteeing reliable operation for years to come.

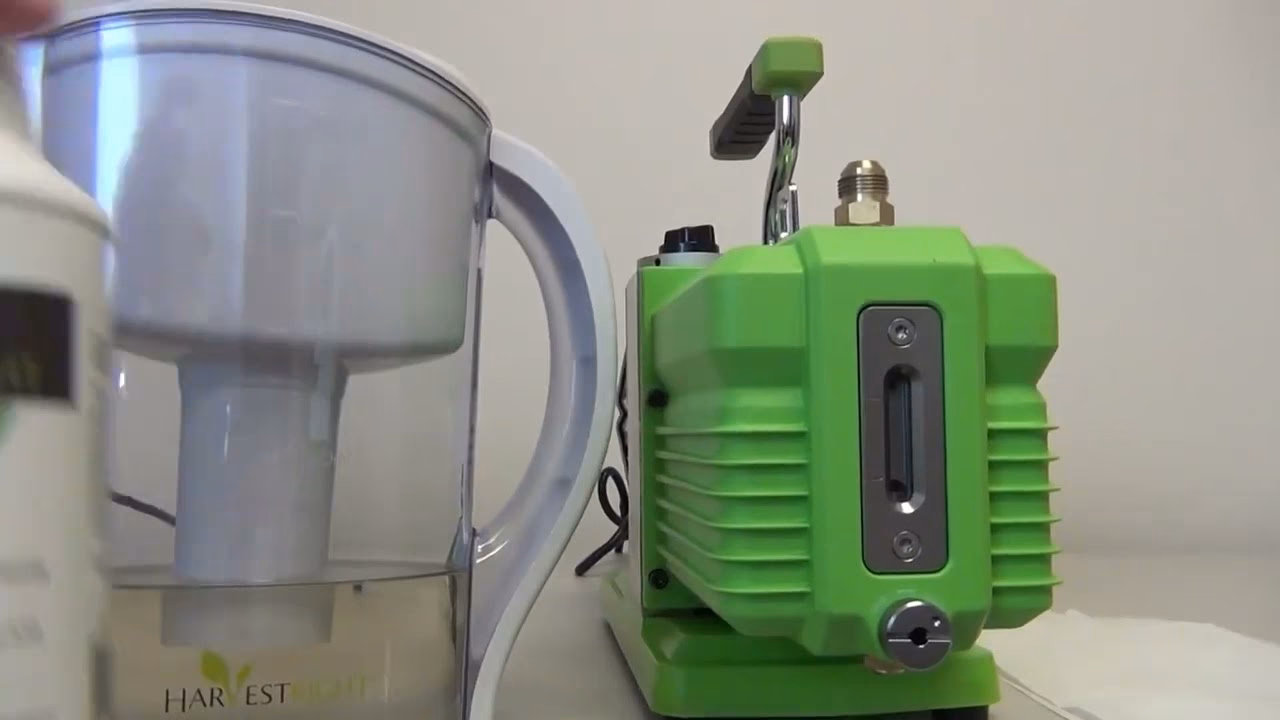

Understanding Your Freeze Dryer's Vacuum Pump

The vacuum pump is the heart of your freeze dryer, responsible for creating the ultra-low pressure environment necessary for the lyophilisation process. By removing air and water vapour, it facilitates the sublimation of ice directly into vapour, bypassing the liquid phase. This delicate process requires a high-performance, consistent vacuum, which is heavily reliant on the condition of the pump and, for many models, the quality of its oil.

There are several types of vacuum pumps commonly found in freeze dryers:

• Standard Rotary Vane Pumps: These are widely used and rely on oil for lubrication, sealing, and cooling.
• Oil-Sealed Pumps: Similar to rotary vane pumps, these also use oil to achieve and maintain a deep vacuum.
• Dry-Scroll Pumps: A newer technology that operates without oil, making them a popular choice for certain applications, especially those involving sensitive materials or where oil contamination is a concern.

Each pump type has specific maintenance requirements, and understanding which one your freeze dryer employs is the first step towards proper care.

The Crucial Role of Oil in Vacuum Pumps

For freeze dryers equipped with oil-based vacuum pumps, the oil performs several critical functions:

• Lubrication: It reduces friction between moving parts, preventing wear and tear.
• Sealing: It helps create and maintain the vacuum by sealing clearances within the pump.
• Cooling: It dissipates heat generated during operation, preventing overheating.
• Corrosion Protection: It protects internal components from rust and corrosion.

Over time, vacuum pump oil can become contaminated with moisture, acids, and particulate matter drawn from the freeze-drying chamber. This degradation compromises its ability to perform its functions effectively, leading to reduced vacuum performance, increased wear on pump components, and potential damage to the entire system. Therefore, regular oil changes are not merely a suggestion but a necessity.

When to Change Your Freeze Dryer's Vacuum Pump Oil

The question of "how much oil" often translates to "how often should I change the oil?" The provided guidelines are quite clear on this for oil-sealed and rotary vane pumps:

• Every 2,000 hours of operation: This is a general benchmark for scheduled maintenance.
• When the oil becomes cloudy or dark: This visual indicator is equally, if not more, important than the hour count. Cloudy oil indicates moisture contamination, while dark oil suggests particulate matter and thermal degradation.

It's crucial to understand that these are general guidelines. If your freeze dryer is used frequently, or for applications involving high moisture content or corrosive substances, you may need to change the oil more frequently than the 2,000-hour mark. Always observe the oil's condition. A proactive approach to oil changes will significantly extend the life of your vacuum pump and ensure consistent performance.

Determining the Correct Oil Volume

While the frequency of oil changes is well-defined, the specific *volume* of oil your freeze dryer's vacuum pump requires is not universal. This is a critical detail that varies significantly between different models and manufacturers. Attempting to guess or use an incorrect volume can be detrimental to the pump's operation. Overfilling can lead to oil being drawn into the freeze-drying chamber, contaminating samples, and potentially damaging the system. Underfilling can result in insufficient lubrication and cooling, leading to premature wear.

Therefore, the definitive answer to "how much oil does a freeze dryer need?" is always found in the manufacturer's manual. This document will specify the exact volume of oil required for your particular model, as well as the recommended type of vacuum pump oil to use. Always consult your manual before performing an oil change to ensure you use the correct quantity and specification of oil.

Types of Vacuum Pumps and Their Maintenance Needs

Understanding the different pump types helps in tailoring your maintenance regime:

For pumps that use oil, you might also have an oil mist eliminator, which captures oil vapours before they are released into the atmosphere. This component and its filter elements should be replaced annually to maintain air quality and pump efficiency.

Beyond Oil: Comprehensive Freeze Dryer Maintenance

While vacuum pump oil maintenance is paramount, it's just one piece of the puzzle. A truly robust maintenance programme encompasses several other critical areas to ensure your freeze dryer operates reliably.

1. Conduct Regular Cleaning

Cleanliness is next to godliness when it comes to freeze dryers. After each run, it's imperative to:

• Defrost and clean all condensers, chambers, and shelving. Residual moisture and product can harbour bacteria and reduce efficiency.
• Ensure users confirm cleanliness before starting a new run to prevent cross-contamination or compromised results.
• Neutralise components with pH buffers if your freeze-dry cycle involved acids.
• Rinse and wipe down all components thoroughly if any chemicals were involved, but crucially, ensure they are dried well. Water should not be left to sit on stainless steel, rubber, or acrylic surfaces, as this can lead to corrosion or degradation over time.

2. Test the Refrigeration System

The refrigeration system is responsible for creating the cold temperatures needed to freeze your samples and condense water vapour. Issues here can severely impact freeze-drying efficiency. It's recommended to:

• Run a functional test on your refrigeration system at least annually, or more often for frequent usage. Many modern freeze dryers have an automatic system test cycle.
• Perform a standard recipe or dry run. Record measured temperatures and pressures and compare them to benchmarks and previous data. Significant deviations could indicate a problem.

Potential problems with the refrigeration system could include a failed valve, a refrigerant leak, or a failure in the electrical relay system, all of which require professional attention.

3. Calibrate Your Instrumentation

Accurate readings are vital for consistent and reliable freeze-drying. Temperature and pressure sensors can drift over time, affecting the quality and safety of your processed materials. Therefore:

• Regular calibration of temperature and pressure sensors is essential.
• More frequent calibration may be necessary for sensitive research applications, facilities with Good Manufacturing Practices (GMP) certification, or those adhering to Food and Drug Administration (FDA) regulations.

Calibration can often be a quick process. Some sensors can be calibrated to zero using a crushed ice bath, while others may require an electronic calibration method. Always follow your manufacturer's manual for specific calibration procedures.

Common Freeze Dryer Maintenance Pitfalls to Avoid

• Ignoring oil condition: Waiting for the 2,000-hour mark when the oil is visibly dark or cloudy much earlier can cause significant pump damage.
• Using incorrect oil: Not all vacuum pump oils are the same. Using the wrong type can lead to poor performance and damage.
• Neglecting cleaning: Allowing ice buildup or product residue to remain in the chamber or on the condenser can reduce efficiency and promote bacterial growth.
• Skipping system tests: Functional tests and dry runs can catch minor issues before they escalate into major, costly repairs.
• Failing to consult the manual: Your manufacturer's manual is the ultimate authority for your specific model's maintenance requirements, including exact oil volumes and types.

Frequently Asked Questions About Freeze Dryer Maintenance

How often should I change the oil in my freeze dryer's vacuum pump?

For oil-sealed and rotary vane pumps, you should change the oil every 2,000 hours of operation or immediately if the oil appears cloudy, dark, or otherwise degraded. Always check your manufacturer's manual for specific recommendations for your model.

What type of oil should I use for my freeze dryer?

The specific type of vacuum pump oil required varies by manufacturer and pump model. Always consult your freeze dryer's manufacturer's manual to identify the correct oil specification and brand. Using an unsuitable oil can cause damage and void warranties.

My freeze dryer uses a dry-scroll pump. Does it need oil?

No, dry-scroll pumps are designed to operate without oil. This eliminates the need for oil changes. However, dry-scroll pumps do require scroll replacement after approximately 40,000 hours of use, as specified in your manufacturer's manual.

What are the signs that my freeze dryer needs maintenance?

Key signs include a longer-than-usual freeze-drying cycle, a vacuum that won't hold or reach the desired level, unusual noises from the pump, visible degradation of the pump oil (cloudy or dark), or error messages on the control panel. Regular visual inspections and functional tests are key to early detection.

Can I perform all freeze dryer maintenance myself?

Routine tasks like cleaning, oil changes (for oil-based pumps), and basic functional tests can often be performed by the user, provided you follow the manufacturer's manual instructions carefully. However, complex issues such as refrigerant leaks, electrical relay failures, or advanced sensor calibration may require a qualified service technician.

Conclusion

Proper maintenance, particularly concerning the vacuum pump and its oil, is not just about keeping your freeze dryer running; it's about safeguarding your investment and ensuring the quality of your preserved products or research. By adhering to a regular maintenance schedule, paying close attention to the condition of your vacuum pump oil, and diligently performing cleaning, refrigeration system checks, and instrument calibration, you can significantly extend the life and efficiency of your freeze dryer. Always remember that your manufacturer's manual is your most valuable resource for precise, model-specific guidance. Proactive care today means reliable performance for many years to come.
