Drain FL1 IRD & Rear Diff

The Essential Guide to Draining Your Freelander 1 IRD and Rear Differential

Performing regular maintenance on your Land Rover Freelander 1 (FL1) is crucial for its longevity and optimal performance, especially concerning its unique four-wheel-drive system. The Intelligent Vechicle Drivetrain (IRD) and the rear differential are key components that require periodic fluid changes. While often overlooked by the uninitiated, understanding how to correctly drain these units is a fundamental skill for any FL1 owner looking to keep their vehicle in top condition. This guide will walk you through the process, ensuring you can tackle this task with confidence. Whether you're looking to change the fluid as part of routine servicing or after a specific issue, these steps are vital.

Understanding the IRD and Rear Differential

Before we dive into the draining process, it's important to understand what these components do. The IRD unit, also known as the viscous coupling unit (VCU) or transfer box, is a complex piece of engineering responsible for distributing power between the front and rear axles. It plays a critical role in the Freelander's four-wheel-drive capability. The rear differential, on the other hand, allows the rear wheels to rotate at different speeds when cornering, ensuring smooth and efficient turning. Both units rely on specific types of oil to function correctly and prevent wear.

Why Draining is Important

Over time, the oil within the IRD and rear differential can degrade due to heat, contamination, and sheer stress. This degradation can lead to:

• Reduced lubrication, causing increased wear on internal components.
• Overheating of the units.
• Potential for catastrophic failure if left unchecked.
• Compromised four-wheel-drive performance.

Regularly changing the fluid helps to maintain the integrity of these vital components, ensuring they operate smoothly and efficiently for years to come. It's a preventative measure that can save you significant money on costly repairs down the line. Think of it as an essential part of your FL1's health check.

What You'll Need: Tools and Materials

To successfully drain your FL1's IRD and rear differential, you'll need a few specific tools and materials. Having everything ready beforehand will make the process much smoother:

• New Differential Oil: Ensure you use the correct specification oil. For the IRD and rear differential on most Freelander 1 models, this is typically a 75W-90 fully synthetic gear oil, often with GL-5 specification. Always consult your owner's manual or a reliable service manual for the exact type and quantity.
• Drain Pans: You'll need at least two, one for each unit, to catch the old oil.
• Wrenches/Sockets: You'll need the correct size socket or wrench to remove the drain plugs. This is often a 14mm or 17mm Allen (hex) key for the drain plugs on the IRD and rear diff.
• Pump or Funnel: A fluid extractor pump or a long-necked funnel will be necessary to refill the units, as access can be tight.
• Rags and Degreaser: For cleaning up any spills.
• Gloves and Eye Protection: Safety first!
• Torque Wrench: To ensure drain plugs are tightened to the correct specification.

Draining the IRD Unit

The IRD unit is located towards the front of the Freelander, typically bolted to the gearbox. Draining it involves locating and removing the drain plug. Here's a step-by-step breakdown:

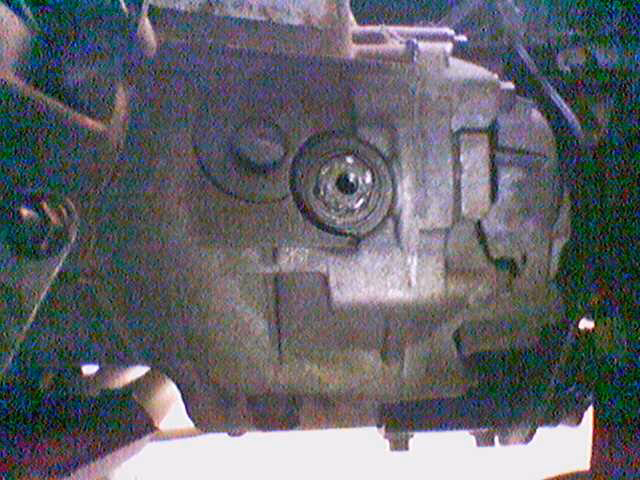

1. Locate the IRD Unit: Position yourself under the vehicle. The IRD unit is a distinct housing, often with driveshafts connected to it.
2. Identify the Drain Plug: Look for a plug on the lower part of the IRD casing. It's usually a hex-headed plug (often requiring an Allen key).
3. Position the Drain Pan: Place your drain pan directly beneath the drain plug. Ensure it's large enough to hold all the old fluid.
4. Remove the Drain Plug: Using the appropriate Allen key or socket, carefully loosen and remove the drain plug. Be prepared for the oil to start flowing immediately. Caution: The oil may be hot if the vehicle has recently been driven.
5. Allow to Drain: Let the oil drain completely. This can take several minutes. You can gently tilt the vehicle side-to-side to help expel any trapped oil.
6. Clean and Reinstall the Plug: Once drained, clean the drain plug and inspect its washer. Replace the washer if it looks worn or damaged. Reinstall the plug and tighten it firmly, but avoid over-tightening. If you have a torque wrench, consult your manual for the correct torque setting.

Draining the Rear Differential

The rear differential is located at the rear axle of your Freelander. The process is very similar to draining the IRD unit, but the location is obviously different.

1. Locate the Rear Differential: Position yourself under the rear of the vehicle. The differential is the pumpkin-shaped housing in the centre of the rear axle.
2. Identify the Drain Plug: Look for a drain plug on the lower part of the differential casing. This is also typically a hex-headed plug requiring an Allen key. Some models may also have a separate filler plug higher up, which you'll need to remove to allow the unit to drain properly.
3. Position the Drain Pan: Place your second drain pan beneath the differential drain plug.
4. Remove the Drain Plug: Using the correct size Allen key or socket, loosen and remove the drain plug. Again, be mindful of hot oil.
5. Allow to Drain: Let all the old fluid drain out. As with the IRD, gently rocking the vehicle can help remove residual oil.
6. Clean and Reinstall the Plug: Clean the drain plug and its washer. Inspect the washer for any signs of damage and replace if necessary. Reinstall the plug and tighten it appropriately. If you removed a filler plug, ensure it's also clean and ready for reinstallation after refilling.

Important Considerations and Tips

Here are some extra points to keep in mind to ensure a successful fluid change:

• Check the Filler Plugs: Before you drain, it's a good idea to locate and attempt to loosen the filler plugs on both the IRD and the rear differential. If you can't remove the filler plugs, you won't be able to refill the units, rendering the draining process pointless. If they are stuck, you may need to address this before proceeding.
• Fluid Level: The correct fluid level is crucial. When refilling, you want the oil to reach the bottom of the filler plug hole.
• Environmental Responsibility: Dispose of old oil responsibly. Take it to a local recycling centre or a garage that accepts used oil.
• Torque Settings: Over-tightening drain plugs can damage the threads in the casing, leading to leaks. Always use a torque wrench if possible and refer to the correct specifications.
• Inspection: While the plugs are out, take the opportunity to inspect them for any metal shavings. Excessive metal particles could indicate internal wear and may warrant further investigation.

Table: IRD vs. Rear Differential Draining

Here's a quick comparison to highlight the similarities and differences in the draining process:

Frequently Asked Questions (FAQs)

Q1: How often should I drain and refill the IRD and rear differential fluid on my Freelander 1?

A1: While specific intervals can vary, a general recommendation is every 30,000 to 50,000 miles, or every 3-4 years, whichever comes first. If you do a lot of off-roading or towing, you may want to consider more frequent changes.

Q2: What happens if I don't change the fluid?

A2: The fluid will degrade over time, losing its lubricating properties. This can lead to increased wear, overheating, and eventually, costly damage to the IRD unit and rear differential.

Q3: Can I use a general-purpose gear oil?

A3: It's highly recommended to use the specific type of gear oil recommended in your Freelander 1's owner's manual or a reputable service manual. Using the wrong type of oil can cause damage.

Q4: Is it possible to drain both units at the same time?

A4: Yes, you can drain both units at the same time, but ensure you have enough drain pans and that you keep the old oil from each unit separate if you suspect contamination in one more than the other.

Q5: How do I know if I've put enough oil in?

A5: When refilling, the oil should start to trickle out of the filler plug hole when it is approximately half-full. Once the unit is full, the oil level should be at the bottom of the filler plug hole.

Conclusion

Draining the IRD unit and rear differential on your Land Rover Freelander 1 is a manageable task for the home mechanic. By following these steps, using the correct materials, and taking the necessary precautions, you can effectively maintain these critical components. Regular fluid changes will contribute significantly to the reliability and performance of your vehicle, ensuring your Freelander 1 remains a capable and enjoyable off-road companion. Don't underestimate the importance of this maintenance; it's a small effort that yields significant rewards in the long run.
