LR2 Transmission Oil: The Truth About Longevity

For many Land Rover LR2 owners, the phrase 'sealed for life' regarding their automatic transmission fluid (ATF) has become a persistent whisper, often leading to neglect of this vital component. While manufacturers may claim their transmissions never need an oil change, the reality on the road, especially in the challenging conditions many LR2s face, tells a different story. Proactive maintenance, including regular transmission fluid changes, is not just recommended; it's essential for ensuring the longevity and smooth operation of your vehicle's gearbox.

The automatic transmission in your Land Rover LR2, often the Aisin Warner AF40 or AWF21, is a complex piece of engineering. It relies heavily on its fluid not just for lubrication, but also for cooling, cleaning, and transmitting power. Over time and miles, this fluid degrades. Heat, friction, and contaminants from wear and tear break down its vital properties, turning it into a less effective, often darker, and sometimes burnt-smelling liquid. Ignoring this degradation can lead to a host of issues, from rough gear changes and delayed engagement to, ultimately, costly transmission failure.

Understanding Transmission Fluid Degradation

Automatic transmission fluid is a highly engineered oil with specific additives designed to perform multiple functions. These include:

• Lubrication: Reducing friction between moving parts.
• Cooling: Dissipating heat generated by friction and engine operation.
• Cleaning: Suspending contaminants and preventing sludge build-up.
• Power Transfer: Enabling the torque converter to transmit engine power to the transmission.
• Hydraulic Pressure: Actuating clutches and bands for gear changes.

As the fluid ages, these properties diminish. Extreme temperatures, towing, heavy stop-and-go traffic, and even just time contribute to its breakdown. The fluid becomes less viscous, its lubricating properties lessen, and its ability to dissipate heat decreases. This leads to increased wear on internal components, overheating, and inefficient operation, all of which put immense strain on your LR2's gearbox.

Signs Your LR2's Transmission Fluid Needs Attention

Your LR2 will often give you subtle, or sometimes not-so-subtle, clues that its transmission fluid is past its best. Pay attention to these warning signs:

• Rough or Harsh Gear Changes: A noticeable jolt or clunk when shifting gears.
• Delayed Engagement: A pause or hesitation when shifting from Park to Drive or Reverse.
• Slipping Gears: The engine revs up, but the vehicle doesn't accelerate as expected, or feels like it's 'slipping out' of gear.
• Unusual Noises: Whining, clunking, or humming sounds coming from the transmission area.
• Unusual Odour: A burnt smell emanating from the transmission fluid dipstick (if accessible) or around the transmission.
• Dark or Murky Fluid: Fresh ATF is typically red or reddish-brown and translucent. If it's dark brown or black and smells burnt, it's definitely time for a change.
• Check Engine Light/Transmission Warning Light: While not specific to fluid, these lights can indicate underlying transmission issues that could be fluid-related.

The LR2's Automatic Transmission: Aisin Warner AF40/AWF21

The Land Rover LR2 (also known as the Freelander 2 in some markets) typically features the Aisin Warner AF40 (or AWF21) 6-speed automatic transmission. This is a robust unit, but like any complex mechanical system, it benefits immensely from proper maintenance. Land Rover's official stance often suggests a 'sealed for life' approach, meaning no scheduled fluid changes. However, many independent specialists and experienced LR2 owners strongly advocate for regular fluid changes, especially after 60,000 to 80,000 miles, or every 5-7 years, whichever comes first. For vehicles used for towing, off-roading, or in hot climates, these intervals should be shortened.

The 'Dilution' Method for LR2 Transmission Fluid Refresh

Given the LR2's transmission design, a complete fluid flush can be challenging and, if not done correctly, potentially risky. A popular and safer alternative, often discussed among LR2 enthusiasts and even used by some technicians, is the 'dilution' method. This involves a series of partial drain and refills, gradually replacing the old fluid with new.

Here's how the dilution method typically works, as described by experienced owners:

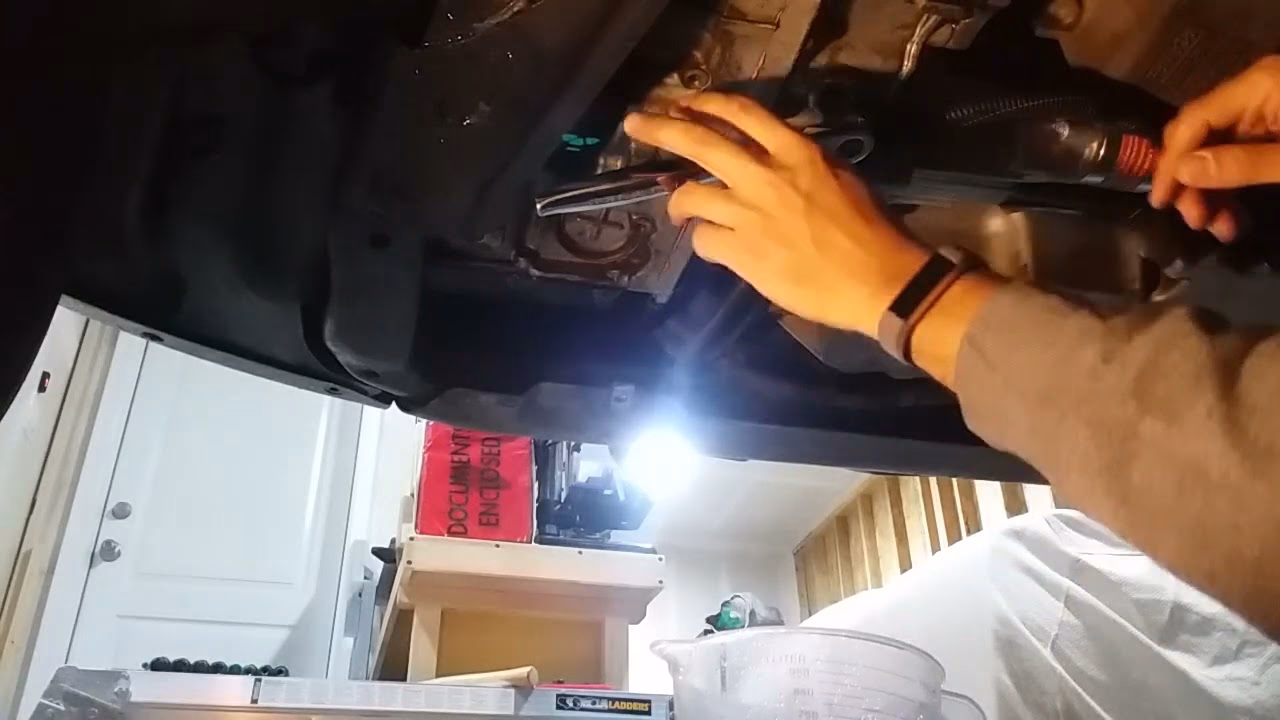

1. Initial Drain: With the vehicle cold, drain approximately 3-4 litres of the old ATF from the transmission pan. This is typically done by removing the drain plug.
2. First Refill: Replenish the transmission with the same amount of new, correct specification ATF (e.g., JWS 3309 compatible fluid).
3. Mixing Cycle: Start the engine. With the vehicle stationary (or driven for a short distance, say 5 miles), cycle through all the gears, pausing briefly in each (P, R, N, D, S). This helps mix the new fluid with the remaining old fluid within the transmission and torque converter. Ensure the gearbox is thoroughly warmed up during this process.
4. Second Drain & Refill: Once the fluid is thoroughly mixed and warmed, repeat step 1 and step 2. Drain another 3-4 litres and refill with fresh ATF.
5. Repeat as Desired: You can repeat this process multiple times (e.g., 2-3 times) to achieve a higher percentage of new fluid in the transmission. Each cycle dilutes the old fluid further, gradually improving the overall condition of the fluid in the system without the risks associated with a full pressurised flush.

The primary benefit of this method is that it avoids the risk of running the gearbox dry, which can occur during a 'live' flush where cooler lines are disconnected. It's a safer, more manageable DIY approach that significantly improves fluid quality over time. While it doesn't replace 100% of the fluid in one go, a series of dilutions can achieve a very high percentage of fresh fluid.

Comparing Transmission Fluid Change Methods

When it comes to changing your LR2's transmission fluid, there are generally three approaches, each with its own pros and cons:

For most LR2 owners, especially those with higher mileage vehicles or those who haven't changed the fluid before, the dilution method offers a sensible balance of effectiveness and safety. If you opt for a full flush, ensure it's performed by a reputable specialist who understands the LR2's transmission and its specific fluid requirements.

Choosing the Right ATF for Your LR2

Using the correct automatic transmission fluid is paramount. The Aisin Warner AF40/AWF21 transmission typically requires a fluid that meets the JWS 3309 specification. Many aftermarket fluids are available that meet or exceed this standard. Always consult your LR2's owner's manual or a Land Rover specialist to confirm the precise specification required for your model year. Using the wrong fluid can lead to serious transmission damage.

Common Misconceptions About Transmission Fluid Changes

• "Sealed for life means no changes ever": As discussed, this is a marketing term, not a guarantee of eternal fluid life. Fluid degrades, and proactive changes prevent issues.
• "Changing fluid in an old, high-mileage transmission will cause it to fail": This is a persistent myth. If a transmission is already failing, a fluid change won't fix it. However, if an old transmission fails shortly after a fluid change, it's often because the fluid was already severely degraded, and the change simply brought existing, underlying issues to light. Fresh fluid won't cause failure, but it might highlight a component already on its way out. In many cases, a change of old, sludgy fluid can actually prolong the life of a struggling gearbox.
• "Only full flushes are effective": While a full flush is comprehensive, the dilution method is a perfectly viable and safer alternative for regular maintenance.

Frequently Asked Questions (FAQs)

Q1: How often should I change my LR2's transmission fluid?

A: While Land Rover may state 'sealed for life', most specialists recommend changing the fluid every 60,000 to 80,000 miles, or every 5 to 7 years, whichever comes first. If you tow, drive in heavy traffic, or off-road frequently, consider shorter intervals (e.g., every 40,000 miles).

Q2: What type of transmission fluid does my LR2 need?

A: Your LR2 (with the Aisin Warner AF40/AWF21 transmission) typically requires fluid meeting the JWS 3309 specification. Always double-check your owner's manual or with a Land Rover specialist for the exact fluid type for your specific model year.

Q3: Can I overfill the transmission fluid in my LR2?

A: Yes, overfilling can be as damaging as underfilling. Excess fluid can lead to aeration (foaming), which reduces lubrication and cooling effectiveness, potentially causing overheating and damage. Always follow the correct filling procedure and check level at the specified temperature.

Q4: What happens if I never change the transmission fluid?

A: The fluid will degrade, lose its lubricating and cooling properties, and accumulate contaminants. This leads to increased wear on internal components, harsh shifts, slipping, overheating, and ultimately, premature transmission failure, which is an extremely costly repair.

Q5: Is a full transmission flush recommended for my LR2?

A: A full flush can be very effective at replacing nearly all the old fluid. However, for older transmissions with very neglected fluid, there's a small risk of dislodging debris that could clog pathways. The 'dilution' method is often a safer, gentler alternative for regular maintenance and for transmissions that haven't had previous fluid changes.

Q6: Can I do the transmission fluid change myself?

A: A basic drain and fill or the dilution method can be performed by a competent DIY mechanic with the right tools and knowledge. However, ensuring the correct fluid level and temperature is crucial. If you're unsure, it's always best to consult a professional mechanic experienced with Land Rovers.

In conclusion, treating your Land Rover LR2's automatic transmission fluid as a 'fill for life' component is a gamble that rarely pays off. Proactive maintenance, including regular fluid changes using the appropriate method and fluid type, is one of the most effective ways to ensure your LR2's transmission remains smooth, reliable, and extends its overall lifespan. Don't wait for symptoms to appear; invest in this relatively inexpensive maintenance now to avoid significantly more costly repairs down the line. A well-maintained transmission is key to enjoying your Land Rover for many years to come.
