TD4 Manual Fill Plug & Garden Hose: A Mismatch?

When faced with a fluid top-up on your Land Rover Freelander TD4, particularly for its manual gearbox or transfer box, it's natural to look for convenient solutions. The idea of using a readily available garden hose might cross your mind, perhaps to save a trip to the shop for specialist tools. However, while a garden hose is excellent for watering your plants or washing your car, its suitability for precision automotive fluid management, especially with a TD4 manual fill plug, is virtually non-existent. This article will delve into why this seemingly simple solution is fraught with potential issues and guide you towards the correct and safe methods for maintaining your TD4's vital fluids.

Understanding the TD4 Manual Fill Plug

Before we discuss the 'why not,' let's clarify what a TD4 manual fill plug is and its purpose. On a Land Rover Freelander TD4, this plug typically refers to the access point for filling the manual gearbox or, less commonly, the IRD (Intermediate Reduction Drive) unit, often mistakenly called the transfer box by some. These components house crucial lubricating fluids that ensure smooth operation, minimise wear, and dissipate heat. The fill plug is designed to allow technicians or owners to top up or refill these specific fluids to their correct levels, which is vital for the longevity and performance of the transmission system.

The fill plug itself is usually a robust, threaded bolt, often requiring a specific size spanner or Allen key to remove. It's located at a strategic point to allow fluid to be added until it begins to seep out, indicating the correct fill level for that particular component. The design of the plug and the surrounding area is purely for controlled, clean fluid introduction, not high-volume or uncontrolled flow.

Why a Garden Hose is a Definite No-Go for Your TD4

The thought might be tempting due to a garden hose's accessibility, but integrating it with your TD4's manual fill plug is a recipe for disaster. Here's a breakdown of the critical reasons why:

1. Incompatible Fittings and Sealing Issues

Automotive fill plugs are designed with precise threads and sealing surfaces to prevent leaks and maintain pressure. A garden hose, on the other hand, uses completely different thread types and quick-connect fittings designed for water systems. There is absolutely no way to securely or effectively connect a standard garden hose to a TD4 manual fill plug. Any attempt to force a connection would likely strip threads, damage the plug, or cause significant leaks, leading to potential fluid loss and environmental contamination.

2. Uncontrolled Pressure and Flow Rate

Garden hoses deliver water at mains pressure, which can be quite high. Automotive fluid filling requires a controlled, steady, and often slow flow to prevent airlocks, spillage, and overfilling. Trying to fill a gearbox or IRD with a high-pressure hose would result in fluid spraying everywhere, making it impossible to gauge the correct level and creating a hazardous mess. The objective is to gently introduce fluid until it reaches the fill point, not to blast it in.

3. Risk of Contamination

This is perhaps the most critical reason to avoid a garden hose. Garden hoses are exposed to the elements, used for various outdoor tasks, and often contain residual dirt, dust, algae, mould, rust particles from taps, or even insect larvae. Introducing any of these contaminants into a precision automotive component like a gearbox or IRD can lead to catastrophic failure. Gearboxes operate with extremely tight tolerances, and even microscopic particles can cause accelerated wear, block fluid passages, or compromise the lubricating properties of the fluid. Automotive fluids must remain pristine to perform their function effectively.

4. Incorrect Fluid Type and Volume Measurement

A garden hose is designed for water. Your TD4's gearbox and IRD require very specific types of lubricating fluid, such as MTF94 for the gearbox or a specific gear oil for the IRD. These fluids have precise viscosities, additive packages, and temperature characteristics. Attempting to use a garden hose implies you might be thinking of filling with water, which would instantly destroy the components. Furthermore, judging the correct volume is impossible with an uncontrolled flow from a hose. Automotive components require exact fluid levels – underfilling leads to insufficient lubrication, and overfilling can cause foaming, overheating, and seal damage.

Proper Methods for Filling TD4 Manual Gearbox/IRD

So, if a garden hose is out, what's the correct approach? The good news is that proper fluid top-ups or changes are straightforward with the right tools and knowledge.

1. Identify the Correct Fluid

Always consult your Land Rover owner's manual or a reputable workshop manual for the exact specification of the fluid required for your TD4's manual gearbox and IRD. Using the wrong fluid can cause significant damage. For the manual gearbox, MTF94 is commonly specified. For the IRD, specific gear oils (e.g., EP80W-90 GL-5) are often required. Do not guess.

2. Essential Tools for the Job

You'll need a few key items to perform this task correctly:

• Fluid Pump/Syringe: This is the most recommended tool. A hand-operated fluid transfer pump with a flexible hose attachment screws onto standard fluid bottles. Alternatively, a large syringe with a hose can be used. These allow for precise, controlled pumping of fluid into the fill plug.

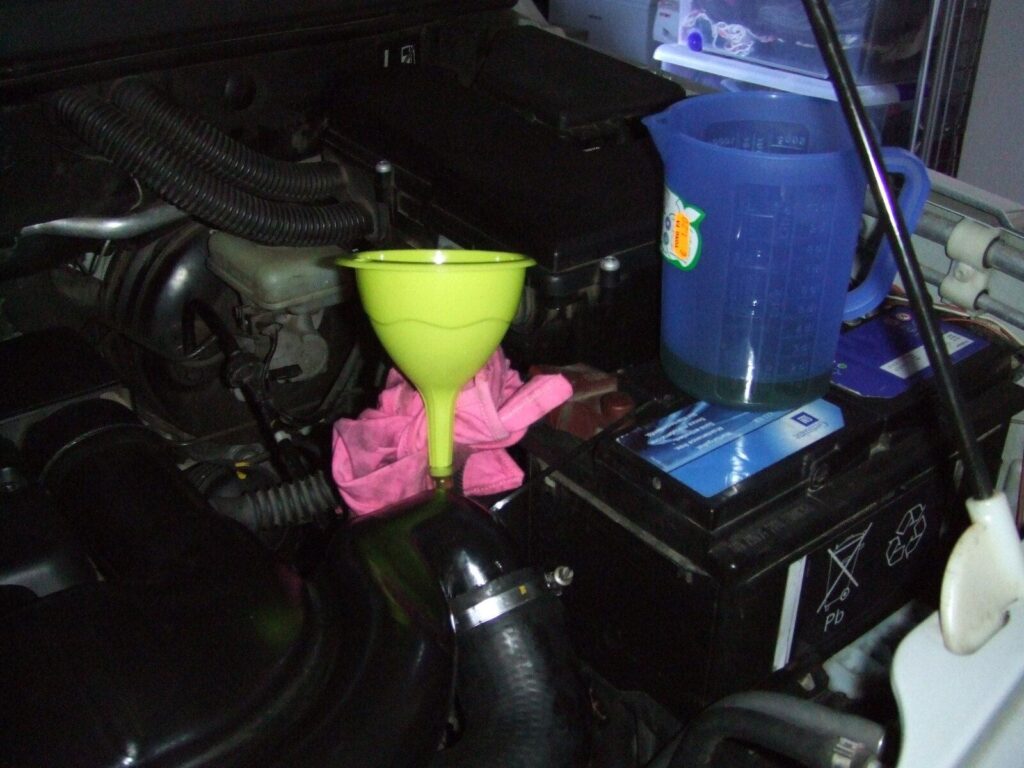

• Funnel with Flexible Hose: A good quality funnel with a long, narrow, flexible hose can sometimes reach awkward fill plugs. Ensure the hose is clean and dedicated only to automotive fluids.
• Socket/Spanner/Allen Key: The correct tool to remove and refit the fill plug without damaging it.
• Drain Pan: To catch any overflow or spillage.
• Clean Rags: For cleaning up spills.

3. The Filling Process

The general procedure for filling is as follows:

1. Ensure the vehicle is on level ground.
2. Locate the fill plug (and drain plug if you are doing a full change).
3. Clean the area around the plug thoroughly to prevent dirt from entering.
4. Remove the fill plug. (Always remove the fill plug *before* the drain plug if doing a full change, to ensure you can refill the component).
5. Using your fluid pump or funnel with a hose, slowly begin to pump/pour the correct fluid into the fill opening.
6. Continue adding fluid until it just begins to seep out of the fill plug opening. This indicates the correct level.
7. Allow any excess to drain until it's just a slow drip.
8. Replace the fill plug, tightening it to the manufacturer's specified torque (consult your manual). Do not overtighten.
9. Clean up any spilled fluid immediately.

Comparing Methods: Proper Tools vs. The Garden Hose Idea

To highlight the stark differences, let's put it into a comparative table:

Frequently Asked Questions (FAQs)

Q: What fluid should I use for my TD4 manual gearbox?

A: For many TD4 manual gearboxes, the recommended fluid is MTF94. Always confirm with your vehicle's owner's manual or a Land Rover service manual to ensure you use the correct specification for your specific model and year.

Q: How do I know when the gearbox/IRD is full?

A: For most manual gearboxes and IRDs, you fill the fluid until it just begins to weep or dribble out of the fill plug opening. This indicates the correct level. On some vehicles, there might be a specific dipstick or level check procedure, but for many older Land Rover components, the fill-to-spill method is standard.

Q: Can I use any flexible hose for filling, not just a pump?

A: You can use a clean, flexible hose attached to a funnel, provided it's narrow enough to fit into the fill opening and is made of a material that won't contaminate the fluid. However, a dedicated fluid transfer pump offers much better control and reduces spillage, especially in tight spaces.

Q: What happens if I overfill the gearbox or IRD?

A: Overfilling can lead to several problems. Excess fluid can increase internal pressure, potentially blowing seals and causing leaks. It can also lead to fluid aeration (foaming) due to excessive agitation, which reduces lubrication effectiveness and can cause overheating and premature wear. Always fill to the correct level.

Q: Do I need to drain the old fluid before refilling?

A: If you are doing a fluid change, yes, you must drain the old fluid first. However, if you are simply topping up due to a minor leak or low level, you only need to add fluid. Regular fluid changes at recommended intervals are crucial for component longevity.

Q: Are there any universal fill tools I can buy?

A: Yes, many automotive fluid transfer pumps are designed to be universal and work with various types of gear oil, transmission fluid, and differential fluid bottles. They are a worthwhile investment for any DIY mechanic.

Conclusion

While the convenience of a garden hose might initially seem appealing for an automotive fluid top-up, it is fundamentally incompatible and dangerous for your TD4's manual fill plug and internal components. The risks of contamination, improper filling, and potential damage far outweigh any perceived convenience. Investing in the correct, inexpensive tools like a fluid transfer pump and taking the time to use the specified fluid will ensure your TD4's gearbox and IRD remain in optimal condition, providing you with reliable service for years to come. Always prioritise the correct procedure over a quick, ill-advised shortcut.
