Freelander TD4 Turbo Swap: No IRD Removal Needed!

For many Land Rover Freelander TD4 owners, the thought of replacing a failing turbocharger often comes with a significant dread: the perceived necessity of removing the Intermediate Reduction Drive (IRD). This complex and time-consuming procedure can deter even the most seasoned DIY enthusiasts, leading to costly garage bills. However, we're here to dispel that myth and provide some genuinely good news. Based on first-hand experience, it is entirely possible to replace the turbo on your Freelander TD4 without the arduous task of disconnecting and removing the IRD. This guide will walk you through the process, revealing the surprisingly straightforward steps that can get your beloved 'Hippo' back to peak performance, saving you both time and a substantial amount of money.

Why Tackle a Turbo Replacement Yourself?

Beyond the immediate financial savings, undertaking a turbo replacement on your Freelander TD4 offers several benefits. Firstly, you gain an intimate understanding of your vehicle's mechanics, empowering you for future maintenance. Secondly, the satisfaction of successfully completing a challenging repair yourself is immense. Garages often charge a premium for this job due to its perceived complexity, particularly if they insist on IRD removal. By following this guide, you can bypass those costs and gain valuable mechanical experience.

Essential Tools and Materials

Before you begin, ensure you have the right tools to hand. While no specialist Land Rover tools are strictly required, a well-equipped toolbox will make the job much smoother. You'll also need a crucial replacement part and a fresh gasket. Remember, safety is paramount, so ensure your vehicle is securely supported.

Safety First: Preparing Your Freelander TD4

Before any work begins, proper preparation is non-negotiable. Always prioritise your safety. Park your Freelander on a flat, level surface. Engage the handbrake and place chocks behind the rear wheels. Using a robust hydraulic jack, carefully raise the front of the vehicle to a comfortable working height. Once raised, immediately place sturdy axle stands beneath the vehicle's designated jacking points. Give the vehicle a gentle shake to ensure it's stable before you even think about getting underneath it.

The Topside Approach: Initial Disassembly

Many of the initial steps can be performed from above, providing good access and setting the stage for the trickier parts below. Take your time, and keep track of all fasteners.

1. Remove Engine Cover: This is usually a simple clip-on cover designed to protect the engine bay and reduce noise. Carefully unclip and lift it away.
2. Remove Air Filter Cover & Air Filter: The air filter housing is typically secured with clips. Unlatch these, remove the cover, and then lift out the air filter element itself. This provides crucial access later on.
3. Disconnect Turbo Hoses: Locate the main turbo hose on the pressure (outlet) side of the turbocharger. It will be secured by two jubilee clips. Loosen these and carefully pull the hose free. Similarly, disconnect the hose from the Mass Air Flow (MAF) sensor on the inlet side, again usually secured by two clips. Once these are loose, the entire hose assembly should slide off easily.
4. Remove Turbo Control Solenoid: This small electrical component, along with its bracket, can be unbolted and moved out of the way from above. Disconnecting it will give you more room to manoeuvre.
5. Remove Oil Banjo Bolt: This bolt secures the oil feed line to the turbo. It’s important to carefully loosen this bolt, being mindful of any residual oil. Have some rags ready to catch drips.

Navigating the Underside: Exhaust and Oil Lines

This is where things get a bit more involved, requiring you to get under the vehicle and utilise some clever access points. This section focuses on freeing up the exhaust to gain vital space.

7. Disconnect Exhaust Pipe (Under Car): From directly under the vehicle, locate and remove the first retaining bolt that connects the exhaust pipe to the turbo/downpipe assembly. This might require some persuasion if it's corroded.
8. Disconnect Exhaust Pipe (Passenger Side Wheel Arch): This is one of the more challenging access points. Gain access from the passenger side wheel arch, near where the steering rod passes through. Using a long extension on your ratchet, you should be able to reach and remove the second retaining bolt on the exhaust pipe. Patience is key here, as visibility is limited, and you'll be working by feel.
9. Cable Tie Exhaust Out of the Way: Once both bolts are removed, the exhaust pipe will be much freer. To facilitate better access to the turbo's mounting bolts and the oil return hose, use strong cable ties to temporarily secure the exhaust pipe out of your working area. This simple step makes a significant difference.

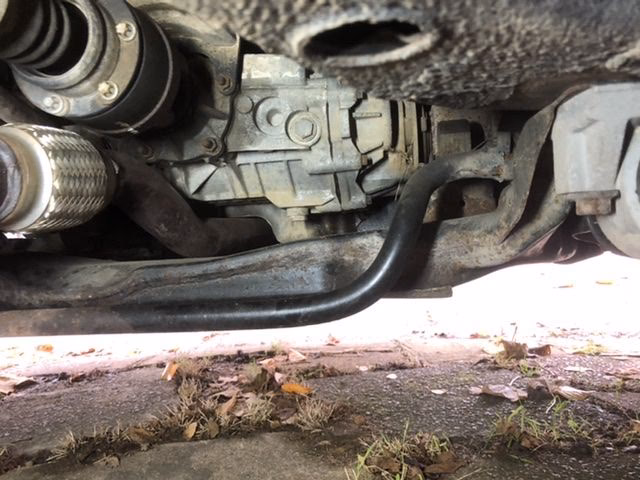

10. Access Oil Return Hose Clips: With the exhaust moved, you can now gain access to the jubilee clips for the oil return hose. This is achieved by reaching your arm up and over the top of the IRD unit. A small 6mm ratchet wrench or a screwdriver will be invaluable here, allowing you to loosen these clips and eventually detach the hose.

The Hidden Fasteners: Turbo Mounts and Release

This is arguably the most critical and potentially frustrating part of the job if you don't know where to look. Many get stuck here, wondering why the turbo won't budge. The key lies in two sets of bolts, one accessed by feel, and the others through the air filter housing.

11. Remove Two 13mm Turbo Retaining Bolts: Just above the oil return hose, there are two 13mm retaining bolts securing the turbocharger to the exhaust manifold. This is where working by feel becomes essential. You won't have a clear line of sight, but with a bit of exploration, your fingers will locate them. A good quality ratchet with a suitable extension will allow you to loosen and remove these. This is the step that often stumps first-timers.
12. Access Through Air Filter Housing: With the previous steps completed, the turbo is now primarily held by three final bolts accessed from above, through the air filter housing.
13. Prepare Air Filter Housing Access: To get to these, you'll first need to remove three rubber bungs located within the air filter housing itself. Once these are out, you can push down the heat protection plate and slide it towards the windscreen. This reveals the final access points.
14. Remove Three 10mm Turbo Bolts: Through the newly exposed holes in the air filter housing, you can now access the three 10mm bolts that are the last fasteners holding the turbo in place. Carefully loosen and remove these.

The Grand Finale: Turbo Removal and Installation Tips

With all fasteners removed, the turbocharger should now be free. Congratulations, the most challenging part is over!

15. Turbo Removal: With all bolts gone, the turbo should now be able to be carefully maneuvered out. If you did the 13mm bolts (step 11) last, as some experienced mechanics recommend, you can support the turbo from underneath as you remove these final bolts, making its extraction smoother.

Installation is largely the reverse of removal. However, a few crucial steps are vital for the longevity of your new turbo:

• Replace the Gasket: Always use a new gasket for the exhaust manifold and any other sealing surfaces. This is a critical step to prevent exhaust leaks and ensure proper sealing.
• Prime the New Turbo: Before connecting the oil feed line, pour a small amount of clean engine oil into the turbo's oil inlet. This pre-lubricates the bearings, preventing a dry start which can cause immediate damage to the new unit.
• Check for Obstructions: Before fitting the new turbo, ensure there are no foreign objects or debris in the intake or exhaust pipes that could damage the compressor or turbine wheels.
• Tighten to Spec: If possible, use a torque wrench to tighten all bolts to the manufacturer's specified torque settings. This prevents over-tightening (which can strip threads) and under-tightening (which can lead to leaks or components coming loose).

Troubleshooting Common Issues

While this guide aims to simplify the process, you might encounter some common challenges:

• Stuck Bolts: Corrosion is common, especially on exhaust components. Apply liberal amounts of penetrating oil and allow it to soak. Gentle tapping with a hammer can sometimes help free stubborn bolts.
• Limited Space: The Freelander TD4 engine bay is compact. Utilize various extensions, universal joints, and flexible ratchets to reach difficult areas.
• Oil Leaks After Installation: Double-check all oil lines and hose connections. Ensure all jubilee clips are tight and that the new gasket is properly seated.

When to Consider a Turbo Replacement

Knowing the symptoms of a failing turbocharger can save you from further engine damage. Look out for:

• Loss of Power: Your Freelander feels sluggish, especially under acceleration.
• Excessive Smoke: Blue (oil burn) or black (unburnt fuel) smoke from the exhaust.
• Whining or Whistling Noise: A distinct high-pitched sound that often changes with engine RPM. This indicates failing bearings.
• Check Engine Light: Fault codes related to turbo boost pressure or performance.
• Increased Oil Consumption: If oil is leaking past the turbo seals into the intake or exhaust.

Frequently Asked Questions (FAQs)

Q: How long does this job typically take for a DIY mechanic?
A: For a first-timer with moderate mechanical experience, expect it to take between 3 to 4 hours. With familiarity, it could potentially be done in under an hour, as demonstrated by the owner who perfected this method.

Q: Do I really not need to remove the IRD?
A: Absolutely not for a turbo replacement on a Freelander TD4. This guide is specifically designed to show you how to do it without that complex step, saving considerable effort and time.

Q: Is this a job a beginner can do?
A: While not exceptionally difficult, it does require some familiarity with tools and working in tight spaces. If you're comfortable with basic car maintenance and have patience, it's achievable. If you're completely new to mechanics, consider having an experienced friend assist you.

Q: What specific gasket(s) do I need?
A: The most critical gasket is typically the one sealing the turbo to the exhaust manifold. You should always replace this. Depending on your turbo kit, you might also receive new copper washers for the oil banjo bolt. Always check what gaskets come with your new turbo unit.

Q: What are the common signs of a failing turbo?
A: Key indicators include a noticeable loss of power, a distinct whining or whistling sound during acceleration, excessive blue or black smoke from the exhaust, and increased oil consumption.

Q: Can I drive with a failing turbo?
A: While possible for a short distance, it's highly unadvisable. A failing turbo can send metal fragments into your engine, cause further damage to the exhaust system, or lead to catastrophic engine failure due to oil starvation or contamination. Address the issue promptly.

Conclusion

The myth of the mandatory IRD removal for a Freelander TD4 turbo change can finally be put to rest. With the right approach, a modest set of tools, and a good dose of patience, this seemingly daunting task is well within the capabilities of a dedicated DIY enthusiast. By following these steps, you not only save a significant amount on labour costs but also gain invaluable experience and the satisfaction of keeping your Freelander TD4 running smoothly and powerfully for many more miles on the British roads.
