The Crucial World of Vehicle Frame Alignment

While many motorists are familiar with the concept of wheel alignment, a lesser-known yet equally critical aspect of vehicle maintenance and repair is frame alignment. Often overlooked until a significant impact occurs, the structural integrity of your vehicle's frame is paramount to its performance, safety, and longevity. Neglecting issues with your vehicle's fundamental structure can lead to a cascade of problems, from erratic handling to compromised occupant protection in the event of a future collision.

Understanding the Basics of Frame Alignment

At its core, frame alignment refers to the meticulous process of restoring a vehicle's frame – or chassis – to its original manufacturer specifications following damage. This damage typically stems from accidents, collisions, or even severe impacts like hitting a large pothole or kerb. The frame serves as the foundation upon which all other vehicle components, including the engine, suspension, and body panels, are mounted. When this foundation is compromised, it throws everything else out of sync.

Modern vehicles primarily utilise one of two types of construction: body-on-frame or unibody. Body-on-frame vehicles, common in older cars, trucks, and larger SUVs, feature a separate, robust ladder-like frame onto which the vehicle's body is bolted. Unibody construction, prevalent in most contemporary passenger cars, integrates the frame and body into a single, welded structure. Regardless of the construction type, both require precise alignment to ensure structural integrity and correct vehicle dynamics. Misalignment involves adjusting and aligning various components, such as the front and rear suspension mounting points, steering components, and subframes, ensuring they are all positioned exactly as the manufacturer intended.

The Impact of Frame Misalignment on Vehicle Performance

A misaligned frame can manifest in a myriad of symptoms, significantly degrading your vehicle's handling, stability, and overall performance. These issues often worsen over time if left unaddressed, leading to more severe and costly problems.

• Compromised Handling and Steering: One of the most immediate signs of frame misalignment is a change in how your vehicle handles. You might notice the car pulling to one side, even on a flat road, or the steering wheel being off-centre when driving straight. The vehicle may feel 'loose' or unstable, particularly at higher speeds or when cornering. This can make driving tiring and, more importantly, unpredictable.
• Uneven Tyre Wear: While misaligned wheels are a common cause of uneven tyre wear, a misaligned frame can also be the root cause. When the frame is bent or twisted, it directly affects the suspension geometry, leading to incorrect camber, caster, and toe angles that cannot be fully corrected by a standard wheel alignment. This results in tyres wearing out prematurely and unevenly, such as feathering, cupping, or excessive wear on one edge, necessitating frequent and expensive tyre replacements.
• Reduced Fuel Efficiency: A misaligned frame can increase rolling resistance and aerodynamic drag, forcing your engine to work harder to maintain speed. This added strain directly translates to a noticeable decrease in fuel economy, costing you more at the pump over time.
• Premature Component Wear: The strain caused by a misaligned frame isn't limited to tyres. Suspension components like shock absorbers, struts, control arms, ball joints, and bushings are all subjected to abnormal stress and wear. Similarly, steering components, wheel bearings, and even drivetrain parts can suffer premature failure, leading to a cycle of costly repairs that only address the symptoms, not the underlying problem.
• Improper Panel Gaps: Beyond mechanical issues, a misaligned frame can cause visible cosmetic problems. You might notice uneven gaps between body panels, doors that are difficult to close, or the bonnet and boot lid not sitting flush. These are clear indicators that the vehicle's structure is out of its original shape.

Ensuring Proper Frame Alignment: The Repair Process

Achieving proper frame alignment is a highly specialised task that demands advanced equipment, precise technology, and the expertise of skilled technicians. It is not a DIY job and should only be entrusted to a professional auto body repair shop.

The repair process typically begins with a thorough initial assessment, including a visual inspection and often a test drive to identify symptoms. The vehicle is then mounted onto a sophisticated frame machine, which is essentially a heavy-duty jig equipped with hydraulic rams and pulling chains. Computerised measuring systems, often utilising laser technology or 3D imaging, are then used to accurately assess the extent of the damage. These systems compare thousands of data points on your vehicle's frame to the manufacturer's precise OEM specifications, highlighting any discrepancies down to the millimetre.

Once the misalignment is precisely mapped, technicians use the hydraulic rams and chains to carefully pull or push the frame back into its correct dimensions. This is a delicate and often gradual process, as too much force can cause further damage. The computerised system provides real-time feedback, allowing technicians to make incredibly precise adjustments. After the structural repairs are complete, the vehicle undergoes a post-repair inspection and often a wheel alignment to ensure all components are now correctly oriented relative to the restored frame. A reputable shop will provide a printout of the 'before and after' measurements, demonstrating the success of the alignment.

The Safety Aspect: Why Proper Frame Alignment Matters

Beyond performance and aesthetics, the most critical reason for ensuring proper frame alignment is safety. Your vehicle's frame is engineered not just for rigidity but also for occupant protection in a collision. It is designed to absorb and dissipate impact energy through crumple zones, directing forces away from the passenger compartment. A misaligned or compromised frame cannot perform this crucial function effectively.

If the frame's integrity is compromised, the vehicle's ability to absorb impact as intended is severely reduced. This means that in the event of another accident, the crumple zones may not activate correctly, or the forces of impact could be transferred directly to the occupants, significantly increasing the risk of serious injury or fatality. Furthermore, a misaligned frame can affect the proper deployment and effectiveness of safety features such as airbags and seatbelts, which rely on the vehicle's structure to function optimally. Even active safety systems, like ABS, traction control, and advanced driver-assistance systems (ADAS) that rely on precise vehicle geometry, can be negatively impacted, potentially leading to unpredictable behaviour in emergency situations.

The Financial Impact of Neglecting Frame Alignment

Ignoring frame misalignment can lead to substantial financial repercussions over your vehicle's lifespan, far outweighing the cost of a professional repair.

• Escalating Repair Costs: As mentioned, misalignment puts undue stress on various components, leading to premature wear and tear. This means you'll face recurring bills for new tyres, suspension parts, and steering components, never truly fixing the underlying issue. These cumulative costs can quickly exceed the expense of a proper frame alignment.
• Decreased Fuel Economy: The continuous drag and increased engine strain from a misaligned vehicle result in higher fuel consumption. Over months and years, this adds up to a considerable sum, effectively burning money unnecessarily.
• Reduced Resale Value: A vehicle with a history of significant frame damage or unaddressed misalignment will dramatically lose its resale value. Potential buyers, and especially dealerships, will often run vehicle history checks (such as an HPI check in the UK) that will flag any reported structural damage. This can make the vehicle difficult to sell and will inevitably command a much lower price. Even if the damage was professionally repaired, transparency is key, and it will still impact value.
• Insurance Implications: While insurance typically covers accident-related frame damage, neglecting a known issue could lead to complications with future claims or even affect your premiums, as the vehicle is considered to be in a sub-optimal and potentially unsafe condition.

Finding a Qualified Auto Body Repair Shop for Frame Alignment

Given the complexity and critical nature of frame alignment, choosing the right repair shop is paramount. Do not simply opt for the cheapest quote; instead, prioritise expertise, equipment, and reputation.

• Specialised Equipment: Ensure the shop possesses modern, computerised frame machines and laser measuring systems. These are essential for accurate diagnosis and repair. Ask if they can provide printouts of the 'before and after' measurements.
• Technician Training and Certifications: Look for technicians who are certified in structural repair. In the UK, certifications from organisations like I-CAR (Inter-Industry Conference on Auto Collision Repair) or manufacturer-specific training indicate a high level of expertise in vehicle body and frame repair.
• Reputation and Reviews: Check online reviews and testimonials. Ask for recommendations from friends, family, or your insurance provider. A reputable shop will have a track record of satisfied customers and quality workmanship.
• Transparency and Warranty: A trustworthy shop will provide a detailed, written estimate before commencing work. They should be able to clearly explain the repair process and answer any questions you have. Enquire about any warranty offered on their structural repairs, which indicates confidence in their work.

DIY vs. Professional Frame Alignment: Pros and Cons

While the allure of saving money through DIY repairs is strong for many automotive tasks, frame alignment is unequivocally not one of them. The precision required, the specialised equipment involved, and the safety implications make it a job exclusively for professionals.

• DIY Frame Alignment:
• Pros: Virtually none for significant frame damage. Perhaps extremely minor, visible cosmetic tweaks, but without measurement, it's guesswork.
• Cons: Impossible to achieve precise measurements without specialised equipment. High risk of causing further, irreversible structural damage. Can compromise vehicle safety and integrity. Voids manufacturer warranties and potentially insurance coverage.
• Professional Frame Alignment:
• Pros: Accurate diagnosis and repair using state-of-the-art equipment. Restores vehicle to manufacturer specifications. Ensures vehicle safety and structural integrity. Often comes with a warranty on the repair work. Prevents cascading damage to other components.
• Cons: Can be a significant investment, depending on the severity of the damage. Requires trusting a reputable shop.

In almost all scenarios involving actual frame damage, professional intervention is not just recommended, but essential for the vehicle's safe and proper operation.

Frequently Asked Questions About Frame Alignment

Here are some common questions motorists have regarding frame alignment:

Q: How often should I have my vehicle's frame alignment checked?

A: Unlike wheel alignment, which might be checked periodically, frame alignment isn't typically part of routine maintenance unless you've been involved in an accident, even a minor one, or if you notice any of the symptoms of misalignment discussed above (e.g., pulling, uneven tyre wear, unusual panel gaps). After any collision, regardless of apparent damage, it's wise to have the frame checked.

Q: Can hitting a large pothole or kerb cause frame misalignment?

A: Absolutely. While smaller impacts might only affect wheel alignment or suspension components, a severe impact with a pothole, kerb, or road debris can transmit significant force through the wheels and suspension directly into the frame, causing it to bend or twist.

Q: Is frame alignment the same as wheel alignment?

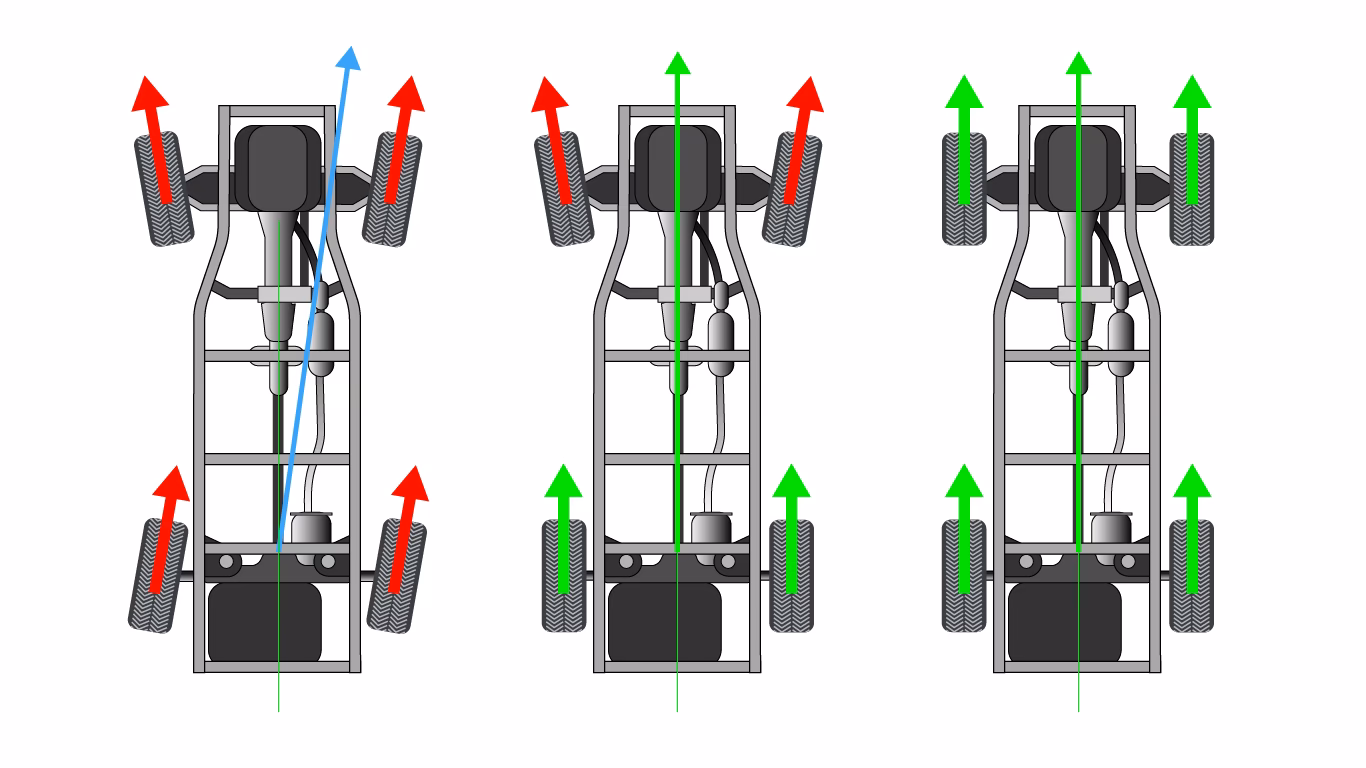

A: No, they are distinct processes, though related. Wheel alignment adjusts the angles of your wheels relative to the vehicle's frame. Frame alignment, on the other hand, deals with the vehicle's core structure itself. If the frame is misaligned, a wheel alignment might temporarily mask some symptoms, but it cannot correct the underlying structural problem. A proper frame alignment should always precede a wheel alignment if structural damage is present.

Q: How long does frame alignment typically take?

A: The duration varies greatly depending on the severity and complexity of the damage. Minor adjustments might take a few hours, while extensive structural repairs could take several days or even longer. Your repair shop should provide an estimated timeframe after their initial assessment.

Q: Will my car insurance cover frame alignment?

A: In most cases, if the frame damage is a direct result of an insured accident, your comprehensive or collision insurance policy will cover the cost of frame alignment and repair, minus your deductible. It's always best to check directly with your insurance provider.

Q: Can a misaligned frame be fixed, or is the car a write-off?

A: In many instances, a misaligned frame can be successfully repaired to manufacturer specifications. However, there are limits. If the damage is too severe, too widespread, or involves critical structural components that cannot be safely repaired, the vehicle may be deemed a 'total loss' or 'write-off' by your insurance company, meaning the cost of repair exceeds a certain percentage of the vehicle's value.

Conclusion

Proper frame alignment is a cornerstone of vehicle safety, performance, and long-term value. It’s not merely about aesthetics or preventing uneven tyre wear; it’s about ensuring your vehicle’s fundamental structure can protect you and your passengers as intended, while also maintaining its dynamic capabilities. Neglecting frame alignment after an impact, or ignoring its subtle symptoms, can lead to a costly cycle of repairs, diminished fuel efficiency, and a significant reduction in your vehicle’s resale value. Therefore, if you suspect your vehicle's frame has been compromised, prioritise finding a qualified, reputable auto body repair shop with the necessary expertise and equipment. Investing in professional frame alignment is an investment in your safety, your vehicle's health, and your peace of mind on the road.
