CCD Wheel Aligners: Cameras & Target Insights

In the intricate world of automotive maintenance, precise wheel alignment stands as a cornerstone for vehicle safety, tyre longevity, and optimal driving performance. Garages and workshops across the UK constantly seek reliable, accurate, and efficient equipment to deliver top-tier service. Among the various technologies available, Charge-Coupled Device (CCD) wheel aligners have long been a staple, known for their robust design and consistent results. Understanding the fundamental components of these systems, particularly the number of cameras and targets, is crucial for appreciating their operational capabilities and making informed equipment choices.

A typical CCD wheel aligner system relies on a network of sensors (the cameras) that communicate wirelessly or via cables with targets mounted on each wheel. These sensors measure the relative angles and positions of the wheels, providing the data necessary to adjust parameters such as toe, camber, and caster. While more advanced systems exist, a highly effective and foundational configuration often involves a specific number of cameras and targets to achieve comprehensive measurements.

What is a CCD Wheel Aligner?

A CCD wheel aligner is a computerised system designed to measure and correct the angles of a vehicle's wheels. Unlike older optical or mechanical methods, CCD aligners utilise sophisticated electronics and optics to provide highly accurate digital measurements. The 'CCD' refers to the Charge-Coupled Device sensors, which are essentially digital cameras or light-sensitive chips that capture light and convert it into electrical signals. These sensors are housed within measurement heads, typically placed at each wheel, and they 'read' information from passive targets mounted on the opposite wheels.

The principle of operation involves infrared light beams emitted from the sensors. These beams are either reflected by passive targets or received by sensors on opposing wheels, allowing the system to calculate precise angles based on the geometry of the light paths. This technology offers a robust solution for workshops, providing a balance of accuracy, speed, and cost-effectiveness that makes it a popular choice for general service and tyre shops.

The Core Configuration: Cameras and Targets Explained

The number of cameras and targets is a defining characteristic of a CCD wheel aligner system, directly influencing its capabilities and measurement methodology. While various configurations exist, a common and highly effective setup often involves a specific ratio of these components.

A basic yet incredibly capable model, for instance, comes equipped with four cameras and four targets. In this configuration, each wheel has a target mounted to it, and each target is 'read' by a camera. This setup is designed to provide comprehensive measurements for all four wheels simultaneously or through a sequential process, depending on the system's design and the specific measurement required.

The cameras are typically integrated into the sensor heads, which are then attached to the wheels. These heads project infrared light beams and receive reflections or transmissions from the targets. The targets themselves are passive devices, often prism-like, that reflect or refract the infrared light back to the sensors. Their design is crucial for ensuring accurate and consistent light paths, irrespective of minor movements or environmental factors.

The Role of Each Component:

• Cameras (Sensors): These are the 'eyes' of the system. They contain the CCD chips that detect infrared light. Their precise positioning and calibration are paramount for accurate data acquisition. In a 4-camera system, each camera typically focuses on a single target, allowing for a direct measurement of the wheel it's attached to relative to the vehicle's other wheels.
• Targets: These passive reflectors or receivers are mounted on the wheel rims. They are lightweight and designed to be robust. Their primary function is to provide a fixed, identifiable point for the cameras to 'see' and measure against. The accuracy of the alignment largely depends on the integrity and proper mounting of these targets.

This four-camera, four-target setup is often highlighted as a perfect substitute for current-generation CCD aligners because it provides all the necessary data points for a full four-wheel alignment without the complexity or higher cost of systems with more sensors or different technologies. It simplifies the setup process while maintaining the high levels of precision expected from modern alignment equipment.

Mastering Runout: The Sequential Shifting Advantage

One of the critical aspects of accurate wheel alignment is compensating for 'runout'. Wheel runout refers to any eccentricity or wobble in the wheel and tyre assembly. Even minor imperfections in the wheel rim or tyre mounting can lead to measurement errors if not accounted for. Traditionally, runout compensation involved lifting the vehicle and spinning each wheel, which can be time-consuming and require specific lifting equipment.

The described 4-camera, 4-target system offers an innovative solution to this challenge: runout of all wheels can be done by shifting the targets sequentially. This method is a significant advancement in workflow efficiency and accuracy. Instead of physically lifting and spinning each wheel, the technician performs a simple procedure involving slight movements or adjustments to the targets or wheels in a sequence.

How Sequential Shifting Works:

1. The targets are initially mounted on all four wheels.
2. The system prompts the technician to perform a small, controlled rotation or shift of each wheel (or target relative to the wheel) in a specific sequence.
3. As each wheel is moved, the cameras record multiple data points from the target.
4. The alignment software then uses these multiple readings to mathematically compensate for any irregularities or runout in the wheel and tyre assembly. By averaging or triangulating these points, the system can determine the true rotational axis of the wheel, effectively eliminating errors caused by mounting imperfections or wheel deformation.

This sequential shifting method drastically reduces the time and effort required for runout compensation. It eliminates the need for expensive wheel lifts dedicated to alignment and streamlines the overall alignment process, contributing significantly to workshop efficiency. It's a testament to how intelligent software and precise sensor technology can simplify complex procedures, making a basic 4-camera, 4-target system incredibly powerful and competitive.

Why Choose a CCD Aligner? Benefits and Applications

Despite the emergence of 3D imaging aligners, CCD technology remains highly relevant and preferred by many workshops due to several compelling advantages:

• Cost-Effectiveness: Generally, CCD aligners are more affordable than their 3D counterparts, making them an excellent investment for workshops with budget considerations, especially those just starting out or looking to upgrade from older mechanical systems.
• Robustness and Durability: CCD sensors are less susceptible to environmental factors like ambient light variations compared to some 3D systems. Their design often incorporates fewer delicate moving parts, leading to greater durability and lower maintenance requirements.
• Ease of Use: The setup and operation of CCD aligners are typically straightforward. The sequential runout compensation, as discussed, further simplifies the process, reducing training time for technicians.
• Accuracy and Reliability: Modern CCD aligners deliver highly accurate measurements comparable to more expensive systems, ensuring precise adjustments and satisfied customers. The wheel alignment results are consistently reliable.
• Space Efficiency: Many CCD systems require less dedicated floor space and are more portable than fixed-column 3D aligners, making them suitable for smaller workshops or mobile service units.
• Versatility: They can be used on a wide range of vehicles, from passenger cars to light commercial vehicles, provided the appropriate adaptors are used.

CCD aligners are ideally suited for general service garages, tyre shops, and independent workshops that require a dependable and accurate alignment solution without the premium cost or complex installation sometimes associated with advanced 3D systems. Their ability to perform full four-wheel alignments, including critical toe, camber, and caster measurements, ensures that vehicles leave the workshop driving true and safe.

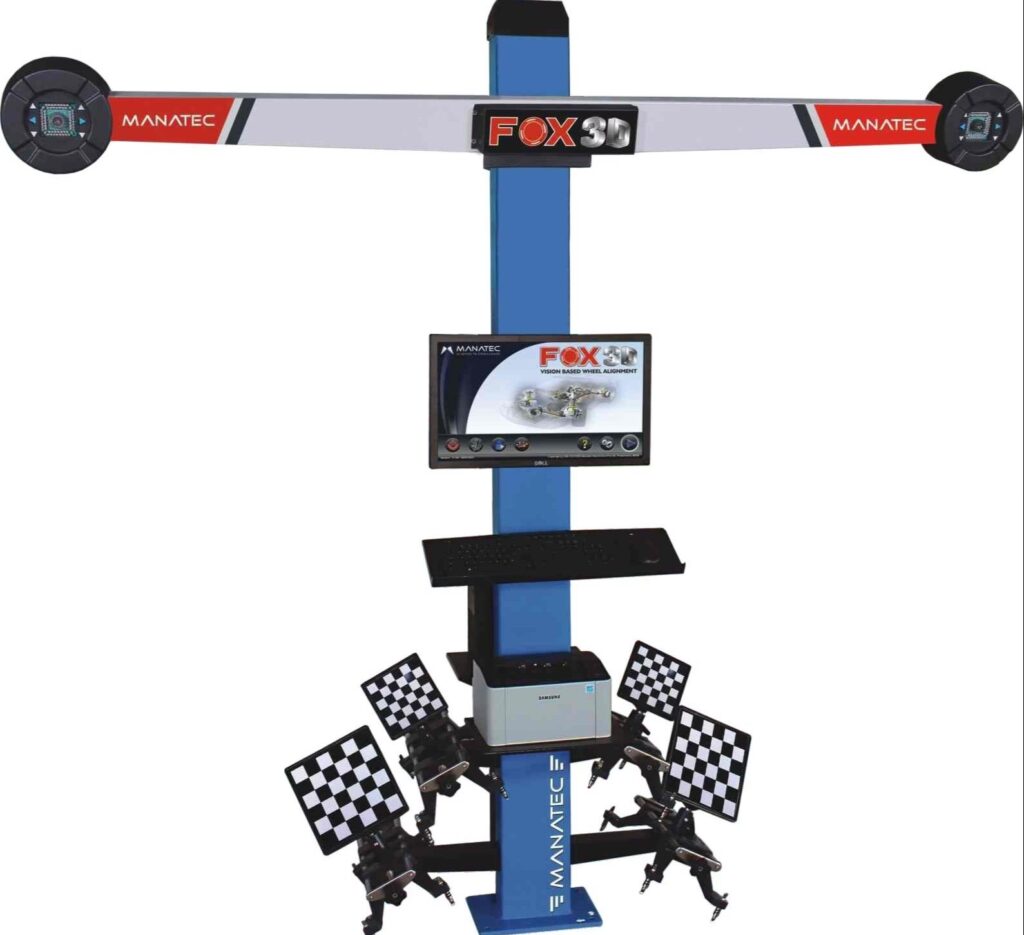

CCD vs. 3D Aligners: A Comparative Analysis

While this article focuses on CCD technology, it's beneficial to briefly compare it with 3D imaging aligners, which represent another significant segment of the market. Understanding these differences helps to appreciate where CCD systems, especially the 4-camera, 4-target model, fit into the broader landscape.

As the table illustrates, the 4-camera, 4-target CCD aligner stands as a robust and practical alternative. It delivers the core functionality and accuracy required for professional alignment services, often at a more accessible price point and with greater operational flexibility than many 3D systems. This makes it an excellent choice for a wide array of workshops looking for reliable alignment equipment.

Maintaining Your Alignment Equipment

Regardless of the technology, proper maintenance and calibration are paramount for ensuring the longevity and accuracy of your wheel aligner. For a CCD system:

• Cleanliness: Regularly clean the lenses of the camera sensors and the surfaces of the targets. Dust, grease, or damage can significantly impair measurement accuracy. Use a soft, lint-free cloth and appropriate cleaning solutions.
• Cable Integrity: If your system uses cables (even for charging), inspect them regularly for wear, fraying, or damage.
• Battery Health: For wireless sensor heads, ensure batteries are charged and maintained according to manufacturer guidelines.
• Calibration: Periodically, the aligner will require recalibration. This ensures that the sensors are still reading accurately and that the system's internal geometry remains true. Follow the manufacturer's recommendations for calibration intervals, typically annually or bi-annually. This is a crucial step to maintain precision.
• Software Updates: Keep the alignment software updated. Manufacturers often release updates that improve measurement algorithms, add new vehicle specifications, and enhance user experience.

Adhering to these maintenance practices will maximise the lifespan of your CCD aligner and ensure it continues to provide accurate measurements, safeguarding your workshop's reputation and profitability.

Frequently Asked Questions About CCD Aligners

Q1: How accurate are 4-camera, 4-target CCD aligners?

A: Modern 4-camera, 4-target CCD aligners are highly accurate, capable of measuring angles within fractions of a degree. With proper calibration and maintenance, they provide results comparable to more advanced systems, making them perfectly suitable for professional vehicle alignment.

Q2: Can a basic CCD aligner handle all types of vehicles?

A: Yes, a basic 4-camera, 4-target CCD aligner can handle a wide range of vehicles, from small passenger cars to light commercial vans, provided you have the correct wheel clamps and adaptors for different wheel sizes and types. Vehicle specifications are typically stored in the system's database.

Q3: What is the benefit of 'sequential shifting' for runout compensation?

A: Sequential shifting for runout compensation eliminates the need to lift the vehicle and spin each wheel individually. It's faster, less labour-intensive, and reduces the risk of errors associated with traditional methods, leading to more efficient workflow and consistent accuracy.

Q4: How often do CCD aligners need to be calibrated?

A: The calibration frequency depends on the manufacturer's recommendations and the aligner's usage. Typically, an annual or bi-annual calibration is advised to ensure ongoing accuracy. Regular checks for physical damage to sensors and targets are also important.

Q5: Are CCD aligners difficult to use for new technicians?

A: No, CCD aligners are generally considered user-friendly. Their intuitive software interfaces and streamlined procedures, like sequential runout compensation, make them relatively easy for new technicians to learn and operate effectively after initial training.

Q6: What's the main difference between active and passive targets?

A: Most CCD aligners use passive targets (like prisms or reflective plates) which simply reflect or refract light. Active targets, found in some systems, contain electronics that emit or receive signals themselves. Passive targets are generally more robust and maintenance-free as they don't require power.

Conclusion

The 4-camera, 4-target CCD wheel aligner represents a highly effective and practical solution for modern workshops. It embodies the essence of reliable CCD technology, offering precise measurements for crucial alignment parameters like toe, camber, and caster. Its innovative approach to runout compensation through sequential shifting not only saves time but also enhances the overall accuracy of the alignment process. This configuration proves that you don't always need the most complex or expensive equipment to achieve superior results. For garages seeking a durable, accurate, and cost-efficient alignment system that truly delivers, this foundational CCD model stands as a compelling choice, perfectly poised to meet the demands of contemporary vehicle servicing.
