Ford 7e0 PCM Mapping: A Deep Dive

The question of whether Ford's 7e0 Powertrain Control Module (PCM) offers switchable mapping, or if different power outputs are simply software-driven on a common hardware platform, is a topic that has generated considerable discussion among Ford enthusiasts. While some remain sceptical, citing a lack of factory-implemented switchable maps, others point to 'as-built' data and the logic of cost-saving manufacturing as evidence for a more flexible approach. This article delves into the findings and theories surrounding the 7e0 PCM's potential for mapping variations, particularly in relation to different power outputs found in popular Ford models.

Understanding the 7e0 PCM and 'As-Built' Data

The Powertrain Control Module (PCM) is the brain of your vehicle's engine. It monitors various sensors, interprets this data, and then dictates actions such as fuel injection, ignition timing, and turbocharger boost. The '7e0' designation refers to a specific family of Ford PCMs, commonly found across a range of their vehicles, including the Kuga, C-Max, Focus, Mondeo, and even the Edge. The concept of 'as-built' data is crucial here. This data represents the specific configuration programmed into the PCM at the factory, tailored to the vehicle's VIN (Vehicle Identification Number) and its intended specifications, including power output.

The idea that Ford might use a common PCM hardware across different power variants (e.g., 120PS, 150PS, 180PS) and differentiate them through software, rather than using entirely different ECUs, is a sound manufacturing principle. It allows for economies of scale, reducing development and production costs. The question then becomes: can this software difference be accessed or modified to unlock different power levels?

Investigating the Mapping Differences

One of the key pieces of evidence cited in favour of switchable or variant mapping within the 7e0 PCM comes from analysing 'as-built' data. By using diagnostic tools and software like Forscan, and programmes such as 'as-built explorer', it's possible to compare the configuration data of PCMs from different vehicles and power outputs. Early investigations, particularly for models like the Ford Kuga fitted with the 2.0-litre diesel engine, have yielded interesting results.

When comparing the 'as-built' data of 180PS PCMs with each other, and similarly for 150PS PCMs, a high degree of similarity is often found within each power group. This is to be expected, as these vehicles are built to the same specifications. However, when comparing the data between the 180PS and 150PS variants, a specific, consistent difference has been observed. This difference often lies in a single digit within a particular block of the PCM's configuration data. For instance, block '7E0-01-08' has been identified as a point of variation.

The Significance of a Single Digit Change

The crucial observation is that if the mapping within the PCM's engineering options is changed from the 150PS configuration to the 180PS configuration, this specific block (7E0-01-08) automatically updates to reflect the 'as-built' data of the 180PS PCM. This is not a conclusive proof of a power increase, as it doesn't automatically confirm that components like injectors, fuel pumps, turbochargers, or intercoolers are different or inherently capable of supporting more power. However, it strongly suggests that the PCM itself is programmed with the parameters for both power levels, and a simple software adjustment can engage them.

Think of it like a modern smartphone. The hardware might be capable of running a more demanding application, but it's the software that dictates whether that capability is enabled. In this context, Ford might be using the same physical PCM hardware for multiple power outputs, with the 'mapping' being the software code that defines how the engine operates to achieve that specific power level.

What About Other Power Outputs?

The principle extends beyond just the 150PS and 180PS variants. Ford offers engines with various power outputs, such as 120PS and even 220PS. The 220PS option is typically associated with twin-turbocharged engines, which are a significant hardware difference. However, for the single-turbo variants, it's plausible that the same underlying PCM hardware is used, with software differences dictating the output. The 'as-built' data would likely show further variations in configuration blocks to correspond with these different power levels.

The fact that a single diagnostic command can seemingly alter a core configuration block related to power output is a strong indicator that the capability is present within the PCM itself. It implies that Ford is not necessarily fitting entirely different ECUs for each power level but rather a common ECU that is programmed differently.

The Skeptical View: Is it Just False Hope?

It's important to acknowledge the scepticism. As one observer noted, it would be surprising to see a manufacturer deliberately equip a vehicle with a switchable map installed in the ECU from the factory. Manufacturers typically calibrate the PCM to a specific power output for a given model and engine variant. The idea of simply flipping a software switch to gain more power might seem too good to be true.

The only definitive way to confirm if a mapping change results in an actual power increase is through a dyno run. A dynamometer measures the engine's power output before and after any potential modification. Without such empirical testing, any conclusions drawn from 'as-built' data remain theoretical, albeit strongly suggestive.

Furthermore, even if the PCM software can be adjusted to a higher power setting, the engine's hardware must be able to support it. If the injectors are too small, the turbocharger is not designed for higher boost pressures, or the cooling system is inadequate, attempting to run a higher-power map could lead to engine damage. This is a critical consideration for anyone contemplating such modifications.

Table: Potential PCM Configuration Differences (Illustrative)

The following table illustrates a hypothetical scenario based on the discussed 'as-built' data findings. Please note that specific block numbers and data values can vary between Ford models and software versions.

Frequently Asked Questions

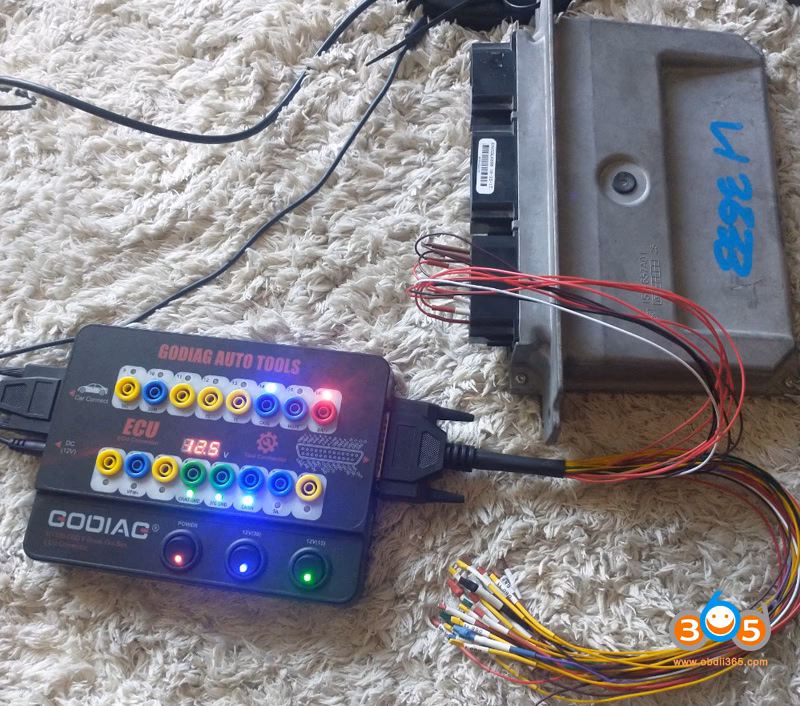

Q1: Can I use Forscan to change my Ford's PCM mapping?

Yes, Forscan is a powerful diagnostic tool that allows access to various vehicle modules, including the PCM. With the appropriate interface cable and software, you can view and, in some cases, modify certain configuration settings, often referred to as 'as-built' data. However, changing critical parameters like engine mapping should only be undertaken with extreme caution and a thorough understanding of the potential consequences.

Q2: Is it safe to change my PCM mapping from 150PS to 180PS?

While the 'as-built' data suggests the capability might be present, safety depends on whether the vehicle's hardware (engine, turbo, cooling system, etc.) is designed to handle the increased output. Attempting to unlock higher power without ensuring hardware compatibility could lead to premature wear or catastrophic failure. It is highly recommended to consult with a qualified technician or a reputable tuning specialist.

Q3: What are the risks of modifying PCM mapping?

The risks include voiding your vehicle's warranty, potential engine damage due to hardware limitations, increased fuel consumption, and potentially failing emissions tests. If the modification is not done correctly, it could also lead to drivability issues or the vehicle entering a limp-home mode.

Q4: Are there other Ford models that use the 7e0 PCM?

Yes, the 7e0 PCM is a common platform used across many Ford models, including the Kuga, C-Max, Focus, Mondeo, and Edge, particularly those equipped with the 2.0-litre diesel engine. The specific configuration and available power outputs may vary depending on the model and year.

Q5: What's the difference between a software tune and a mapping change in the PCM?

In this context, the 'mapping change' discussed refers to altering the factory-programmed parameters within the existing PCM software. A 'software tune' or 'remapping' is often performed by specialist tuning companies who develop custom software files to optimise engine performance, often going beyond simply selecting a different factory power level. Both aim to alter engine behaviour, but the former might be seen as unlocking existing factory potential, while the latter involves introducing new, custom-designed software.

Conclusion

The evidence gathered from analysing 'as-built' data strongly suggests that Ford's 7e0 PCM is capable of supporting different power outputs for the same engine, with the variations primarily being software-driven. The consistent single-digit difference in key configuration blocks between power variants, and the ability to update these blocks via diagnostic tools, points towards a common hardware platform with software-differentiated performance. While this offers an intriguing prospect for owners seeking a potential power upgrade, it is crucial to proceed with caution. Verifying hardware compatibility through dyno testing and consulting with experts is paramount to ensure the safety and longevity of your vehicle's engine.
