Maintaining your motorcycle's suspension is paramount for both safety and ride quality. Over time, the oil inside your front forks degrades, losing its damping properties and accumulating contaminants. This can lead to a harsh, spongy, or inconsistent ride. While it might seem like a job best left to the professionals, changing your fork oil is a surprisingly achievable task for the enthusiastic home mechanic in the UK, often without the need for expensive, specialised tools. This guide will walk you through the process, empowering you to restore your bike's front-end performance.
Gone are the days when such tasks were shrouded in mystery or required a hefty garage bill. With a bit of ingenuity and careful attention to detail, you can service your forks and feel the immediate improvement in your bike's handling and comfort. Let's delve into the process of refreshing your motorcycle's front suspension.
Understanding Your Fork Suspension
Before diving into the practical steps, it's helpful to understand what your forks do. Essentially, they comprise an outer tube, an inner stanchion, a spring, and the fork oil. The oil, along with internal valving, controls the compression and rebound of the spring, damping oscillations caused by bumps in the road. This ensures your front wheel stays in contact with the ground, providing stability, steering precision, and rider comfort.
The fork oil itself serves several critical functions:
- Lubrication: It lubricates the internal components, reducing friction.
- Damping: Its viscosity is crucial for controlling the rate at which the forks compress and extend.
- Heat Dissipation: It helps to dissipate heat generated during suspension movement.
Over time, the oil breaks down, becomes contaminated with microscopic metal particles from wear, and loses its inherent damping characteristics. This leads to reduced performance, which can manifest as a 'wallowy' feel, excessive dive under braking, or a harsh ride over bumps.
Tools and Materials You'll Need
While some jobs require bespoke tools, a fork oil change can often be completed with standard garage items and a clever DIY solution. Here's a comprehensive list:
- Motorcycle Stand: Essential for safely elevating your bike and supporting it. A paddock stand for the rear and a headstock stand for the front (or a sturdy jack under the engine with appropriate padding) will be ideal.
- Basic Hand Tools: Socket set, spanners, Allen keys, screwdrivers – specific sizes will depend on your bike's fasteners.
- Torque Wrench: Crucial for tightening fasteners to the manufacturer's specifications.
- Drain Pan: To collect the old, dirty fork oil.
- Measuring Jug: Accurate for measuring the correct volume of new fork oil.
- New Fork Oil: Always use the correct weight and type specified by your motorcycle manufacturer.
- Zip Ties: A simple yet effective tool for measuring fork oil level.
- Cleaning Supplies: Brake cleaner, rags, and a brush for cleaning components.
- Safety Gear: Eye protection, gloves (nitrile or similar are good for oil handling).
- DIY Spring Compressor: This is where ingenuity comes in. A 2x4 piece of timber, approximately 3-4 feet long, can be fashioned into a compressor. One end can be secured under a sturdy workbench, while the other end acts as a lever to compress the spring.
- Spring Holder: A piece of thick, rigid plastic or metal, cut to fit into the spring coils when compressed, to hold the spring in its compressed state.
- Service Manual: Absolutely invaluable for torque settings, oil volumes, and specific procedures for your bike model.
Safety First: Preparation is Key
Before you begin, ensure your workspace is clean, well-lit, and organised. Safety should always be your top priority:
- Stabilse Your Bike: Securely mount your motorcycle on appropriate stands. The front wheel will need to be off the ground.
- Eye Protection: Always wear safety glasses to protect against splashes of old oil or other debris.
- Gloves: Protect your hands from oil and grime.
- Ventilation: Work in a well-ventilated area, especially when using cleaning solvents.
- Proper Disposal: Have a plan for disposing of the old fork oil responsibly. Do not pour it down drains.
Step-by-Step Guide: The Fork Oil Change Process
This guide assumes you are performing a full fork oil change, which typically involves removing the fork legs from the bike for thorough draining and cleaning. While some bikes have drain bolts that allow for an 'in-situ' drain, a complete flush is always recommended for best results.
1. Prepare Your Motorcycle
Begin by cleaning the fork legs thoroughly. Dirt and grime around the fork caps or drain bolts can fall into the fork internals, causing damage. Loosen the top triple clamp bolts and the fork cap on each leg while the forks are still securely held by the bottom triple clamp. This prevents the fork leg from spinning when you try to loosen the cap later. Do not fully remove the caps yet.
2. Remove the Fork Legs
This step varies greatly by motorcycle. You might need to remove the front wheel, brake calipers, mudguard, and potentially the handlebars. Once these are off, loosen the lower triple clamp bolts and carefully slide each fork leg downwards and out of the triple clamps. Place them on a clean, stable surface.
3. Draining the Old Oil

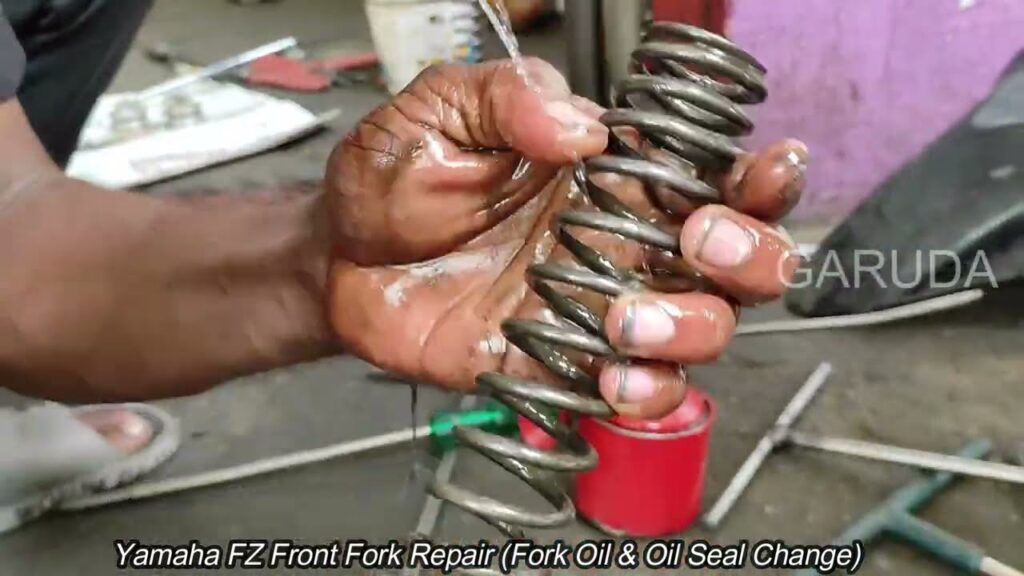

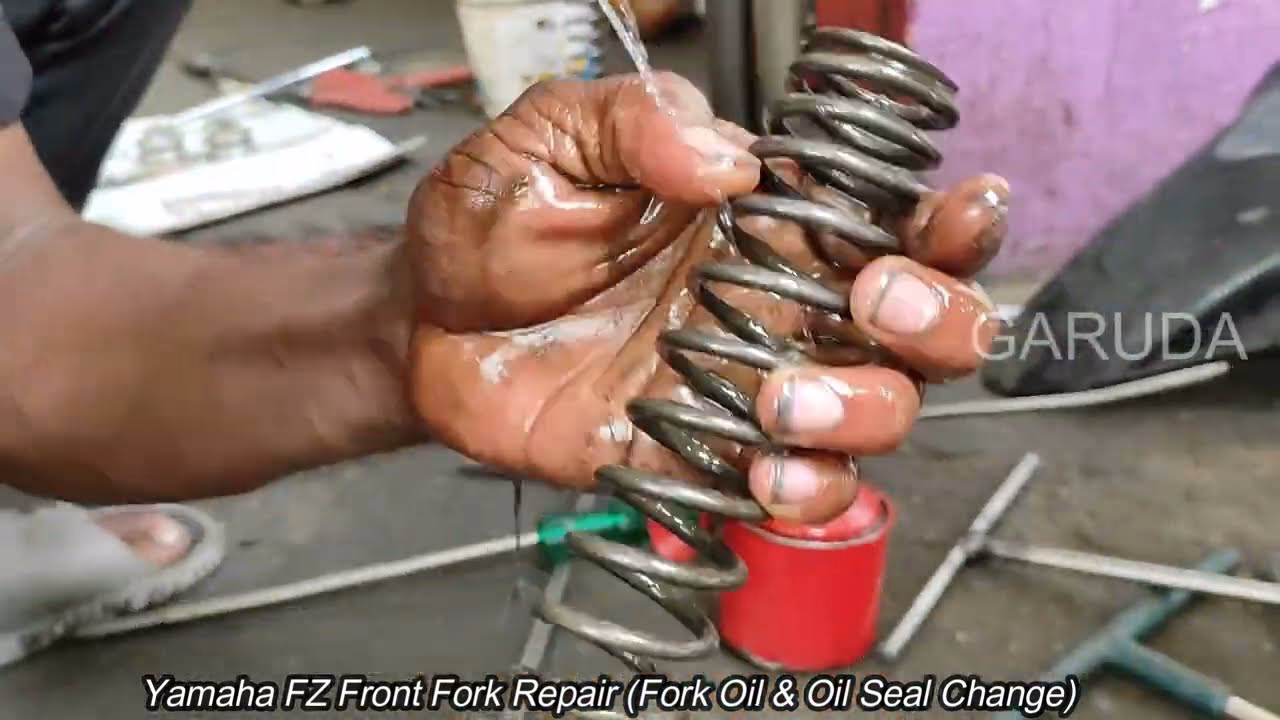

With the fork leg removed, place it over your drain pan. Now, fully unscrew and remove the fork cap. Be prepared for the spring to push against the cap as you remove it. Carefully remove the main spring. If your forks have a drain bolt at the bottom, remove it to allow the oil to flow out. If not, you'll need to invert the fork leg and pump it several times to expel as much old oil as possible. Allow ample time for it to drain thoroughly. Repeat for the other fork leg.
4. The DIY Spring Compressor in Action
This is where your home-made tool comes into play. Once the old oil is drained and the spring is out, you'll need to access the damper rod assembly, which is usually held in place by a lock nut under the fork cap. Here's how to use your DIY spring compressor:
- Secure one end of your 2x4 under your workbench or a heavy, stable object.
- Position the fork leg (without the main spring for now, or with it if you're only topping off) so that the other end of the 2x4 can press down on the top of the damper rod or spring assembly.
- Apply downward pressure on the free end of the 2x4, carefully compressing the spring or damper rod assembly.
- Once compressed sufficiently, insert your thick plastic (or metal) spring holder into the coils of the spring or around the damper rod to keep it compressed.
- With the spring/damper rod held, you can now loosen the lock nut (often 14mm or 17mm) that secures the fork cap to the damper rod.
- Once the lock nut is loose, slowly release the tension on your DIY compressor, allowing the spring and cap assembly to decompress safely.
This method, while requiring careful execution, effectively bypasses the need for a professional spring compressor. The first leg might feel a bit awkward, but you'll likely find the second leg goes much faster as you gain confidence.
5. Cleaning and Inspection
Once disassembled, clean all components thoroughly with brake cleaner and inspect them for wear or damage. Pay close attention to the fork seals, bushings, and the chrome stanchion for pitting or scoring. Any damage here could lead to leaks or poor performance.
6. Refilling with New Fork Oil
Reassemble the internal components, making sure everything is clean and correctly oriented. Before re-inserting the main spring, it's time to add the new fork oil. Pour in the manufacturer-specified volume of new fork oil. Now, slowly pump the fork leg up and down repeatedly to bleed any air out of the damper system. You'll see air bubbles rise to the surface. Continue until no more bubbles appear.
7. Setting the Oil Level
This is a critical step for proper damping. Most manufacturers specify an air gap (the distance from the top of the fork tube to the oil level, with the fork fully compressed and the spring removed). This is where your zip tie comes in handy:
- Fully compress the fork leg without the main spring.
- Insert a clean zip tie into the fork tube until it touches the oil.
- Carefully withdraw the zip tie and measure the distance from the top of the fork tube to the oil mark on the zip tie. This is your air gap.
- Adjust the oil level by adding or removing small amounts with a syringe until it matches the manufacturer's specification.
Be extremely careful not to get any debris inside the fork leg during this process. For one of the legs, you might only need to top off the oil a bit to get it to the right level, especially if you were very careful during the initial disassembly and didn't fully invert it.
8. Reassembly and Final Checks
Once the oil level is correct, re-insert the main spring. Then, using your DIY spring compressor again, compress the spring enough to get your spring holder in place. Now you can easily thread on the fork cap and tighten the lock nut. Slowly release the tension from the compressor. Reinstall the fork legs into the triple clamps, ensuring they are at the correct height and torqued to specifications. Reattach the front wheel, brake calipers, and mudguard, again ensuring all fasteners are torqued correctly. Pump the front forks a few times to settle everything before riding.
Should I Use Thick Oil for My Forks?
This is a common question, and the answer is usually no, not without understanding the implications. Fork oil viscosity (often measured in 'weight' or 'W') directly affects the damping characteristics of your suspension.
Thicker oil (higher W rating) will result in:
- Slower compression: The forks will compress more slowly over bumps.
- Slower rebound: The forks will extend back to their original position more slowly.
- Firmer feel: The suspension will feel stiffer.
Thinner oil (lower W rating) will result in:
- Faster compression: The forks will compress more quickly.
- Faster rebound: The forks will extend more quickly.
- Softer feel: The suspension will feel less firm.
While using a slightly thicker or thinner oil can be a tuning method for experienced riders to fine-tune their suspension for specific riding styles or conditions, it's generally recommended to stick to the manufacturer's specified oil weight. These specifications are chosen to provide the best balance of comfort, handling, and safety for the average rider and intended use of the bike. Deviating too much can lead to poor handling, reduced tyre grip, and even dangerous situations.
If you feel your suspension is too soft or too harsh, consider other adjustments first, such as spring preload (if adjustable) or professional re-valving, before experimenting with significantly different oil viscosities. Always consult your bike's service manual for the recommended fork oil type and weight.
Fork Oil Viscosity vs. Damping Effects
Here's a simple comparison to illustrate the general effects of different fork oil viscosities:
| Fork Oil Viscosity | General Effect on Damping | Riding Feel |
|---|---|---|
| Light (e.g., 5W) | Faster compression and rebound | Softer, more plush, potentially 'wallowy' |
| Medium (e.g., 10W - OEM standard) | Balanced compression and rebound | Standard, predictable, good all-around |
| Heavy (e.g., 15W+) | Slower compression and rebound | Firmer, more controlled, potentially harsh |
Frequently Asked Questions About Fork Oil
How often should I change my motorcycle fork oil?
Most manufacturers recommend changing fork oil every 10,000 to 20,000 miles or every one to two years, whichever comes first. However, aggressive riding, track use, or riding in dusty/dirty conditions might necessitate more frequent changes. Always check your motorcycle's service manual for specific intervals.
What happens if I don't change my fork oil?
Neglecting fork oil changes leads to degraded damping performance. The oil loses its viscosity and lubricity, leading to a harsh ride, reduced control over bumps, excessive brake dive, and accelerated wear of internal fork components like bushings and seals. In severe cases, it can compromise safety.
Can I mix different brands or weights of fork oil?
It is strongly advised against mixing different brands or weights of fork oil. Different brands may use different additive packages that can be incompatible, leading to foaming, premature breakdown, or inconsistent damping. Stick to the manufacturer's recommended type and weight, and ideally, use the same brand if possible.
Is a DIY spring compressor safe to use?
A properly constructed and carefully used DIY spring compressor, like the 2x4 method described, can be safe and effective. However, it requires extreme caution. Fork springs are under significant tension, and improper handling can lead to serious injury. Always ensure your setup is stable, secure, and that you maintain control throughout the compression and decompression process. If you have any doubts, consider purchasing a purpose-built tool or seeking professional assistance.
My forks don't have drain bolts. How do I drain the oil?
Many modern forks do not feature drain bolts. In such cases, you must fully remove the fork legs from the motorcycle, remove the fork caps and springs, and then invert the fork legs over a drain pan, pumping them repeatedly to expel all the old oil. This ensures a complete drain and allows for thorough cleaning of the internals.
What if I overfill or underfill my forks with oil?
Incorrect oil levels can severely impact fork performance. Overfilling reduces the air gap, making the forks feel excessively stiff and harsh, potentially leading to seal failure due to increased pressure. Underfilling increases the air gap, making the forks feel too soft and prone to bottoming out, reducing damping effectiveness and control. Always measure precisely and stick to the manufacturer's specified air gap or volume.
Conclusion
Performing a fork oil change on your motorcycle is a rewarding and cost-effective maintenance task that significantly impacts your riding experience. While it requires patience and attention to detail, the satisfaction of a smoother, more controlled ride is well worth the effort. By following this guide, even without specialist tools, you can confidently tackle this job, ensuring your bike's front suspension remains in peak condition. Remember, proper maintenance is not just about keeping your bike running; it's about keeping you safe and enhancing every journey on the open road.
