Crush Washer Replacement Guide

The Importance of Crush Washers and How to Replace Them

Crush washers, often overlooked but critically important, play a vital role in ensuring a secure and leak-free seal in various automotive applications. These small yet mighty components are designed to deform under pressure, creating a tight seal that prevents the leakage of fluids or gases. Whether you're dealing with an oil drain plug, a fuel line fitting, or a brake caliper bolt, the integrity of the crush washer directly impacts the reliability and safety of your vehicle. Understanding how and when to replace them is a fundamental skill for any DIY mechanic or car enthusiast looking to maintain their vehicle to the highest standards.

Failure to replace a worn or damaged crush washer can lead to significant issues, ranging from minor fluid leaks to more serious problems that could compromise vehicle safety. For instance, a leaking oil drain plug can lead to a low oil level, potentially causing severe engine damage. Similarly, a compromised brake line fitting could lead to a loss of braking power, a highly dangerous situation. Therefore, it's crucial to know the signs of a failing crush washer and to have a clear procedure for its replacement. This article will guide you through the process, providing detailed steps, important considerations, and answers to frequently asked questions.

Understanding Crush Washers: What They Are and Why They Matter

At their core, crush washers are sacrificial components. They are typically made from softer metals like copper, aluminium, or brass, and are designed to be compressed (or 'crushed') between two mating surfaces. This compression permanently deforms the washer, filling any microscopic imperfections in the surfaces and creating a watertight or airtight seal. Once a crush washer has been compressed, its sealing properties are diminished upon re-loosening and re-tightening. While some might be tempted to reuse them to save a few pence, this is strongly discouraged. The original deformation is what provides the seal; attempting to reseal with a previously crushed washer significantly increases the risk of leaks.

The effectiveness of a crush washer depends on several factors:

• Material: Different materials offer varying levels of softness, malleability, and resistance to corrosion and heat. Copper is excellent for high-temperature applications, while aluminium is often used for its lighter weight and good sealing properties.
• Size and Shape: Crush washers come in a wide array of sizes and profiles, each designed for a specific application. Using the incorrect size or type can lead to improper sealing or damage to the components.
• Torque Specification: The amount of force applied when tightening the fastener is crucial. Overtightening can damage the washer and the surrounding components, while undertightening will result in a poor seal.

Regularly inspecting and replacing crush washers, especially during routine maintenance like oil changes, is a proactive step in preventing potential problems. It's a small investment in parts that can save you from much larger repair bills and headaches down the line.

When Should You Replace a Crush Washer?

The decision to replace a crush washer is generally based on a few key indicators. The most obvious sign is a leak. If you notice any fluid weeping or dripping from a fitting that uses a crush washer, it's a strong indication that the washer needs replacing. This is particularly common with oil drain plugs and power steering lines.

Beyond visible leaks, it's also good practice to replace crush washers as part of a preventative maintenance schedule. Consider replacing them whenever you:

• Perform an oil change: The oil drain plug is a prime candidate for crush washer replacement. It's inexpensive and easy to do while the plug is already out.
• Service brake systems: Crush washers are often used on brake line fittings. Replacing them during brake service ensures the integrity of the hydraulic system.
• Work on fuel lines: Similar to brake lines, fuel line fittings often utilise crush washers to prevent leaks of volatile fuel.
• Disassemble any component with a sealed fitting: If a component secured by a bolt or nut with a crush washer has been removed for any reason, it's best practice to fit a new washer upon reassembly.

Some mechanics advocate for replacing crush washers every time a fitting is disturbed, even if no leak is apparent. This 'ounce of prevention' approach can save considerable trouble later on. Think of it as cheap insurance against future leaks.

The Step-by-Step Process for Replacing Crush Washers

Replacing a crush washer is generally a straightforward process, but it requires attention to detail. The exact procedure can vary slightly depending on the specific component, but the core principles remain the same. For the purpose of this guide, we will outline a general procedure applicable to common tasks like replacing an oil drain plug crush washer.

Gathering Your Tools and Materials:

Before you begin, ensure you have the necessary items:

• New crush washer(s): Make sure you have the correct size and type for your specific vehicle and application. It's always a good idea to have a few spares on hand.
• Appropriate wrenches or sockets: To remove and tighten the fastener.
• Container for old oil (if applicable): For oil drain plug replacement.
• Rags or shop towels: For cleaning up spills.
• Gloves: To keep your hands clean.
• Safety glasses: To protect your eyes.

The Replacement Procedure:

1. Prepare the Vehicle: Ensure the vehicle is safely supported, typically on jack stands if you need to get underneath it. If working on an oil drain plug, ensure the engine is warm (but not scalding hot) as this helps the oil drain more freely.
2. Locate the Fastener: Identify the bolt or nut that secures the component and has the crush washer. For an oil drain plug, this is typically at the bottom of the oil sump.
3. Remove the Fastener: Using the appropriate wrench or socket, carefully loosen and remove the fastener. Be prepared for any residual fluid to drain out. If it's an oil drain plug, position your collection container underneath before fully removing the plug.
4. Remove the Old Washer: Once the fastener is removed, the old crush washer will likely be stuck to either the fastener or the component it was sealing. You may need to gently pry it off with a small flathead screwdriver or pliers. Be careful not to scratch the mating surfaces.
5. Clean the Mating Surfaces: Thoroughly clean the surface of the fastener and the component where the washer sits. Ensure there is no dirt, debris, or old sealant that could compromise the new seal.
6. Install the New Washer: Place the new crush washer onto the fastener. Ensure it sits flush and is correctly oriented. Some washers have a specific side that should face outwards or inwards; check your vehicle's manual if unsure.
7. Reinstall the Fastener: Screw the fastener back into place by hand to avoid cross-threading. Once it's snug, use your wrench or socket to tighten it.
8. Torque to Specification: This is a critical step. Tighten the fastener to the manufacturer's specified torque setting using a torque wrench. Overtightening can damage the new washer and the threads, while undertightening will lead to leaks. If you don't have a torque wrench, tighten it until it feels snug, then give it an additional quarter to half turn, but be cautious.
9. Check for Leaks: After completing the work, start the engine (if applicable) and allow it to run for a few minutes. Inspect the area around the fitting for any signs of leaks. Check again after the engine has cooled down.

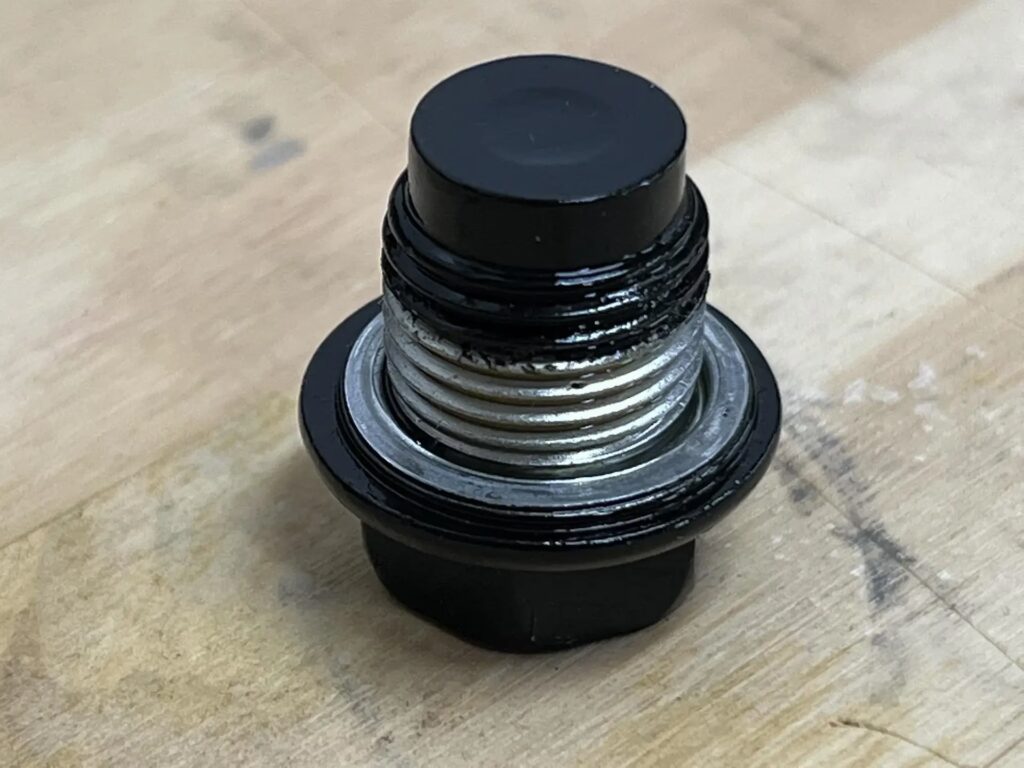

Illustrative Example: Replacing an Oil Drain Plug Crush Washer

Let's consider the common task of replacing the crush washer on an oil drain plug. This is a perfect example of a routine maintenance item where a new crush washer is essential.

Common Pitfalls and How to Avoid Them

While replacing crush washers is generally simple, several common mistakes can lead to problems:

• Reusing Old Washers: As stressed before, this is a major cause of leaks. The washer has already deformed; it cannot provide a reliable seal again.
• Using the Wrong Size/Type: Always verify you have the correct crush washer for the specific application. A washer that is too small won't cover the sealing surface, and one that is too large might not fit correctly or could be damaged during installation.
• Overtightening: This is a very common error, especially for those without a torque wrench. Overtightening can strip threads, crack the component, or severely damage the crush washer, ironically leading to leaks.
• Undertightening: Conversely, not tightening enough will result in an insufficient seal and immediate leakage.
• Damaging Mating Surfaces: When removing the old washer or cleaning the surfaces, be careful not to scratch or gouge the metal. These imperfections can prevent the new washer from sealing properly.
• Cross-threading the Fastener: Always start threading bolts or nuts by hand to ensure they are engaging correctly before using a wrench.

By being aware of these potential issues and taking your time, you can ensure a successful crush washer replacement every time.

Frequently Asked Questions

Q1: How often should I replace my crush washers?

A1: It's best practice to replace crush washers whenever a fitting secured by one is disturbed, especially during routine maintenance like oil changes or brake servicing. Proactive replacement prevents leaks.

Q2: Can I reuse a crush washer if it doesn't look damaged?

A2: No, it is strongly advised against reusing crush washers. They are designed to deform upon first use to create a seal. Reusing them significantly increases the risk of leaks.

Q3: What happens if I overtighten a crush washer?

A3: Overtightening can damage the crush washer, the fastener threads, or the component itself. This can lead to leaks or necessitate more costly repairs.

Q4: Where can I buy the correct crush washers for my car?

A4: You can typically purchase the correct crush washers from your vehicle's manufacturer dealership, reputable auto parts stores, or online automotive suppliers. Always check your vehicle's owner's manual or a parts catalogue for the specific part number.

Q5: Do all bolts and nuts need crush washers?

A5: No, crush washers are only used in specific applications where a fluid or gas seal is critical and the design of the fitting requires a deformable washer. Many fasteners rely on other sealing methods or are simply tightened directly against metal surfaces.

Conclusion

Crush washers are small but essential components that contribute significantly to the overall integrity and safety of your vehicle. By understanding their function, recognising the signs that indicate a need for replacement, and following a meticulous replacement procedure, you can effectively prevent leaks and maintain optimal performance. Regular inspection and replacement, particularly during routine maintenance tasks, is a cost-effective way to ensure your vehicle remains in top condition and to avoid potentially costly repairs down the line. Remember, proper sealing is key to longevity.
