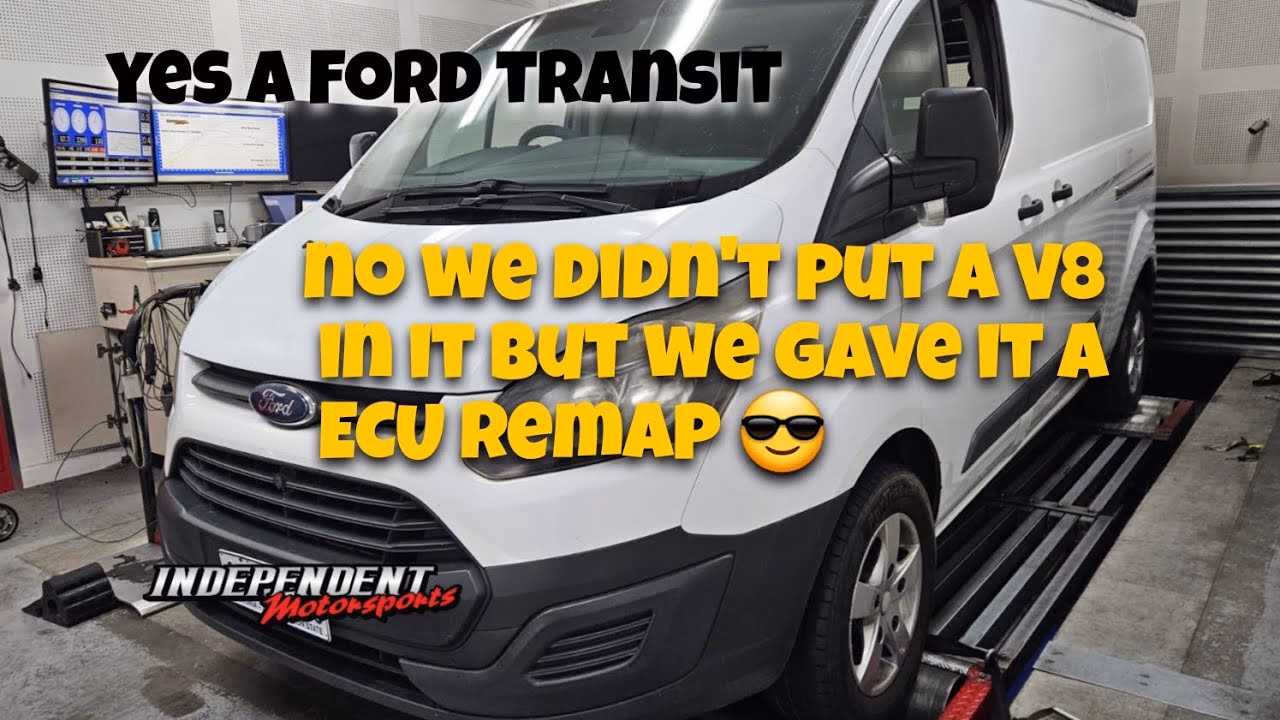

Can My Ford Transit Be Remapped? The Definitive Guide
It's a question many Ford Transit owners ponder: can my trusty workhorse be given a new lease of life through ECU remapping? The answer, in short, is a resounding yes! If you're looking to enhance your van's performance, improve fuel efficiency, or both, professional ECU remapping for your Ford Transit is a highly effective solution. This process, also known as chip tuning, involves optimising the software within your vehicle's Engine Control Unit (ECU) to unlock hidden potential, leading to significant improvements in power, torque, and even fuel economy.
Our power-optimised ECU remaps are designed to deliver tangible benefits. For turbo diesel variants, you can expect an impressive boost in both BHP (Brake Horsepower) and torque, often by as much as 35%. Even if your primary concern is reducing running costs, a fuel-efficient diesel remap can lead to substantial savings, potentially cutting your fuel expenditure by up to 15%. This isn't just about raw power; it's about making your Ford Transit work smarter, not harder.
The Comprehensive Benefits of Professional ECU Remapping
Opting for a professional remap for your Ford Transit brings a wealth of advantages that extend far beyond simple speed increases. Here's a breakdown of what you can expect:
- Increased Horsepower: Experience a noticeable uplift in the engine's power output, making acceleration more responsive and driving more engaging.
- Increased Torque: More torque means greater pulling power, which is invaluable for commercial use, especially when carrying heavy loads or towing.
- Sharper Throttle Response: Feel an immediate connection between your foot on the accelerator and the engine's reaction, making the van feel more agile and direct.
- Faster Acceleration: Get up to speed more quickly, reducing the time spent merging into traffic or overtaking slower vehicles.
- Smoother Power Delivery: Enjoy a more linear and refined power curve, eliminating any abrupt surges or hesitations.
- Eliminated Flat Spots: Professional tuning can iron out any dips in the power band, ensuring consistent performance across the rev range.
- Improved Fuel Economy: By optimising engine parameters, the remap can lead to more efficient combustion, translating into lower fuel consumption.
- Safer Overtaking: The combination of increased power and sharper response significantly reduces the time and distance required for safe overtaking manoeuvres.
How Does ECU Remapping Work?
The magic behind ECU remapping lies in the meticulous adjustment of your vehicle's engine management parameters. The ECU is essentially the brain of your engine, controlling everything from fuel injection to ignition timing. Our expert technicians carefully analyse and optimise these parameters to achieve the desired performance gains.
For turbo diesel engines, this typically involves:
- Fuel Delivery Rates: Adjusting the amount of fuel injected into the cylinders at different engine speeds and loads.
- Boost Pressure: Optimising the pressure at which the turbocharger forces air into the engine, leading to a more potent combustion.
- Pump Timing: Fine-tuning the timing of the fuel pump to ensure optimal fuel delivery.
For petrol engines, adjustments might also include:
- Spark Ignition Timing: Optimising when the spark plug fires to maximise power and efficiency.
These adjustments are made to various electronic maps within the ECU's calibration file, which govern torque, throttle response, and even top speed. Once these parameters are carefully optimised, the new calibration file is programmed back into your car's ECU. Crucially, before you take delivery, your Ford Transit undergoes thorough testing to ensure the remap is performing safely and effectively, allowing you to immediately enjoy the enhanced efficiency and power output of your engine.
Ford Transit Remapping Options: A Closer Look
We offer professional mobile remapping services for a wide range of Ford Transit models. Our tuning data is specifically developed for performance remapping, suitable for standard turbo diesel Ford Transits or those with minor modifications such as performance air filters and exhausts. For more complex modifications, please contact us for tailored advice.
Below is a comprehensive table detailing the performance gains achievable for various Ford Transit models. Please note that prices quoted are for mobile remapping services and include travel of up to 30 miles from our base in Doncaster.
| Ford Transit Model | ECU Type | Original BHP | Original Torque (NM) | Tuned BHP (+ Gain) | Tuned Torque (NM) (+ Gain) | Price |
|---|---|---|---|---|---|---|
| TRANSIT MK7 2.2 TDCI 86HP P8F (2006+) | VISTEON DCU102 | 86 BHP | 250 NM | 112 BHP (+26) | 325 NM (+75) | £185.00 |
| TRANSIT MK7 2.2 TDCI 110HP QVFA (2006+) | VISTEON DCU102 | 110 BHP | 250 NM | 163 BHP (+53) | 410 NM (+160) | £185.00 |
| TRANSIT MK7 2.2 TDCI 131HP QWFA (2006+) | VISTEON DCU102 | 131 BHP | 340 NM | 163 BHP (+32) | 410 NM (+70) | £185.00 |
| TRANSIT MK7 2.4 TDCI 100HP PHF (2006+) | VISTEON DCU102 | 100 BHP | 285 NM | 132 BHP (+32) | 371 NM (+86) | £185.00 |
| TRANSIT MK7 2.4 TDCI 115HP JXFA (2006+) | VISTEON DCU102 | 115 BHP | 310 NM | 150 BHP (+35) | 403 NM (+93) | £185.00 |
| TRANSIT MK7 2.4 TDCI 140HP H9F (2006+) | VISTEON DCU102 | 140 BHP | 375 NM | 182 BHP (+42) | 488 NM (+113) | £185.00 |
| TRANSIT MK7 2.2 TDCI 140HP PGFA UHFC (2007+) | VISTEON DCU102 | 140 BHP | 350 NM | 178 BHP (+38) | 410 NM (+60) | £185.00 |
| TRANSIT MK7 2.2 TDCI 115HP SRF (2008+) | VISTEON DCU102 | 115 BHP | 300 NM | 163 BHP (+48) | 410 NM (+110) | £185.00 |
| TRANSIT MK7 2.2 TDCI 100HP DRRC (2011+) | VISTEON DCU102 | 100 BHP | 285 NM | 132 BHP (+32) | 371 NM (+86) | £185.00 |
| TRANSIT MK7 2.2 TDCI 125HP CYRC (2011+) | VISTEON DCU102 | 125 BHP | 340 NM | 163 BHP (+38) | 410 NM (+70) | £185.00 |
| TRANSIT MK8 2.2 TDCI 125HP US (2012+) | SIEMENS SID208 SID209 | 125 BHP | 350 NM | 185 BHP (+60) | 455 NM (+105) | £185.00 |
| TRANSIT MK8 2.2 TDCI 155HP CV (2012+) | SIEMENS SID208 SID209 | 155 BHP | 400 NM | 185 BHP (+30) | 455 NM (+55) | £185.00 |
| TRANSIT MK8 2.0 TDCI 105HP YLF (2014+) | SIEMENS SID211 | 105 BHP | 320 NM | 190 BHP (+85) | 480 NM (+160) | £195.00 |
| TRANSIT MK8 2.0 TDCI 131HP YMR (2014+) | SIEMENS SID211 | 131 BHP | 360 NM | 190 BHP (+59) | 480 NM (+120) | £195.00 |
| TRANSIT MK8 2.0 TDCI 170HP YNR (2014+) | SIEMENS SID211 | 170 BHP | 405 NM | 190 BHP (+20) | 480 NM (+75) | £195.00 |
Frequently Asked Questions about Ford Transit Remapping
Q1: Will remapping affect my van's warranty?
A: While remapping can potentially invalidate certain aspects of your manufacturer's warranty, especially those directly related to powertrain components, it's crucial to understand that our remapping process is designed to be safe and reliable. We always recommend discussing your intentions with your warranty provider, though many customers proceed without issue.
Q2: Is ECU remapping safe for my Ford Transit?
A: Yes, when performed by qualified professionals using quality equipment and data, ECU remapping is perfectly safe. We meticulously calibrate the engine parameters to operate within safe tolerances, ensuring the longevity of your engine and its components. We never push the engine beyond its designed limits.
Q3: How long does a remap take?
A: A typical ECU remap for your Ford Transit usually takes between 1 to 3 hours, depending on the specific model and ECU. Our mobile service aims to be as efficient as possible, minimising downtime for your van.
Q4: Can I revert the remap if I want to?
A: Absolutely. We can always restore your Ford Transit's original ECU software if you decide to revert the changes. This is a straightforward process and can be done at any time.
Q5: Will remapping increase my insurance premium?
A: As remapping increases your vehicle's performance, it's considered a modification. You are legally required to inform your insurance provider of any modifications made to your vehicle. Failure to do so could invalidate your insurance.
The Smart Choice for Your Ford Transit
Remapping your Ford Transit is a smart investment for anyone looking to enhance performance, improve efficiency, or simply make their van more responsive and enjoyable to drive. With our professional, mobile service and a clear understanding of the benefits, you can be confident in unlocking your Transit's full potential. Contact us today to book your remap and experience the difference!
