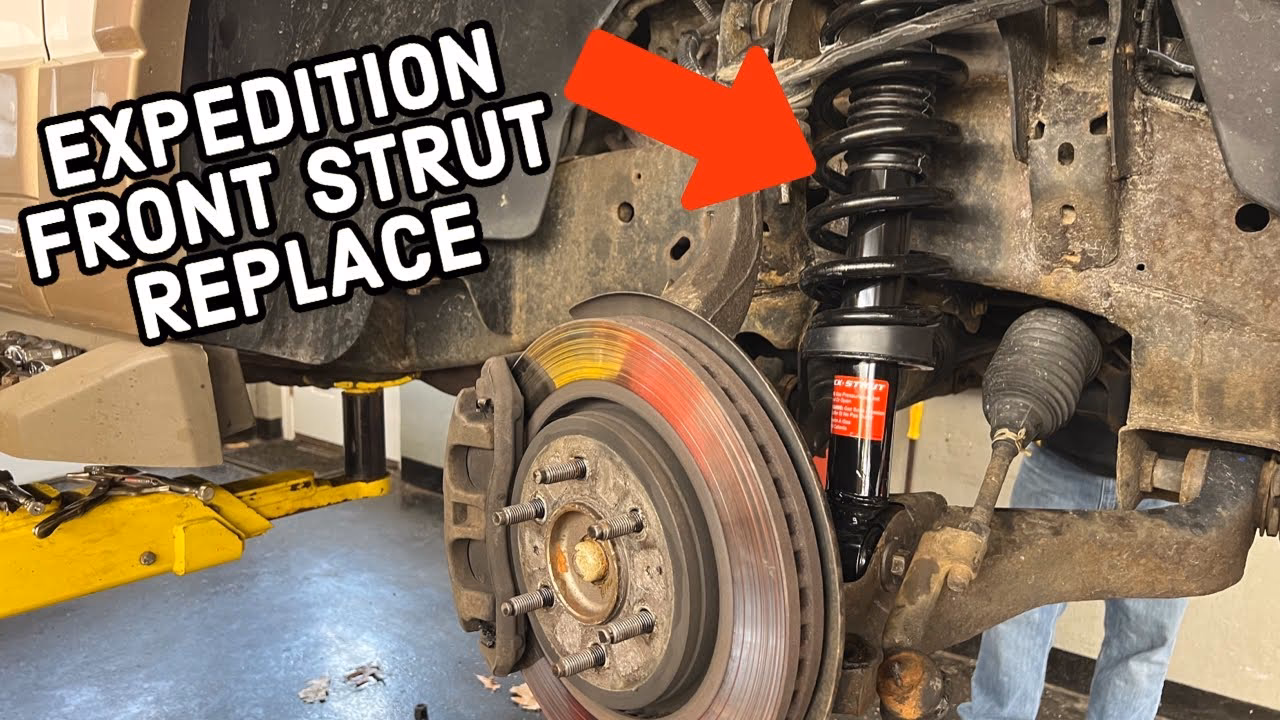

When to Replace Your Ford's Shock Absorbers

Your Ford is engineered for a smooth, controlled, and safe driving experience. A crucial component in achieving this is the humble shock absorber. Often overlooked until problems arise, these vital parts of your suspension system play a monumental role in keeping your tyres firmly on the road, absorbing bumps, and maintaining vehicle stability. Ignoring their condition can lead to a significantly compromised ride, accelerated wear on other components, and, most importantly, a serious risk to your safety. So, how do you know when it's time to replace your Ford's shock absorbers?

Understanding the function of shock absorbers is the first step towards appreciating their importance. Contrary to popular belief, they don't 'absorb' the shock of bumps directly. That's primarily the job of your springs. Instead, shock absorbers, or 'dampers' as they are sometimes called, control the oscillations and bouncing motion of your vehicle's springs. Without them, your car would bounce uncontrollably after every bump, making it incredibly difficult to drive, severely impacting tyre contact with the road, and increasing stopping distances. They convert the kinetic energy of suspension movement into heat, which is then dissipated.

The Critical Role of Shock Absorbers in Your Ford

For your Ford, whether it's a Fiesta, Focus, Kuga, or Transit, the shock absorbers are integral to its performance characteristics. They ensure consistent tyre-to-road contact, which is paramount for effective braking, precise steering, and stable cornering. When they begin to wear out, these fundamental aspects of vehicle control are compromised. Imagine driving at speed and hitting a pothole; a healthy shock absorber will quickly dampen the rebound, whereas a worn one will allow your car to bounce multiple times, momentarily lifting the tyre off the road. This loss of traction is extremely dangerous, particularly in wet conditions or during emergency braking.

Key Functions:

• Maintaining Tyre Contact: Ensures your tyres are always gripping the road for optimal traction.
• Controlling Body Roll: Reduces the lean of the vehicle when cornering, enhancing stability.
• Improving Braking Performance: Prevents nose-diving during hard braking, distributing weight evenly.
• Enhancing Ride Comfort: Smooths out bumps and vibrations, leading to a more pleasant journey.
• Reducing Wear on Other Components: Protects tyres, steering components, and other suspension parts from excessive stress.

Recognising the Signs of Worn Shock Absorbers

Identifying worn shock absorbers often comes down to paying attention to how your Ford feels and behaves on the road. Many of the symptoms are subtle at first but worsen over time. Being proactive can save you significant costs and enhance your safety.

1. Excessive Bouncing or 'Porpoising'

This is perhaps the most classic symptom. If your Ford continues to bounce or oscillate several times after hitting a bump or dip in the road, rather than settling quickly, your shock absorbers are likely failing. The car might feel like a boat on choppy water, particularly noticeable at higher speeds or on uneven surfaces. This 'porpoising' effect means the dampers are no longer effectively controlling the spring's motion.

2. Reduced Handling and Stability

A car with worn shocks will feel less stable and harder to control, especially when cornering. You might notice excessive body roll, a feeling of 'floating' over bumps, or a general vagueness in the steering. The vehicle may also tend to 'wander' on the road, requiring constant steering corrections to keep it in a straight line. This reduction in handling significantly impairs your ability to react to sudden obstacles or execute emergency manoeuvres.

3. Nose-Diving During Braking or Squatting During Acceleration

When you brake firmly, a healthy suspension system will manage the weight transfer effectively. With worn front shock absorbers, your Ford's front end will dip excessively, or 'nose-dive', more than usual. Conversely, if the rear shocks are weak, the rear of the car may 'squat' significantly during acceleration, leading to a loss of traction. Both scenarios compromise braking efficiency and acceleration stability.

4. Uneven or Premature Tyre Wear

Because worn shock absorbers allow the tyres to bounce and lose consistent contact with the road, they can cause uneven wear patterns on your tyres. You might observe 'scalloping' or 'cupping' patterns, where portions of the tyre tread are worn down more than others. This isn't just an aesthetic issue; it reduces tyre grip and shortens the lifespan of your expensive tyres.

5. Fluid Leaks

Shock absorbers are hydraulic components, meaning they contain fluid (oil or gas) that helps dampen motion. A visual inspection might reveal fluid leaking from the shock absorber body. Any visible fluid around the piston rod or body of the shock is a clear indication of a seal failure, meaning the shock absorber is no longer functioning correctly and needs immediate replacement. This is one of the most definitive signs of failure.

6. Audible Noises

As shock absorbers wear out, they can start to produce various noises. You might hear clunking, rattling, or thumping sounds, especially when driving over bumps, potholes, or rough roads. These noises often indicate that internal components are loose or damaged, or that the mounting bushes have worn out. A professional inspection is highly recommended if you hear such sounds.

7. Visible Damage

Beyond fluid leaks, a physical inspection might reveal other forms of damage. This could include dents on the shock absorber body, bent or rusted piston rods, or damaged mounting points. Road debris, accidents, or simply long-term corrosion can contribute to such visible deterioration. Any significant physical damage warrants immediate attention.

Factors Influencing Shock Absorber Lifespan

The lifespan of your Ford's shock absorbers isn't fixed. Several factors contribute to how long they will last:

• Mileage: Generally, shock absorbers are expected to last between 50,000 to 100,000 miles. However, this is a very broad range.
• Driving Conditions: Frequent driving on rough roads, potholes, speed bumps, or off-road conditions will significantly accelerate wear.
• Vehicle Load: Regularly carrying heavy loads or towing trailers puts extra stress on the suspension system, reducing shock absorber life.
• Climate: Extreme temperatures, road salt, and corrosive elements can degrade seals and components over time.
• Driving Style: Aggressive driving, sharp turns, and sudden braking also contribute to faster wear.

It's important to remember that shock absorbers wear gradually, often making it difficult to notice the deterioration until it's significant. This is why regular inspections are so important.

The Bounce Test and Visual Inspection

While not a definitive diagnostic, a simple 'bounce test' can give you a preliminary indication of your shock absorber health:

1. Park your Ford on a level surface.
2. Go to each corner of the vehicle, push down firmly on the wing above the wheel, and then release.
3. Observe how many times the car bounces. A healthy shock absorber will allow the car to bounce once and then settle immediately. If it bounces two or more times, the shock absorber at that corner is likely worn.

Beyond the bounce test, a visual inspection can reveal leaks, rust, or damage. Look for fluid streaks, corroded components, or damaged rubber bushes around the top and bottom mounting points. If you're unsure, it's always best to have a qualified mechanic perform a thorough inspection.

Consequences of Driving with Worn Shocks

Ignoring worn shock absorbers isn't just about an uncomfortable ride; it has serious implications:

• Reduced Safety: Increased stopping distances, reduced control in emergency manoeuvres, and higher risk of aquaplaning. Your safety is paramount.
• Accelerated Wear of Other Components: Tyres, springs, ball joints, steering rack, and wheel bearings will all be subjected to increased stress and wear out faster.
• Compromised Comfort: A bumpy, uncontrolled ride can be exhausting and unpleasant for both driver and passengers.
• Increased Fuel Consumption: While minor, a constantly bouncing vehicle can be less aerodynamic and efficient.

Replacement Considerations for Your Ford

When it comes to replacing your Ford's shock absorbers, you generally have two main options: OEM (Original Equipment Manufacturer) parts or aftermarket parts.

It's generally recommended to replace shock absorbers in pairs (both front or both rear) to ensure balanced suspension performance. Replacing only one can lead to uneven handling and accelerated wear on the new component. While DIY replacement is possible for experienced mechanics, it often requires specialist tools and knowledge, especially for McPherson strut designs common in many Fords. For most owners, professional installation by a qualified technician is the safest and most reliable option.

Cost of Replacement

The cost of replacing shock absorbers on a Ford can vary significantly depending on the model, whether you choose OEM or aftermarket parts, and labour rates. Generally, you can expect to pay for the parts themselves (which can range from £50 to £200+ per shock) plus several hours of labour. Always get a quote from a reputable garage or Ford service centre before proceeding.

Frequently Asked Questions About Ford Shock Absorbers

Q: How often should Ford shock absorbers be replaced?

A: There's no fixed schedule, but as a general guideline, they should be inspected every 12,000 miles or annually. Replacement typically occurs between 50,000 and 100,000 miles, depending on driving conditions, vehicle load, and your driving style. Some might last longer, others less, so rely on symptoms and professional inspection.

Q: Can I replace just one shock absorber?

A: While technically possible, it is strongly advised to replace them in pairs (both front or both rear). Replacing only one can lead to uneven damping, unbalanced handling, and premature wear on the new shock due to the disparity in performance.

Q: What happens if I don't replace worn shock absorbers?

A: Driving with worn shock absorbers compromises your Ford's safety, handling, and comfort. It increases stopping distances, reduces tyre grip, causes excessive tyre wear, puts stress on other suspension components, and makes the ride uncomfortable. It's a significant safety concern.

Q: Are aftermarket shock absorbers as good as OEM for my Ford?

A: It depends on the brand. Many reputable aftermarket brands produce high-quality shock absorbers that can match or even exceed OEM performance. However, there are also lower-quality options. Always research brands and read reviews, or consult with a trusted mechanic for recommendations.

Q: How long does it take to replace shock absorbers?

A: The time required varies depending on the Ford model and whether it's the front or rear shocks. Generally, a professional mechanic can replace a pair of shock absorbers in 1 to 3 hours, but this can extend if there are complications like seized bolts.

Q: Do I need a wheel alignment after replacing shock absorbers?

A: Yes, it is highly recommended to get a wheel alignment after replacing shock absorbers, especially if you've replaced the front struts (which are part of the steering knuckle assembly). Replacing suspension components can alter the vehicle's alignment settings, leading to uneven tyre wear and poor handling if not corrected.

Conclusion

Your Ford's shock absorbers are silent guardians of your ride quality, handling, and most importantly, your safety. They are a wear-and-tear item, and their performance degrades gradually, often without immediate notice. By staying vigilant for the signs of wear – excessive bouncing, reduced handling, uneven tyre wear, fluid leaks, or unusual noises – you can ensure timely replacement. Don't wait until your Ford feels truly unstable or uncomfortable. Regular inspections by a qualified mechanic are the best way to monitor their condition and ensure your Ford remains a pleasure to drive, keeping you safe on the roads for years to come.
