Unravelling the Lehman 120: How Not to Kill a Legend

The Lehman 120, a staple in countless trawlers and displacement vessels, holds an almost mythical status among marine engine enthusiasts. Renowned for its unparalleled reliability and longevity, it's often said that these engines are virtually indestructible. Indeed, many owners report their Lehman 120s effortlessly exceeding 10,000 hours of operation, running smoothly even after years of dormancy. But while their robust design makes them incredibly forgiving, there are specific, critical areas where neglect can, in fact, lead to the demise of this marine legend. Understanding these vulnerabilities, and implementing diligent maintenance, is the true secret to ensuring your Lehman 120 continues to serve you faithfully for decades to come.

Contrary to popular belief, simply letting a Lehman 120 sit for extended periods is unlikely to 'kill' it. Stories abound of these engines firing up on the first crank after half a decade or more of inactivity. The real threats to a Lehman's lifespan aren't disuse, but rather specific, preventable maintenance oversights. Let's delve into the actual ways you might inadvertently harm this otherwise bulletproof powerplant, and more importantly, how to prevent them.

The Primary Adversaries: What Truly Threatens Your Lehman 120

While general neglect is never advisable, two specific issues stand out as the most common culprits in the premature failure of a Lehman 120:

1. Overheating: The Silent, Destructive Force

This is arguably the most significant threat to any marine engine, and the Lehman 120 is no exception. Allowing your engine to consistently run at excessive temperatures, or experiencing a sudden, severe overheat, can cause catastrophic damage. Overheating leads to warped cylinder heads, cracked blocks, piston seizure, and compromised bearings – all incredibly expensive, if not terminal, issues.

The cooling system of your Lehman 120 is its lifeblood. It's a dual-circuit system: a raw water side that draws in seawater to cool a heat exchanger, and a closed freshwater side (containing coolant) that circulates through the engine block, transferring heat to the heat exchanger. Neglect in either circuit can lead to problems.

• Raw Water Impeller: This small, rubber component in the raw water pump is designed to push seawater through the system. It's a wear item and should be inspected and replaced regularly (typically annually or every 200-300 hours, whichever comes first). A failed impeller means no raw water flow, leading to rapid overheating.
• Heat Exchanger: Over time, the tubes inside the heat exchanger can become fouled with marine growth, salt deposits, or corrosion. This reduces its efficiency in transferring heat from the freshwater coolant to the raw water. Regular cleaning and inspection are vital.
• Coolant Level and Quality: Ensure your closed freshwater cooling system is always topped up with the correct type of marine-grade coolant (antifreeze/coolant mix). Coolant degrades over time, losing its corrosion inhibitors and heat transfer properties. It should be changed according to the manufacturer's recommendations.
• Thermostat: A faulty thermostat can prevent the engine from reaching its optimal operating temperature or, more dangerously, prevent it from opening fully, leading to overheating.
• Seawater Strainer and Hoses: Regularly check and clean the raw water strainer for debris. Inspect all hoses for cracks, bulges, or signs of deterioration that could lead to leaks or blockages.

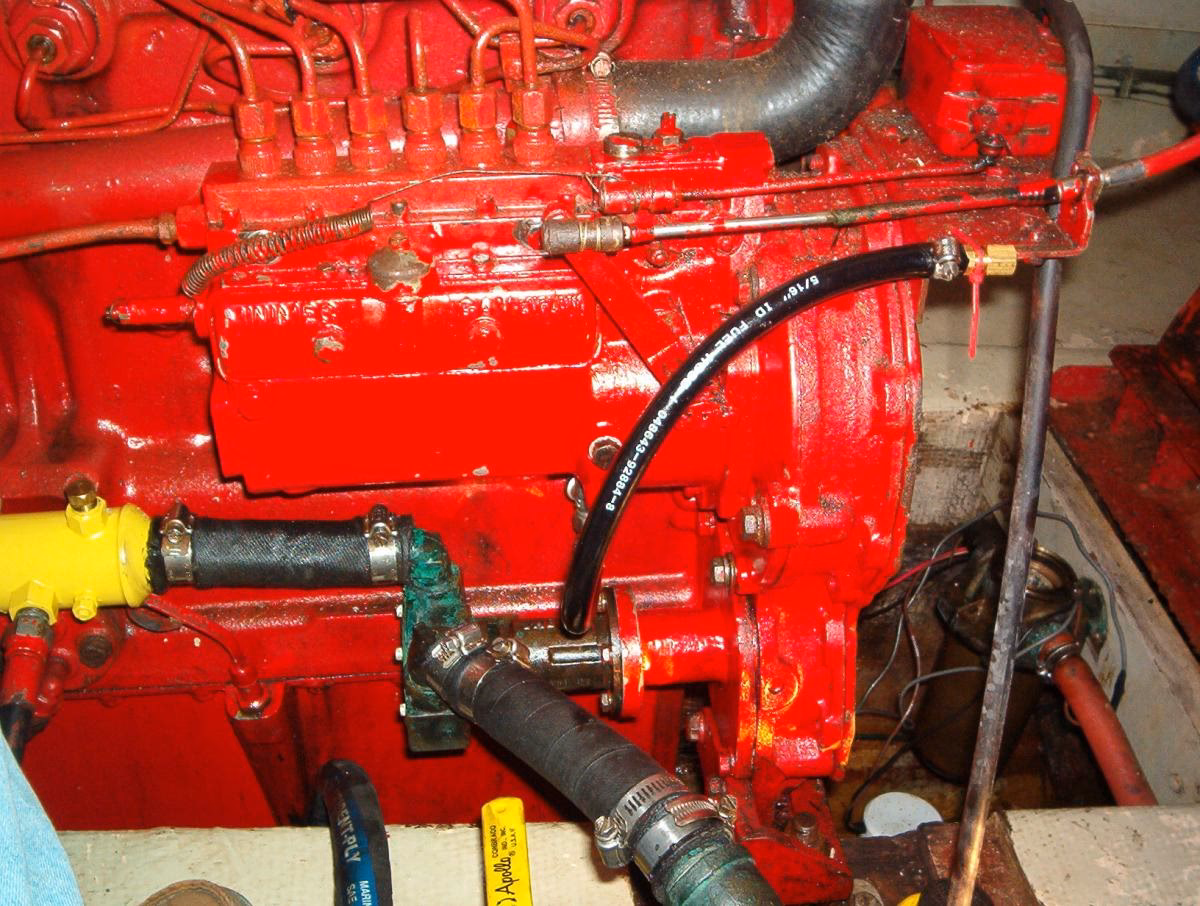

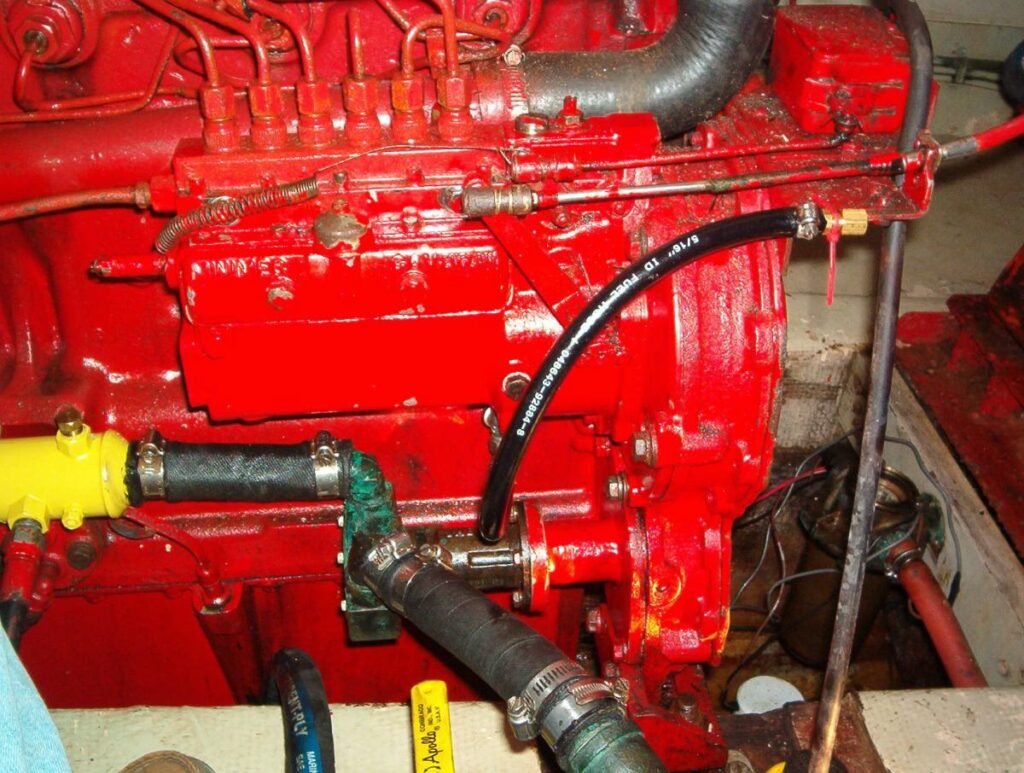

2. Neglecting the Injector Pump Oil: A Crucial, Overlooked Detail

This is perhaps the most specific and commonly overlooked maintenance item on a Lehman 120, yet it is absolutely critical for the engine's longevity. Unlike many modern engines where the fuel injection pump is lubricated by the engine's main oil supply, the Lehman 120's injector pump has its own, separate oil chamber. If this oil is not changed, the pump will eventually fail.

The process of changing this oil is somewhat unique and can be a bit messy, but it's straightforward:

1. Locate the Fill Plug: On top of the injector pump, you'll find a large slotted screw. This is the fill plug.
2. Locate the Drain Plug: At the very bottom of the injector pump housing, there will be a drain plug.
3. Locate the Level Nut: Somewhere on the side of the pump, there's a nut that, when removed, indicates the correct oil level.
4. Drain the Old Oil: Place a suitable container beneath the drain plug. Remove the drain plug and allow all the old oil to drain out completely.
5. Replace Drain Plug: Once drained, securely replace the drain plug.
6. Fill with Fresh Oil: Begin adding new engine oil (the same type you use for the main engine sump) through the fill plug opening.
7. Check Level: As you fill, periodically remove the level nut. Continue adding oil until it just begins to seep out of the level hole. This indicates the correct fill level.
8. Quickly Replace Level Nut: Once oil starts running out, quickly replace and tighten the level nut to prevent excessive spillage.
9. Replace Fill Plug: Finally, replace and tighten the top fill plug.

This procedure should be performed with every engine oil change. Failing to change this dedicated oil is a direct path to injector pump failure, which can be an expensive repair.

Essential General Maintenance for Longevity

While overheating and injector pump oil are paramount, standard regular maintenance practices are equally important for the overall health and longevity of your Lehman 120.

Engine Oil and Filter Changes

The engine's main lubricating oil is its lifeblood. Regular oil and filter changes are fundamental. Oil degrades over time and with use, losing its lubricating and protective properties. It picks up contaminants from combustion and wear. Follow the manufacturer's recommended intervals for changes, typically based on hours of operation or calendar time (e.g., every 100-200 hours or annually, whichever comes first).

Fuel System Care: Beyond Just Old Fuel

The Lehman 120 is famously tolerant of older fuel, with anecdotes of engines running well on fuel that's a decade old. However, this tolerance does not extend to contaminated fuel or clogged filters. The primary concern with fuel isn't necessarily its age, but its cleanliness and freedom from water and biological growth (diesel bug).

• Fuel Filters: Your engine will have at least two fuel filters: a primary filter (often a Racor or similar water separator/filter) and a secondary filter on the engine itself. These filters are designed to capture contaminants and water before they reach the delicate fuel injection system. They should be changed regularly – the primary more frequently than the secondary, especially if you suspect fuel quality issues. Never run your engine with clogged fuel filters; this starves the injection pump and can lead to poor performance and damage.
• Fuel Tank Maintenance: Periodically inspect your fuel tank for sludge, water, and biological growth. Consider fuel polishing if you have very old or suspect fuel. Keep your tank full when not in use to minimise condensation.

Correct Oil Level: The Dipstick Dilemma

A peculiar but important detail for Lehman 120 owners in boats is the engine oil level. The factory dipstick mark is designed for an engine sitting perfectly level. However, engines in boats are rarely, if ever, perfectly level due to the boat's trim and angle of installation. As a result, the factory mark can be misleading, leading to either overfilling or underfilling.

The best practice, as advised by experienced Lehman mechanics, is to establish your own correct oil level mark on the dipstick. To do this, perform a complete oil and filter change, filling the sump with the recommended amount of oil (e.g., 8-9 litres for the 120, consult your specific manual). Run the engine briefly, then let it sit for 15-20 minutes for the oil to settle. Now, pull the dipstick and make a new scratch mark where the oil level sits. This new mark, specific to your boat's installation angle, is your accurate dipstick calibration for future oil checks.

Preventative Measures & Proactive Care

Beyond the critical maintenance points, adopting a proactive approach will further extend your Lehman's life:

• Regular Visual Inspections: Before every trip, take five minutes to visually inspect your engine. Look for leaks (oil, fuel, coolant), frayed belts, loose connections, or anything unusual.
• Listen to Your Engine: Become familiar with the normal sounds of your Lehman 120. Any new or unusual noises (knocks, squeals, rattles) should be investigated promptly.
• Keep Spares Onboard: Carry essential spares like a raw water impeller, fuel filters, belts, and a spare oil filter. Being able to address minor issues quickly can prevent major problems.
• Winterisation/Layup: If your boat is laid up for the winter, follow proper winterisation procedures, including stabilising fuel, changing oil, draining cooling systems (or using appropriate antifreeze), and protecting cylinders.

Frequently Asked Questions (FAQs) About the Lehman 120

Q: How many hours can a Lehman 120 engine typically last?

A: With proper maintenance, Lehman 120 engines are renowned for their longevity, commonly reaching and often exceeding 10,000 hours of operation. Many owners report engines with 4,000 hours running like new.

Q: Can a Lehman 120 engine sit for a long time and still start?

A: Yes, these engines are remarkably resilient. It's not uncommon for a Lehman 120 to start on the first crank even after sitting for several years, provided it was in good condition when laid up and critical fluids are checked.

Q: Is old fuel an issue for the Lehman 120?

A: The Lehman 120 is generally tolerant of older diesel fuel. However, while the fuel itself might still burn, the primary concern is the presence of water, sludge, or biological growth (diesel bug) in the tank, which can clog filters. Regular fuel filter changes are crucial regardless of fuel age.

Q: Where is the injector pump oil plug and how do I change it?

A: The fill plug is typically a large slotted screw on top of the injector pump. There's a drain plug at the bottom and a level nut on the side. The process involves draining the old oil, replacing the drain plug, then filling with new engine oil until it runs out of the level hole, then quickly replacing the level nut. This should be done with every engine oil change.

Q: Why is my engine's dipstick mark inaccurate for my boat?

A: The factory dipstick mark is calibrated for a perfectly level engine. Since engines in boats are rarely perfectly level due to the vessel's trim and installation angle, the factory mark can be misleading. It's recommended to establish your own accurate mark after a full oil change on your boat, as described in the article.

Q: Are parts still available for the Lehman 120?

A: Yes, despite being an older engine, parts for the Lehman 120 are generally still available, often from specialist suppliers and marine diesel experts. Companies like American Diesel are well-known resources for manuals and parts.

Conclusion

The Lehman 120 justly earns its reputation as an incredibly durable and reliable marine diesel engine. Its inherent robustness means it can withstand a surprising amount of neglect compared to more modern, complex engines. However, to truly ensure its legendary longevity and avoid being one of the rare few who 'kill' a Lehman 120, focus on the fundamentals: meticulously prevent overheating, diligently change the dedicated injector pump oil, and adhere to a consistent schedule of regular maintenance for the main engine oil, coolant, and especially the fuel filters. Pay attention to the subtle nuance of the dipstick calibration for your specific vessel. With these key practices, your Lehman 120 will continue to be a trustworthy and powerful heart for your vessel, providing many thousands more hours of dependable service on the open water.
