Unlocking Power: The High-Pressure Fuel Pump

In the intricate world of modern automotive engineering, every component plays a crucial role in your vehicle's overall performance. For enthusiasts and those looking to extract more power from their engines, understanding the fuel system is paramount. At the heart of many high-performance direct-injection petrol engines lies a sophisticated device known as the High-Pressure Fuel Pump (HPFP). This isn't just any pump; it's a precision instrument that dictates how much fuel your engine can receive, directly impacting its power output and reliability, especially when pushing beyond factory specifications.

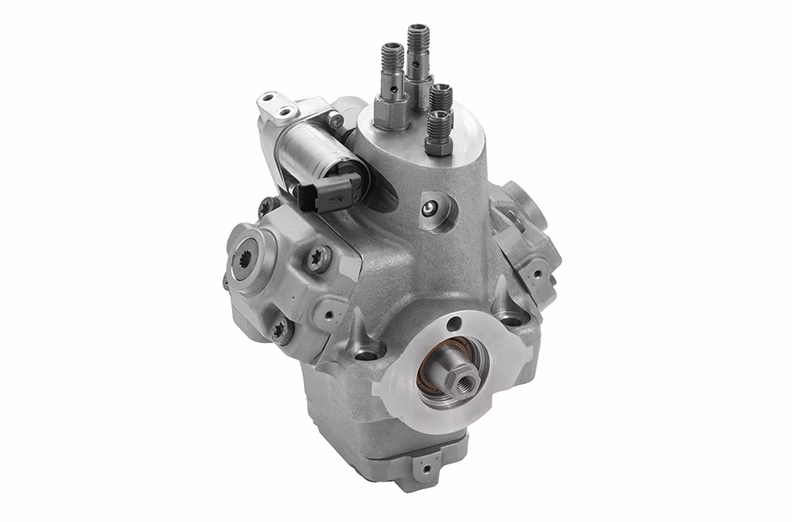

What Exactly is a High-Pressure Fuel Pump?

At its core, a High-Pressure Fuel Pump (HPFP) is a mechanical, cam-driven device responsible for delivering fuel at incredibly high pressures – often exceeding 1500 psi – directly to your engine's fuel injectors. Unlike older port-injection systems, modern Direct Injection engines spray fuel precisely into the combustion chamber, demanding immense pressure for optimal atomisation and efficiency. This pump is a marvel of engineering, featuring components processed and assembled with exacting accuracy to meet the stringent requirements of a high-performance fuel injection unit.

Think of it this way: your car needs both air and fuel to create the combustion that powers it. While the air intake system handles the oxygen, the fuel system ensures a precise, high-pressure delivery of petrol. The HPFP is the vital link in this chain, taking fuel from the low-pressure pump (typically in the fuel tank) and elevating its pressure to the levels required by the direct injectors. Without an efficient and capable HPFP, your engine simply cannot receive the necessary fuel volume or pressure to perform at its peak, particularly under demanding conditions.

Why Your Performance Car Needs an HPFP Upgrade

If you're considering performance modifications for your vehicle, such as ECU remaps, larger turbochargers, or other power-increasing enhancements, you'll quickly encounter a bottleneck: the factory-fitted HPFP. While perfectly adequate for standard engine outputs, the original equipment (OE) fuel pump often struggles to supply the increased fuel volumes demanded by upgraded setups. This is particularly true for 2.0T FSI engines found in popular models like the MK5 GTI, MK6 Golf R, and various Audi A3/A4/TT variants.

When an engine is tuned for more power, it requires more fuel to maintain the correct air-fuel ratio and prevent dangerous lean conditions. A standard HPFP will simply run out of capacity, leading to fuel cuts, reduced power, and potential engine damage. This is why an HPFP upgrade becomes a necessity for Stage 2 and big turbo FSI cars. It's not merely an enhancement; it's a foundational component that unlocks the true potential of your other performance modifications, ensuring your engine receives a consistent and ample supply of fuel even at high RPMs and boost levels.

Introducing the IE HPFP: Engineered for Excellence

For those serious about performance, the Integrated Engineering (IE) HPFP upgrade offers a robust and reliable solution. This popular modification significantly boosts the output of your OE fuel system, delivering an impressive 50% more displacement than the factory unit. This substantial increase in fuel delivery capacity is crucial for supporting high-horsepower applications.

The IE HPFP is designed to provide the fueling support necessary for nearly 600hp at 7500rpm, a requirement for many aggressive ECU tunes and substantial turbo upgrades. It's a direct replacement that seamlessly integrates with your existing engine, offering a straightforward path to enhanced performance without compromise. For ultimate convenience, IE offers complete new pumps with their high-performance internals pre-installed, ensuring the shortest possible time from purchase to installation.

Key Features That Set the IE HPFP Apart

The IE HPFP isn't just about increased capacity; it's about superior engineering and meticulous attention to detail. Here's what makes it a standout choice:

• Supports Stage 2 and Big Turbo Upgrades: Built to handle the demands of highly modified engines.
• 50% Displacement Over OE HPFP: A significant leap in fuel delivery capability.
• Powers Up to 600HP and 7500 RPM: Provides ample fuel for ambitious power goals.
• Constant Diameter Piston: Engineered for exceptional longevity and stability.
• Nitrided Surface Finish: Ensures exact tolerances and extreme resistance to wear.
• Ultralight Titanium Retainer: Eliminates valve float at high RPMs.
• Retains OE Spring: Greatly reduces cam follower wear, preserving engine components.
• Leak-Free Molybdenum Disulphide Impregnated Seal: Ensures reliable, long-term sealing performance.
• Every Kit Tested and Verified: Each unit undergoes rigorous testing before shipment.
• Engineered, Designed, and Manufactured in the USA: A testament to quality and precision.

Behind the Design: Advanced Engineering for Unrivalled Performance

The true brilliance of the IE HPFP lies in its advanced technical specifications and the thoughtful engineering behind each component. This isn't just an uprated part; it's a complete redesign for superior function and durability.

Increased Fuel Displacement

The core of the IE HPFP's performance boost comes from its Increased Displacement. By carefully increasing the bore of the pump's cylinder, IE engineers were able to achieve a remarkable 50% increase in HPFP output. This translates directly to more fuel available to your engine, precisely when it's needed most. While the factory fuel pump might struggle beyond 350hp at 7000rpm, the IE HPFP comfortably supports nearly 600hp at 7500rpm. This capacity is vital not just for peak power but also for providing consistent fuel delivery in the lower RPM range, where many quicker-spooling turbo setups achieve their maximum boost and power.

The Superior Constant Diameter Piston

Rigorous testing has shown that a constant diameter piston is absolutely essential for long-term reliability and performance. Many other upgrade kits on the market utilise a piston that steps down to a smaller diameter, primarily to reuse the original seal and nut assembly. However, this design flaw means that less than half of the cylinder guides the pin at the top of the stroke, leading to greatly increased wear, potential leakage past the pin, and reduced stability of the pin within the cylinder. Furthermore, a stepped cylinder can create a pumping action on the bottom side of the piston, which pulses fluid against the shaft seal, increasing the risk of fuel leaking into the cam follower region.

The IE HPFP, mirroring the factory design, employs a consistent diameter piston. This eliminates any displacement change on the bottom side of the piston, ensuring no pressure pulses against the shaft seal, thereby enhancing stability, reducing wear, and preventing leaks.

Nitrided for Endurance

Just like the OEM HPFP, the IE version features a Nitrided Surface finish on both the piston and cylinder. Nitriding is not a mere coating; it's a sophisticated process where nitrogen atoms are infused into the atomic structure of the component's outer surface. This significantly hardens the parts, drastically increasing their surface hardness and wear properties. This technology has proven its reliability over thousands of miles in factory applications and, crucially, cannot chip or flake off like some coated components. Each production batch undergoes independent verification in a materials testing lab to ensure the precise thickness and composition of this nitride layer.

Proprietary Alloy: Built to Last

The choice of material for the piston and pin is critical, especially in a system with marginal lubrication provided solely by petrol. IE opts for a proprietary tool steel alloy, specifically selected for its extreme resistance to wear and abrasion. This robust material ensures the longevity and consistent performance of the HPFP internals, even under the most demanding conditions.

Optimised Spring and Ultra-Lightweight Retainer

The IE HPFP incorporates an ultra-lightweight Titanium Retainer in place of the factory steel version. Similar to valve springs and retainers, less weight is always preferable as it significantly reduces the chance of valve float occurring at high RPMs. This retainer has been carefully FEA (Finite Element Analysis) optimised and features a deep weight reduction groove on its outer surface. Critically, IE retains the factory spring, having tested it to over 8000 rpm with zero valve float. This avoids the use of unnecessarily stiffer springs found in some other pumps, which can put excessive pressure on the cam follower and lead to premature wear.

The Custom, Leak-Free Seal

A common point of failure in other HPFP kits is the seal. Many reuse the factory seal, which can easily be damaged during the installation of upgraded internals, leading to fuel leaking past the seal and into the crankcase. The IE HPFP addresses this with a custom, Molybdenum Disulphide Impregnated Seal. This advanced material increases stiffness and reduces friction. Furthermore, these custom seals are spring-energised, ensuring they maintain their sealing integrity throughout their lifespan, eliminating concerns about wear and leakage.

To summarise the key differences:

Quality Assurance: From Assembly to Your Garage

The superior performance and reliability of the IE HPFP are not just down to design; they're also a result of meticulous assembly and rigorous testing. Each complete pump is assembled in a sterile environment within a Laminar flow hood, ensuring no contaminants interfere with the high-tolerance components. This precision is akin to a surgeon's operating theatre, reflecting the gravity with which these critical components are handled.

Before any IE HPFP kit leaves the facility, it undergoes a comprehensive test on a custom-built fuel pump dyno. This process serves two crucial purposes: it effectively 'breaks in' all components, preparing them for immediate use, and acts as a final, stringent quality control step. The dyno accurately simulates the pump's operation on a running FSI engine, allowing for real-time monitoring of fuel pressure and RPM data, guaranteeing that every unit performs perfectly straight out of the box.

Warranty and Support

Integrated Engineering stands behind the quality and precision of its HPFP products. Due to the extreme machining tolerances and precise assembly practices, they offer a limited warranty: 18 months from the day of purchase, with unlimited miles, for both their rebuild service and complete new pumps. This commitment provides peace of mind, knowing your investment is protected.

Is the IE HPFP Right for Your Vehicle? Compatibility & Installation

The IE HPFP is designed for broad compatibility within specific engine families, making it a popular choice for many performance vehicles. However, it's crucial to ensure it's the right fit for your setup.

Frequently Asked Questions (FAQs)

Will this fuel pump fit my car?

This fuel pump is compatible with all belt-drive 2.0T FSI engines, commonly found in models such as the MK5 GTI/Jetta, MK6 Golf R, B6 Passat 2.0T, 8P A3/S3, B7 A4, and MKII TT. Relevant engine codes include (but are not limited to): AXX, BGB, BPG, BPJ, BPY, BUL, BWA, BWE, BWT, BYK, BHZ, BYD, BZC, CDLA, CDLB, CDLC, CDLF, CDLG, CDMA, and CRZA. It also fits VW and Audi 3.6L VR6 FSI engines (2007-2009), Mazdaspeed 3 DISI engines (2007-2009), and Mazdaspeed 6 DISI engines (2006-2007). Please note, for Audi 4.2L FSI engines, two pumps are required.

Can I install this pump without any other modifications?

While the IE HPFP is a direct physical fit, you absolutely must have a matching ECU tune to properly utilise its increased capacity. Many performance tunes are calibrated for a 9.8MM piston diameter, which is compatible with the IE HPFP. Installing an upgraded HPFP without the corresponding software calibration will not yield performance benefits and could potentially cause issues.

What is included with the IE HPFP?

The complete new pump option includes all the meticulously engineered IE internals pre-installed into a brand new OEM core pump. This ensures minimal turnaround time and a straightforward, drop-in installation, getting you back on the road and enjoying enhanced performance quickly.

How much power is the IE HPFP capable of?

The IE HPFP offers sufficient fuel flow to support approximately 600hp at 7500rpm. However, the ultimate power output will always depend on how your vehicle is tuned and the synergy with other modifications in your setup.

Is there a special break-in procedure required once I install the IE HPFP?

No, there isn't! Every single IE HPFP is pre-broken-in on their custom fuel pump dyno before it is shipped. This meticulous process ensures that all components are properly seated and ready for immediate operation, saving you time and effort.

Conclusion

For anyone serious about extracting maximum, reliable performance from their direct-injection petrol engine, an upgraded High-Pressure Fuel Pump like the IE HPFP is an indispensable component. It addresses the critical fuel delivery bottleneck that often limits the effectiveness of other performance modifications. With its advanced engineering, superior materials, and rigorous testing, the IE HPFP provides the consistent, high-pressure fuel supply needed to support substantial power gains, ensuring your engine runs efficiently, powerfully, and reliably for many miles to come. It’s an investment in both performance and peace of mind, allowing you to truly unlock your vehicle's potential.
