Mk3 Ford Focus Fuel Cut-Off: No Button, Just Brains

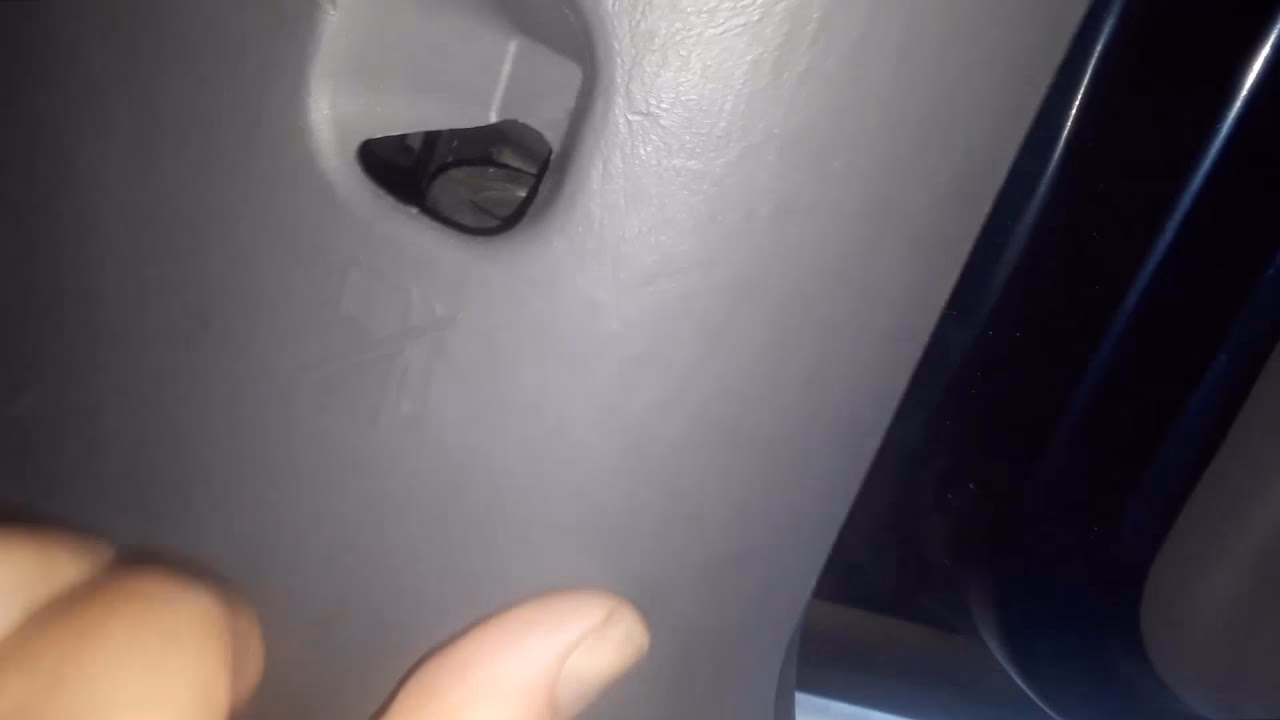

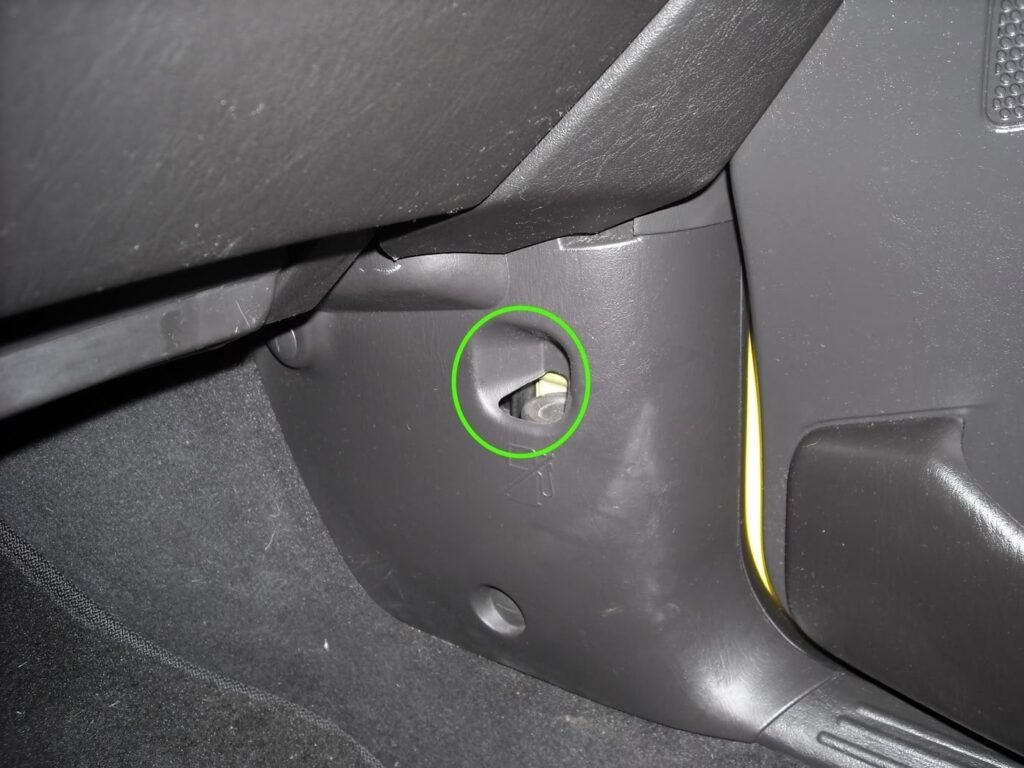

Owners of older Ford Focus models are often familiar with the manual fuel cut-off switch, sometimes referred to as an inertia switch, typically found in the passenger footwell or glovebox. This physical button served as a crucial safety device, designed to cut off the fuel supply in the event of a significant impact, thereby preventing fuel leaks and reducing the risk of fire. It was a straightforward, mechanical solution to a serious problem.

However, if you're searching for a similar switch in your Mk3 Ford Focus, you'll be looking in vain. The automotive world has evolved significantly, and with it, vehicle safety systems have become far more sophisticated and integrated. The Mk3 Ford Focus, produced roughly from 2011 to 2018, does not feature a manual fuel cut-off switch. Instead, this vital safety function is intelligently managed by the car's Engine Control Unit (ECU), working in conjunction with a network of advanced sensors.

The Evolution of Vehicle Safety: From Manual Switches to Smart ECUs

The transition from a physical inertia switch to an ECU-controlled system in vehicles like the Mk3 Ford Focus represents a significant leap forward in automotive safety and engineering. The Mk1 Ford Focus, for example, relied on a simple electromechanical device. When subjected to a sudden deceleration or impact, a small pendulum or ball inside the inertia switch would move, breaking an electrical circuit and cutting power to the fuel pump. To restore fuel flow, the driver would simply press a button to reset the switch.

While effective for its time, this manual system had limitations. It was susceptible to accidental activation from minor bumps, and locating and resetting the switch could be confusing for some drivers, especially in a stressful post-accident situation. Modern vehicles, including the Mk3 Focus, leverage the power of their central nervous system – the ECU – to handle this critical function with greater precision and reliability.

How the Mk3 Focus Fuel Cut-Off System Works

In the Mk3 Ford Focus, the role of the fuel cut-off switch is seamlessly integrated into the vehicle's electronic architecture. The ECU acts as the central brain, constantly monitoring data from various sensors strategically placed around the car. These sensors provide real-time information about the vehicle's status, including:

• Impact Sensors: Often located in the front, sides, and rear of the vehicle, these sensors detect sudden deceleration or deformation indicative of a collision. They are the primary triggers for the fuel cut-off in an accident scenario.
• Accelerometers: These measure changes in the vehicle's speed and direction, providing additional data to the ECU to confirm the severity of an impact.
• Fuel Pressure Sensors: These monitor the pressure within the fuel lines. A sudden drop or anomaly could indicate a leak or rupture, prompting the ECU to cut fuel.
• Crankshaft Position Sensor: While not directly for fuel cut-off, this sensor helps the ECU understand if the engine is rotating, which is crucial for determining if fuel should be supplied.

When the ECU receives signals from these sensors indicating a critical event – such as a severe impact or an extreme condition like prolonged fuel starvation – it intelligently decides to activate the fuel cut-off. This is not a physical switch being tripped, but rather a command sent by the ECU to deactivate the fuel pump relay, thereby halting the flow of fuel to the engine.

Scenarios Triggering Fuel Cut-Off

The sophisticated system in the Mk3 Focus is designed to activate under specific circumstances to protect both the vehicle and its occupants. The primary reasons for the ECU to cut off the fuel supply include:

• Collision or Impact: This is the most common and critical reason. If the impact sensors detect a significant crash, the ECU will immediately cut power to the fuel pump. This rapid response is vital for preventing fuel from leaking onto hot engine components or escaping from ruptured lines, which could ignite and cause a fire. It's a fundamental safety feature designed to mitigate post-collision hazards.
• Fuel Depletion (Running on Empty): While less commonly discussed, running your fuel tank completely dry can sometimes trigger the fuel cut-off system. This isn't just about preventing you from driving further; it also serves to protect the fuel pump. Fuel pumps are often lubricated and cooled by the fuel itself. Running them dry can lead to overheating and premature failure. By cutting off power, the system helps prevent damage to this vital component.
• Other Critical Malfunctions: In rare cases, severe engine faults or electrical anomalies might cause the ECU to cut fuel as a preventative measure to prevent further damage or a dangerous situation. However, the primary triggers remain impact and extreme fuel conditions.

Resetting the Fuel Cut-Off System on Your Mk3 Ford Focus

Given that there's no physical button, resetting the fuel cut-off system on a Mk3 Ford Focus involves a different approach. The prompt states, "Once you reset it it should start," implying a user action is required. For ECU-controlled systems, the 'reset' is often less about pressing a button and more about ensuring the underlying condition has been resolved and then cycling the vehicle's ignition.

Here’s a general procedure and important considerations:

1. Ensure Safety First: Before attempting any reset, especially after an accident, ensure the vehicle is in a safe location. Check for any obvious fuel leaks, damaged wiring, or other hazards. If there's any doubt about the vehicle's structural integrity or if there are significant fluid leaks, do not attempt to start it. Call for professional assistance.
2. Address the Root Cause: If the fuel cut-off was triggered by running out of fuel, you must add a sufficient amount of fuel to the tank. If it was due to an impact, the vehicle may have sustained damage that needs professional assessment before it's safe to restart. The system is designed to prevent operation when a dangerous condition exists.
3. Cycle the Ignition: For many modern vehicles with ECU-controlled fuel cut-off, simply turning the ignition key to the 'OFF' position, waiting for a few seconds (e.g., 10-20 seconds), and then turning it back to the 'ON' or 'START' position can reset the system. This allows the ECU to re-evaluate all sensor inputs. If the conditions that triggered the cut-off are no longer present, the ECU will typically restore power to the fuel pump.
4. Consult Your Owner's Manual: While the ignition cycle is a common method, it's always best practice to refer to your specific Mk3 Ford Focus owner's manual. Ford may have a precise sequence or additional steps for resetting the fuel cut-off system or addressing post-collision procedures.
5. Check for Dashboard Warnings: After attempting a reset, pay close attention to any warning lights on your dashboard. If the engine light or any other critical warning remains illuminated, it indicates that the underlying issue might not be resolved, or there's another fault preventing the car from starting safely.

It's crucial to understand that if the vehicle was in a significant crash, the fuel cut-off system is doing its job. Simply resetting it without addressing potential damage could be dangerous. The system is designed to prevent the car from operating when it deems it unsafe.

Troubleshooting When Your Focus Won't Start After an Incident

If your Mk3 Ford Focus won't start after an event that might have triggered the fuel cut-off, and you've attempted the ignition cycle reset, consider these troubleshooting steps:

• Check Fuel Level: This might seem obvious, but ensure there's adequate fuel in the tank, especially if you were running low before the incident.
• Listen for the Fuel Pump: When you turn the ignition to the 'ON' position (before cranking), you should hear a faint whirring sound from the rear of the car for a few seconds. This is the fuel pump priming the system. If you don't hear it, it's a strong indication that the fuel pump isn't receiving power, possibly due to the cut-off system or another electrical issue.
• Battery Condition: A weak or dead car battery can mimic many starting problems. Ensure your battery has sufficient charge. Try turning on headlights or interior lights to gauge battery strength.
• Check Fuses and Relays: While the ECU manages the fuel cut-off, a blown fuse or faulty relay for the fuel pump could also prevent it from operating. Consult your owner's manual for the location of the fuel pump fuse and relay in the fuse box and inspect them.
• Diagnostic Trouble Codes (DTCs): If you have access to an OBD-II scanner, connect it to your vehicle's diagnostic port. The ECU might have stored codes related to an impact or a fuel system malfunction, which can provide valuable clues.
• Professional Assistance: If you've tried the above steps and your Focus still won't start, or if you suspect significant damage from an accident, it's always best to call a qualified mechanic or recovery service. They have the tools and expertise to diagnose complex issues and ensure your vehicle is safe to operate.

Why Modern Cars Rely on ECU Control

The shift from manual inertia switches to ECU-controlled fuel cut-off systems in vehicles like the Mk3 Ford Focus offers several advantages:

• Enhanced Safety: The ECU can react instantaneously and with greater precision than a mechanical switch. It can also integrate information from multiple sensors, providing a more comprehensive assessment of a critical situation.
• Reduced Human Error: There's no button for a driver to forget to reset, or to accidentally trip. The system is largely automatic, activating and deactivating as needed.
• Integration with Other Systems: The fuel cut-off is part of a larger, interconnected safety network that includes airbags, seatbelt pretensioners, and other post-collision safety measures. The ECU can coordinate these systems for optimal response.
• Diagnostic Capabilities: An ECU-controlled system can log fault codes, making it easier for technicians to diagnose why the fuel was cut off, even if the vehicle has since been reset.

Ultimately, the absence of a manual fuel cut-off switch in your Mk3 Ford Focus is a testament to advancing automotive technology aimed at making vehicles safer and more reliable. While it might seem less intuitive than a physical button, the ECU-driven system provides a superior level of protection and efficiency.

Comparative Table: Fuel Cut-Off Systems

Frequently Asked Questions (FAQs)

What is an inertia switch?

An inertia switch is a safety device found in older vehicles, including the Mk1 Ford Focus. It's a physical switch that contains a mechanism (like a ball or pendulum) designed to trip and cut off the fuel supply in the event of a sudden, severe impact or deceleration, thereby preventing fuel leaks and potential fires. It requires a manual reset by pressing a button.

How do I know if the fuel cut-off is active on my Mk3 Focus?

If the fuel cut-off system has activated, your Mk3 Focus will likely crank but not start, as no fuel is being delivered to the engine. You typically won't hear the characteristic whirring sound of the fuel pump priming when you turn the ignition to the 'ON' position before starting. There might also be related warning lights on your dashboard, or fault codes stored in the ECU.

Can a low battery trigger the fuel cut-off in a Mk3 Focus?

A low battery itself generally won't directly trigger the fuel cut-off system. However, a severely low battery can cause various electrical systems to malfunction, including the ECU or fuel pump relay, leading to starting problems that might initially be mistaken for a fuel cut-off issue. Always ensure your battery is in good health.

Is it safe to drive after the fuel cut-off activates?

No, absolutely not. The fuel cut-off system activates for a reason – to prevent hazardous situations. If it has activated due to an impact, the vehicle may have sustained structural or mechanical damage that makes it unsafe to drive. Even if triggered by fuel depletion, attempting to drive without sufficient fuel can damage the fuel pump. Always resolve the underlying issue and ensure the vehicle is safe before attempting to drive.

What should I do immediately after a crash if my Focus won't start?

First and foremost, ensure your safety and the safety of any passengers. If safe to do so, move the vehicle out of traffic. Check for any obvious fuel leaks or smoke. Once the immediate danger is assessed, you can attempt the ignition cycle reset as described above. However, if there's significant damage or a strong smell of fuel, do not attempt to restart the car; call for professional assistance and recovery.

Understanding how your Mk3 Ford Focus manages its fuel supply in emergencies is crucial for both safety and effective troubleshooting. While the days of the manual inertia switch are gone for this model, the underlying principle of protecting you and your vehicle remains paramount, now handled with advanced electronic intelligence.
