Replacing Your Car's Turbocharger: A UK Guide

The turbocharger is a marvel of modern engineering, designed to harness the energy from exhaust gases to force more air into the engine. This process, known as forced induction, significantly boosts engine power and fuel efficiency without increasing its displacement. When working correctly, it provides that satisfying surge of acceleration and enhances overall driving performance. However, like any mechanical component subjected to extreme temperatures and high rotational speeds, turbochargers can wear out or fail, leading to a noticeable decline in your vehicle's capabilities.

Replacing a turbocharger is not a task to be taken lightly. It involves working with intricate engine components, hot exhaust systems, and critical fluid lines. While the core concept might seem simple – remove the old, install the new – the devil is truly in the details. This guide aims to provide a thorough overview, helping you understand the complexity and precision required for a successful replacement.

Signs Your Turbocharger Might Be Failing

Before you even consider replacing a turbo, it's crucial to correctly diagnose that it's the culprit. Several symptoms can indicate a failing turbocharger:

• Loss of Power and Acceleration: This is often the most noticeable sign. If your car feels sluggish or lacks its usual punch, especially at higher RPMs, the turbo might not be spooling correctly or providing adequate boost.
• Excessive Exhaust Smoke: Blue or grey smoke from the exhaust indicates that oil is being burnt. A failing turbo's seals can allow oil to leak into the exhaust system (blue smoke) or the intake system (can lead to black smoke if combustion is affected, or blue/grey if oil is burning).
• Whining, Screeching, or Grinding Noises: A healthy turbo produces a subtle whistle. If you hear a loud, high-pitched whine that changes with engine RPM, or a grinding/scraping noise, it's a strong indicator of damaged internal components, such as worn bearings or impellers scraping against the housing.
• Check Engine Light (CEL): Your car's onboard diagnostics (OBD-II) system may trigger a warning light and store fault codes related to boost pressure issues, turbocharger performance, or exhaust gas recirculation (EGR) if the turbo is affecting related systems.
• Increased Oil Consumption: As turbo seals degrade, engine oil can leak into the exhaust or intake, leading to higher-than-normal oil consumption without visible external leaks.
• Oil Leaks Around the Turbo: Visible oil seeping from the turbocharger housing or its connecting pipes suggests a seal failure.

Essential Preparations Before You Begin

A successful turbo replacement begins long before you pick up a spanner. Proper preparation is key to efficiency and safety.

• Safety First: Always work on a cold engine. Disconnect the car's battery (negative terminal first) to prevent accidental electrical issues. Use robust jack stands to secure the vehicle if you need to raise it; never rely solely on a jack. Wear appropriate personal protective equipment (PPE), including gloves and eye protection.
• Gather Your Tools: You'll need a comprehensive socket set, various wrenches (open-ended and ring spanners), a torque wrench (crucial for correct fastener tension), fluid drain pans, pliers, and potentially specialist tools like oxygen sensor wrenches or hose clamp pliers. A wire brush and penetrating oil will also be invaluable for dealing with corroded bolts.
• Acquire the Right Parts:
  • New Turbocharger (ensure it's the correct part number for your vehicle).
  • New Gaskets and Seals: This is non-negotiable. Always replace all gaskets and seals associated with the turbo, including exhaust manifold gasket, downpipe gasket, oil feed line gaskets/washers, oil return line gasket, and coolant line gaskets/O-rings (if applicable).
  • New Oil Feed Line: Highly recommended. Old lines can be clogged with carbon deposits from burnt oil, restricting flow to the new turbo and causing premature failure.
  • New Oil Filter and Fresh Engine Oil: Absolutely essential. Any contaminants in the old oil system can immediately damage the new turbo's bearings.
  • New Engine Coolant: If your turbo is liquid-cooled, you'll lose coolant during the process.
• Identify the Root Cause of Failure: This is perhaps the most critical preparatory step. Turbos rarely fail without a reason. Common causes include:
  • Oil Starvation: Lack of proper lubrication due to clogged oil lines, incorrect oil viscosity, or extended oil change intervals.
  • Foreign Object Damage (FOD): Debris entering the compressor (intake side) or turbine (exhaust side) can cause catastrophic damage to the impellers.
  • High Exhaust Gas Temperatures (EGT): Can lead to coking of oil and weakening of components.
  • Contaminated Oil: Dirt or metal particles in the engine oil will rapidly wear down the turbo's bearings.
  • Over-speeding: Often caused by tuning or wastegate issues, leading to excessive rotational speeds.

  Failure to address the original cause will almost certainly lead to the premature failure of your new turbocharger.

The Turbocharger Replacement Process: A Step-by-Step Guide

This procedure will vary slightly depending on your specific vehicle model, but the core steps remain consistent.

1. Preparation and Access

• Raise the Vehicle: Safely lift the front of the car using a jack and secure it firmly on jack stands. Ensure it's stable before proceeding.
• Drain Fluids: Place appropriate drain pans beneath the engine. Locate and remove the sump plug to drain the engine oil. If your turbocharger is liquid-cooled, you will also need to drain the engine coolant from the radiator or a lower hose.
• Remove Obstructions: Identify and remove any components blocking access to the turbocharger. This commonly includes the air filter box, intake pipes, battery, battery tray, undertrays, and various heat shields. Take photos or make notes of how everything comes apart to aid reassembly.

2. Disconnecting Ancillaries

This stage involves carefully detaching all pipes, lines, and electrical connections from the turbocharger.

• Downpipe Disconnection: The downpipe, which connects the turbocharger's exhaust outlet to the rest of the exhaust system, is typically secured by a V-band clamp or a series of bolts. Accessing this clamp or these bolts can often be challenging due to space constraints and potential corrosion. You'll likely need a penetrating oil applied beforehand to help loosen any seized fasteners. Once the fasteners are adequately loosened, carefully separate the downpipe from the turbocharger. Be mindful of any oxygen sensors (O2 sensors) that might be threaded into the downpipe; these will need to be disconnected from their wiring harness before the pipe can be fully removed or moved aside. Damage to these sensitive sensors can lead to engine management issues later on.
• Intake Pipe Removal: This pipe connects the air filter housing to the turbocharger's compressor inlet. Loosen the hose clamps at both ends and carefully detach the pipe. Inspect it for any signs of oil contamination or foreign objects.
• Charge Pipe Disconnection: This pipe runs from the turbocharger's compressor outlet to the intercooler (and then to the engine's intake manifold). Loosen its clamp and detach it from the turbo outlet. Again, check for oil residue, which could indicate a previous turbo seal failure or an issue with the PCV system.
• Oil Feed Line: This is a small diameter line, usually metal, that supplies pressurized engine oil to the turbo's bearings. It's typically located at the top of the turbo. Carefully unbolt or unscrew the banjo fitting or flared fitting. Be prepared for a small amount of oil to leak out. This line is highly susceptible to carbon build-up and should ideally be replaced, not just cleaned.

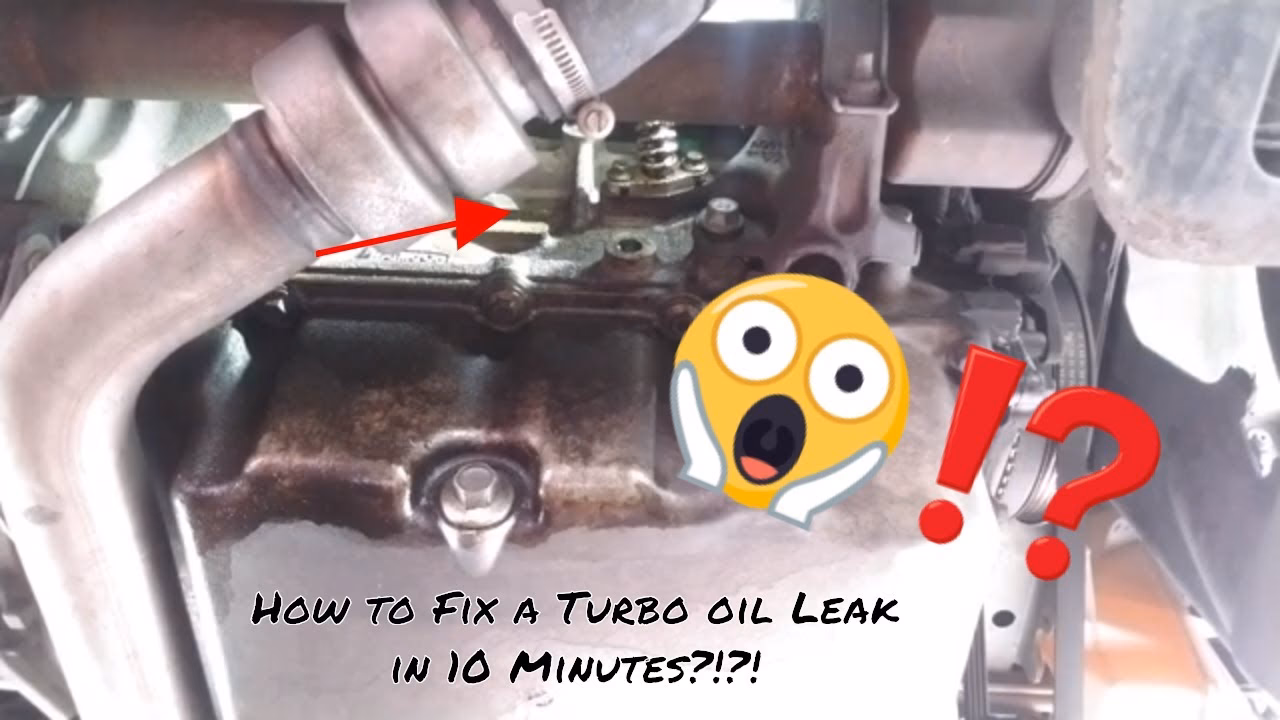

• Oil Return Line: A larger diameter line, usually rubber or a combination of rubber and metal, located at the bottom of the turbo. It allows oil to drain back into the engine sump by gravity. Disconnect this line from both the turbo and the engine block. Ensure no debris falls into the engine's oil passages.
• Coolant Lines (if applicable): Many modern turbos are liquid-cooled in addition to oil-cooled. These will have two smaller hoses connected to them. Clamp or plug these lines to minimise coolant loss, then disconnect them.
• Wastegate Actuator/Vacuum Line/Electrical Connector: The wastegate controls exhaust gas flow to regulate boost pressure. Depending on your system, it might be controlled by a vacuum line, a pressure line, or an electrical connector. Carefully disconnect this mechanism. If it's a mechanical actuator, you may need to unhook its arm from the wastegate lever on the turbo itself.
• Any Other Sensors/Connectors: Double-check for any other minor hoses, wires, or sensors attached to or near the turbo that might impede its removal.

3. Removing the Old Turbocharger

• Unbolt from Manifold: The turbocharger is typically bolted directly to the exhaust manifold. There will be several bolts or nuts securing it. These can be extremely tight and corroded due to heat cycles. Use a sturdy wrench or socket, and consider using a breaker bar if necessary. Take care not to round off the fasteners. Once all fasteners are removed, the turbo should be free from the manifold.
• Careful Extraction: With all lines and bolts disconnected, carefully manoeuvre the old turbocharger out of the engine bay. It can be heavy and awkward, so be prepared to support its weight.

4. Inspection and Cleaning

This is a critical stage that often determines the longevity of your new turbo.

• Inspect Manifold: Thoroughly inspect the exhaust manifold for any cracks or warping. A cracked manifold can cause exhaust leaks and affect turbo performance.
• Clean Mating Surfaces: Use a gasket scraper or fine wire brush to meticulously clean all mating surfaces on the exhaust manifold, downpipe, and engine block where new gaskets will be installed. Ensure they are free of old gasket material, carbon deposits, and corrosion.
• Inspect Intercooler and Piping: If the old turbo suffered a catastrophic failure or leaked significant oil, your intercooler and charge pipes might be contaminated with oil and metal fragments. These must be thoroughly cleaned or replaced. Oil in the intercooler reduces its efficiency and can cause issues.
• Replace Oil Lines: As mentioned, always replace the oil feed line. Inspect the oil return line; if it's rigid, clean it. If it's flexible, replace it. These lines are vital for proper lubrication and drainage.
• Check for FOD: Inspect the intake system (from the air filter onwards) and the exhaust system (before the manifold) for any signs of foreign objects that might have caused the old turbo to fail. If found, identify and remove the source.

5. Installing the New Turbocharger

Installation is essentially the reverse of removal, but with added precision and new components.

• Install New Manifold Gasket: Place the new exhaust manifold gasket onto the studs or mating surface. Ensure it's correctly oriented.
• Position New Turbo: Carefully lift the new turbocharger into position, aligning it with the exhaust manifold studs/holes. Once in place, thread on the nuts or bolts by hand to ensure proper alignment.
• Torque Turbo to Manifold: Using your torque wrench, tighten the turbo-to-manifold fasteners to the manufacturer's specified torque settings. This is crucial to prevent exhaust leaks and ensure proper sealing. Tighten in a cross-pattern if applicable.
• Connect Oil Feed Line: Install the new oil feed line with new washers/gaskets. Before fully connecting it to the turbo, a crucial step is to prime the turbo with oil. This involves filling the new oil feed line with clean engine oil before connecting it to the turbo's inlet. This ensures immediate lubrication upon first start-up, preventing a dry spin that could instantly damage the new bearings. Connect the line securely and torque the fitting.
• Connect Oil Return Line: Install the new oil return line and its gasket/O-ring, ensuring it's properly seated and secured to both the turbo and the engine block.
• Connect Coolant Lines (if applicable): Attach the new coolant lines with new gaskets/O-rings, ensuring all clamps are secure.
• Reconnect Charge Pipe and Intake Pipe: Reattach the charge pipe to the turbo's outlet and the intake pipe to its inlet. Ensure all hose clamps are tightened securely to prevent boost leaks or unfiltered air entering the turbo.
• Reconnect Wastegate/Actuator: Reconnect the wastegate vacuum line/pressure line or electrical connector. If it's a mechanical actuator arm, ensure it's properly re-engaged with the wastegate lever.
• Reconnect Downpipe: Attach the downpipe to the turbo's exhaust outlet using a new gasket or V-band clamp. Torque the fasteners to specification. Reconnect any oxygen sensors.

6. Reassembly and Post-Installation

• Reinstall Components: Reattach all heat shields, undertrays, air filter box, battery tray, and battery. Ensure all electrical connectors are re-secured.
• Refill Fluids: Install a new oil filter and refill the engine with the correct specification and quantity of fresh engine oil. Refill the cooling system with the appropriate coolant and bleed any air from the system as per your vehicle's manual.
• Crucial First Start-up Procedure (Turbo Priming): After refilling oil and before starting the engine, it is absolutely paramount to ensure the turbocharger is fully primed with oil.
  • Method 1 (Fuel Cut-off/Crank): Disable the fuel system (e.g., by pulling the fuel pump fuse or relay) and crank the engine for 10-15 seconds at a time, with short breaks in between. Do this several times until the oil pressure light goes out or you are confident oil has circulated. This allows the oil pump to push oil through the feed line and into the turbo bearings without the engine actually firing up and spinning the turbo dry.
  • Method 2 (Manual Fill - Less Common/Riskier): Some mechanics might pre-fill the turbo's oil inlet directly with a syringe, but this requires extreme care not to introduce contaminants. The cranking method is generally preferred.
• Double-Check Everything: Before attempting to start the car, perform a meticulous visual inspection. Check all connections, hoses, clamps, and electrical connectors. Ensure no tools are left in the engine bay. Verify all fluid levels are correct.
• First Start and Inspection: Start the engine. Do not rev it immediately. Let it idle for several minutes. Listen for any unusual noises (whining, scraping, hissing). Look for any leaks (oil, coolant, exhaust, boost). Check for any warning lights on the dashboard.
• Test Drive: Once you're confident there are no immediate issues, take the car for a gentle test drive. Avoid hard acceleration initially. Gradually increase engine load and speed, listening for correct turbo operation and checking for any performance issues.

Common Pitfalls and Troubleshooting

• Stripped or Seized Bolts: Old, heat-cycled bolts can be extremely stubborn. Use quality tools, penetrating oil, and patience. If a bolt rounds off, you might need an extractor kit.
• Leaking Connections: Boost leaks (hissing sound, loss of power), oil leaks (visible drips, burning smell), or coolant leaks can occur if clamps aren't tight or gaskets aren't seated correctly. Recheck all connections.
• Incorrect Torque Specifications: Overtightening can strip threads or crack components; undertightening leads to leaks. Always use a torque wrench.
• Not Addressing the Root Cause: If your new turbo fails quickly, it's almost certainly because the original failure cause (e.g., oil starvation, foreign object) was not resolved.
• Failure to Prime the Turbo: This is the most common cause of immediate new turbo failure. Dry start means the bearings are running without lubrication at thousands of RPM, leading to rapid wear.
• Contaminated System: If the intercooler or oil lines weren't cleaned/replaced, old contaminants can circulate and damage the new turbo.

Maintenance Tips for Turbo Longevity

To ensure your newly installed turbocharger lasts for many years and miles, adhere to these maintenance practices:

• Regular Oil Changes: Use only the manufacturer-recommended engine oil (correct viscosity and specification) and adhere strictly to oil change intervals. Oil is the lifeblood of your turbo.
• Quality Oil Filter: Always use a high-quality oil filter to ensure proper filtration of contaminants.
• Warm-Up Properly: Avoid aggressive driving until your engine and oil have reached their optimal operating temperature. Cold oil doesn't lubricate as effectively.
• Cool-Down Period: After a hard drive or prolonged high-speed running, allow the engine to idle for 1-2 minutes before shutting it off. This allows the turbo to cool down gradually with oil circulation, preventing "oil coking" (oil baking onto hot bearings) when circulation stops.
• Regular Air Filter Replacement: A clean air filter prevents dirt and debris from entering the intake, which could otherwise damage the compressor wheel.
• Address Engine Issues Promptly: Any issues causing rich fuel mixtures, high EGTs, or excessive crankcase pressure can negatively impact turbo health.

Common Turbo Failure Causes & Prevention

Frequently Asked Questions (FAQs)

How long does a turbocharger replacement typically take?

While the basic steps might sound quick, a comprehensive turbocharger replacement, including proper cleaning, inspection, and priming, typically takes anywhere from 4 to 8 hours for an experienced mechanic, depending on the vehicle's make and model, and accessibility of the turbo. For a DIY enthusiast, it could easily take a full weekend or longer.

Do I need special tools to change a turbo?

Beyond a standard mechanics tool kit (sockets, wrenches, screwdrivers), you will definitely need a torque wrench for critical fasteners. penetrating oil, a fluid drain pan, and potentially specific hose clamp pliers or oxygen sensor sockets can also be highly beneficial. A car lift or robust jack stands are essential for safe access.

Should I replace anything else when changing the turbo?

Absolutely. Always replace all associated gaskets and seals. It is highly recommended to replace the oil feed line and the oil filter, and to perform a full engine oil change. If your turbo is liquid-cooled, new coolant and proper bleeding of the cooling system are also necessary. Inspect the intercooler and associated boost pipes for oil contamination and clean or replace as needed.

Can I drive with a failing turbo?

It is strongly advised against driving with a failing turbocharger. Continued driving can lead to catastrophic engine damage. A failing turbo can send metal fragments into your engine, cause excessive oil consumption, or even lead to a "runaway diesel" scenario if enough oil leaks into the intake and is combusted uncontrollably.

What causes turbos to fail?

The most common causes are oil starvation (lack of lubrication), foreign object damage (debris entering the turbo), contaminated oil, and excessive heat. Rarely do turbos fail without an underlying cause. It's crucial to identify and rectify this cause to prevent repeat failure of your new unit.

Is it worth replacing the turbo or buying a new car?

This depends on the overall condition and value of your vehicle. If the car is otherwise in good shape and has significant life left, replacing the turbo is often far more cost-effective than buying a new car. However, if the turbo failure is symptomatic of wider engine issues or the car is nearing the end of its serviceable life, then a replacement might not be economically viable.

Replacing a turbocharger is a significant automotive repair that demands meticulous attention to detail and adherence to proper procedures. While challenging, successfully completing this task can restore your vehicle's performance and significantly extend its lifespan. If at any point you feel unsure or out of your depth, it is always best to consult with or entrust the job to a qualified professional mechanic. Your car's health, and your safety, depend on it.
