19/05/2025
Your Ford Falcon's braking system is a critical component, designed to provide reliable stopping power mile after mile. However, like any part of your vehicle that experiences significant wear and tear, brakes can sometimes develop an irritating squeak. This noise isn't just an annoyance; it's often a signal that your braking system requires attention. While worn brake pads are the most frequent culprit, several other factors can contribute to this unwelcome sound. Fortunately, many of these issues are relatively straightforward to address, and understanding the potential causes is the first step towards a quiet and safe drive.
How Your Falcon's Brake System Works
At its core, your Ford Falcon's braking system operates on a simple yet effective principle. When you depress the brake pedal, you initiate a chain reaction. This action is converted into hydraulic pressure, which is then magnified by the engine's vacuum booster, all managed by the master cylinder. This hydraulic pressure is then channelled to the braking mechanisms at each wheel. In vehicles equipped with disc brakes, this pressure forces brake pads to clamp down onto a rotating disc (rotor), generating friction that slows the vehicle. If your Falcon is equipped with drum brakes, typically found on the rear of older models or specific trims, the hydraulic pressure actuates brake shoes that press outwards against the inside of a rotating drum. This friction is what ultimately slows your car down. However, this process generates considerable heat, and over time, the components involved will inevitably wear down.
Common Causes of Squeaky Brakes in Your Ford Falcon
Understanding the various reasons behind brake squeal is essential for effective diagnosis and repair. Here are the most common culprits:
1. Worn Brake Pads (or Shoes)

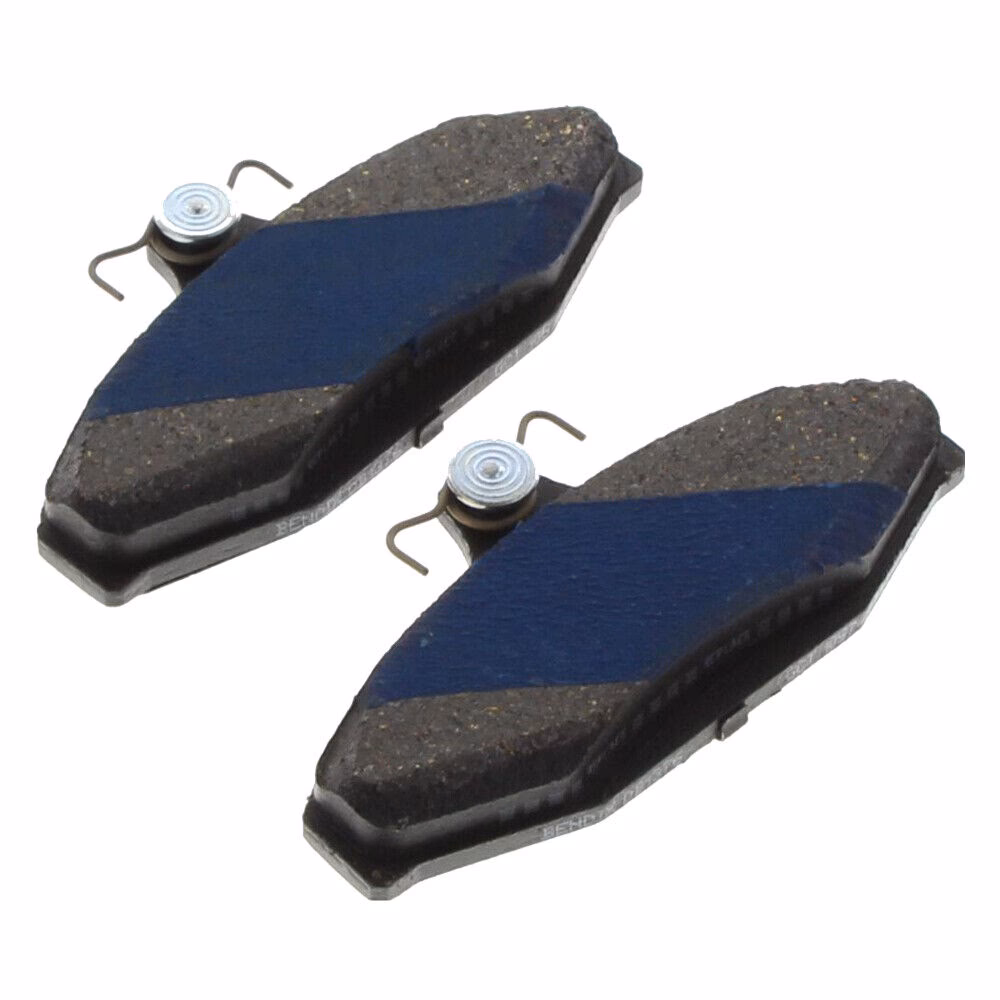

This is by far the most prevalent reason for squeaky brakes. Modern vehicles, including your Ford Falcon, universally feature disc brakes on the front axle. Whether your particular Falcon also has drum brakes on the rear depends on its year of manufacture and the specific options it was equipped with. Disc Brake Pad Wear Indicators: Disc brake pads are ingeniously designed with a small metal tab known as a 'squealer' or 'wear indicator'. When the brake pad material wears down to a critical level, this metal tab starts to make contact with the brake rotor. This contact produces a high-pitched squeal, alerting you that the brake pads are nearing the end of their service life and should be replaced promptly. While the vehicle remains safe to drive at this stage, delaying replacement can lead to further damage. If the pads are not replaced, they will eventually wear down completely, resulting in a metal-on-metal contact between the pad backing plate and the rotor. This will produce a much more alarming and damaging grinding sound. Drum Brake Shoe Wear: In drum brake systems, the brake shoes perform a similar function. Once the friction material on the shoes has worn away, the metal shoe itself will begin to make contact with the inner surface of the brake drum. This also results in a metallic scraping or grinding noise. Detecting the wear on drum brake shoes before they reach this point can be more challenging than with disc brake pads.
2. Anti-Rattle Clips
Anti-rattle clips are small, often U-shaped metal components that play a crucial role in the quiet operation of your braking system. They are designed to fit between the brake pads and the caliper assembly. Their primary function is to prevent the brake pads from vibrating and rattling within the caliper bracket when the brakes are not applied. If these clips are damaged, corroded, or were incorrectly installed during a previous brake service, they can cause the brakes to squeal. In some cases, if the anti-rattle clips are entirely missing, you might initially hear a distinct 'thunk' or clunking sound as the pads shift. Over time, the absence of these clips can lead to uneven wear and glazing of the brake pads, eventually resulting in a squealing noise. These clips are a vital part of the braking system's quiet operation, and if you suspect they are damaged or missing, it's wise to have them inspected and replaced by a qualified mechanic.
3. Glazing
Glazing is a common phenomenon that can affect various brake components, including pads, shoes, rotors, and drums. It occurs when these parts are subjected to excessive heat over prolonged periods. This intense heat causes the surface of the brake pads or shoes to harden and develop a smooth, glassy appearance – hence the term 'glazing'. This hardened surface significantly reduces the friction material's ability to grip the rotor or drum effectively, diminishing overall braking performance. A common symptom of glazed brake components is a persistent squealing sound, even when the pads themselves are not significantly worn. If your Ford Falcon's brake pads or rotors appear glazed, they will likely need to be replaced to restore proper braking and eliminate the noise.
4. Pad Insulation (Shims)
Between the brake pad and the caliper piston (or drum shoe and its backing plate) is a small component called a shim or insulation plate. This part is designed to absorb vibrations and heat, preventing them from being transmitted to the caliper and ultimately the vehicle's cabin, which can cause noise. Over time, these shims can become lost, damaged, or corroded, particularly after a brake job if they weren't reinstalled correctly. Issues with shims or pad insulation often manifest shortly after brake work has been performed. If you notice a new squealing sound following a brake service, checking the condition and installation of these insulation components is a good starting point.
5. Rotors
Brake rotors are critical friction surfaces, and their condition directly impacts braking performance and noise levels. Several issues with rotors can lead to squealing: * Uneven Surface: If the rotor surface becomes uneven, perhaps due to previous wear or improper pad bed-in, it can cause the brake pads to vibrate and squeal as they make contact. * Glazing: As mentioned earlier, rotors can also become glazed, leading to reduced friction and noise. * Wear: Rotors have a minimum thickness specification. If they become worn too thin, they can be more prone to warping and noise. In many cases, a mechanic can resurface the rotors by 'turning' them. This process involves using a specialized machine to shave off a thin layer of metal, creating a new, flat, and even surface for the brake pads to engage with. However, if the rotors are worn beyond their minimum thickness or are severely damaged, they will need to be replaced entirely.
Ford Falcon Brake Squeak Diagnosis: A Summary
Pinpointing the exact cause of brake squeal on your Ford Falcon can sometimes be a tricky business. The braking system is arguably the most important safety feature on your vehicle, as its ability to stop effectively is paramount. Therefore, it's crucial not to ignore any unusual noises emanating from your brakes. Here's a quick recap of what to consider:* Visual Inspection: If you're comfortable, a visual inspection of the brake pads can reveal significant wear. Look for how much friction material is left. Also, check the rotors for any obvious scoring or glazing. * Listen Carefully: Try to identify when the squeal occurs – during braking, releasing the brakes, or even when just driving? This can offer clues. * Recent Work: If the noise started after a recent brake service, suspect an issue with installation, such as missing or damaged anti-rattle clips or shims. * Professional Diagnosis: If you're unsure or unable to identify the source of the squeal, it's always best to consult a qualified mechanic. They have the tools and expertise to accurately diagnose the problem and recommend the appropriate repairs.
Frequently Asked Questions (FAQs)
Q1: Does every Ford Falcon have rear drum brakes?A1: No, not all Ford Falcons have rear drum brakes. While earlier models and certain trims may have featured drum brakes on the rear axle, many later models, especially those equipped with higher specifications or designed for performance, will have disc brakes on all four wheels. Q2: Can I drive with squeaky brakes?A2: If the squeal is due to the wear indicator (a thin metal tab), it's generally safe to drive for a short period, but you should get them replaced as soon as possible. If the noise is a loud grinding sound, indicating metal-on-metal contact, you should avoid driving the vehicle to prevent severe damage to the rotors and ensure your safety. Q3: How much does it cost to fix squeaky brakes?A3: The cost can vary significantly depending on the cause. Replacing worn brake pads is generally the most affordable option. If rotors need resurfacing or replacement, or if other components like calipers or brake lines are involved, the cost will increase. Always get a quote from your mechanic. Q4: Will new brake pads stop the squealing?A4: New brake pads will often stop squealing if the original cause was simply worn-out pads. However, if the squealing is due to glazed rotors, faulty anti-rattle clips, or other issues, simply replacing the pads might not resolve the noise. It's important to address the root cause. Q5: How often should I have my brakes checked?A5: It's recommended to have your brakes inspected at least once a year, or every 12,000 miles, as part of your regular vehicle maintenance. However, if you notice any changes in braking performance, such as sponginess, pulling to one side, or unusual noises like squealing, you should have them checked immediately. By understanding these potential causes and knowing when to seek professional help, you can keep your Ford Falcon's braking system in optimal condition, ensuring your safety on the road. If you have any further insights or experiences with Ford Falcon brake squeaks, feel free to share them in the comments below.
