The Art of the V10 Oil Change: A Step-by-Step Masterclass
For many V10 engine owners, the prospect of changing their vehicle's oil can seem a daunting task, conjuring images of messy spills and complicated procedures. However, with the right knowledge and tools, this essential maintenance can be transformed from a chore into a straightforward, even satisfying, job. This guide aims to demystify the process of changing the oil on your V10, offering practical advice and highlighting key components that can make the experience significantly smoother and cleaner. We'll delve into the benefits of using a Fumoto valve, explore the intricacies of grease points, and even shed light on the mysterious world of oil viscosities and classifications.
Streamlining the Oil Change: The Fumoto Valve Advantage

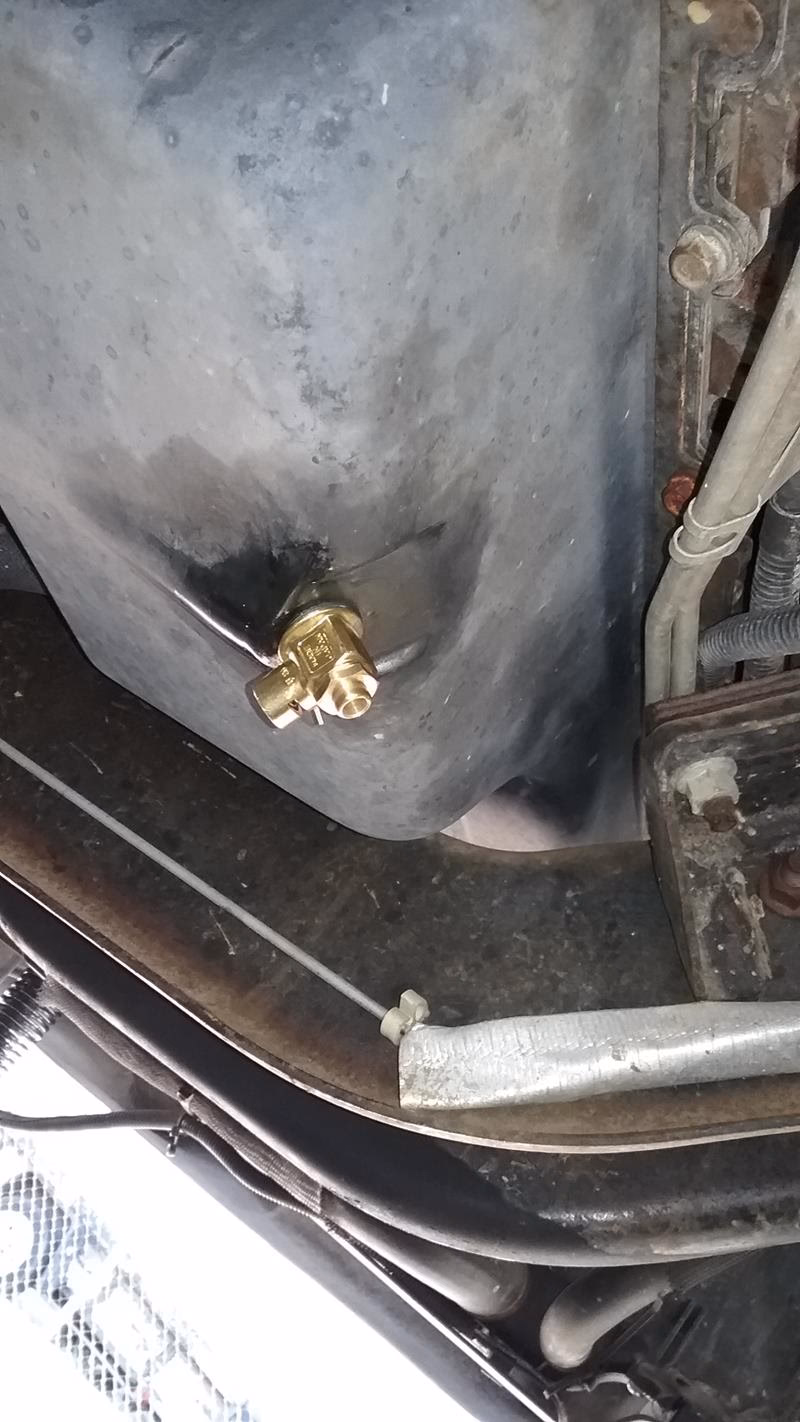

One of the most common frustrations during an oil change is dealing with the traditional drain plug. It's often fiddly, prone to stripping, and invariably leads to oil dripping everywhere it shouldn't. This is where a clever piece of engineering comes in: the Fumoto valve. Replacing your standard drain plug with a Fumoto valve can revolutionise your oil change experience. These valves are designed for ease of use and, crucially, cleanliness.
The concept is simple: instead of unscrewing a plug and risking a torrent of hot oil, you simply open a lever on the Fumoto valve. This allows the oil to drain out in a controlled manner. For those with V10 engines, particularly those housed in larger vehicles like motorhomes, accessibility can be an issue. The Fumoto valve's design often allows you to position your drain pan directly beneath it, even on top of the front axle, as one experienced owner suggests. This elevated positioning, combined with the valve's controlled flow, means you can set it and forget it for 20-30 minutes, returning to a mostly drained sump. Once drained, you simply close the valve, remove the pan, and you're ready for fresh oil.
The investment in a Fumoto valve, typically around $25, is a small price to pay for the significant reduction in mess and hassle. They are readily available online from various retailers, including major platforms like Amazon. This simple upgrade demonstrates how a little ingenuity can make a big difference in routine maintenance.
The Grease Job: Lubricating Your V10's Moving Parts
Beyond the oil change, regular greasing is vital for the longevity and smooth operation of your vehicle's suspension and steering components. For many V10-equipped vehicles, especially those with a robust chassis like those found in RVs, there are numerous grease points that require attention. A typical front-end setup can have up to nine specific points that need a regular dose of grease.
Identifying these points is the first step. They are usually small, nipple-like fittings called zerk fittings or grease nipples. You'll need a grease gun for this task. When greasing, it's important not to over-grease, as this can sometimes force seals out or contaminate other areas. A few pumps per fitting is generally sufficient until you see a small amount of fresh grease start to emerge from the edges of the joint, indicating the old grease has been purged.
A common oversight, as noted by experienced mechanics, is the grease fitting on the steering box. This can be difficult to see due to its location, making it a prime candidate for being missed during a routine service. However, its lubrication is critical for the smooth operation of your steering system. Additionally, depending on the specific model and year, such as a '99 Southwind mentioned, you might find grease fittings on each of the four U-joints (universal joints) in the driveshaft. These are essential for preventing wear and tear on the joint components.
Common Grease Points on a V10 Front End:
| Point Number | Location | Notes |
|---|---|---|
| 1-4 | Ball Joints (Upper & Lower) | Typically two on each side. |
| 5-6 | Tie Rod Ends | One on each side, connecting to the steering knuckle. |
| 7 | Drag Link End | Connects steering arm to tie rod assembly. |
| 8 | King Pins / Spindles | If applicable to your steering setup. |
| 9 | Steering Box | Often difficult to locate; crucial for steering longevity. |
| (Additional) | U-Joints | Check driveshaft for fittings on each U-joint (4 total on some models). |
Understanding Oil Viscosity: SAE 5W-20 Explained
The world of engine oils can be confusing, with acronyms and numbers that seem to have little meaning to the average car owner. Let's break down what 'SAE 5W-20' actually signifies. The Society of Automotive Engineers (SAE) is the body responsible for classifying oils based on their viscosity, which is essentially their resistance to flow. This classification is crucial because the correct viscosity ensures that the oil can effectively lubricate engine parts across a range of operating temperatures.
The '5W' in 5W-20 refers to the oil's viscosity at cold temperatures. The 'W' stands for 'Winter'. A lower number here indicates that the oil is thinner when cold, allowing for easier cranking and faster lubrication of engine components during startup, especially in colder climates. The '20' refers to the oil's viscosity at operating temperature (typically measured at 100°C). A higher number here means the oil is thicker when hot, providing a more robust lubricating film under demanding conditions.
So, SAE 5W-20 oil is designed to perform well in both cold and hot conditions, offering a balance that suits many modern engines. It's imperative to consult your vehicle's owner's manual to determine the specific oil viscosity recommended by the manufacturer. Using the wrong viscosity can lead to increased wear, reduced fuel efficiency, and potential engine damage.
API Ratings and the Superiority of Synthetics
Alongside viscosity, the American Petroleum Institute (API) provides ratings that indicate an oil's performance and protective qualities. You'll often see ratings like 'SN', 'SP', etc. These letters represent different standards and advancements in oil technology. As new standards are developed and higher performance is required, the API progresses down the alphabet. For instance, an 'SP' rated oil generally signifies a more current and potentially superior formulation compared to an older 'SN' rated oil.
When it comes to choosing an oil, the debate between conventional and synthetic oils is a significant one. The consensus among automotive professionals and enthusiasts alike is that synthetic oils offer substantial advantages. As one seasoned automotive instructor highlights, many people stick to conventional oils out of habit or tradition, rather than informed choice. Synthetics are engineered at a molecular level to provide superior lubrication, better resistance to thermal breakdown, and enhanced protection against wear.
Mobil 1, for example, has a long-standing reputation for quality, and many owners swear by its performance. The evidence supporting the benefits of synthetics is substantial. They maintain their viscosity better under extreme temperatures, reduce friction more effectively, and often lead to improved fuel economy. While synthetic oils may have a higher initial cost, their ability to protect your engine and potentially extend its life often makes them a more cost-effective choice in the long run.
Frequently Asked Questions
Q1: Is it really necessary to change the oil on my V10 regularly?
A1: Absolutely. Engine oil degrades over time and use, losing its lubricating properties and accumulating contaminants. Regular oil changes are the single most important maintenance task for ensuring the longevity and performance of your V10 engine.
Q2: How often should I grease the fittings on my V10?
A2: The frequency of greasing depends on your vehicle's usage and manufacturer recommendations. For vehicles used in demanding conditions (towing, off-road, frequent short trips), greasing every 3,000 to 5,000 miles or every few months is a good practice. Always consult your owner's manual for specific intervals.
Q3: Can I use a different oil viscosity than what's recommended?
A3: It is strongly advised to use the oil viscosity specified in your owner's manual. Deviating from the manufacturer's recommendation can negatively impact engine performance, fuel efficiency, and durability. If you are unsure, consult a qualified mechanic.
Q4: What are the benefits of using a Fumoto valve?
A4: The primary benefits are a cleaner, easier, and faster oil change. It eliminates the risk of stripping the drain plug, reduces the chance of spills, and allows for controlled draining, making the process much more convenient.
Q5: Where can I find the grease fittings on my V10?
A5: Grease fittings are typically small, nipple-like metal protrusions. Refer to your owner's manual or consult online resources specific to your vehicle model, as locations can vary. Pay close attention to suspension components, steering linkage, and driveshaft U-joints.
Conclusion: Empowering Your V10 Maintenance
Maintaining your V10 engine doesn't have to be a complex undertaking. By understanding the simple yet effective tools like the Fumoto valve, diligently attending to the necessary grease points, and choosing the correct oil based on viscosity and API ratings, you can ensure your V10 runs smoothly and reliably for years to come. Embracing synthetic oils and following a consistent maintenance schedule are investments that pay dividends in engine health and driving peace of mind. Remember, a little knowledge and the right approach can transform routine maintenance into a straightforward and rewarding aspect of owning your V10.
