Expedition EPB Service: Rear Brake Job Guide

Modern vehicles, such as your 2018 Ford Expedition, are equipped with sophisticated systems designed for enhanced safety and convenience. One such advancement is the electronic parking brake (EPB), which has largely replaced the traditional cable-actuated handbrake. While incredibly convenient in daily use, the EPB introduces a specific procedure that must be followed when performing routine brake maintenance, particularly when replacing rear brake pads and rotors. Failing to engage the correct 'maintenance mode' can lead to significant damage to the caliper components and the EPB motor itself. This guide will walk you through the essential steps for safely undertaking a rear brake job on your Expedition, ensuring you understand the importance of the EPB maintenance mode and how to approach this task effectively.

Understanding the Electronic Parking Brake (EPB): A Crucial First Step

Unlike older vehicles where a simple C-clamp or a specialized tool could manually compress the brake caliper piston, modern vehicles with an electronic parking brake (EPB) system require a different approach. The EPB integrates a small electric motor directly into the rear brake caliper assembly. This motor is responsible for engaging and disengaging the parking brake, electronically controlling the clamping force on the rear brake pads. If you attempt to simply push the piston back into the caliper without deactivating the EPB motor, you will encounter resistance and, more importantly, risk irreparable damage to the motor and internal gears.

This is where 'maintenance mode' comes in. It's a specific software routine within the vehicle's computer system that retracts the EPB motor, allowing the caliper piston to be safely compressed. Without this mode engaged, you will find it impossible to push the caliper pistons in, making brake pad replacement unfeasible. It is critical that you consult your 2018 Ford Expedition's owner's manual or a reliable Ford service guide for the precise sequence of steps required to activate the EPB maintenance mode. This procedure typically involves a combination of ignition cycles, pedal presses, and parking brake switch manipulations, but the exact steps can vary and must be followed precisely to avoid issues.

Safety First: Preparing for Your Brake Service

Before you even think about touching a spanner, safety must be your absolute priority. Working under a vehicle carries inherent risks, and taking proper precautions is non-negotiable. Always work on a flat, level surface, and ensure your vehicle is secure.

• Chock the Front Wheels: Place wheel chocks in front of and behind the front wheels to prevent any unintended movement of the vehicle.
• Proper Jacking Points: Consult your Expedition's owner's manual for the correct jacking points. The Ford Expedition, with its robust frame, offers excellent lifting points. Use a sturdy hydraulic jack to lift the rear of the vehicle.
• Secure with Jack Stands: Once the vehicle is lifted to a sufficient height, immediately place robust jack stands under the designated frame points. Never, under any circumstances, rely solely on a jack to support the vehicle while you are working underneath or around it. As a seasoned DIY mechanic might say, you don't want to be hanging out with Henry Ford sooner than planned!
• Additional Safety Measure: Once the wheel is removed, place it flat on the ground directly under the vehicle's rear hitch or a sturdy frame point. This acts as an additional safety barrier in the unlikely event of a jack stand failure.

Tools of the Trade: What You'll Need

Having the right tools ready makes the job smoother and more efficient. For your Expedition's rear brake service, you'll need the following:

Step-by-Step: The Rear Brake Replacement Process

Once your 2018 Ford Expedition is safely secured and, crucially, the electronic parking brake maintenance mode has been successfully engaged (as per your owner's manual), you can begin the physical work. The following steps outline the process:

1. Remove the Wheel

With the vehicle lifted and supported, use your 21mm lug wrench or impact wrench to remove the six lug nuts holding the rear wheel. Once loose, carefully remove the wheel and place it under the vehicle's frame as an extra safety precaution, as mentioned earlier.

2. Access the Caliper and Pads

Now that the wheel is off, you'll have a clear view of the brake assembly. Locate the brake caliper, which houses the brake pads. You'll need to remove two bolts that secure the caliper to the caliper bracket. These are typically 10mm bolts. Use your 10mm spanner or ratchet. In some cases, you might need a pair of pliers or a thin-walled spanner to hold the inner bolt steady while you loosen the outer one.

3. Slide the Caliper Off

Once the two bolts are removed, the caliper should slide off the rotor relatively easily. Be gentle and support the caliper, as it will still be connected by the hydraulic brake hose. Never let the caliper hang by the brake hose, as this can damage the hose and lead to brake fluid leaks. Use a bungee cord or a piece of wire to suspend the caliper safely from the suspension component, ensuring no strain is put on the hose.

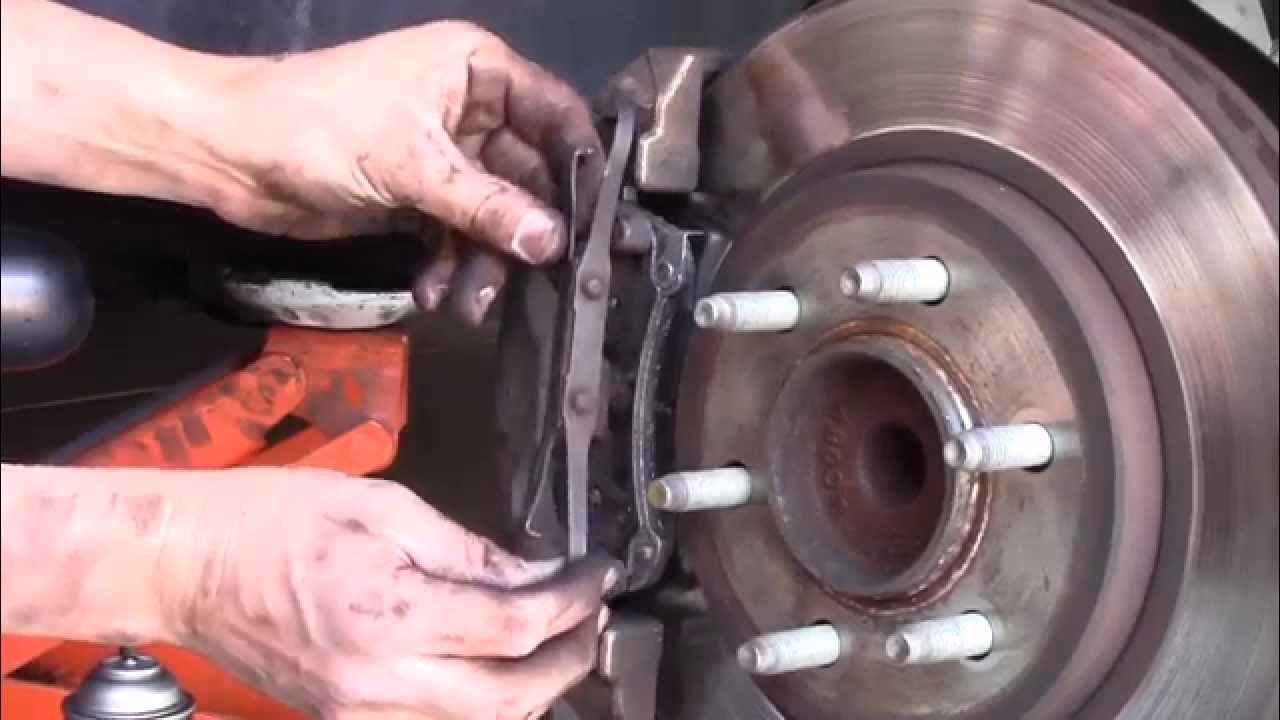

4. Remove Old Brake Pads

With the caliper out of the way, you can now access the old brake pads. These are usually held in place by clips or simply rest within the caliper bracket. Use your flat screwdriver to carefully pry out the outside brake pad first, then the inside pad. Inspect the old pads for uneven wear, which could indicate other issues with your brake system.

5. Retract the Caliper Piston

This is the step that absolutely requires the EPB maintenance mode to be active. With the maintenance mode engaged, the EPB motor is retracted, allowing the piston to be compressed. Place one of your old brake pads against the piston face (this protects the piston) and use your large C-clamp to slowly and steadily push the piston back into the caliper bore. It should retract smoothly with moderate pressure. If you encounter significant resistance, double-check that the EPB maintenance mode is truly active.

6. Replace the Rotor (If Necessary)

The prompt mentions this being an "easiest brake job" with "eight total bolts to remove, six of which are lugnuts." This implies that the rotor itself is held on by only one or two additional bolts once the caliper is off, or it simply slides off the hub. Ford Expedition rotors often simply slide off once the caliper and its bracket are removed. If your rotors are worn, warped, or scored, now is the time to replace them. Ensure the hub surface is clean and free of rust before installing the new rotor. A wire brush can be useful here. Clean the new rotor thoroughly with brake cleaner to remove any protective oils from manufacturing.

7. Install New Brake Pads and Reassemble

Install the new brake pads into the caliper bracket, ensuring they sit correctly in their clips or guides. Apply a thin layer of brake lubricant to the contact points where the pads slide in the caliper bracket, and to the back of the pads where they contact the caliper piston and fingers. This helps prevent squealing. Carefully slide the caliper back over the new pads and rotor. Reinstall the two 10mm caliper bolts and tighten them securely. Refer to your Expedition's service manual for the correct torque specifications for these bolts and the lug nuts.

8. Reinstall the Wheel

Place the wheel back onto the hub, aligning the lug holes. Hand-tighten the lug nuts initially, then lower the vehicle slightly until the tyre just touches the ground. Use your torque wrench to tighten the lug nuts in a star pattern to the manufacturer's specified torque. This ensures even pressure and prevents warping of the rotor.

Post-Procedure Checks: Finalising Your Work

Once everything is reassembled, there are a few crucial steps before you drive your Expedition:

• Pump the Brake Pedal: Before starting the engine, get inside the vehicle and slowly pump the brake pedal several times until it feels firm. This pushes the caliper pistons out, seating the new pads against the rotors and restoring normal pedal feel.
• Check Brake Fluid Level: After pumping the pedal, check your brake fluid reservoir under the bonnet. The fluid level might have risen slightly as the pistons were retracted. Ensure it's between the 'min' and 'max' marks. Do not overfill.
• Deactivate Maintenance Mode: Refer to your owner's manual for the procedure to deactivate the EPB maintenance mode. This is as important as activating it.
• Road Test: Take your Expedition for a cautious test drive in a safe area. Drive slowly at first, gently applying the brakes to 'bed in' the new pads and rotors. Avoid hard braking for the first 100-200 miles to allow the components to properly seat. Listen for any unusual noises and check for proper braking performance.

Common Questions About Expedition Brake Maintenance

Why is maintenance mode necessary for EPB?

The electronic parking brake (EPB) system uses an electric motor to engage and disengage the parking brake. Without activating maintenance mode, this motor will prevent the caliper piston from being pushed back into the caliper, making new pad installation impossible and risking damage to the EPB motor itself.

Can I skip maintenance mode when doing the rear brakes?

Absolutely not. Attempting to force the caliper piston back without engaging maintenance mode will damage the EPB motor within the caliper, leading to costly repairs and potential brake system failure. It is a vital step for any rear brake service on your 2018 Ford Expedition.

How often should I replace my Expedition's brake pads and rotors?

Brake component lifespan varies greatly depending on driving habits, terrain, and vehicle load. Generally, brake pads should be inspected annually or every 12,000 miles (20,000 km). Rotors are often replaced with pads, especially if they show signs of wear, warping, or scoring. Listen for squealing, grinding, or feel pulsations in the brake pedal, which are all signs of worn components.

What are the signs of worn brake components?

Common signs include a squealing or grinding noise when braking, a pulsating brake pedal (indicating a warped rotor), the vehicle pulling to one side during braking, a soft or spongy brake pedal, or the brake warning light illuminating on your dashboard.

Is replacing Expedition rear brakes truly an "easy" DIY job?

As the original contributor noted, many find this to be a surprisingly straightforward brake job, especially compared to some other vehicles. The Expedition's robust design and accessible components, coupled with the proper engagement of maintenance mode, make it quite manageable for the competent DIY enthusiast. The most challenging part, if any, is ensuring you correctly engage and disengage the EPB maintenance mode.

What if my caliper piston won't retract even after engaging maintenance mode?

If you've confirmed maintenance mode is active according to your owner's manual and the piston still resists compression with a C-clamp, it could indicate a seized caliper piston or a fault within the caliper itself. In such a rare case, the caliper may need to be replaced. Ensure you are applying steady, firm pressure and not rushing the process.

Successfully performing your own rear brake service on your 2018 Ford Expedition is a rewarding experience that can save you a significant amount of money. By understanding the unique requirements of the electronic parking brake system, prioritising safety, and following a methodical approach, you can maintain your vehicle's braking performance with confidence. Always remember to consult your owner's manual for specific procedures and torque settings to ensure a safe and effective repair.
