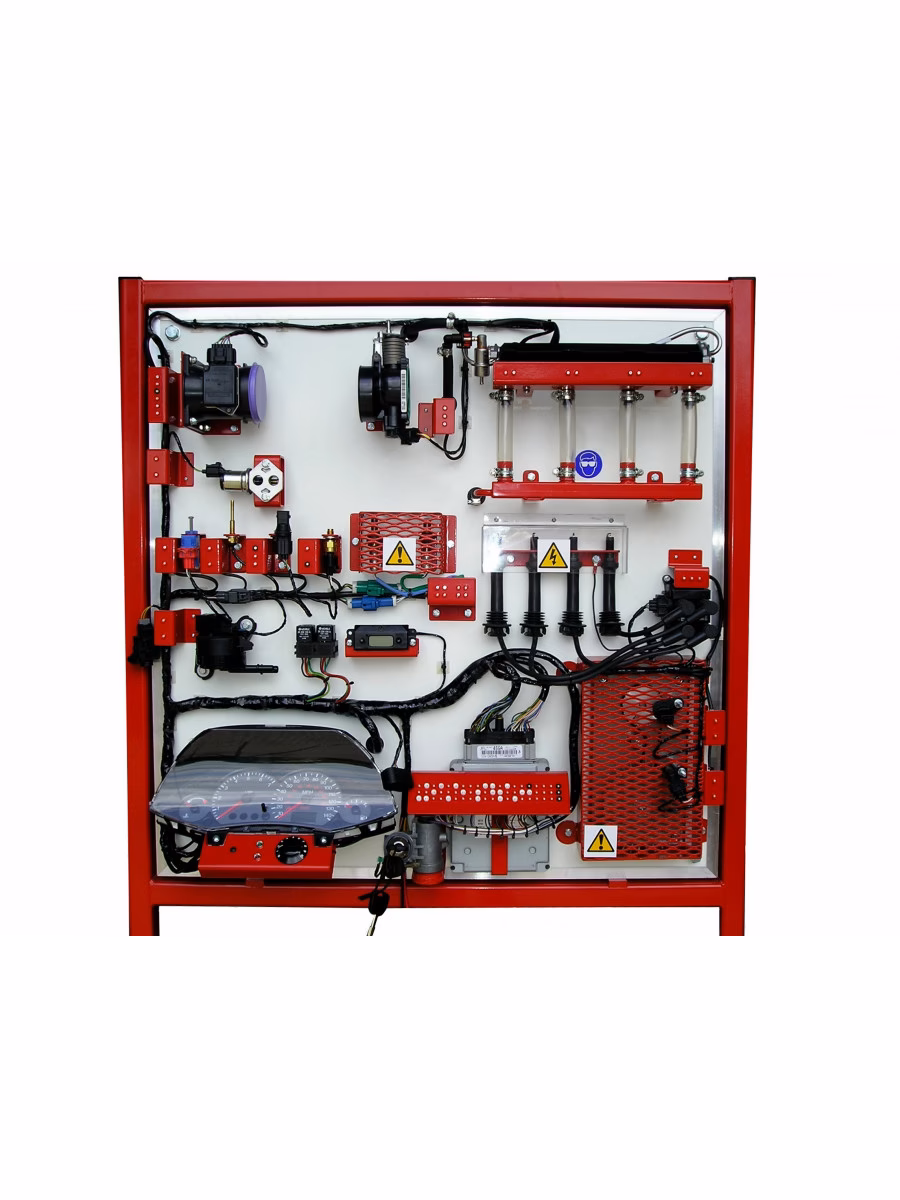

Ford EEC-V: The Heart of Your Powertrain

The Ford EEC-V, or Electronic Engine Control V, represents a significant leap forward in automotive technology. Far more than just an engine management system, it's a sophisticated Powertrain Control Module (PCM) that orchestrates a complex symphony of operations to ensure optimal performance, fuel efficiency, and emissions control. This fifth-generation system doesn't just manage fuel injection and ignition timing; it delves deeper, monitoring exhaust gases and taking complete command of automatic gearbox functions, including line pressure, gear shift scheduling, and torque converter clutch engagement. Crucially, the EEC-V is built to comply with the 1996 OBD II (On-Board Diagnostics II) standards, a US requirement for standardised engine emissions and management systems, making it a forward-thinking piece of engineering for its time.

With increasingly stringent emission regulations, the EEC-V leaves nothing to chance. A comprehensive network of sensors constantly feeds information to the PCM. These sensors monitor a wide array of parameters, including ambient air temperature, engine temperature, airflow, engine load, revolutions per minute (RPM), and vehicle speed. Based on this data, the PCM meticulously determines the precise moment to inject fuel and fire the spark plugs (via the Electronic Ignition module), and crucially, which gear to select in the automatic gearbox, all while taking into account driver preferences like 'Sport' or 'Economy' mode. After combustion, the PCM doesn't stop there. It scrutinises the exhaust mixture both before and after it passes through the catalytic converter. If it detects excessive hydrocarbons, it will adjust the fuel mixture to a leaner state. For instance, at maximum continuous revs, the EEC-V in a 24-valve engine must process these inputs and control all functions to fire the cylinders at the correct time, at an astonishing rate of 25 times per second. Furthermore, it manages the purging of the evaporative emission canister, controls variable resonance inlet valves, compensates for the drag from the power steering pump and air conditioning compressor, and orchestrates the introduction of exhaust gases into the inlet manifold (EGR) to minimise harmful NOx emissions.

But how does this intricate system all work? What are these sensors, and where are they located? If you have about an hour to spare, let's delve into the answers. Please note that gearbox references below are specifically for automatic transmissions.

The Powertrain Control Module (PCM)

The EEC-V module itself is typically located beneath the dashboard, tucked away behind the glove compartment. For security, it's often pop-riveted to its mounting bracket. A diagnostic port, essential for connecting to OBD systems, is usually found on the underside of the dashboard, often within the cubby to the right of the steering column.

The PCM operates by constantly monitoring the myriad signals it receives from its sensors. Many of these sensors provide analogue signals, which the PCM must first convert into digital format for processing. A common method of operation involves the PCM sending a reference voltage to a sensor and then measuring the change in the returned signal. This value is then cross-referenced with a pre-programmed map stored in the module's Read-Only Memory (ROM). These maps contain countless pre-calculated responses that the PCM uses to precisely control various valves and solenoids.

These ROM maps are accessed thousands of times per second, allowing the PCM to correlate the dynamic sensor inputs with the correct timings for ignition, fuel delivery, gearbox pressure, gear selection, and torque converter clutch operation. Also stored in ROM is the Limited Operation Strategy (LOS). This crucial failsafe allows the engine to continue running, albeit with reduced performance, even if some sensors malfunction. Random Access Memory (RAM) stores the adaptive strategy. This is where the PCM learns and compensates for component wear and tear. If a sensor value is missing or deemed suspect, the PCM can substitute a value from the LOS. This adaptive learning and substitution is stored and refined over approximately eighty drive cycles. Additionally, a self-test facility logs intermittent fault codes for the same period, providing invaluable diagnostic data for systems like the WDS (Worldwide Diagnostic System).

The PCM is designed to monitor both input and output devices for any faults. If a fault is detected, it will typically illuminate a warning light on the instrument panel (though not present on all models, like the Scorpio), store a fault code, and make this code accessible when a diagnostic computer or a dedicated tool like the Vehicle Explorer is connected to the diagnostic port.

Engine Sensors and Their Roles

To effectively manage the engine, the PCM needs to know precisely what the engine is doing. This is where a suite of critical sensors comes into play:

Crankshaft Position Sensor (CKP)

The CKP sensor is fundamental to the PCM's ability to control the engine. It determines the exact position of the crankshaft, which is essential for calculating which cylinder is on its compression stroke and for timing the ignition spark. The CKP is typically an inductive pulse generator that reads protrusions on the flywheel or a toothed disc attached to the crankshaft. A specific tooth or protrusion is often omitted, creating a gap situated 90 degrees before Top Dead Centre (TDC). The raw signal from the CKP is analogue (a sine wave that varies between positive and negative values). This signal is then converted into a digital Profile Ignition Pickup (PIP) signal, often within the Electronic Ignition (EI) system itself (which on some models is integrated into the EEC-V). It is this PIP signal that the PCM uses to determine engine speed and ignition timing. The CKP signal is also a vital input for controlling the automatic gearbox's main line pressure, gear shifts, and torque converter clutch engagement.

Camshaft Position Sensor (CMP)

When the engine starts, the exact crankshaft position isn't immediately known until the reference gap passes the CKP. To facilitate the initial starting sequence, the CMP sensor reads a reference point on the camshaft. This analogue signal allows the PCM to calculate the position of cylinder No. 1. Combined with the PIP signal, the PCM can then determine the correct firing sequence for the fuel injectors. Once the engine is running, the PCM primarily uses the PIP signal for fuel injector control, while the CMP signal is used to optimise the closing time of the EI module's primary coil.

Throttle Position Sensor (TP)

Mounted either on the throttle housing or sometimes directly on the accelerator pedal, the TP sensor is a potentiometer. The PCM supplies it with a 5V reference voltage. As the accelerator pedal is depressed, a sliding contact within the potentiometer moves across a resistance track, altering the voltage returned to the PCM. A low voltage indicates a closed throttle, while a high voltage signifies a wide-open throttle (WOT). The PCM uses this voltage signal to determine throttle position, which is also critical for controlling the automatic gearbox. It can identify specific throttle conditions: closed throttle (idle or deceleration), part-open throttle (normal operation), wide-open throttle (for fuel enrichment or starting with a flooded engine), and the rate of throttle angle change (for fuel enrichment). Along with other sensor inputs, the TP sensor helps the PCM decide on idle speed, fuel quantity, and ignition timing. For the gearbox, it influences main line pressure, gear shifts, and torque converter clutch operation. Symptoms of a faulty TP sensor can include incorrect shift scheduling or premature/late engagement or disengagement of the torque converter clutch.

Electronic Ignition (EI) System Module

While some Ford models integrate the EI module into the PCM, on vehicles like the 24-valve models, it's often mounted externally, typically on the offside wing behind the headlamp. This module is responsible for controlling the dwell time (the period the ignition coil's primary circuit is energised) and the precise moment of ignition triggering. It achieves this by utilising the signal from the CKP sensor, which is converted into a digital signal within the EI module itself. The EI module calculates the optimal primary circuit closing time, closes the circuit, and then opens it at the precise moment dictated by the PCM to generate an ignition spark. The PCM calculates the actual ignition timing and transmits this information to the EI module as a Spark Advanced Word (SAW) signal. The EI module stores this SAW signal and compares it with the digitised CKP signal to determine the exact ignition timing. At the calculated moment, the EI module interrupts the current to the primary coil, triggering the spark. If the EI module misses five consecutive SAW signals, it defaults to the Limited Operation Strategy (LOS), using the last received SAW signal or, if none are available, triggering ignition based on the PIP signal's leading and trailing edges, resulting in a fixed timing of 10° BTDC. This significantly impacts performance. Normal operation resumes once three consecutive valid SAW signals are received.

Mass Air Flow (MAF) Sensor

To ensure the correct amount of fuel is injected, the MAF sensor accurately measures the mass of air entering the intake system. It typically operates on a hot-wire principle. A heated wire and an air temperature probe are situated within the air inlet duct. The hotwire is maintained at a temperature significantly higher than the ambient air. A precision resistor measures the current required to maintain this temperature difference. The principle is straightforward: the hotwire's temperature is lowered by the mass of air flowing past it. Consequently, the current needed to reheat the wire varies proportionally to the air mass. By reading the voltage across the resistor, the PCM can accurately determine the airflow and calculate the precise amount of fuel to be delivered by the injectors. The MAF sensor's data is also used for controlling gearbox gear shifts and torque converter clutch engagement. Faulty MAF readings can lead to incorrect gearshift scheduling.

Intake Air Temperature (IAT) Sensor

The temperature of the air entering the engine is crucial for fuelling calculations, as colder air is denser. The IAT sensor is typically located inside the air inlet manifold. It varies its resistance in response to temperature changes, affecting a 5V reference voltage supplied by the PCM. The PCM interprets the resulting voltage signal and assigns a corresponding temperature value. This, along with other sensor inputs, helps the PCM determine fuel metering and ignition timing.

Engine Coolant Temperature (ECT) Sensor

Similar to the IAT sensor, the ECT sensor also varies a 5V reference voltage through resistance, but in inverse proportion to temperature. It's usually mounted towards the front of the cylinder head. The PCM converts the sensor's signal into a temperature reading and uses it as a key input for determining idle speed, fuel quantity, ignition timing, and torque converter clutch operation. A faulty ECT sensor can lead to issues like the torque converter being inoperative or increased fuel consumption. It also plays a role in gearbox control for line pressure, gear shifts, and torque converter clutch engagement.

Idle Air Control (IAC) Valve

This is an electronically controlled solenoid valve, not a sensor. It regulates the flow of air that bypasses the throttle plate, thereby controlling the engine's idle speed. By varying the amount of bypass air, the IAC valve maintains a stable engine speed regardless of load. The PCM monitors engine speed via the PIP signal and compares it with inputs from the ECT, TP, and MAF sensors to calculate the required IAC valve position. The valve receives pulsed signals from the PCM, with the pulse width determining the valve's opening and thus the amount of bypass air.

Fuel Injectors

These are electronically operated electromagnetic valves that meter and atomise fuel into the inlet manifold. They are directly controlled by the PCM. A magnetic coil actuates a needle valve, and the PCM precisely controls the duration and timing of each injector's opening. This sequential fuel injection (SFI) ensures fuel is delivered to each cylinder at the optimal time. Since the injectors themselves don't vary in flow rate, the PCM controls the amount of fuel delivered by adjusting how long each injector remains open. Injectors can be either side-feed or vertical-feed. Vertical-feed injectors receive fuel from above via a distributor line, while side-feed injectors (common in 24V engines) are situated within the fuel rail, surrounded by fuel, which helps in cooling them.

Vehicle Speed Sensor (VSS)

The VSS is driven by a tachometer drive in the transmission and typically uses the Hall effect to generate a digital voltage signal for the PCM, which translates it into a vehicle speed reading. This signal is multi-purpose: it aids the PCM in idle speed control, enriches the fuel mixture during deceleration, and cuts off fuel supply during closed-throttle deceleration above certain speeds. The VSS signal is also shared with other systems, including the instrument cluster for displaying speed, the trip computer, speed-sensitive power steering, cruise control, and even the radio's automatic volume control. In automatic transmissions, the PCM uses the VSS, often in conjunction with the Transmission Speed Sensor (TSS), to control line pressure, gear shifts, torque converter clutch engagement, and to manage clutch slip for smoother operation.

Heated Oxygen (HO2S) Sensors (Pre & Post Catalyst)

The HO2S, also known as a Lambda sensor, is a voltage generator placed in the exhaust stream before the catalytic converter. It signals the PCM when it detects a Lambda value of 1, corresponding to an ideal air/fuel ratio of 14.7:1 for efficient combustion. If the mixture is lean, the HO2S typically signals a lower voltage (around 200mV), prompting the PCM to enrich the mixture. If the mixture is rich, it signals a higher voltage (around 800mV), causing the PCM to lean out the mixture. This feedback loop allows the PCM to maintain precise control over exhaust emissions. HO2S sensors require a specific operating temperature (around 200°C), hence they incorporate a heating element activated by the ignition. Vehicles meeting 1996 emission standards often have a second HO2S (Post-Catalyst) located after the catalytic converter. This sensor monitors the efficiency of the catalytic converter itself by comparing its readings to the pre-catalyst sensor. In OBD II data, the pre-catalyst sensor is referred to as Sensor 1, and the post-catalyst sensor as Sensor 2.

Evaporative Emission Canister Purge Valve

To meet emission standards, fuel vapours from the fuel tank and lines are captured in an evaporative emission (EVAP) canister. The PCM controls a purge valve, which at suitable times opens a connection between the canister and manifold vacuum. This draws the stored fuel vapours into the engine to be combusted. A simple test for a functioning EVAP system is to listen for a hiss when releasing the fuel cap during refuelling.

Exhaust Gas Recirculation (EGR) System

To reduce NOx emissions, especially under part-load conditions, the PCM can activate the EGR system. It signals an EGR vacuum regulator, which in turn controls the EGR valve. When activated, exhaust gas is admitted into the combustion chamber, 'quenching' the combustion process and lowering peak temperatures. The PCM simultaneously adjusts ignition timing and fuel mixture based on feedback from the EGR Pressure Transducer to maintain optimal combustion and prevent excessive hydrocarbon emissions.

Variable Inlet System (VIS)

The VIS system optimises airflow to the engine at different RPM ranges. A PCM-controlled vacuum regulator directs vacuum to an actuator. Below a certain RPM threshold (e.g., 3200rpm), vacuum closes butterfly valves in the secondary intake ducts, forcing air through the primary ducts for improved low-end torque. Above this RPM, the PCM deactivates the vacuum, opening the secondary ducts for increased airflow and higher top-end power.

Power Steering Pressure (PSP) Switch

This switch, located in the power steering hydraulic line, detects pressure changes. When the driver turns the steering wheel, especially at low speeds, the power steering pump places a significant load on the engine. The PSP switch signals the PCM, which then increases engine idle speed (via the IAC valve) to compensate for this load and prevent stalling.

Automatic Gearbox Integration

The EEC-V's control over the automatic gearbox is a key feature, ensuring seamless and efficient power delivery. Several sensors and switches provide the necessary input:

Transmission Range Sensor (TRS)

Mounted on the transmission housing, the TRS informs the PCM about the selected gear (Park, Neutral, Drive, etc.). This input is critical for the PCM to control main line pressure, execute gear shifts, and engage various clutches within the gearbox. Different gear selections generate different voltage signals from the TRS.

Overdrive Cancel Switch (OCS)

Located on the gear selector lever, this switch allows the driver to manually disable overdrive (typically 4th gear). When activated, it signals the PCM to alter shift points and control the overdrive clutch, often illuminating an indicator light on the dashboard.

Economy/Sport/Winter Switch (ESW)

This driver-selectable switch allows for different transmission shift characteristics. 'E' (Economy) is the default mode for normal driving. 'S' (Sport) mode commands higher shift points for more aggressive acceleration. 'W' (Winter) mode typically starts in a higher gear (e.g., 2nd) to improve traction on slippery surfaces and uses softer shift timings.

Transmission Speed Sensor (TSS)

The TSS measures the rotational speed of the transmission's output shaft. By comparing the TSS reading with the input speed (derived from the CKP or VSS), the PCM can precisely control torque converter clutch slip for smoother engagement and improved efficiency. Note that some transmissions, like the A4LDe in certain Scorpio models, may not feature controlled slip.

Brake On/Off (BOO) Switch

This switch detects when the brake pedal is applied. The PCM uses this signal to disengage the torque converter clutch, preventing the vehicle from being pushed by the engine when stationary with the brakes applied.

Transmission Fluid Temperature (TFT) Sensor

Located in the gearbox sump, the TFT sensor monitors the transmission fluid temperature. The PCM uses this data to prevent torque converter clutch engagement if the fluid is too cold (below 15°C) or too hot (above 150°C), protecting the transmission from damage.

Air Conditioning (A/C) Switch

When the A/C is switched on, the compressor imposes an additional load on the engine. The PCM detects this via the A/C switch and adjusts transmission line pressure to compensate for the change in engine load, ensuring smooth operation.

OBD II and Diagnostics

The EEC-V system fully implements the OBD II diagnostic standard, even if a 'Check Engine' or Malfunction Indicator Lamp (MIL) isn't always present. It continuously monitors engine sensors and emission-related systems. Any detected faults are stored as diagnostic trouble codes (DTCs), which can be retrieved using a compatible diagnostic tool. Reading these codes is often the first and most crucial step in diagnosing any drivability issues, potentially saving significant time and expense in troubleshooting.

Understanding the intricate workings of the Ford EEC-V system highlights the sophistication of modern engine and powertrain management. By integrating data from a vast array of sensors, the PCM ensures that your vehicle operates efficiently, reliably, and within emission standards.
