Ford Edge 2007-14: Are Your Brake Rotors Due?

The braking system is arguably the most critical safety feature on your 2007-2014 Ford Edge. It’s what brings your vehicle to a safe, controlled stop, protecting you, your passengers, and others on the road. Over time, components within this vital system naturally wear down and require attention. While brake pads are often the first thought when it comes to wear, your brake rotors are equally, if not more, important and can significantly impact your vehicle's stopping performance and overall safety. Understanding when and why to replace them is key to maintaining your Ford Edge’s reliability and your peace of mind.

Much like your tyres, brake pads are designed to wear out. They are a consumable item, typically needing replacement every 50,000 miles, though this can vary wildly depending on your driving habits – aggressive braking in city traffic will shorten their lifespan compared to gentle motorway cruising. However, the story doesn't end with just the pads. The brake rotors, the discs that the pads clamp onto, also endure immense heat and friction, and they too can suffer from wear, becoming warped or deeply grooved. Ignoring these issues can lead to reduced braking efficiency, increased stopping distances, and an uncomfortable driving experience. This comprehensive guide will delve into the necessity of replacing your Ford Edge’s brake rotors, identify the tell-tale signs of wear, and walk you through the process of fitting new, quality TRQ components.

Understanding Your Ford Edge's Braking System

Your Ford Edge's braking system is a marvel of engineering, converting kinetic energy into thermal energy through friction. When you press the brake pedal, hydraulic pressure forces the brake calipers to squeeze the brake pads against the rotors, slowing the wheels. This process generates significant heat, which the rotors are designed to dissipate efficiently. Over time, this constant friction and heat can take their toll.

Brake pads, typically made from a composite material, are designed to be sacrificial. They wear down as they rub against the rotor. Rotors, usually made of cast iron, are much more robust but are not immune to wear. They can become thinner, develop uneven surfaces, or become scored from worn-out pads. Any of these conditions compromise braking effectiveness. A healthy braking system is quiet, smooth, and responsive. Any deviation from this norm should prompt an immediate inspection.

When Do Ford Edge Brake Rotors Need Replacing?

Unlike brake pads, which have a minimum thickness indicator, rotors don't always give such clear-cut warnings. However, there are several unmistakable symptoms that suggest your Ford Edge's brake rotors are crying out for attention:

• Squealing or Grinding Noises: A high-pitched squeal often indicates worn brake pads, but a persistent grinding noise, especially when braking, can mean your pads are completely worn down and the metal backing plates are grinding against the rotor. This will rapidly damage the rotor, making replacement almost certain.
• Vibration or Pulsation Through the Pedal: This is the classic symptom of warped brake rotors. Uneven heating and cooling can cause the rotor surface to become non-uniform, leading to a pulsating sensation through the brake pedal or even the steering wheel when braking. This is not only uncomfortable but significantly reduces braking effectiveness.
• Deep Grooves or Scratches on the Rotor Surface: Visually inspect your rotors. If you see deep concentric grooves or significant scoring, it means the rotor surface is uneven. This can be caused by foreign debris caught between the pad and rotor, or simply from prolonged wear with abrasive pad materials.
• Blue or Dark Spots on the Rotor: Excessive heat can cause 'hot spots' on the rotor, which appear as dark or bluish discolouration. These spots indicate localised overheating and can lead to uneven wear and warping.
• Excessive Rotor Thickness Variation (Run-out): While not easily visible without specialist tools, significant run-out (variation in thickness around the rotor) will cause pulsation and can be measured by a mechanic.
• Minimum Thickness Exceeded: All rotors have a minimum thickness stamped on them. If your rotors are worn below this specification, they must be replaced. Continuing to use them is a serious safety risk.

Pads vs. Rotors: Why Replace Both Simultaneously?

The information provided highlights a crucial point: "Often, it’s safer and more cost effective to replace pads and rotors at the same time." This isn't just a sales pitch; it's sound mechanical advice for several reasons:

1. Optimised Performance: New pads on old, worn, or warped rotors will not perform optimally. The new pads won't make full contact with the uneven rotor surface, leading to reduced braking efficiency, longer stopping distances, and premature wear of the new pads themselves.
2. Cost-Effectiveness: While the initial outlay is higher, replacing both at once saves you money in the long run. You're already paying for labour (if you're not doing it yourself) to remove the wheels and calipers. Doing the rotors at the same time adds minimal extra labour cost compared to a separate visit. Plus, you avoid having to replace new pads again prematurely because they were damaged by old rotors.
3. Balanced Braking: Replacing components on both sides of an axle (e.g., both front rotors and pads) ensures balanced braking, preventing the vehicle from pulling to one side when braking.
4. Enhanced Safety: A complete brake system overhaul ensures maximum braking performance and reliability, giving you the confidence that your Ford Edge will stop when you need it to.

Consider the following comparison:

Choosing the Right Parts: Why TRQ for Your Ford Edge?

When it comes to brake components, quality is paramount. Using inferior parts can compromise your vehicle's safety and lead to premature wear. The information provided specifically mentions TRQ brake pads and rotors. TRQ (Trade Quality) is a brand known for manufacturing high-quality, direct-fit replacement parts that meet or exceed OEM (Original Equipment Manufacturer) specifications.

Here’s why choosing quality parts like TRQ for your 2007-2014 Ford Edge is a smart decision:

• Durability: High-quality rotors are manufactured from premium materials designed to withstand extreme temperatures and friction, ensuring a longer lifespan and consistent performance.
• Performance: TRQ rotors are often precision-machined to exacting tolerances, reducing the likelihood of run-out and pulsation. Paired with TRQ pads, they offer excellent stopping power and reduced brake fade.
• Noise Reduction: Quality pads are often formulated to reduce noise and dust, contributing to a quieter and cleaner braking experience.
• Direct Fit: TRQ parts are engineered to be a direct fit for your specific Ford Edge model years (2007-2014), ensuring a straightforward installation without modifications.
• Value: While perhaps not the cheapest option on the market, the long-term value, performance, and peace of mind offered by quality components like TRQ far outweigh any marginal initial savings from cheaper, inferior alternatives.

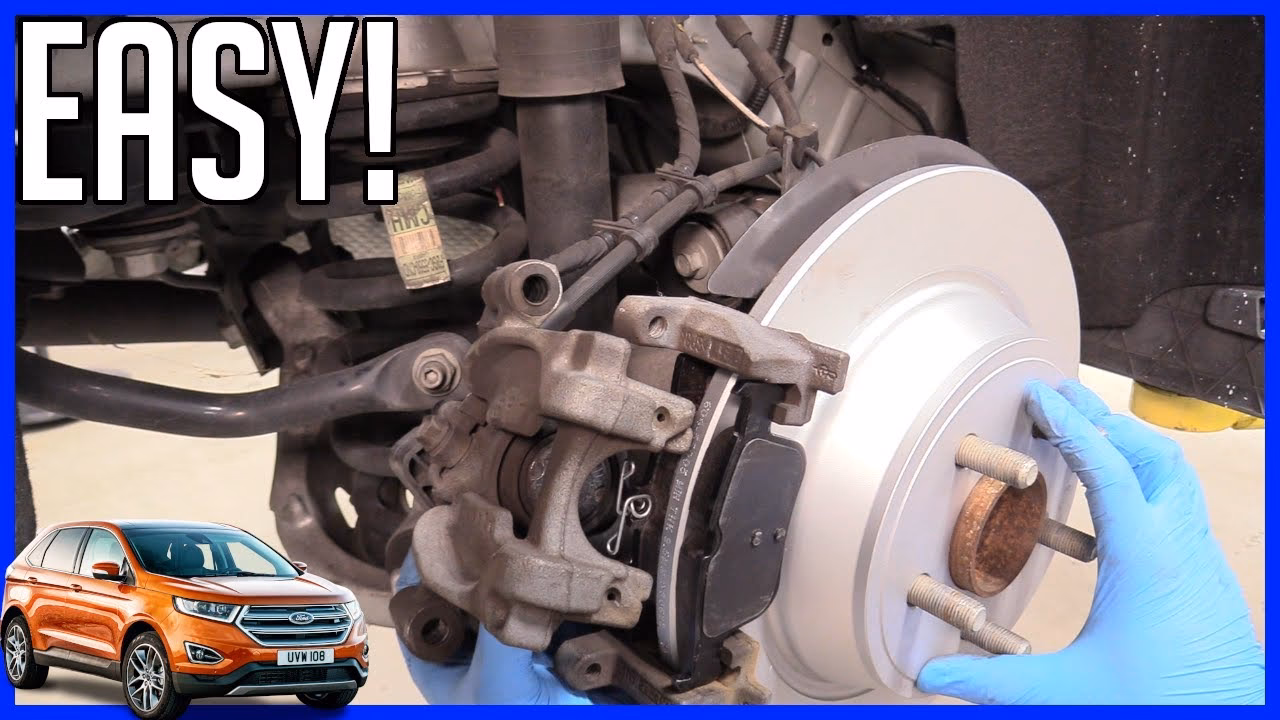

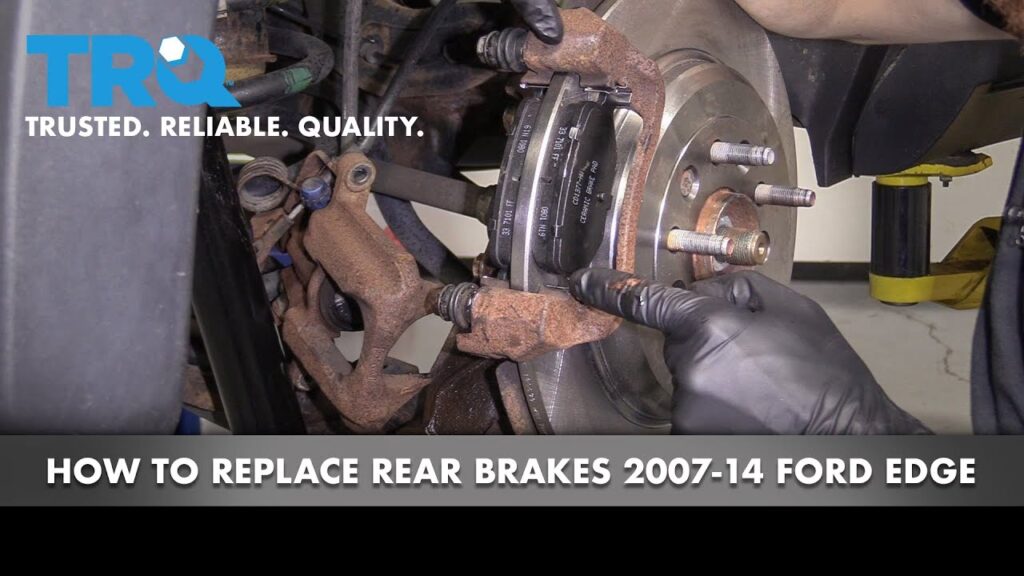

Step-by-Step Guide: Replacing Your Ford Edge Brake Pads and Rotors

Replacing brake pads and rotors is a moderately difficult DIY task. If you’re not confident, it’s always best to consult a professional mechanic. However, for the mechanically inclined, this guide for your 2007-2014 Ford Edge can help. Always prioritise safety when working on your vehicle.

Tools and Materials You'll Need:

• New TRQ brake pads (for your specific Ford Edge model year)
• New TRQ brake rotors (for your specific Ford Edge model year)
• Jack and jack stands
• Wheel chocks
• Lug wrench or impact gun
• Socket set (typically 13mm, 15mm, 18mm, 21mm for caliper and bracket bolts)
• Torque wrench
• C-clamp or brake caliper piston compression tool
• Wire brush
• Brake cleaner spray
• High-temperature brake grease/lubricant (for caliper pins and pad backing plates)
• Gloves and safety glasses
• Shop rags

Procedure:

1. Preparation and Safety:
   • Park your Ford Edge on a flat, level surface.
   • Engage the parking brake.
   • Place wheel chocks behind the rear wheels (if working on the front) or in front of the front wheels (if working on the rear).
   • Loosen the lug nuts on the wheel you’re working on slightly, but do not remove them yet.
   • Jack up the vehicle and secure it firmly on jack stands. Never rely solely on the jack.
   • Remove the lug nuts completely and take off the wheel.
2. Caliper Removal:
   • Locate the two caliper guide pin bolts (usually 13mm or 15mm) on the back of the caliper. Remove them.
   • Carefully slide the caliper off the rotor. Do not let it hang by the brake hose, as this can damage the hose. Use a wire hanger or a bungee cord to suspend it from the suspension coil spring or chassis.
   • Remove the old brake pads from the caliper bracket. Note how they were seated.
3. Caliper Bracket Removal:
   • The caliper bracket is typically held by two larger bolts (often 18mm or 21mm) to the steering knuckle. These can be tight, so a breaker bar might be necessary.
   • Remove these bolts and take off the caliper bracket.
4. Rotor Removal:
   • The old rotor might be held in place by a small retaining screw or simply by rust and corrosion. If it's stuck, a few firm taps with a rubber mallet on the rotor hat (the centre part) can help loosen it.
   • Remove the old rotor.
5. Hub and Caliper Preparation:
   • Using a wire brush, thoroughly clean the wheel hub surface where the rotor sits. Remove any rust or debris to ensure the new rotor sits perfectly flat.
   • Clean the caliper bracket, especially where the brake pads slide. Remove any rust or old grease.
   • Inspect the caliper guide pins. Clean them and apply a thin layer of high-temperature brake grease. They should slide freely. If they are seized or corroded, replace them.
   • Using a C-clamp or a dedicated brake caliper piston compression tool, slowly and evenly push the caliper piston(s) back into the caliper body. This is crucial to make space for the thicker new pads. Open the brake fluid reservoir cap slightly to make this easier, but watch for overflow.
6. New Rotor Installation:
   • Unbox your new TRQ rotor. It might have a protective coating; it’s good practice to clean it with brake cleaner spray before installation.
   • Place the new rotor onto the clean hub, ensuring it sits flush. If there was a retaining screw, put it back in.
7. New Caliper Bracket and Pad Installation:
   • Install the cleaned caliper bracket onto the steering knuckle. Torque the bolts to your Ford Edge's manufacturer specifications (refer to a service manual). This is critical for safety.
   • Apply a thin layer of brake grease to the contact points on the caliper bracket where the new brake pads will slide.
   • Install the new TRQ brake pads into the caliper bracket. Ensure they are seated correctly.
8. Caliper Reinstallation:
   • Carefully slide the caliper back over the new pads and rotor. Make sure the caliper guide pins align with their holes.
   • Install the caliper guide pin bolts and torque them to specification.
9. Final Steps:
   • Reinstall the wheel, hand-tighten the lug nuts, and lower the vehicle until the tyre just touches the ground.
   • Torque the lug nuts in a star pattern to the manufacturer's specified torque.
   • Repeat the process for the other side of the axle (e.g., the other front wheel).
   • Before driving, slowly and firmly pump the brake pedal several times until it feels firm. This reseats the caliper pistons against the new pads.
   • Check the brake fluid reservoir level and top up if necessary.

Post-Installation: Bedding In Your New Brakes

Once you’ve installed your new TRQ brake pads and rotors, the job isn’t quite finished. It’s crucial to properly 'bed in' the new components. This process transfers a thin, even layer of pad material onto the rotor surface, creating a stable friction interface. Proper bedding-in prevents brake noise, reduces pulsation, and optimises braking performance and longevity.

A typical bedding-in procedure involves:

1. Find a safe, open road where you can perform a series of stops without interruption.
2. Accelerate to about 35 mph (55 km/h) and then apply moderate braking pressure to slow down to about 5-10 mph (8-16 km/h). Do not come to a complete stop.
3. Release the brakes and drive for a short distance (e.g., 30 seconds) to allow the brakes to cool slightly.
4. Repeat this process 8-10 times. You might notice a slight smell or smoke from the brakes – this is normal.
5. After the last stop, drive for several minutes without braking to allow the brakes to cool down completely. Avoid hard braking or prolonged stops immediately after this procedure.

Common Brake Issues and Troubleshooting

Even with new components, sometimes issues can arise or persist. Here's a quick troubleshooting guide:

Frequently Asked Questions About Ford Edge Brakes

Q: How often should I check my Ford Edge's brake pads and rotors?

A: It's recommended to have your brakes inspected at least once a year or every 12,000 miles (20,000 km), whichever comes first. If you notice any symptoms of wear, have them checked immediately.

Q: Can I just replace brake pads without replacing rotors on my 2007-2014 Ford Edge?

A: While technically possible, it's generally not recommended if your rotors show any signs of significant wear (warping, deep grooves, being below minimum thickness). For optimal performance, safety, and longevity, replacing both pads and rotors simultaneously is the best practice.

Q: What is the minimum thickness for Ford Edge brake rotors?

A: The minimum thickness specification is usually stamped on the edge of the rotor itself. It varies by model year and specific rotor type. Always consult your Ford Edge's service manual or a reputable parts database for the exact specification for your vehicle.

Q: Why are my new brakes making noise after replacement?

A: New brakes can sometimes make noise due to the bedding-in process, which is normal. If the noise is persistent, it could be due to improper installation, a lack of lubrication on caliper pins, incorrect pad shims, or simply the characteristics of the pad material. Ensure proper bedding-in, and if noise persists, re-check your installation or consult a professional.

Q: Do I need to bleed the brakes after replacing pads and rotors?

A: Generally, you do not need to bleed the brakes unless you open the hydraulic system (e.g., disconnect a brake line or replace a caliper). However, if you pushed the caliper pistons back in and the pedal feels spongy afterwards, or if the brake fluid reservoir overflowed, bleeding the brakes might be necessary to remove any air that entered the system.

Q: How long should new TRQ brake pads and rotors last on my Ford Edge?

A: The lifespan varies significantly based on driving style, environment (city vs. motorway), and maintenance. High-quality TRQ components, when properly installed and bedded in, can last anywhere from 30,000 to 70,000 miles (50,000 to 110,000 km) or more for pads, and significantly longer for rotors if they are not warped or scored. Regular inspection is key.

In conclusion, ensuring your 2007-2014 Ford Edge has a healthy braking system is paramount for your safety. Pay attention to the signs your vehicle gives you, and don't hesitate to inspect your brake rotors and pads regularly. Opting for quality replacement parts like TRQ pads and rotors, and understanding the replacement process, empowers you to maintain your vehicle's performance and keep yourself and your loved ones safe on the road.
