6.0 Powerstroke Oil Change Guide

The Essential 6.0 Powerstroke Oil Change: Keeping Your Diesel Running Smoothly

The Ford 6.0 Powerstroke diesel engine, a stalwart in the Super Duty pickup truck range, demands regular and proper maintenance to ensure its longevity and optimal performance. One of the most critical aspects of this maintenance is the engine oil change. Not only does it keep the engine lubricated, but it also helps to keep it clean and cool. Neglecting this simple yet vital task can lead to premature wear and costly repairs down the line. This comprehensive guide will walk you through everything you need to know about changing the oil in your 6.0 Powerstroke, from understanding its oil capacity to the precise steps involved.

Understanding Your 6.0 Powerstroke's Oil Needs

Before diving into the procedure, it's crucial to understand the specific requirements of your 6.0 Powerstroke. The engine boasts an impressive oil capacity of 15 quarts. This substantial volume highlights the importance of using the correct type and quantity of oil to ensure all internal components are adequately protected.

Ford provides specific recommendations for oil change intervals to maintain engine health:

• Normal Service: Every 7,500 miles. This applies to typical driving conditions, such as highway cruising and light towing.
• Severe Service: Every 5,000 miles. This is recommended for conditions that put more stress on the engine, including frequent short trips, heavy towing, stop-and-go traffic, and driving in dusty or extreme temperatures.

Choosing the right oil viscosity is equally important. For the 6.0 Powerstroke, Ford recommends:

• 15W-40: Suitable for operating temperatures above 30 degrees Fahrenheit. This is the most common choice for many climates.
• 15W-30: Recommended for operation below 30 degrees Fahrenheit, providing better flow in colder conditions.

When it comes to brands, both Motorcraft's Super Duty oils and Shell's Rotella-T engine oils are highly recommended for their quality and suitability for the 6.0-liter Powerstroke diesel.

Tools and Materials You'll Need

Gathering the right tools and materials before you start will make the oil change process much smoother and more efficient. Here's a checklist:

• Wheel Chocks: For safety, to prevent the vehicle from rolling.
• Ratchet with 36 mm Socket: Specifically for loosening and tightening the oil filter cap.
• ¾-inch Combination Wrench: To remove and reinstall the oil drain plug.
• Motorcraft 6.0L Powerstroke Oil Filter with O-ring: Ensure you have the correct filter for your specific model. The O-ring is crucial for a proper seal.
• 15W-40 or 15W-30 Engine Oil: 15 quarts of the appropriate viscosity.
• Drain Pan: Large enough to hold at least 15 quarts of used oil.
• Drain Plug Gasket: It's good practice to replace this to ensure a leak-free seal.
• Funnel: For clean refilling of the engine oil.
• Rags or Paper Towels: For cleaning up any spills.
• Gloves: To protect your hands from oil.

Step-by-Step Guide to Changing Your 6.0 Powerstroke Oil

Follow these steps carefully to perform a successful oil change:

Step 1: Prepare the Vehicle

Begin by parking your Ford Super Duty on a flat, level surface. This is essential for accurate oil level readings later and to ensure all the old oil drains out. Engage the parking brake firmly. For an extra layer of safety, place wheel chocks underneath the rear wheels to prevent any accidental movement. Open the hood and, for safety, disconnect the negative terminal cable from the battery. This prevents any accidental electrical shorts during the process.

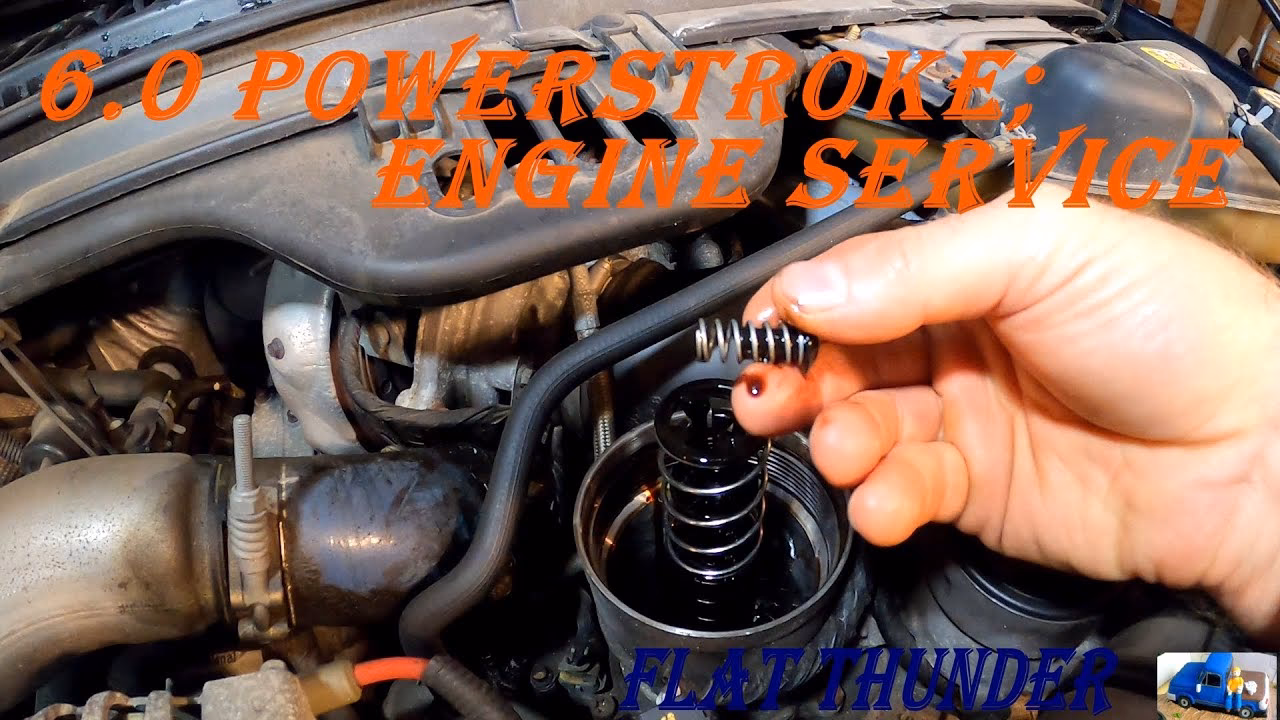

Step 2: Locate and Remove the Oil Filter

The oil filter on the 6.0 Powerstroke is conveniently located at the top of the engine. You'll find the oil filter cap. Using your ratchet with the 36 mm socket, loosen the oil filter cap. Once loosened, carefully raise the cap. The old oil filter and its O-ring will be attached underneath. Detach the old filter and O-ring from the cap. It's important to properly dispose of both the old filter and O-ring according to local regulations.

Step 3: Drain the Old Engine Oil

Now, slide underneath the vehicle to locate the oil pan drain plug. Position your drain pan directly underneath the plug. Using your ¾-inch combination wrench, carefully loosen the drain plug. Once it's loose enough, unscrew it by hand, being prepared for the hot oil to begin draining into the pan. Allow all the used oil to drain completely. This may take several minutes. While the oil is draining, take the opportunity to inspect the drain plug and its threads. Clean any debris from the threads.

Step 4: Replace the Drain Plug Gasket and Reinstall

Once the oil has finished draining, inspect the drain plug gasket. It's a good idea to replace this with a new one to prevent any potential leaks. Reinstall the drain plug into the oil pan. Use the ¾-inch combination wrench to tighten the plug securely. Be careful not to overtighten, as this could damage the threads in the oil pan.

Step 5: Install the New Oil Filter

Before installing the new filter, ensure you have a new O-ring. Place the new O-ring onto the oil filter cap, making sure it's seated correctly. Then, snap the new oil filter onto the oil filter cap. Carefully place the new filter, now attached to the cap, back into the oil filter housing on the engine. Once it's properly seated, tighten the oil filter cap using your ratchet and the 36 mm socket until it's snug. Again, avoid overtightening.

Step 6: Refill with New Engine Oil

Locate the oil filler cap on the passenger’s side of the engine compartment, usually found near the firewall. Remove the cap and insert your funnel into the filling receptacle. Now, carefully refill the engine with the recommended 15 quarts of new engine oil. Remember to use 15W-40 if the operating temperature is above 30 degrees Fahrenheit, or 15W-30 if it will be below 30 degrees Fahrenheit.

Step 7: Check the Oil Level and Final Checks

After refilling, use the engine oil level dipstick to check the oil level. Ensure it is within the recommended range. Seal the drain pan securely and move it out from underneath the vehicle. Reconnect the negative terminal cable to the battery. Start the engine and allow it to run for a few minutes. While the engine is running, carefully check underneath the engine area for any signs of leaks, particularly around the oil filter and drain plug. Once you're confident there are no leaks, turn off the engine and recheck the oil level with the dipstick. Top up if necessary.

Step 8: Proper Disposal of Used Oil

Proper disposal of used engine oil is crucial for environmental protection. Most automotive parts outlets or repair shops will accept used engine oil for recycling, often free of charge. Take your sealed drain pan to the nearest facility for responsible disposal.

Frequently Asked Questions (FAQs)

Q1: How much oil does a 6.0 Powerstroke take?
A: The 6.0 Powerstroke has an oil capacity of 15 quarts.

Q2: What type of oil is recommended for a 6.0 Powerstroke?
A: Ford recommends 15W-40 for temperatures above 30°F and 15W-30 for temperatures below 30°F. Brands like Motorcraft and Shell Rotella-T are highly regarded.

Q3: How often should I change the oil in my 6.0 Powerstroke?
A: For normal service, change the oil every 7,500 miles. For severe service, change it every 5,000 miles.

Q4: Do I need to replace the O-ring on the oil filter cap?
A: Yes, it is essential to replace the O-ring that comes with the new oil filter to ensure a proper seal and prevent leaks.

Q5: Where can I dispose of used engine oil?
A: Most auto parts stores and repair shops accept used engine oil for recycling.

Maintenance Schedule Comparison

To help you keep track, here's a quick comparison of recommended oil change intervals:

Regularly performing this essential maintenance will significantly contribute to the overall health and longevity of your 6.0 Powerstroke engine. By understanding its needs and following these steps, you can confidently tackle this task and keep your Super Duty running reliably for years to come.
