Ford 100E Repair Manual: Your Classic's Companion

Owning a classic Ford 100E, be it a Prefect, Anglia, Escort, Squire, or Thames Van from the 1950s, is a journey into automotive history. These vehicles represent a quintessential era of British motoring, but keeping them on the road in top condition requires dedication and, crucially, the right knowledge. This is where a comprehensive Ford 100E repair manual becomes an absolutely invaluable asset, bridging the gap between a charming old car and a reliable, enjoyable classic.

This isn't just any Haynes manual; the Ford 100E Service Manual is the exact same publication originally issued by Ford to their dealerships and technicians during the 1950s. Imagine having the very wisdom that factory-trained mechanics relied upon, right at your fingertips. Whether you're a seasoned professional technician or a passionate home workshop mechanic, this manual provides the precise, step-by-step instructions needed to restore, maintain, and truly understand your Ford 100E. It’s packed with detailed diagrams, ensuring that even complex procedures become manageable. This factory manual covers all Ford 100E models produced between 1953 and 1959, including the Ford Prefect 100E, Ford Anglia 100E, Ford Escort 100E, Ford Squire 100E, and the Ford Thames Van 100E. It’s the definitive guide for preserving these beloved classics.

Understanding Common Ford 100E Challenges and Modifications

While the Ford 100E is a robust vehicle for its era, its design reflects 1950s engineering. As these cars age, and as owners consider upgrades for modern driving conditions, certain areas often present challenges or opportunities for improvement. Understanding the intricacies of these systems, as detailed in the factory manual, is paramount before attempting any modifications.

Braking Systems: Discs, Drums, and the Myth of the Servo

Brakes are, without doubt, one of the most critical safety components in any vehicle. For the Ford 100E, understanding the original drum brake system and the implications of modern upgrades is essential. Many owners contemplate fitting a servo, believing it significantly improves braking performance. However, a servo's primary function isn't to make the car stop faster; it's to reduce the pedal effort required to achieve a similar level of braking. Adding a servo to standard drum brakes will yield minimal performance gains, though some insurance companies might insist on one for modified vehicles. Servos truly come into their own when paired with a disc brake conversion.

The common misconception is that fitting disc brakes automatically guarantees superior stopping power. While generally true for modern vehicles, a well-maintained, good drum brake setup can outperform a mediocre disc system. Drum brakes possess a unique advantage: the 'self-servo' action, particularly with twin leading shoes. As the brake shoes move outwards, the rotation of the drum helps to pull the shoe further into contact, increasing the braking force. This mechanical advantage reduces the required pedal pressure. Disc brakes, however, lack this self-servo action because the disc's rotation and the pads' movement are perpendicular. All the braking force comes directly from the pedal pressure, augmented by the vacuum servo.

The main advantage of discs lies in their servicing ease and, crucially, their superior resistance to brake fade. Any moving vehicle possesses Kinetic Energy, which must be converted into another form, primarily heat, to bring the vehicle to a stop. Friction between the brake lining and the drum or disc generates this heat. Brake linings perform optimally only up to a certain temperature; beyond that, their Coefficient of Friction begins to fall, potentially leading to near-zero braking effort. This phenomenon is brake fade. Drum brakes, being enclosed, trap heat, causing it to build up rapidly. Discs, rotating in relatively open air, dissipate heat much more effectively, delaying the onset of fade and reducing its severity. Vented discs further enhance this heat dissipation.

Modifying brakes isn't just about the front end. If you upgrade the front brakes, a proportionate improvement must be made at the rear. Failing to do so can lead to dangerous instability, where the front of the car slows significantly while the rear attempts to 'overtake' it, resulting in a spin. Another consideration with disc conversions is the brake fluid reservoir. Disc pads wear more significantly than drum linings, causing the fluid level to drop more noticeably. Original 100E reservoirs are often too small for disc systems. You'll either need a larger reservoir or commit to frequent fluid checks and top-ups. Be mindful that topping up as pads wear means that fitting new pads will displace excess fluid, causing an overflow if the reservoir is already full.

Suspension: Lowering, Geometry, and Handling

Many classic car enthusiasts seek to upgrade their suspension to improve road holding and handling. However, suspension modification is highly subjective and requires a deep understanding of suspension angles and their effects. The most common modification is lowering the vehicle. Simply cutting coils from the front springs of a 100E is ill-advised; the leg extends considerably on rebound, and shorter springs can come loose or even dislodge, posing a significant safety risk and likely failing an MoT inspection. Proper lowering necessitates fitting shorter stroke inserts.

Lowering the front of a 100E has direct consequences for its suspension geometry. Camber will be reduced, leading to heavier steering, and castor will also be reduced, resulting in less self-centring action. Before undertaking any front suspension modifications, it is crucial to research and understand terms like: Castor, Camber, Swivel Pin Inclination, Offset, and Centre Point Steering. These concepts are interrelated, and knowing what they are, what they do, and how changing them will affect your car's behaviour is fundamental to achieving a safe and predictable setup.

At the rear, lowering blocks offer a simpler solution. However, be aware that this increases torque reaction of the axle and spring wind-up under both braking and acceleration, especially if a more powerful engine has been fitted. This increased leverage can necessitate the addition of anti-tramp bars, which in turn may require adding brackets to the floor, further complicating the modification.

Steering: Rack and Pinion Conversions and Ackermann's Principle

Rack and pinion steering systems are generally superior to traditional steering boxes, offering lighter and more precise control. However, simply bolting a rack onto the existing 100E system, a common 'bodge' like welding an Escort rack to the crossmember, can result in a dangerously unpredictable vehicle prone to 'bump steer'. This means that hitting a bump can cause the car to veer off unexpectedly without driver input.

To understand why, we must consider Ackermann’s Principle. This principle dictates that during a turn, the inner front wheel must steer through a larger angle than the outer wheel. This is because the inner wheel travels a smaller turning circle. The steering arms at the bottom of the struts are angled so that, if extended, they would meet at or just in front of the rear axle. As a result, if one wheel turns outwards by, say, 30 degrees, the other will turn inwards by only 22 or 23 degrees. This setup is known as Toe-out on Turns, and it must be maintained. If the car runs with tracking 'toeing in' during turns, the steering will feel unresponsive. If it 'toes out' too much, the car will be wildly unpredictable. It's possible to set the tracking correctly for straight-ahead driving but incorrectly for turns, leading to dangerous cornering behaviour.

With independent suspension, the track (distance between wheel centres) constantly varies with suspension movement. To maintain a constant toe-in, the steering geometry must mirror these changes in length. The 100E's crossmember has specific mounting points for the track control arms (TCAs) and the drag link (connecting the steering box to the idler arm), ensuring correct toe-in at all suspension angles. An Escort rack, while replacing the drag link, has different mounting distances for its track rod ends. If you fit an Escort rack but retain the 100E suspension, the distances between the outer TCA ball joints and the outer track rod end ball joints will no longer match. This misalignment means that the toe-in will change erratically with every suspension movement. The car's behaviour will be constantly unpredictable, potentially leading to dangerous situations like uncontrolled steering inputs at speed. For this reason, it's generally recommended to either retain the original steering box or undertake a full suspension conversion along with the rack, understanding that this will also alter track width, camber, and other critical parameters.

Wheels: Wider Tyres and Bearing Stress

Fitting wider wheels might seem like a straightforward aesthetic or performance upgrade, but it also carries significant consequences. The Ford 100E has a relatively short wheelbase compared to its track, which aids turning but can contribute to minor straight-line wandering. Extending the track with wider wheels will exaggerate this tendency.

More critically, wider wheels impact the wheel bearings. On a 100E, the inner front wheel bearing is considerably larger than the outer. This design is intentional: the centre line of the wheel and tyre runs approximately through this inner bearing, meaning it bears the majority of the car's weight. The smaller outer bearing primarily acts to prevent the wheel from falling off. When wider wheels are fitted, especially those with a different offset, the effective centre of the wheel shifts outwards, closer to the smaller outer bearing. This means the outer bearing, which isn't designed for heavy loads, will now carry a significant portion of the car's weight. This issue is severely compounded if the original side-valve engine and three-speed gearbox have been replaced with a much heavier V6 or V8 engine coupled with a larger automatic transmission.

Another issue is the alteration of the offset. The Swivel Pin Inclination (SPI) refers to the imaginary line running through the strut top mount and bottom ball joint. This line continues downwards and intersects the centre line of the wheel and tyre at a point below the road surface. The distance between these two lines at the road surface is the offset. If the offset is zero (known as Centre Point Steering), the wheel effectively scrapes around on the road as the steering is turned. As offset increases, the wheel rotates through an arc. However, two opposing forces are at play: the car pushes the wheel forward through the SPI, while the tyre's rolling resistance pushes the wheel backward through its centre line. If the offset is zero, these forces are equal and opposite, cancelling out. But as the offset increases, a 'couple' (a rotational force) arises, causing the wheel to try and steer outwards on each side. While the track rods will contain this, it results in heavy steering and increased component wear. Fitting wider wheels typically increases the offset, exacerbating this couple and its negative effects.

Frequently Asked Questions About Ford 100E Maintenance

What are the common problems with a 100E engine?

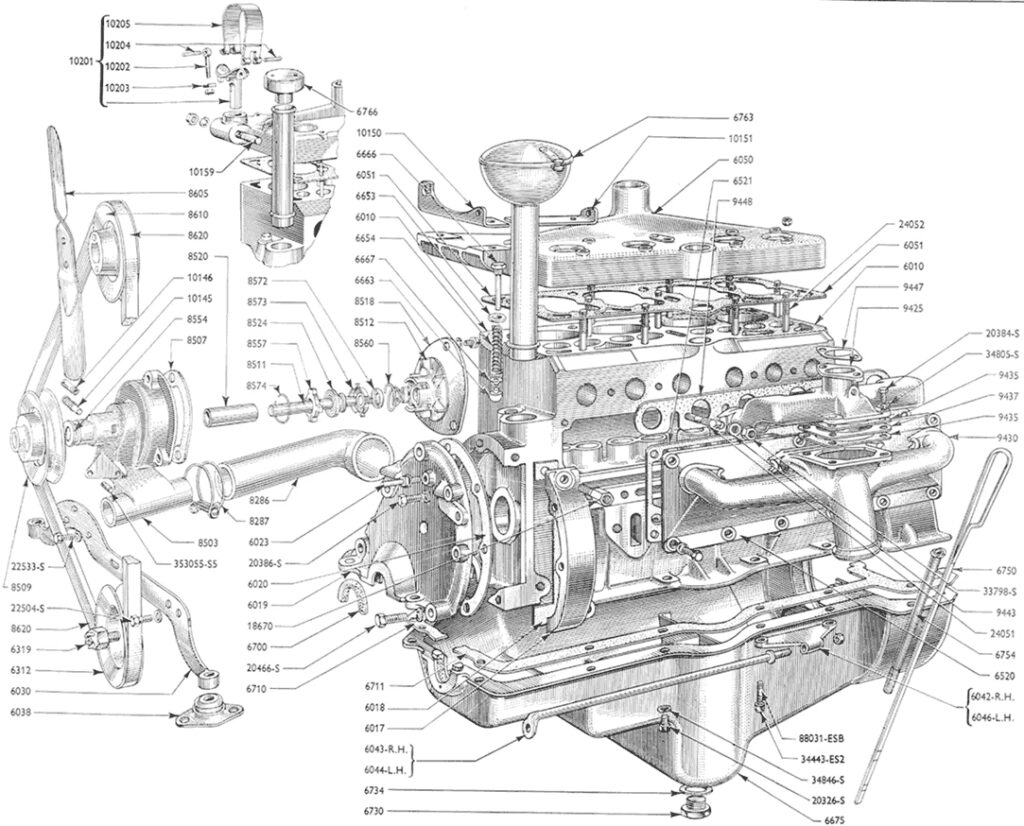

The original Ford 100E came with a 1172cc side-valve engine. While robust, common issues for any engine of this age can include oil leaks, wear in the valve train leading to noisy operation, carburettor tuning difficulties, and cooling system inefficiencies. Overheating can be a concern, especially in modern traffic. Some enthusiasts upgrade the engine with modifications like OHV (Overhead Valve) heads or even superchargers to increase performance. The factory manual provides detailed information on maintaining and troubleshooting the original side-valve unit.

Does Ford 300E have a 100E engine?

The information provided does not mention a "Ford 300E." The discussion revolves around the Ford 100E models (Prefect, Anglia, Escort, Squire, Thames Van 100E) and their original 100E side-valve engine. There is also a brief mention of the 105E engine (which is an overhead valve unit found in later Anglias), often considered for swaps due to its more modern design. It's important to clarify model designations to ensure correct parts and maintenance procedures.

Is it worth converting my 100E to disc brakes?

While a significant undertaking, converting to disc brakes can offer improved heat dissipation, reducing brake fade, and generally easier maintenance compared to original drums. However, it's crucial to understand that simply fitting discs isn't a magic bullet. Proper proportioning between front and rear brakes is essential for safety, and you may need a larger brake fluid reservoir. Consider the overall impact on your car's value and originality if you're aiming for a period-correct restoration.

How do I lower my Ford 100E safely?

Lowering a 100E requires careful consideration of suspension geometry. For the front, simply cutting springs is dangerous and should be avoided. Instead, use shorter stroke inserts designed for the application. Understand the effects on castor and camber. For the rear, lowering blocks are a common solution, but be mindful of increased torque reaction and potential need for anti-tramp bars, especially with engine upgrades. Always prioritise safety and consult specialist advice.

Can I fit modern rack and pinion steering to my 100E?

While modern rack and pinion steering offers lighter and more precise control, simply adapting an existing rack (e.g., from an Escort) to the 100E's original suspension can lead to severe bump steer and unpredictable handling due to incompatible suspension geometry. The distances between mounting points for track control arms and track rod ends must be precisely matched to maintain correct toe-in throughout suspension travel. A full, engineered suspension conversion alongside the steering rack is often necessary to avoid dangerous handling characteristics.

Conclusion: The Holistic Approach to Classic Car Modification

Modifying a classic car like the Ford 100E is a complex endeavour that echoes many of the challenges faced by the original designers. Every component in a vehicle interacts with others; a change in one area invariably has knock-on effects elsewhere. From your perspective as an owner and mechanic, all your modifications must be in harmony with each other and with the original 1950s engineering you've retained. A well-planned and executed modification results in a car that is a pleasure to drive and delivers the performance and handling you desire. However, getting even one element wrong can lead to a 'dog' of a car that is unpredictable, unsafe, and a constant source of trouble.

Therefore, thorough planning is paramount. Clearly define what you want to achieve, and crucially, ensure you understand the exact implications of each proposed modification, including any unforeseen knock-on effects. Don't be afraid to seek advice from experienced classic car specialists or fellow enthusiasts, and be open to feedback, even if it's not what you wanted to hear. Collect all necessary parts before starting, and approach the work methodically, taking all the time required. Avoid setting unrealistic deadlines that might encourage rushed or shoddy work. With careful planning, diligent execution, and a deep respect for the original design, your Ford 100E project can be a truly rewarding experience, yielding a classic that not only turns heads but also drives beautifully.
