Why Steering Angle Sensor Resets Are Crucial

In the increasingly sophisticated world of modern vehicles, where advanced driver assistance systems (ADAS) and electronic stability control (ESC) are becoming standard, the precision of every component is paramount. One such critical component, often overlooked but vital for your vehicle's safety and performance, is the steering angle sensor (SAS). While wheel alignments are a common and necessary part of vehicle maintenance, many drivers – and even some technicians – are unaware of the absolute necessity of resetting the steering angle sensor afterwards. Failing to do so can lead to a host of problems, from irritating dashboard warning lights to genuinely dangerous handling issues. This article delves into why this reset is so important, what signs indicate a faulty sensor, and the procedures involved in ensuring your vehicle is perfectly calibrated.

Understanding the Steering Angle Sensor (SAS)

The steering angle sensor, a seemingly small component, plays a colossal role in your vehicle's overall stability and control. Essentially, it acts as the 'eyes' for your car's electronic brain, providing precise, real-time data on the steering wheel's position and the rate at which it's being turned. Typically nestled within the steering column, this sensor is an integral part of complex systems designed to keep you safe on the road.

In conjunction with other sensors like the yaw rate sensor, accelerometer, and wheel speed sensors, the SAS helps the vehicle's Electronic Control Unit (ECU) understand three crucial pieces of information: what the vehicle is currently doing, what the driver intends for the vehicle to do, and what corrections, if any, need to be made by the Anti-lock Braking System (ABS) hydraulic control unit to maintain vehicle control. Without accurate data from the SAS, the ECU can make incorrect assumptions, potentially leading to hazardous situations.

How Steering Angle Sensors Operate

Steering angle sensors generally come in two main types: analogue and digital, with digital sensors being the predominant choice in most modern vehicles due to their enhanced precision and data capabilities.

• Analogue Sensors: These older sensors typically operate with a 5-volt reference, a chassis ground, and a signal output. As the steering wheel is rotated through its full range, the sensor produces a varying signal, usually between 0 and 5 volts. The ECU interprets the difference in this voltage to determine the steering wheel's angle and the rate of turn. While effective, they offer a less granular level of data compared to their digital counterparts.

• Digital Sensors: More advanced and found in contemporary vehicles, digital sensors often employ an LED light and an encoder disc. As the steering wheel turns, the disc rotates, interrupting the light beam in a specific pattern. This pattern allows the sensor to precisely measure not only the rate and angle of the turn but also the direction. This highly accurate digital information is then transmitted to the ECU, enabling sophisticated control over various vehicle systems.

Regardless of the type, the fundamental principle remains the same: if the SAS detects an inconsistency between the steering wheel's commanded position and the vehicle's actual trajectory, the stability control system will intervene. For instance, in an understeer situation, the system might automatically apply the rear brake on the inside of the vehicle to help correct the vehicle's path and restore control.

The Critical Need for Steering Angle Sensor Reset

So, why is resetting the steering angle sensor after a routine wheel alignment so profoundly important? The answer lies in the intricate web of interconnected electronic systems that rely on the SAS for accurate information. When a wheel alignment is performed, adjustments are made to the vehicle's suspension and steering geometry, directly impacting the 'straight ahead' position of the wheels relative to the steering wheel. If the SAS is not recalibrated after these adjustments, it will continue to send data based on its old 'zero' position, creating a critical mismatch.

This misalignment can have far-reaching consequences for several key vehicle systems:

• Electronic Stability Control (ESC): This is perhaps the most critical system affected. ESC relies heavily on SAS data, along with yaw rate and wheel speed, to detect and correct skids. If the SAS thinks the steering wheel is perfectly straight when the wheels are actually slightly turned, the ESC system will receive incorrect input. This can lead to the ESC intervening unexpectedly when it shouldn't, or failing to intervene when it should, severely compromising vehicle safety and potentially leading to loss of control during emergency manoeuvres.

• Dynamic Headlights: Many modern vehicles feature dynamic or adaptive headlights that pivot left or right to illuminate the path you are turning into. This function is directly linked to the steering angle sensor. If the SAS is out of calibration, your headlights may aim incorrectly, illuminating the roadside verge instead of the bend ahead, reducing visibility and safety, especially at night.

• Adaptive Cruise Control (ACC) & Lane Keep Assist (LKA): These ADAS features are increasingly common. ACC systems might use steering input to anticipate turns, while LKA actively helps keep the vehicle within its lane. If the SAS is miscalibrated, these systems can receive erroneous steering angle data, leading to improper lane tracking, unexpected steering interventions, or a failure to maintain the desired path, potentially creating dangerous situations on motorways.

• Active Stability Control (ASC): Similar to ESC, ASC systems rely on accurate steering angle data to manage traction and stability. An uncalibrated SAS can cause these systems to become confused, leading to erratic behaviour or being disabled entirely, leaving the driver without crucial electronic aids.

Ultimately, a correctly reset SAS ensures that all these sophisticated safety and convenience systems receive accurate information, allowing them to function as intended and provide the crucial support they were designed for. It ensures your vehicle knows exactly how it's travelling down the road, enabling it to predict and make the necessary safety corrections accurately.

Recognising the Signs of a Faulty Steering Angle Sensor

While a post-alignment reset is preventative, steering angle sensors can also fail due to wear and tear or damage during other vehicle repairs. Being aware of the symptoms can help you identify a problem early:

1. Warning Lights on the Dashboard: This is often the most immediate and obvious sign. Because the SAS is integral to the engine control module (ECM) and traction control systems, a faulty sensor can trigger the Check Engine Light. More commonly, the Traction Control Light or Electronic Stability Control (ESC) warning light will illuminate, indicating that these systems have been disabled or are malfunctioning due to incorrect SAS data.

2. Incorrect Steering Wheel Alignment: Even after a professional wheel alignment, if your steering wheel isn't perfectly centred when driving straight, or if the vehicle subtly pulls to one side, a faulty or misaligned SAS could be the culprit. The sensor might be sending incorrect 'straight ahead' readings to the ECU, leading to improper vehicle behaviour despite a mechanically correct alignment.

3. Malfunctioning Stability and Traction Control Systems: Beyond just illuminating a warning light, a failing SAS can cause tangible issues with these systems. You might experience unexpected and jarring interventions from the stability control, or conversely, a complete failure of these systems when they are actually needed, severely affecting vehicle stability and traction in critical moments.

4. Unusual Steering Wheel Sensation: Drivers may notice a change in how the steering wheel feels. This could manifest as a heavy or difficult-to-turn wheel, an overly loose or imprecise feel, or even a sensation of 'travel' in the steering where it doesn't respond as it should. This is due to inaccurate steering angle readings affecting the vehicle's stability control and potentially causing incorrect steering assistance.

5. Increased Tyre Wear: A faulty SAS can subtly affect how your tyres interact with the road surface. If the vehicle's electronic systems are receiving incorrect steering angle data, they might be making constant, imperceptible corrections that lead to uneven and premature tyre wear across different parts of the tyre, reducing both tyre life and vehicle performance.

6. Inaccurate Reading on the Steering Wheel Display: On vehicles equipped with a digital display that shows the steering angle, a clear sign of a problem is when the displayed angle on the dashboard doesn't accurately match the actual physical position of the steering wheel. This direct discrepancy points strongly to a sensor issue.

Common Procedures for Steering Angle Sensor Reset

Resetting a steering angle sensor typically requires a diagnostic scan tool, as it involves communicating directly with the vehicle's electronic control units. While specific procedures can vary significantly between manufacturers and models, the general steps often involve:

Firstly, it's paramount to ensure that any necessary wheel alignment adjustments have been completed using a precise system. This mechanical correction forms the foundation upon which the electronic calibration builds.

Following the mechanical alignment, the diagnostic work can begin. Using an advanced diagnostic tool, such as the Snap-on MODIS Edge, the process typically follows these lines:

1. Connect the Diagnostic Tool: Connect the diagnostic scan tool to the vehicle's OBD-II port. From the tool's homepage, select the 'Scanner' option.

2. Vehicle Identification: Allow the tool to identify the vehicle automatically, or manually input the vehicle details (make, model, year, engine size).

3. Navigate to Calibration Menu: Once the vehicle is identified, navigate through the diagnostic menus. Often, you'll find the relevant option under a 'Wheel Alignment' or 'Chassis' menu, or directly as 'Steering Angle Sensor Calibration'.

4. Initiate Calibration: The tool will guide you through the specific steps required for that vehicle model. For example, using a 2014 Peugeot 207 1.6L T-Diesel, you would select the 'Steering Angle Sensor Calibration' option. The system will advise when recalibration is necessary, such as after toe-in adjustments, replacement of the sensor or ESP ECU, or any work on the steering column or front axle.

5. Follow On-Screen Prompts: Crucially, follow all on-screen prompts from the diagnostic tool. These steps are manufacturer-specific and ensure a correct calibration. This might involve centring the steering wheel, turning it lock-to-lock, or holding it in certain positions.

6. Complete Calibration & Verify: Once the calibration process has ended, start the vehicle's engine. A key indicator of successful calibration is that any previously illuminated ABS or stability control warning lights should extinguish. As a final verification, a short road test should be carried out, driving in a straight line for a set period, to confirm that the 'zero calibration' has been correctly completed and that the vehicle handles as expected.

It's worth noting that some newer vehicles may offer simplified calibration methods:

• Self-Calibration: Certain modern vehicles can self-calibrate by simply turning the steering wheel from lock to lock, then centring it, and cycling the ignition. Others may require a specific sequence of actions for the calibration to initiate automatically.

• Test Drive Reset: Vehicles equipped with advanced wheel speed sensors might automatically reset their steering angle sensor the next time the vehicle is driven in a straight line for a short, continuous period, often at motorway speeds.

• Integrated Alignment System Reset: Some high-end wheel alignment systems now have the SAS reset function built directly into them, streamlining the process and eliminating the need for a separate diagnostic procedure after alignment.

Does a Steering Angle Sensor Reset Require a Lift?

A common question among technicians and vehicle owners alike is whether a steering angle sensor reset necessitates the vehicle being on a lift. While some procedures might allow for it, most manufacturers recommend that steering angle sensor calibration is performed with the vehicle on the ground. This ensures that the sensor is calibrated under normal operating conditions, accounting for the vehicle's natural stance and weight distribution.

When in doubt, always refer to the specific vehicle manufacturer's service manual. This document will provide the definitive and correct procedure for your particular make and model, ensuring accurate calibration and optimal system performance. For garages, understanding this procedure and having the right diagnostic tools represents a significant and potentially profitable service opportunity, allowing them to offer a complete and validated repair to customers.

Conclusion

The steering angle sensor, though often out of sight, is a linchpin in the complex safety architecture of modern vehicles. Its accurate calibration is not merely a formality but a fundamental requirement for the correct operation of critical systems like Electronic Stability Control, dynamic headlights, and advanced driver assistance features. Overlooking a steering angle sensor reset after a wheel alignment is a gamble with your vehicle's safety and performance.

By understanding why this reset is crucial, recognising the signs of a faulty sensor, and ensuring the correct diagnostic procedures are followed, you can maintain the integrity of your vehicle's sophisticated systems. For both vehicle owners and automotive professionals, prioritising this often-missed step is vital for a safer, more stable, and ultimately more enjoyable driving experience on the UK's roads.

Frequently Asked Questions (FAQs)

Q1: What exactly is a steering angle sensor (SAS)?

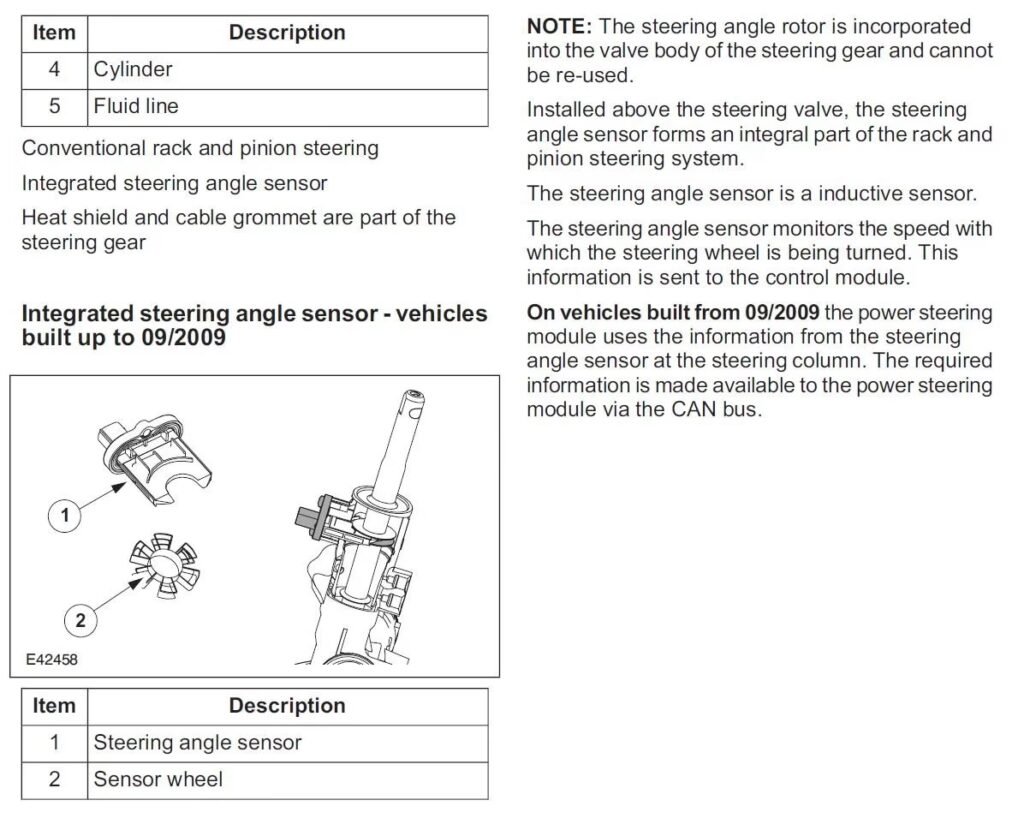

The steering angle sensor is an electronic component, typically located in the steering column, that measures the precise position of the steering wheel and the rate at which it is being turned. It sends this crucial data to the vehicle's Electronic Control Unit (ECU) to inform various safety and driver assistance systems.

Q2: Why is resetting the SAS so important after a wheel alignment?

A wheel alignment changes the physical 'straight ahead' position of your vehicle's wheels. If the SAS isn't reset, it will continue to send data based on its previous 'zero' point, creating a mismatch between what the steering wheel is doing and what the wheels are actually doing. This incorrect information can cripple critical safety systems like Electronic Stability Control (ESC) and Adaptive Cruise Control, leading to dangerous handling issues or system malfunctions.

Q3: What are the common signs of a faulty steering angle sensor?

Key indicators of a faulty SAS include the illumination of warning lights on your dashboard (such as the Check Engine Light, Traction Control Light, or ESC warning light), an incorrect steering wheel alignment even after a proper alignment, unusual steering sensations (e.g., loose, heavy, or imprecise steering), and the malfunctioning of stability and traction control systems. Increased or uneven tyre wear can also be a symptom.

Q4: Do all cars require an SAS reset after wheel alignment?

While older vehicles without Electronic Stability Control (ESC) or advanced driver assistance systems may not require an SAS reset, most modern vehicles equipped with these technologies absolutely do. As vehicle electronics become more integrated, the necessity for SAS calibration after any work affecting steering or suspension geometry has become standard practice.

Q5: Can I reset the steering angle sensor myself without special tools?

In most cases, no. Resetting the steering angle sensor requires a specialised diagnostic scan tool that can communicate with the vehicle's ECU and perform the specific calibration procedure. While some newer vehicles may have limited self-calibration functions (e.g., turning the wheel lock-to-lock), a professional diagnostic tool is generally necessary to ensure accurate and complete calibration.

Q6: Does the vehicle need to be on a lift for an SAS reset?

Generally, no. Most manufacturers recommend performing the steering angle sensor calibration with the vehicle on the ground. This ensures the sensor is calibrated under normal operating conditions, accounting for the vehicle's weight and suspension geometry as it would be when driving normally. Always consult the specific vehicle's service manual for the exact procedure.
