Focus ST Oil Diaphragm Replacement Guide

Many Ford Focus ST owners will be familiar with a common and rather irritating issue affecting the original equipment (OE) oil diaphragm. The tell-tale signs are often a distinctive whistling noise when the engine is idling, and perhaps more concerningly, the vacuum pressure within the crankcase becoming so significant that it actually pulls the dipstick inwards. This phenomenon points directly to a failure in the diaphragm, a critical component responsible for managing crankcase ventilation. Fortunately, this is a problem that can be tackled by the enthusiastic DIY mechanic, and this guide will walk you through the process, detailing what you need, how to do it, and what to expect.

Understanding the Oil Diaphragm's Role

The oil diaphragm, often integrated into the oil filter housing on models like the Focus ST225 and RS Mk2, plays a crucial part in the engine's crankcase ventilation system. This system is designed to remove harmful blow-by gases – unburnt fuel and combustion by-products that escape past the piston rings into the crankcase. Without proper ventilation, these gases can build up pressure, contaminate the engine oil, and lead to sludge formation and increased wear. The diaphragm, in conjunction with the oil separator system, helps to manage this pressure and return oil vapours to the intake to be re-burned. When the diaphragm fails, typically by tearing or becoming brittle with age, it can no longer regulate the vacuum effectively. This leads to the symptoms described: the whistling noise is often the sound of air being drawn through a small tear, and the excessive vacuum can indeed pull the dipstick out of its seating.

Symptoms of a Failed Diaphragm

It's important to be able to identify the problem before you start ordering parts. The most common indicators of a faulty oil diaphragm on your Focus ST include:

• Whistling or Hissing Noise at Idle: This is often the first sign. The sound is usually high-pitched and most noticeable when the engine is running at idle speed.
• Oil Dipstick Being Pulled In: A more dramatic symptom where the vacuum in the crankcase is so strong it physically pulls the dipstick into the engine.
• Rough Idling: While not exclusively caused by a diaphragm failure, a significant vacuum leak can affect the air-fuel mixture and lead to an unstable idle.
• Increased Oil Consumption: In some cases, a faulty diaphragm can lead to oil being drawn into the intake system and burned, resulting in higher oil consumption.
• Engine Management Lights (EML): While less common for just the diaphragm, if the vacuum issue is severe enough to affect sensor readings (like the MAF sensor), an EML could illuminate.

The Replacement Kit Explained

Thankfully, the aftermarket offers comprehensive kits to address this common ST Focus issue. A typical replacement kit will include:

• New Oil Filter Housing and Diaphragm Assembly: This is the core of the replacement. Reputable kits will provide a unit that directly replaces the OE part and is often an upgraded design. The example provided mentions a newer 2015 design that supersedes the original factory-fitted unit, suggesting improved durability and performance.
• New Rubber Breather Pipe: The original breather pipe can also degrade over time, becoming brittle and prone to cracking. A good kit will include a fresh rubber replacement.
• New Clamp: A new clamp for the breather pipe ensures a secure and leak-free connection. This is an often-overlooked part that is essential for a proper repair.

By replacing the diaphragm, filter housing, and breather pipe as a complete assembly, you ensure that all potential failure points in this system are addressed simultaneously, offering a more robust and long-lasting repair.

DIY Replacement Procedure

Replacing the oil diaphragm on your Focus ST225 or RS Mk2 is a manageable task for a competent DIYer. While specific steps can vary slightly, the general process involves:

Tools and Parts Required:

• The comprehensive oil filter housing and diaphragm replacement kit.
• Appropriate socket set and wrenches (metric sizes).
• Torque wrench.
• Sump drain pan.
• New engine oil (check your owner's manual for the correct type and quantity).
• New oil filter (often included in the kit, but confirm).
• Gloves and safety glasses.
• Rags or shop towels.

Step-by-Step Guide:

1. Preparation: Ensure the engine is cool before starting. Park the car on a level surface and engage the handbrake. It's advisable to disconnect the battery's negative terminal for safety.
2. Access: You may need to remove some undertrays or engine covers to gain access to the oil filter housing. Consult your vehicle's service manual or reliable online resources for specific instructions related to your ST model.
3. Drain Engine Oil: Place a suitable drain pan beneath the engine's sump. Remove the sump plug and allow all the old engine oil to drain out completely. Once drained, replace the sump plug, ensuring it's tightened to the manufacturer's specified torque.

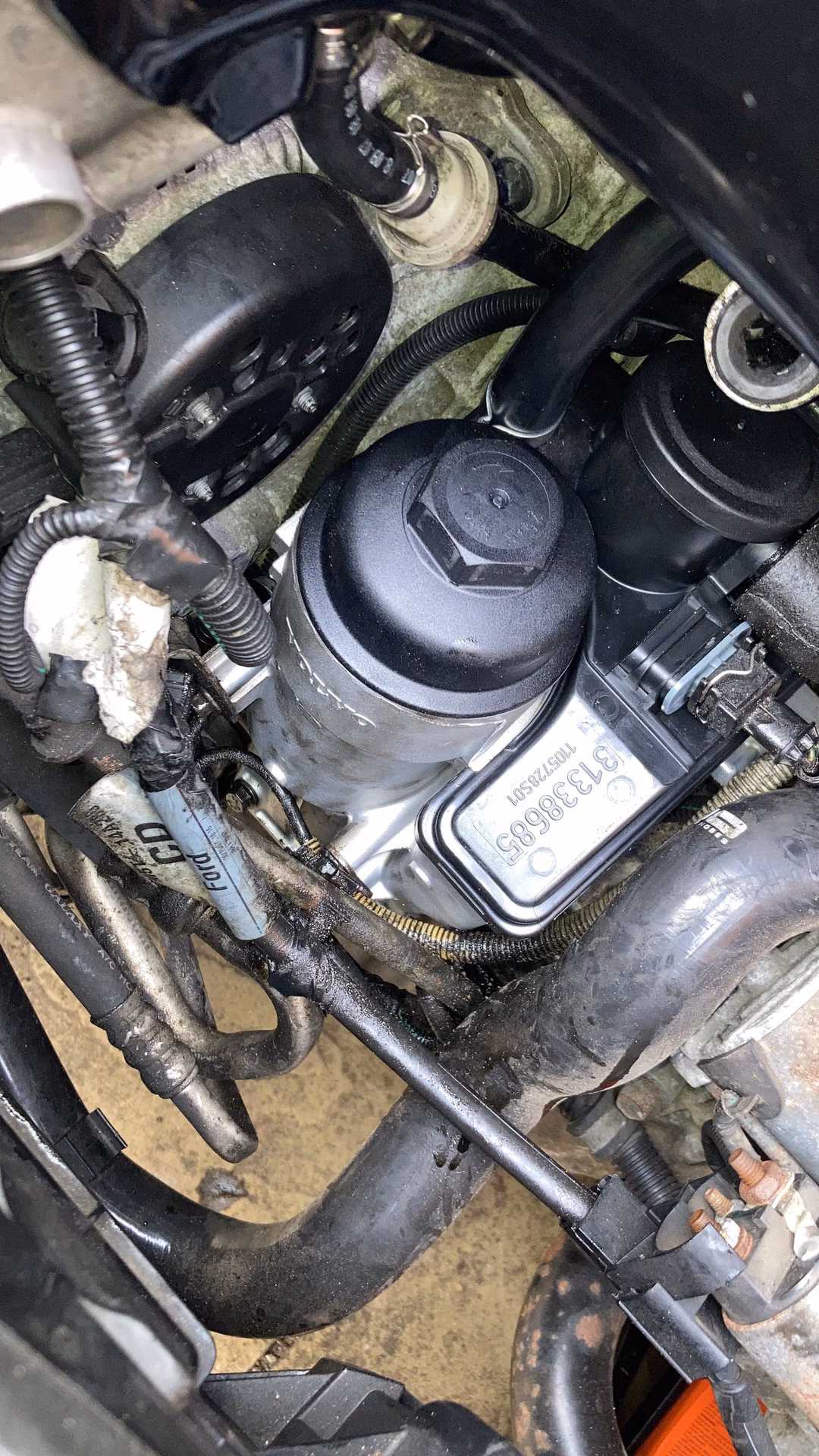

4. Locate and Remove the Oil Filter Housing: The oil filter housing is typically located on the front or side of the engine block. It will have several bolts securing it. Carefully loosen and remove these bolts. As you do this, be prepared for some residual oil to spill out, so have rags ready.
5. Remove the Old Diaphragm/Housing: Once the housing is free, you can carefully separate the old diaphragm or the entire housing assembly. Inspect the old part for signs of tearing or damage to confirm the diagnosis.
6. Install New Breather Pipe and Clamp: Before fitting the new housing, attach the new rubber breather pipe and clamp to the appropriate connection point on the new assembly, as per the kit's instructions.
7. Install New Housing and Diaphragm: Carefully fit the new oil filter housing and diaphragm assembly. Ensure the gasket or sealing surface is clean and free from debris. Re-install the securing bolts and tighten them evenly in a star pattern to the manufacturer's specified torque. Over-tightening can damage the housing or mounting surface.
8. Refill Engine Oil: With the new housing in place, refill the engine with the correct type and quantity of fresh engine oil. Check your owner's manual for the exact specification.
9. Reconnect Battery and Start Engine: Reconnect the battery's negative terminal. Start the engine and allow it to idle. Check for any leaks around the new oil filter housing and breather pipe. Listen for the whistling noise – it should be gone.
10. Check Oil Level: Once the engine has run for a few minutes and the oil has circulated, turn it off and wait a few minutes for the oil to settle. Check the oil level on the dipstick and top up if necessary.

Professional Fitting

While the DIY approach is feasible, some owners may prefer to have this job carried out by professionals. The Pumaspeed Workshop team, for instance, quotes an estimated labour time of 1.75 hours for this replacement. Their estimated cost for parts and labour is around £579.14 (inc. VAT). It's important to note that this is an estimate, and unforeseen issues like seized bolts due to age or corrosion could increase the time and cost involved. Always discuss potential complications with your chosen workshop beforehand.

Comparison: OE vs. Aftermarket Replacement

Here's a brief comparison to highlight the benefits of using a dedicated aftermarket replacement kit:

Frequently Asked Questions (FAQs)

Q1: How long does it take to replace the oil diaphragm?

A: For a DIYer with basic tools and experience, it can take approximately 2-3 hours. Professional workshops estimate around 1.75 hours.

Q2: Can I just replace the diaphragm, or do I need the whole housing?

A: While theoretically possible to replace just the diaphragm if it's a separate component, most aftermarket solutions and the most effective repair involve replacing the entire oil filter housing and diaphragm assembly, as the housing itself can sometimes be distorted or the diaphragm bonded within.

Q3: What happens if I don't replace the faulty diaphragm?

A: Continued use with a faulty diaphragm can lead to increased crankcase pressure, potential oil leaks, oil contamination, sludge build-up, and in severe cases, damage to seals and gaskets due to excessive vacuum. The whistling noise is also a persistent annoyance.

Q4: Is this a common problem on the Focus ST225 and RS Mk2?

A: Yes, this is a well-documented and relatively common issue on these specific models due to the age and design of the original diaphragm.

Q5: What torque should I use for the housing bolts?

A: Always refer to a vehicle-specific service manual for the exact torque specifications. Generally, these bolts are tightened to a relatively low torque value to avoid damaging the aluminium housing. For example, it might be in the range of 10-15 Nm, but always confirm.

Q6: Do I need to change the engine oil and filter when replacing the diaphragm?

A: Yes, it is highly recommended. Since you will be draining the oil to access the housing, it's the perfect opportunity to fit a new oil filter and fresh engine oil, ensuring the engine is properly lubricated with clean oil.

By understanding the symptoms and following the correct procedure, you can effectively tackle the oil diaphragm issue on your Ford Focus ST, restoring proper engine function and peace of mind.
